S8T26F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> S8T26F

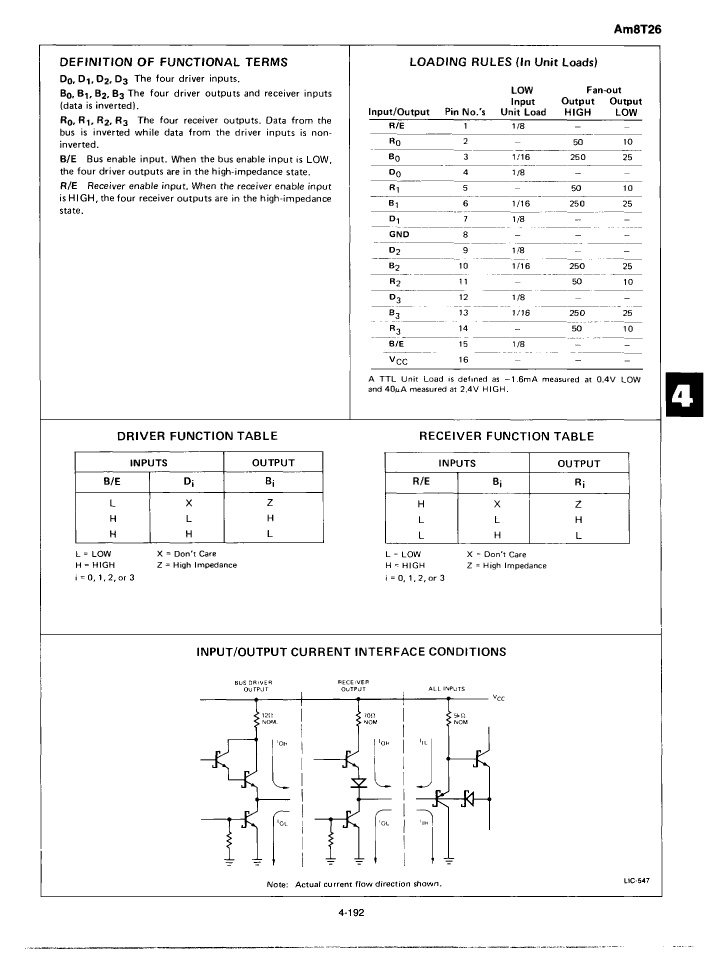

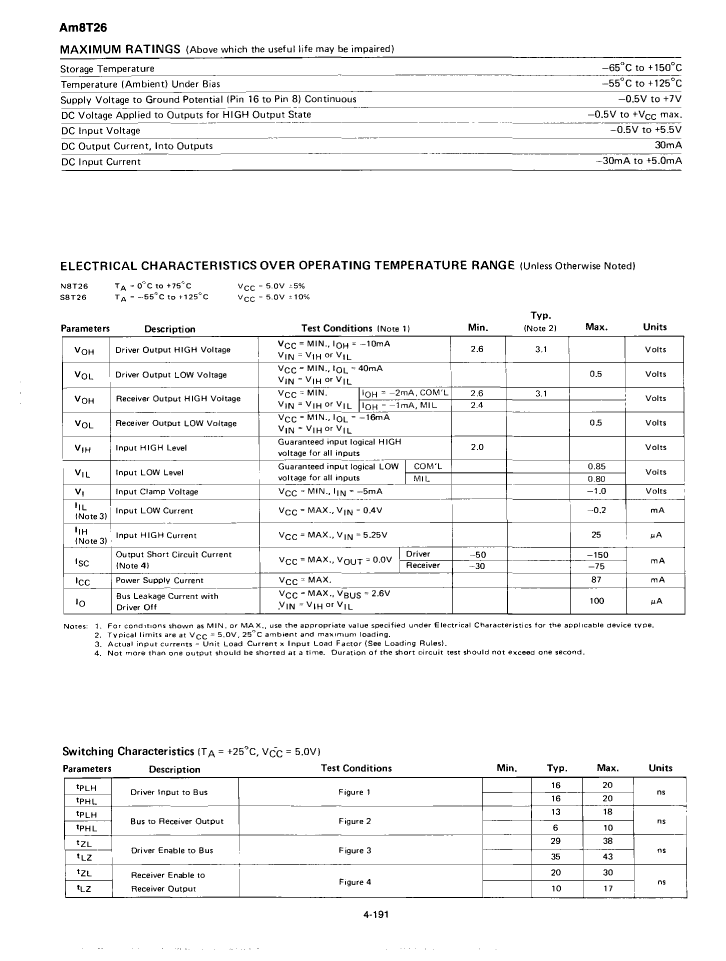

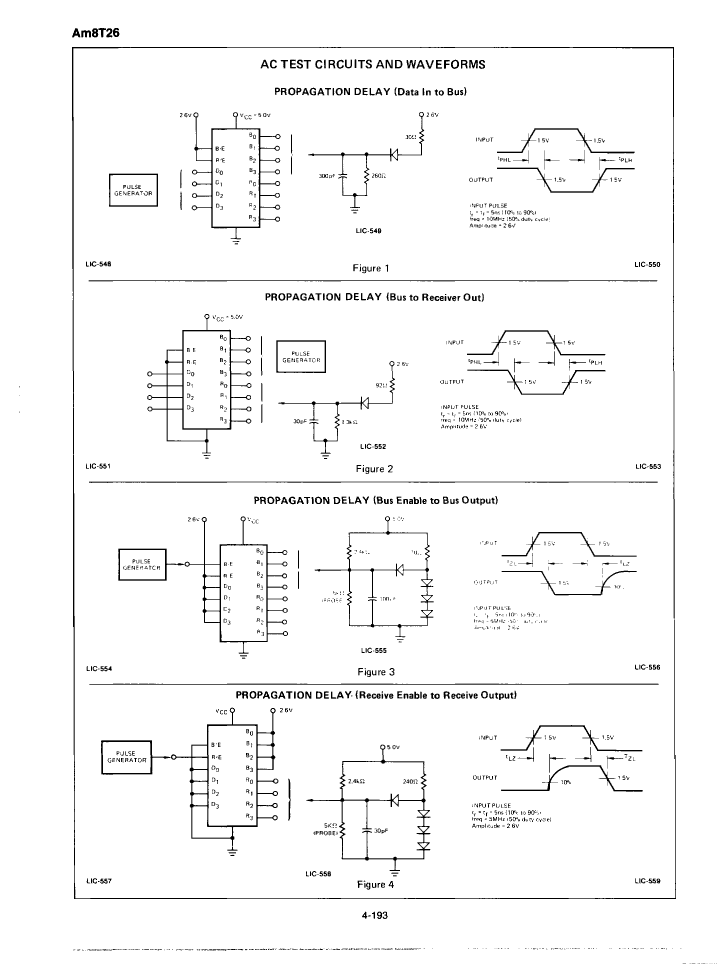

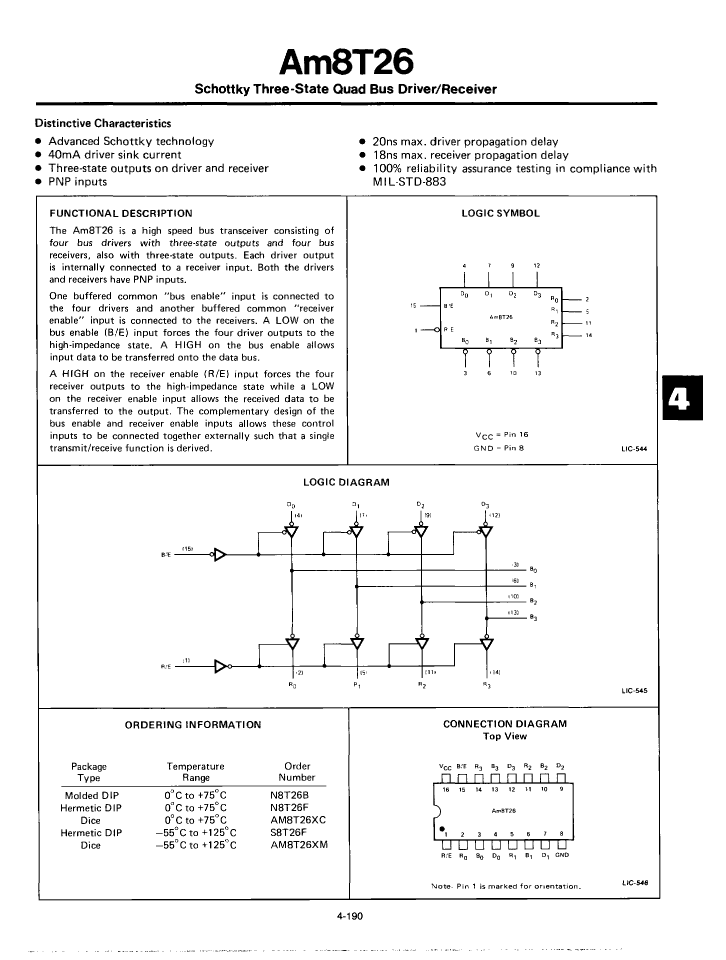

Preview

S8T26F: DescriptionLine Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size119KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

S8T26F Overview

Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16

S8T26F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	NO
Number of drives	4
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.431 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum receive delay	18 ns
Number of receiver bits	4
Maximum seat height	5.08 mm
Maximum slew rate	87 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	20 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

S8T26F Related Products

	S8T26F	AM8T26XC	S8T26F2	N8T26F	N8T26B
Description	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, 0.063 X 0.082 INCH, DIE-16	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Transceiver, 1 Func, 4 Driver, 4 Rcvr, BIPolar, PDIP16, PLASTIC, DIP-16
Parts packaging code	DIP	DIE	DIP	DIP	DIP
package instruction	DIP,	DIE,	DIP,	DIP,	DIP,
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	NO	NO	NO	NO	NO
Number of drives	4	4	4	4	4
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-CDIP-T16	R-XUUC-N16	R-CDIP-T16	R-CDIP-T16	R-PDIP-T16
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	75 °C	125 °C	75 °C	75 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIE	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	UNCASED CHIP	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	4	4	4	4	4
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL EXTENDED	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	UPPER	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible
JESD-609 code	e0	-	-	e0	e0
length	19.431 mm	-	19.431 mm	19.431 mm	19.304 mm
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Maximum receive delay	18 ns	-	18 ns	18 ns	18 ns
Maximum seat height	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	87 mA	-	87 mA	87 mA	87 mA
Maximum supply voltage	5.5 V	-	5.5 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	-	4.5 V	4.75 V	4.75 V
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
maximum transmission delay	20 ns	-	20 ns	20 ns	20 ns
width	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm
Maker	-	-	AMD	AMD	AMD
