111-16M-NC-57: DescriptionToggle Switch, SPST, Latched And Momentary, 6A, 125VDC, Wire Terminal, Bat Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size124KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric View All

111-16M-NC-57 Overview

Toggle Switch, SPST, Latched And Momentary, 6A, 125VDC, Wire Terminal, Bat Type Actuator, Panel Mount-threaded

111-16M-NC-57 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	BAT TYPE
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@125VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Electrical life	25000 Cycle(s)
Manufacturer's serial number	111
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	66 °C
Minimum operating temperature	-18 °C
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Carling

Technologies

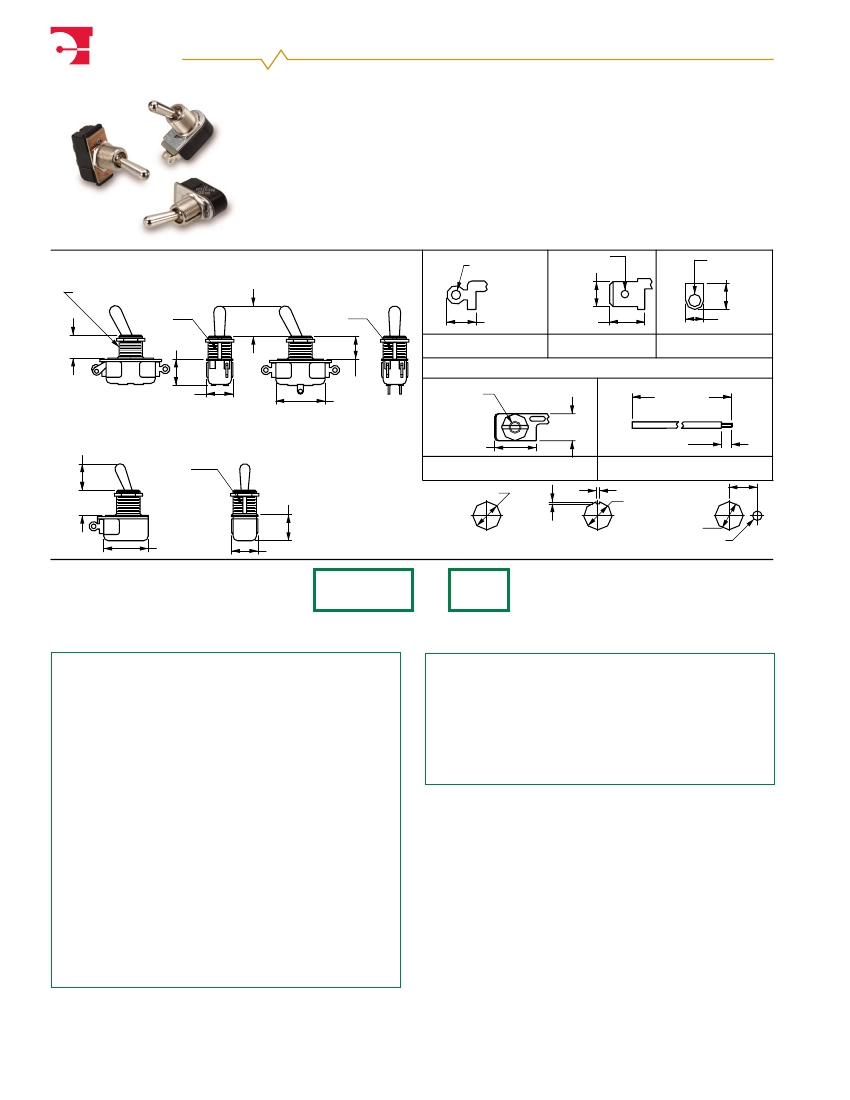

110-Series Heavy Action Toggle Switches

™

110-Series Heavy Action Toggle Switches

The 110-Series is a compactly designed, versatile metal

construction toggle switch which is appropriate for a variety

of uses. Features include single or double pole options,

maintained or momentary construction with termination

choices including solder lug end or bottom, wire leads and

.250 tab terminals. The quick make/quick break contact

mechanism makes the switch suitable for high voltage

(125-250 volt) applications. This switch is popular within

the Small Appliance, Floor Maintenance, and most low cur-

rent AC/DC market segments.

.093[2.36] DIA

15/32-32UNS-2A

THREAD

Dielectric Strength

UL/CSA:

1000 - live to dead

metal parts & opposite polarity

Electrical Life

25,000 cycles

Mechanical Life

50,000 cycles

Operating Temperature

0°F to 150°F (-17.8°C to +65.6°C)

.075[1.90] DIA

.250[6.35]

.070[1.77] DIA

.174[4.42]

KEYWAY

.072[1.82]

.038[.965] DP

.580[14.73]

.687[17.46]

KEYWAY

.072[1.82]

.038[.965] DP

.293[7.44]

SOLDER LUG

.351[8.92]

.250 TAB (Q.C.)

(SPST only)

.120[3.05]

SOLDER LUG

(bottom)

.465[11.81]

TERMINAL TYPE

.465[11.81]

.528[13.41]

112, 2BK, 2BL

SERIES

.687[17.46]

.984[25.00]

2BL62

SERIES

#6-32NC-2

THREAD

6.000[152.4]

.270[6.86]

.415[10.54]

SCREW

(ASSEMBLED)

.500[12.70]

INTEGRATED WIRE LEAD

(no exposed conductors)

.376[9.55]

.062[1.57]

.500[12.70] DIA

.038[9.65]

MOUNTING HOLE

WITH KEYWAY

.500[12.70] DIA

.125[3.17] DIA

WITH LOCKING RING

KEYWAY

.072[1.82]

.038[.965] DP

.560[14.22]

.500[12.70] DIA

.465[11.81]

110 SERIES

.890[22.60]

.524[13.31]

110

Base Part Number

Actuator Style

1 BASE PART NUMBER: SERIES/CIRCUITRY

/RATING/TERMINATION

3A 250V, 6A 125V, AC/DC

solder lug

screw

wire

(end)

(bottom)

terminals

leads

Single Pole

ON-NONE-OFF

110

110-B

110-S

111-16

OFF-NONE-(ON)

110-M-NO

110-BM-NO

110-SM-NO

111-16M-NO

ON-NONE-(OFF)

110-M-NC

110-BM-NC

110-SM-NC

111-16M-NC

Double Pole

ON-NONE-OFF

2BK62

2BK65

ON-NONE-ON

2BL62

2BL65

1A 250V, 3A 125V, AC/DC

Single Pole

ON-NONE-ON

112

ON-NONE-(ON)

112-M

Double Pole

ON-NONE-OFF

216

OFF-NONE-(ON)

216-M-NO

ON-NONE-(OFF)

216-M-NC

ON-NONE-ON

316

ON-NONE-(ON)

316-M

2 circuit

1 ON - 1 OFF

516

1 (ON) - 1 (OFF)

516-M

6A 120VAC

Single Pole

ON-NONE-ON

2 ACTUATOR STYLE

BAT STYLE TOGGLE

unsealed

sealed

BALL STYLE TOGGLE

unsealed

sealed

toggle length

0.375

0.500

0.687

toggle length

0.375

bushing length

0.343

0.465

bushing length

0.250

0.343

0.875

316-B

316-BM

516-B

516-BM

112-A

112-M-A

216A

216A-M-ANO

216A-M-ANC

516-A

516-AM

2BB62

2BB65

5A 250V, 10A 125V, 1/4HP, 125V

Single Pole

ON-NONE-OFF

160H

160H-B

NOTES

()

160H-S

160H-A

Momentary function only available with 73 toggles.

160H and 110-Series are available with .250 tab terminals. Add suffix /TABS to end of part number. ex. 110-73/TABS

Indicates momentary function.

www.carlingtech.com
