DRO-L-FREQ-VT-ST: DescriptionMECHANICAL TUNED DRO, 20000 MHz - 22000 MHz; CategoryPassive components oscillator; File Size86KB，3 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric Compare View All

DRO-L-FREQ-VT-ST Overview

MECHANICAL TUNED DRO, 20000 MHz - 22000 MHz

DRO-L-FREQ-VT-ST Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA FEMALE CONNECTOR
frequency stability	225%
Maximum harmonic level	-20 dBc
Manufacturer's serial number	L
Installation features	CHASSIS MOUNT
offset frequency	10 kHz
Maximum operating frequency	22000 MHz
Minimum operating frequency	20000 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	MECHANICAL TUNED DRO OSCILLATOR
Output Power	11 dBm
phase noise	75 dBc/Hz
physical size	36.83mm x 26.67mm x 12.19mm
power change	1.5 dB
Maximum slew rate	120 mA
Nominal supply voltage	15 V
surface mount	NO
tuning range	25 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

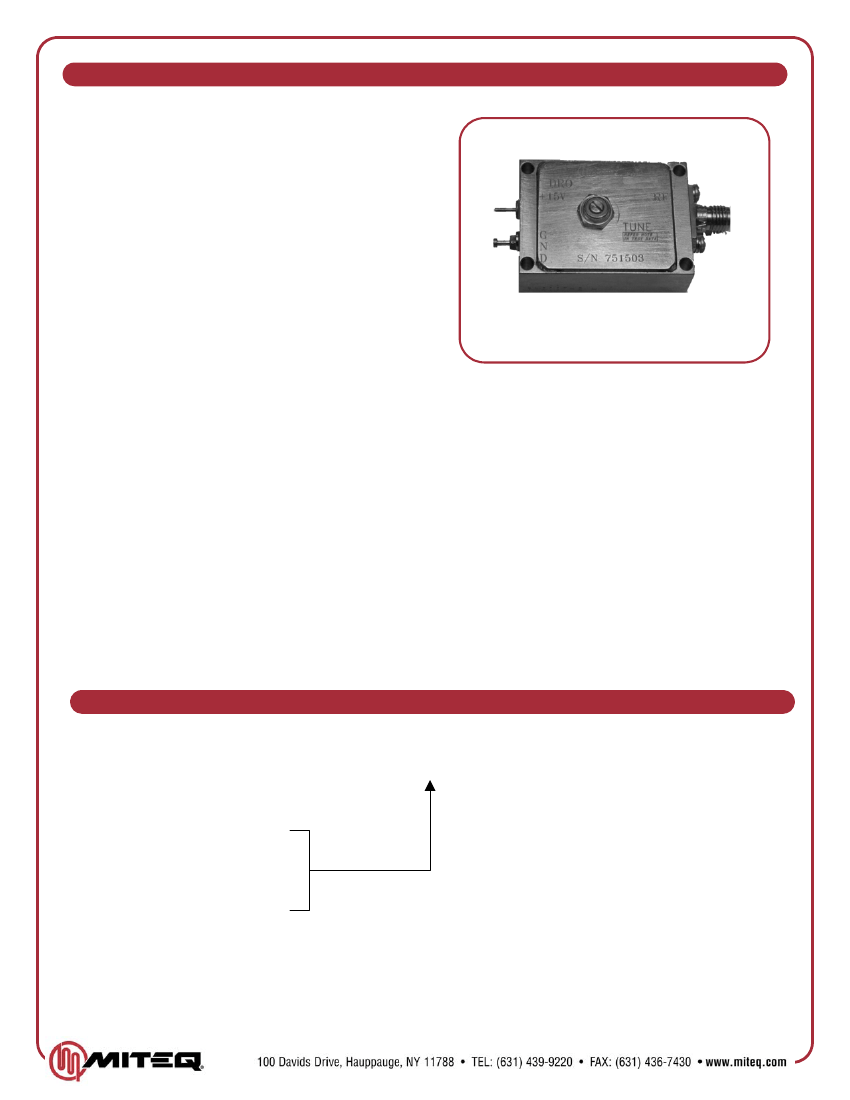

MECHANICALLY-TUNED DIELECTRIC RESONATOR OSCILLATORS

DRO SERIES: L

FEATURES

• Ultra-clean source ideal for low

spur application

• Miniaturized design

• High-reliability construction

• Low phase noise

OPTIONS

• High power (-HP-ST)

• Voltage tuning (-VT-ST)

• Special (-SP) (please contact factory before ordering)

MECHANICAL SPECIFICATIONS

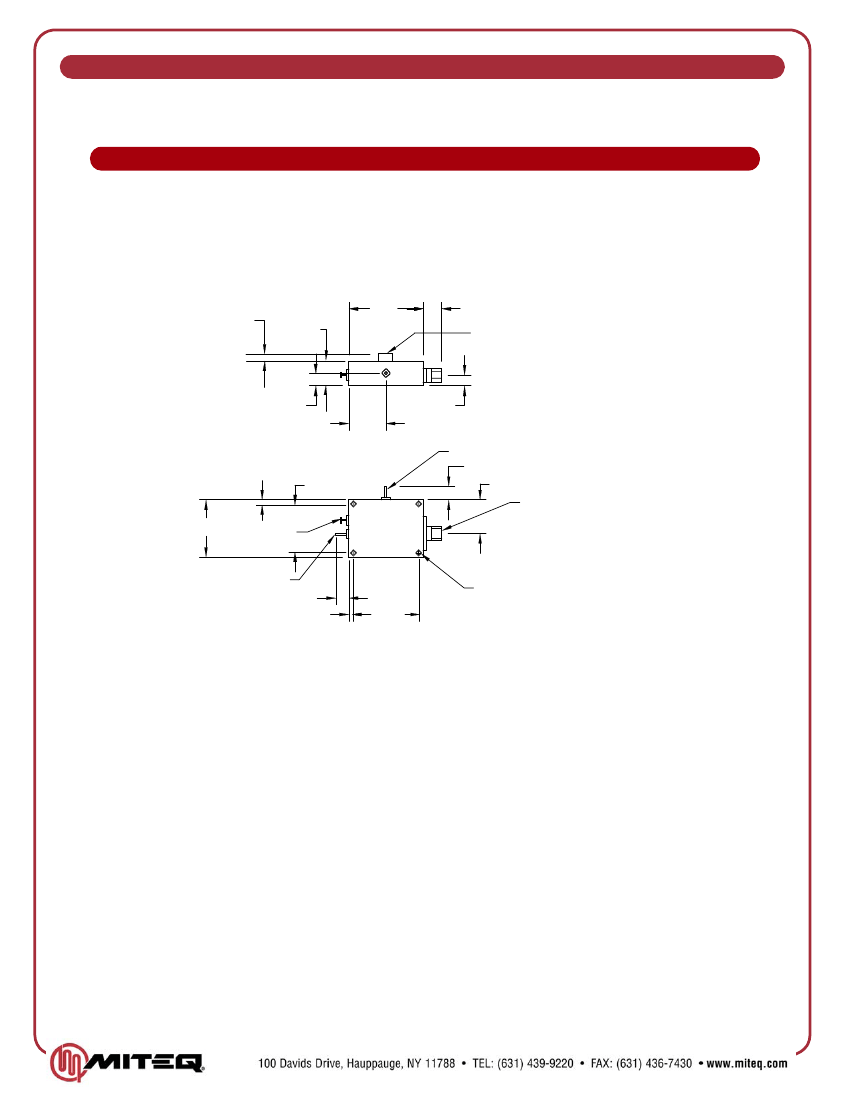

Outline number

5…………………1.05” x 1.45” x 0.63”

Weight ……………….Frequency dependent, please

consult MITEQ where critical

RF connectors……….SMA female

DC connectors………Feedthru filter

ENVIRONMENTAL SPECIFICATIONS

MITEQ’s standard dielectric resonator oscillators have been

designed to meet the following maximum environmental conditions.

Operating temperature ............... -55 to +95°C

Storage temperature .................. -65 to +115°C

Humidity ............…….................. 95% at 40°C,noncondensing

Shock (survival).......................... 30 g’s, 10 ms pulse

Vibration (survival) ..........…........ 20 to 2000 Hz random to 4 g’s rms

ORDERING INFORMATION

DRO -

L

Series

- _ _ _ _ _ - _______

Frequency

Type

ST: standard

HP-ST: high power standard

VT-ST: voltage tunable standard

SP: special

Example 1: 20.5 GHz DRO standard: DRO-L-20500-ST.

Example 2: 21 GHz DRO with +17 dBm power: DRO-L-21000-HP-ST.

Example 3: 21.4 GHz DRO with any specification different than listed in catalog

DRO-L-21400-SP, please contact MITEQ.

WN-177687 8/17/2007

DRO-L-FREQ-VT-ST Related Products

	DRO-L-FREQ-VT-ST	DRO-L-FREQ-SP	DRO-L-FREQ-HP-ST	DRO-L-FREQ-ST
Description	MECHANICAL TUNED DRO, 20000 MHz - 22000 MHz	Mechanical Tuned DRO, 20000MHz Min, 22000MHz Max	MECHANICAL TUNED DRO, 20000 MHz - 22000 MHz	MECHANICAL TUNED DRO, 20000 MHz - 22000 MHz
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA FEMALE CONNECTOR	SMA FEMALE CONNECTOR	SMA FEMALE CONNECTOR	SMA FEMALE CONNECTOR
frequency stability	225%	225%	225%	225%
Maximum harmonic level	-20 dBc	-20 dBc	-20 dBc	-20 dBc
Manufacturer's serial number	L	L	L	L
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
offset frequency	10 kHz	10 kHz	10 kHz	10 kHz
Maximum operating frequency	22000 MHz	22000 MHz	22000 MHz	22000 MHz
Minimum operating frequency	20000 MHz	20000 MHz	20000 MHz	20000 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	MECHANICAL TUNED DRO OSCILLATOR	MECHANICAL TUNED DRO OSCILLATOR	MECHANICAL TUNED DRO OSCILLATOR	MECHANICAL TUNED DRO OSCILLATOR
Output Power	11 dBm	11 dBm	17 dBm	11 dBm
phase noise	75 dBc/Hz	80 dBc/Hz	80 dBc/Hz	80 dBc/Hz
physical size	36.83mm x 26.67mm x 12.19mm	36.83mm x 26.67mm x 12.19mm	36.83mm x 26.67mm x 12.19mm	36.83mm x 26.67mm x 12.19mm
power change	1.5 dB	1.5 dB	1.5 dB	1.5 dB
Maximum slew rate	120 mA	120 mA	260 mA	120 mA
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
tuning range	25 MHz	10 MHz	10 MHz	10 MHz
Base Number Matches	1	1	1	1
