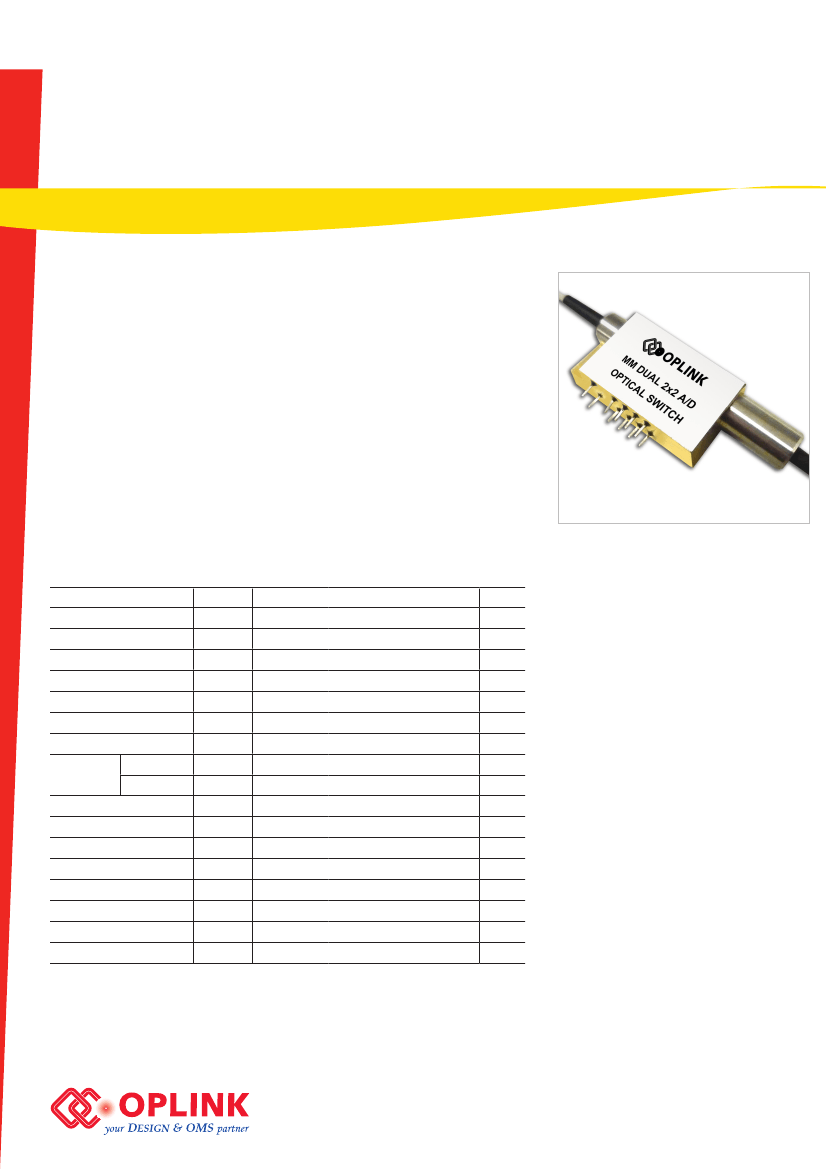

OFMS Series Multi-mode Dual 1x2 or 2x2
Add/Drop Optical Fiber Switches
OFMSMMD Series
Product Description
Oplink’s OFMS series optical fiber switches offer industry leading perfor-
mance specifications with Telcordia compliant reliability. The new switch
functions as two 1x2 or 2x2 Add/Drop multi-mode switches that are simul-
taneously switched together. The dual 1x2 or 2x2Add/Drop switch is housed
in the similar package as the Oplink OFMS series standard switches while
maintaining superior optical performance.
Oplink provides customized design to meet special control and applications.
Also, Oplink offers modular assemblies that integrate other components to
form a full function module or subsystem.
Performance Specificationns
Parameters
Symbol
Min
Typ.
Max
Unit
Switch Type
Wavelength Range
Insertion Loss
Cross-talk
Repeatability
Return Loss
Optical Input Power
Coil Resis-
tance
Durability
Cycle Rate
Switch Relay Type
Driving Voltage
2
1
Dual 1x2 or 2x2 Bypass
λ
op
IL
35
±0.05
RL
Latching
Non-latching
850, 1310 or 1550
1.0
nm
dB
dB
dB
dB
300
mW
Ω
Ω
10
ms
cycle
10
Hz
VDC
70
80
°C
°C
Applications
Features
Compact Size
Low Insertion Loss
Seam-seal Package
Latching or Non-latching Configurations
Highly Stable & Reliable
30
101.2 ± 10%
145 ± 10%
10
7
Two coils, latching or single coil, non-latching
Switching Speed
4.5 ~ 5.5
T
op
T
sto
0
-40
Node Bypass Protection
Configurable Add/Drop
Operating Temperature
Storage Temperature
Fiber Type
50μm or 62.5μm core multi-mode fiber
Notes:
1) Based on FOTP-34 method A, steady state equilibrium launch conditions. Within operating tempera-
ture range. Exclude connector insertion loss.
2) A minimum >20ms pulse is recommended for latching type of switch.
R01.20090522
OFMS Series Multi-mode Dual 1x2 or 2x2
Add/Drop Optical Fiber Switches
OFMSMMD Series
Function Diagram
Dual 1x2 Switch
Dual 2x2 Add/Drop Switch
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
OFMS
D
2
M
Multi-mode
Type
Dual 1x2 = D12
Dual 2x2 Add/Drop = D22
Switch Type
Latching = 0
Non-latching = 1
Fiber Length
0.5 meter = H
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
Connector
Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Wavelength
850nm = 8
1310nm = 3
1550nm = 5
Fiber Type
MMF 50/125 fiber = 1
MMF 62.5/125 fiber = 2
Package Type
P1 (bare fiber) = 1
P2 (900μm loose tube) = 2
Mounting Type
Dual-line pins on the bottom = 0
Single-line pins on the side with screw tabs = 1
R01.20090522
