DBF71B105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DBF71B105

DBF71B105: DescriptionBand Pass Filter, 2441MHz; CategoryAnalog mixed-signal IC filter; File Size107KB，4 Pages; ManufacturerSoshin Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DBF71B105 Overview

Band Pass Filter, 2441MHz

DBF71B105 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Maximum attenuation frequency	2170 MHz
Attenuation at maximum frequency	35 dB
Center frequency or cutoff frequency (fo/fc)	2441 MHz
filter type	BAND PASS FILTER
high	1.2 mm
input resistance	50 OHM
Maximum insertion loss	3.9 dB
length	2.5 mm
Installation type	SURFACE MOUNT
Output impedance	50 OHM Ω
method of packing	REEL
physical size	L2.5XB2.0XH1.2 (mm)/L0.098XB0.079XH0.047 (inch)
voltage standing wave ratio	2
width	2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

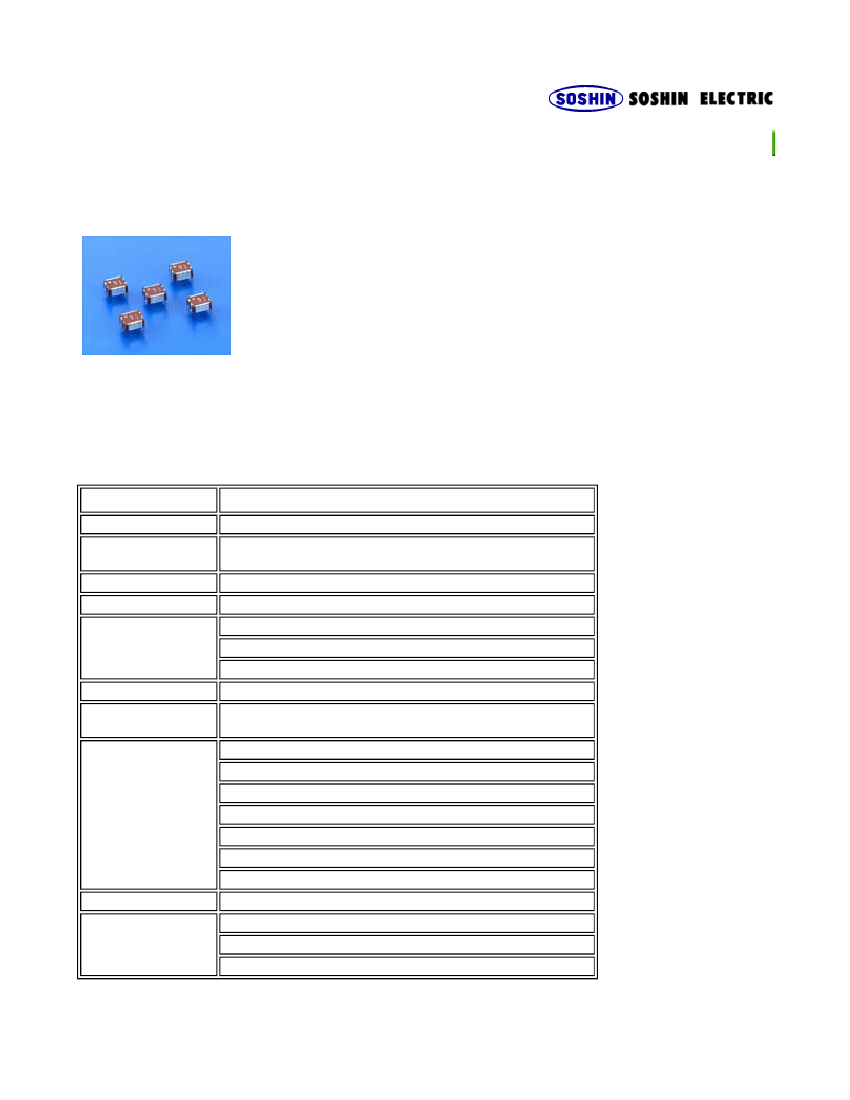

SOSHIN ELECTRIC CO., LTD.

Page 1 of 4

DBF71B105

Bluetooth

NEW

Multilayered dielectric Balanced Filters have filter and a balun put in one single dielectric body by using

Mechanical samples

Application

for Bluetooth

Characteristics

DBF71B105

Unbalance impedance

Balance impedance

Center frequency

Pass band

Insertion loss

Ripple

Unbalance port

V.S.W.R

50 ohm Nominal

Conjugate mutch to BC03 sreies of Cambridge Silicon Radio Ltd.

Nominal.

2441MHz

2402-2480MHz

3.5 dB max (2402-2480MHz at 25 Deg.C)

3.8 dB max (2402-2480MHz at -45 up to +85 Deg.C)

3.9 dB max (2402-2480MHz at +85 up to +105 Deg.C)

1.5 dB max (2402-2480MHz)

2.0 max (2402-2480MHz)

48 dB min (880-960MHz)

48 dB min (1573.42-1577.42MHz)

48 dB min (1710-1880MHz)

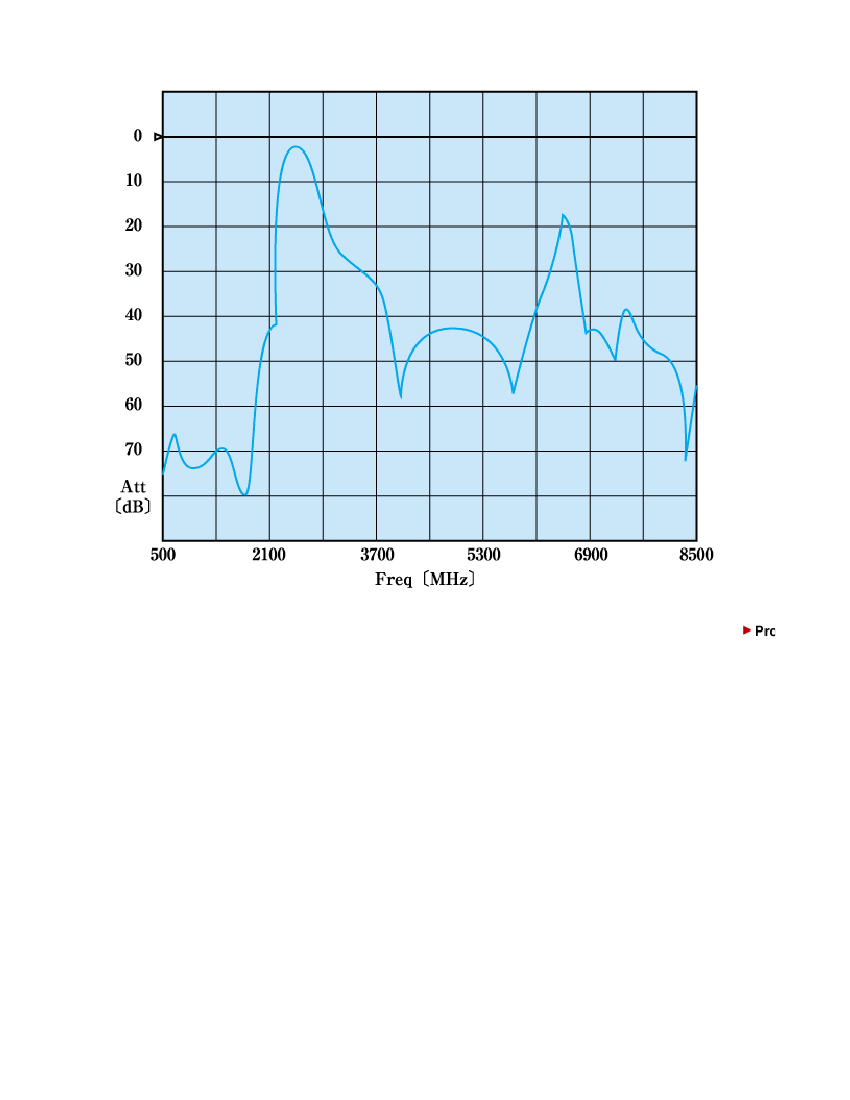

Attenuation

40 dB min (1880-1980MHz)

35 dB min (2110-2170MHz)

30 dB min (4804-4960MHz)

30 dB min (7206-7440MHz)

Amplitude balance

Phase differential

1.0 dB max (2402-2480MHz)

174-186 Deg. (2402-2480MHz at 25Deg.C)

171-189 Deg. (2402-2480MHz at -45 up to +85 Deg.C)

170-190 Deg. (2402-2480MHz at +85 up to +105 Deg.C)

Number of ordered pieces

http://info.tactnet.co.jp/cgi-bin/soshin/eprodetl.cgi?pf=0202&pm=0202&pn=DBF71B105

10/23/2007
