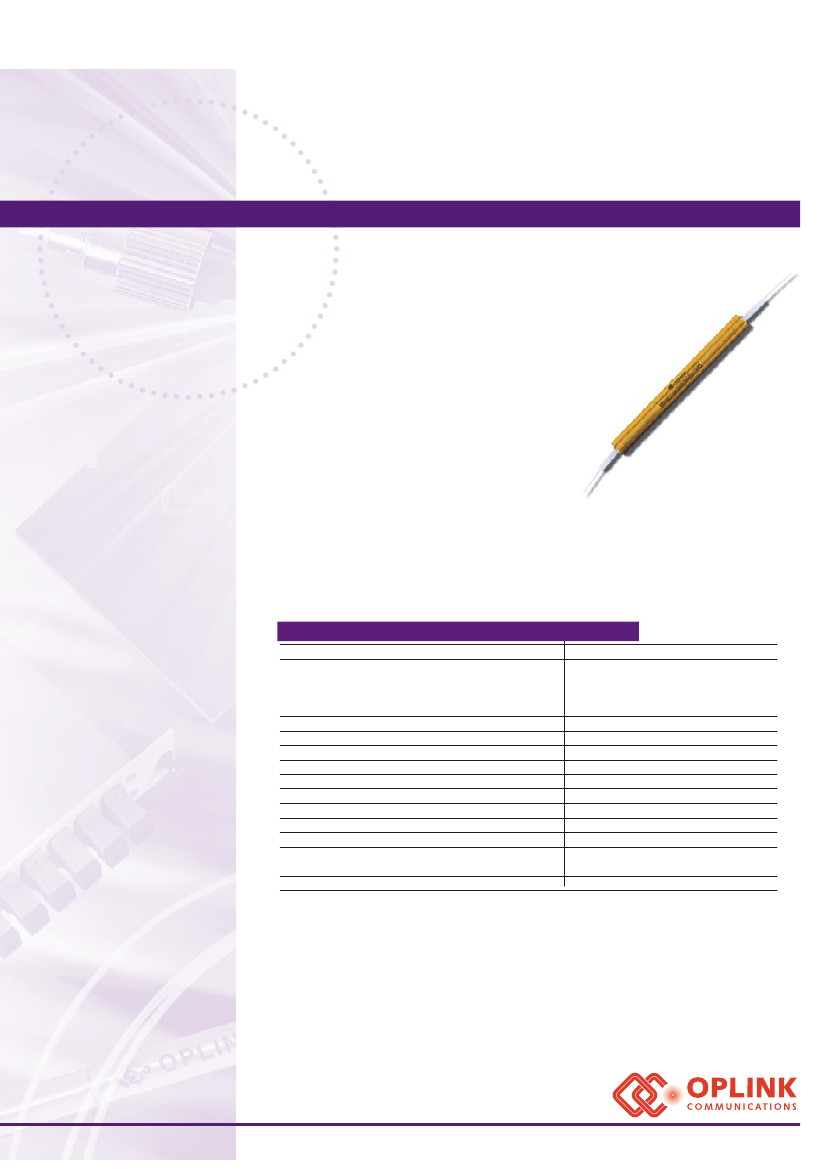

Mini Polarization Insensitive
Fiber Isolator (Single Stage)
Mini OISS Series
Features
•
Super Compact Size
•
Low Insertion Loss
•
Low Insertion Loss Variation
Over Wavelength
•
High Power Handling
•
Highly Stable & Reliable
•
Epoxy-Free Optical Path
•
80
µm
Fiber Pigtail Option
Mini Polarization Insensitive Fiber Isolator (Single Stage)
Oplink's state of the art, mini polarization-insensitive isolators offer the smallest
package size, 3.0×25mm, which saves 60% real estate comparing to standard
isolators, with excellent performance such as super low insertion loss, low
polarization dependent loss (PDL), low wavelength dependent loss
(WDL), and high isolation. Low PMD version is also available. It also
has a package option with 80mm reduced cladding fiber pigtail,
which results in small bending radius and low bending losses.
Oplink mini isolator can sustain high optical power
due to its optical path epoxy-free packaging. It is
qualified to Telcordia GR-1221 standards.
Applications
•
EDFA & Raman Amplifiers
•
Fiberoptic Instruments
•
Fiberoptic Network links
•
Transmitters and Fiber
Lasers
Performance Specifications
Mini OISS Series
P Grade
A Grade
Units
Operating Wavelength Range
†
1310 ± 15
1480 ± 15
1528 ~ 1564
or 1570 ~ 1605
0.35
22
0.1
55/50
0.05
0.25
0.40
21
0.1
55/50
0.10
0.25
nm
Insertion Loss Max. (over operating wavelength range,0~70°C,all SOP)
Isolation Min. (over operating wavelength range,0~70°C,all SOP)
Wavelength Dependent Loss Max.
Return Loss ( Input / Output )
Polarization Dependent Loss (PDL) Max.
†
Polarization Mode Dispersion (PMD) Max
Maximum Power Handling
Operating Temperature
Storage Temperature
Fiber Type
2
0 to +70
-40 to 85
SMF-28, 250
µm
Bare Fiber
PureMode RC SMF-28 80µm
P3: (
φ)3.0
x (L)25
dB
dB
dB
dB
dB
ps
W
°C
°C
Oplink Fiber Optic
Product Lines
Amplifier Components
Amplifier Modules
DW DMs
Switching/Routing/
Monitoring/ Conditioning
Transmission
RGB Laser Modules
Package Dimension *
mm
Values are referenced without connector loss.
* The mechanical tolerance should be +/- 0.2 mm on all package dimensions unless otherwise custom specified.
†
For Low PMD version, the PMD (max.) spec is 0.05 ps, and insertion loss spec is 0.05dB higher
Oplink Communications, Inc.
Mini Polarization Insensitive Fiber Isolator (Single Stage)
Mechanical Footprint
Dimension (unit: mm)
∅
(mm)
INPUT
L(mm)
OUTPUT
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For
detail,
please contact Oplink's
OEM design team or account manager for your requirements and ordering information (510) 933-7200.
OISS
0
3
Wavelength
1310 nm=1310
1480 nm=1480
1550 nm=1550
1585 nm=1585
Grade
P Grade = P
A Grade = A
PMD Options
Standard = S
Low PMD = L
Package Type
P3 = 3
Fiber Length
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
0.5 Meter = H
Fiber Type
SMF-28 250
μm
=1
PureMode RC SMF-28 80μm =8*
Note: *no connector options for PureMode RC SMF-28
80μm fiber.
Connector
Type
None = 1
FC/PC=2
FC/SPC=3
FC/APC=4
SC/PC=5
SC/SPC=6
SC/APC=7
ST=8
LC=9
MU=A
46335 Landing Parkway Fremont, CA 94538 Tel: (510)
933-7200
Fax: (510)
933-7300
Email: Sales@Oplink.com
