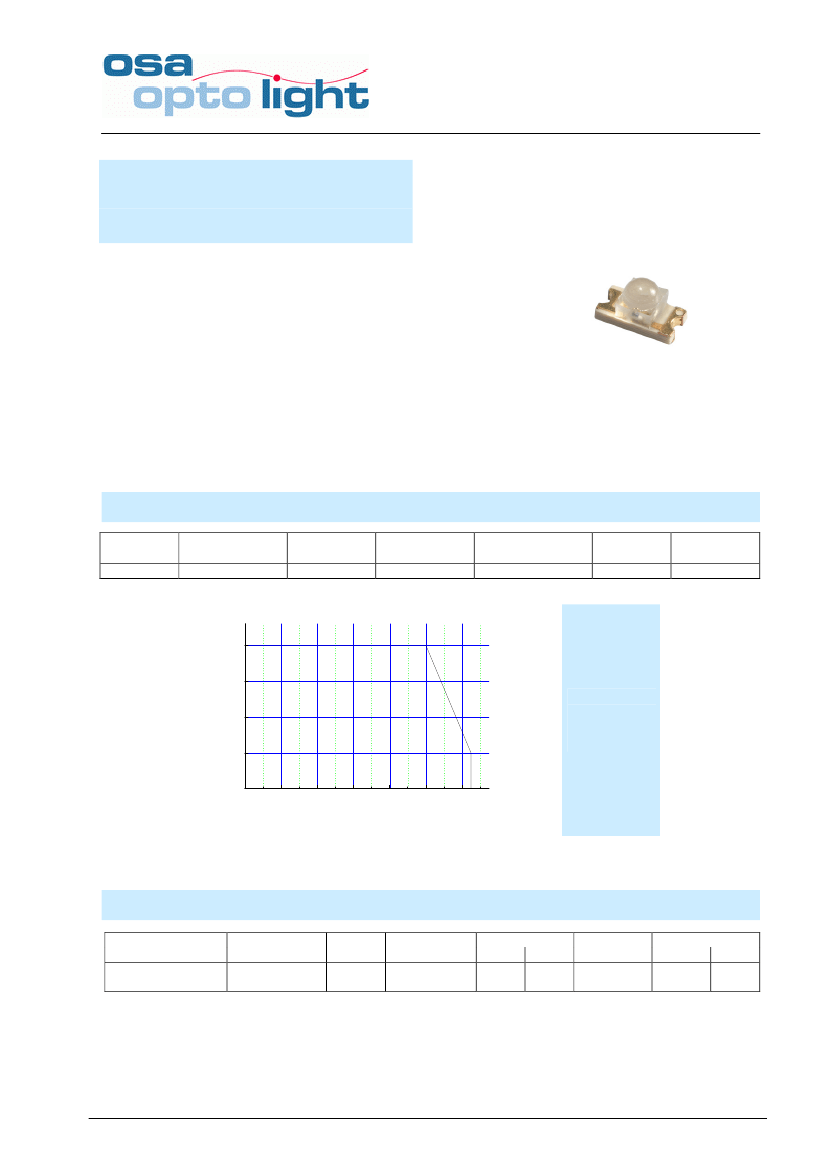

Series 330 - 1206 with Lens
thin film technology
Features
-
-
-
-
-
-
-
-
-
-
-
-
with lens, mounting from backside of PCB
view angle 40°
size 1206: 3,2(L) x 1,6(W) x 1,9(H) mm
circuit substrate: glass laminated epoxy
devices are ROHS conform
lead free solderable, soldering pads: gold plated
taped in 8 mm blister tape, cathode to transporting
perforation
all devices sorted into luminous intensity classes
taping: face-up (TU) or face-down (TD) possible
InGaN Chip type
high luminous intensity types
on request sorted in color classes
Absolute Maximum Ratings
I
F, max
[mA]
20
I
F,P
[mA] tp
≤
100
µs τ=1:
10
100
V
R
[V]
5
I
R, max
[µA]
100
Thermal resistance
R
thJA
[K / W]
450
T
Op
[°C]
-40...85
T
St
°[C]
-40...100
20
15
10
5
Maximal
forward
current (DC)
characteristic
IF [mA]
0
-40
-20
0
20
40
60
80
T
op
[°
C]
electrostatic discharge classification (MIL-STD-883E)
class 1
Electro-Optical Characteristics
Type
OLS-330 EB460
OLS-330 EG525
Emitting
color
blue
green
Marking
at
anode
anode
Measurement
I
F
[mA]
20
20
typ
3,2
3,2
V
F
[V]
max
3,8
3,8
λ
d
/
λ
p
*
[nm]
460
525
I
V
[mcd]
min
typ
250
400
1100
1600
© 2008
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 03/08
90
1,0
120
60
150
0,5
30

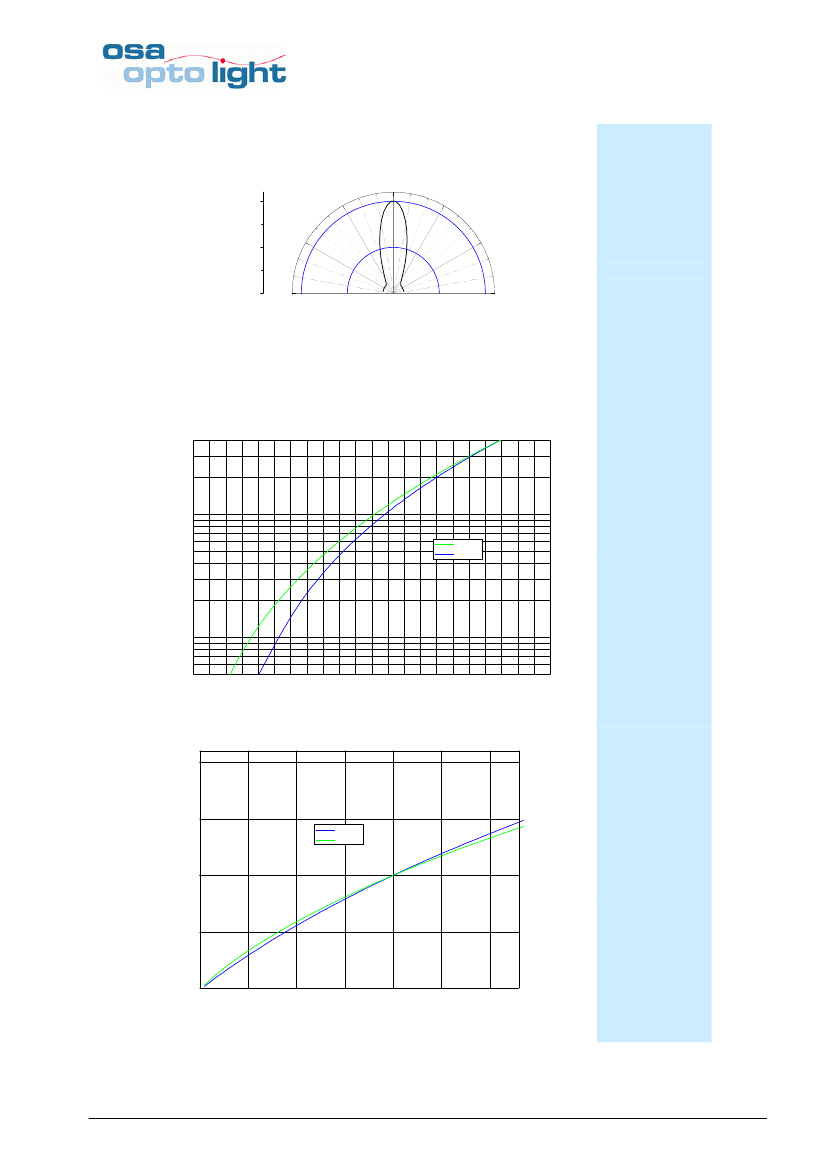

view angle
0,0
180
0
10
IF (mA)
EG525
EB460
U
F
– I
F
characteristic
1
2,5
2,6
2,7
2,8
2,9
3,0
3,1
3,2
3,3
3,4
3,5
UF (V)
2
Iv rel (at 20 mA )
EB460
EG525
1
I
F
– I
v, rel
characteristic
0
10
20
30
IF (mA)
© 2008
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 03/08

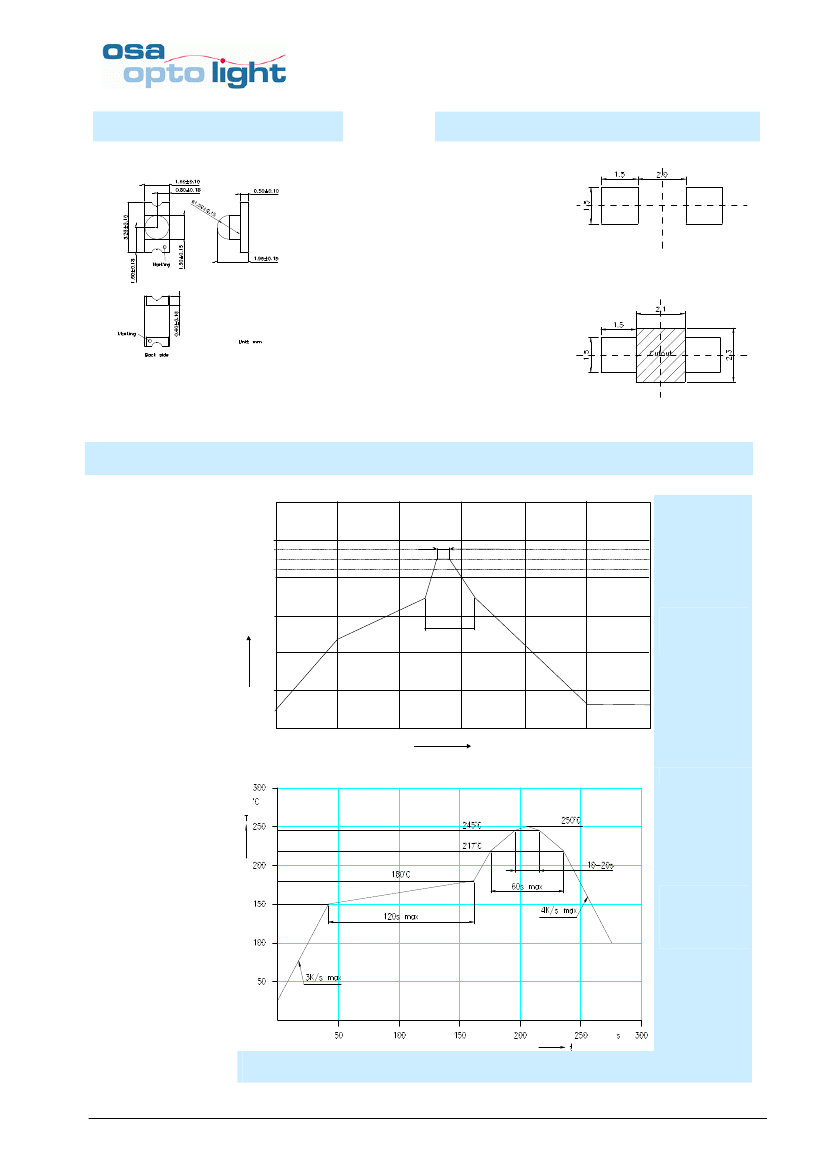

Outline Drawing
Recommended Soldering Patterns
Pad TU
Pad TD
Soldering Conditions
300
250
10-20 s
Temperature (°C)
230°C
200
150
Max. 40 s
100
IR reflow
soldering
profile
50
0
50
100
150
200
250
300
Time (sec)
IR reflow
soldering
profile for lead
free soldering
Manual soldering:
max power of iron 25W/ 3s/ 300°
C
© 2008
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 03/08
Ordering Code For Parts
Series
Color
Encapsulation
Packaging
OLS-330
-
???????
-
X
-
?
TU - taped up
TD - taped down
X - uncolored clear
Type definition, e.g. OLS-330 EB460-X -TU
LED Luminous Intensity Groups And Subgroups [ mcd ]
(general information – not this device specific)
C:
D:
E:
F:
G:
H:
J:
K:
L:
M:
N:
P:
Q:
R:
S:
T:
U:
V:
W:
X:
Y:
Z:
0.28
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18
28
45
71
112
180
280
450
710
1120
1800
2800
4500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18.00
28
45
71
112
180
280
450
710
1120
1800
2800
4500
7100
C1:
C2:
D1:
D2:
E1:
E2:
F1:
F2:
G1:
G2:
H1:
H2:
J1:
J2:
K1:
K2:
L1:
L2:
M1:
M2:
N1:
N2:
P1:
P2:
0.28
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
71.00
Q1:
Q2:
R1:
R2:
S1:
S2:
T1:
T2:
U1:
U2:
V1:
V2:
W1:
W2:
X1:
X2:
Y1:
Y2:
Z1:
Z2:
71
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
7100
Measured according to CIE 127. All SMD-LEDs are 100% measured and selected on full automated
equipment with an accuracy of ± 11 %.
Special service: Brightness selection in sub selections possible.
Color selection in sub selections possible (each subgroup per reel).
Attention please:
The LED output is strong enough to injure human eyes. Precautions must be taken to prevent
locking directly at the LED with unaided eyes for more than a few seconds. Flashing lights have
been known to cause discomfort in people, you can prevent this by taking precautions during use.
Also, people should be cautions when using equipment where these LED´s are incorporated.
© 2008
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 03/08

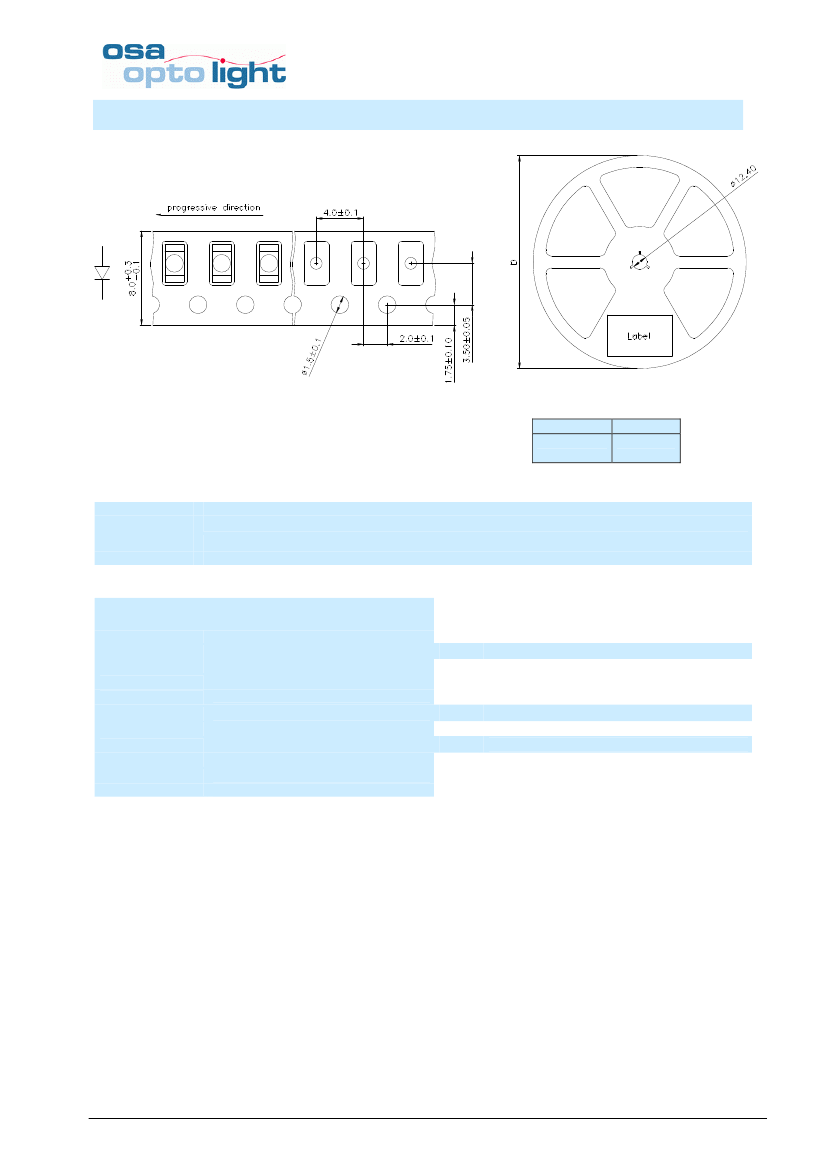

Tape And Reel Packing
D
180 mm
330 mm
Parts/reel
2000
8000
Packing
:
The reel is sealed in special plastic bag with integrate ESD protection
( MIL - STD 81705 ) including a silica dry-pack
Label
Order No.
Type
Intensity group
Charge No.
Quantity
XXXXXXXXX
OLS-330 ?????-??-T
ZZ
Color class
: CC
Customer order No.
Color class - optional
11 Week – 22 year – A internal identification
1122-AAAAAA
9999
Attention please:
The information describes the type of component and shall not considered as assured characteristics. Terms of
delivery and rights to change reserved.
Due to technical requirements components may contain dangerous substances.
The data sheet may changed without prior information; the valid issue will be on our webpage in internet.
Packaging:
Please use the recycling operators known to you.
Components used in life support devices or systems and safety systems must be expressly authorized for such
purpose!
© 2008
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
