OLS-336R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > OLS-336R

Preview

OLS-336R: DescriptionSeries 336 - with Lens - low current low cost; File Size126KB，5 Pages; ManufacturerOSA Opto Light; Websitehttps://www.osa-opto.com/home.html

Download Datasheet View All

OLS-336R Overview

Series 336 - with Lens - low current low cost

Preview

Download Datasheet

View All

OSA Opto Light GmbH

Köpenicker Str. 325 / Haus 201

12555 Berlin - Germany

Tel. +49 (0)30 65 76 26 83

Fax: +49 (0)30 65 76 26 81

E-Mail: contact@osa-opto.com

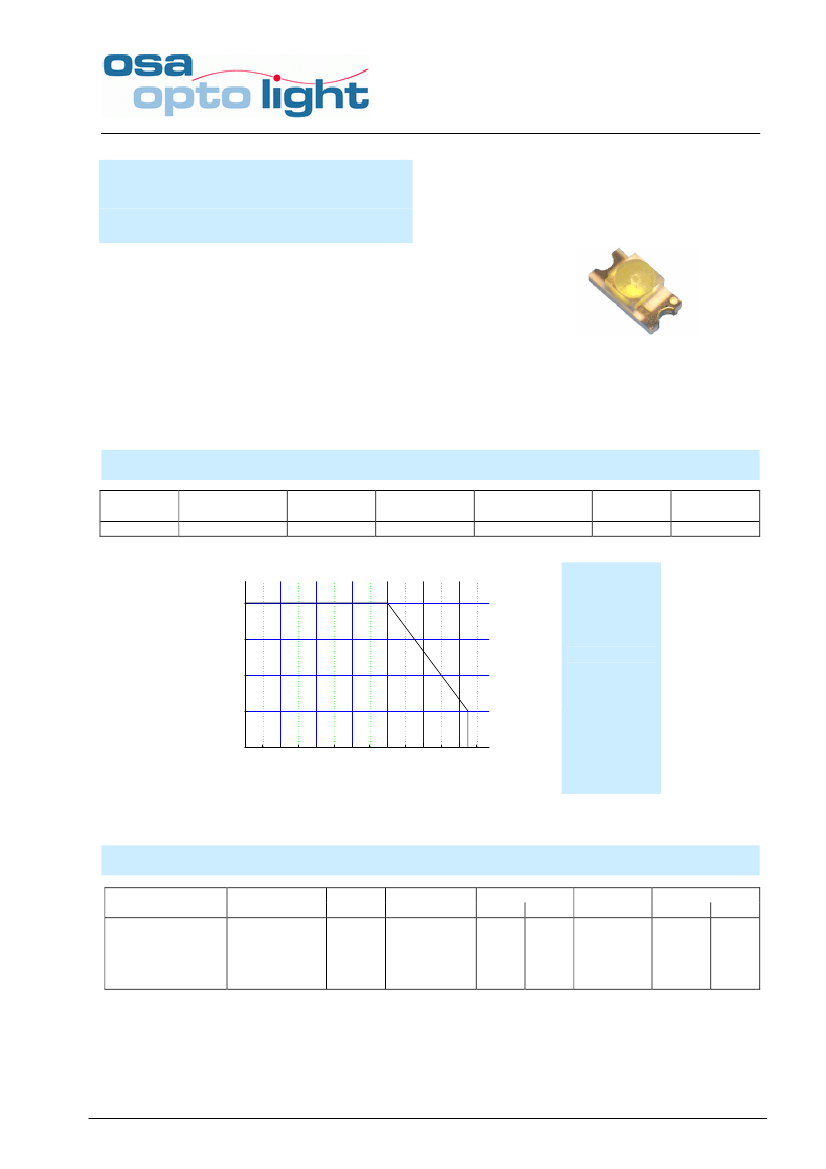

Series 336 - with Lens - low current

low cost

Features

with lens, mounting from backside of PCB

view angle 40°

size 1206: 3,2(L) x 1,6(W) x 1,9(H) mm

circuit substrate: glass laminated epoxy

devices are ROHS conform

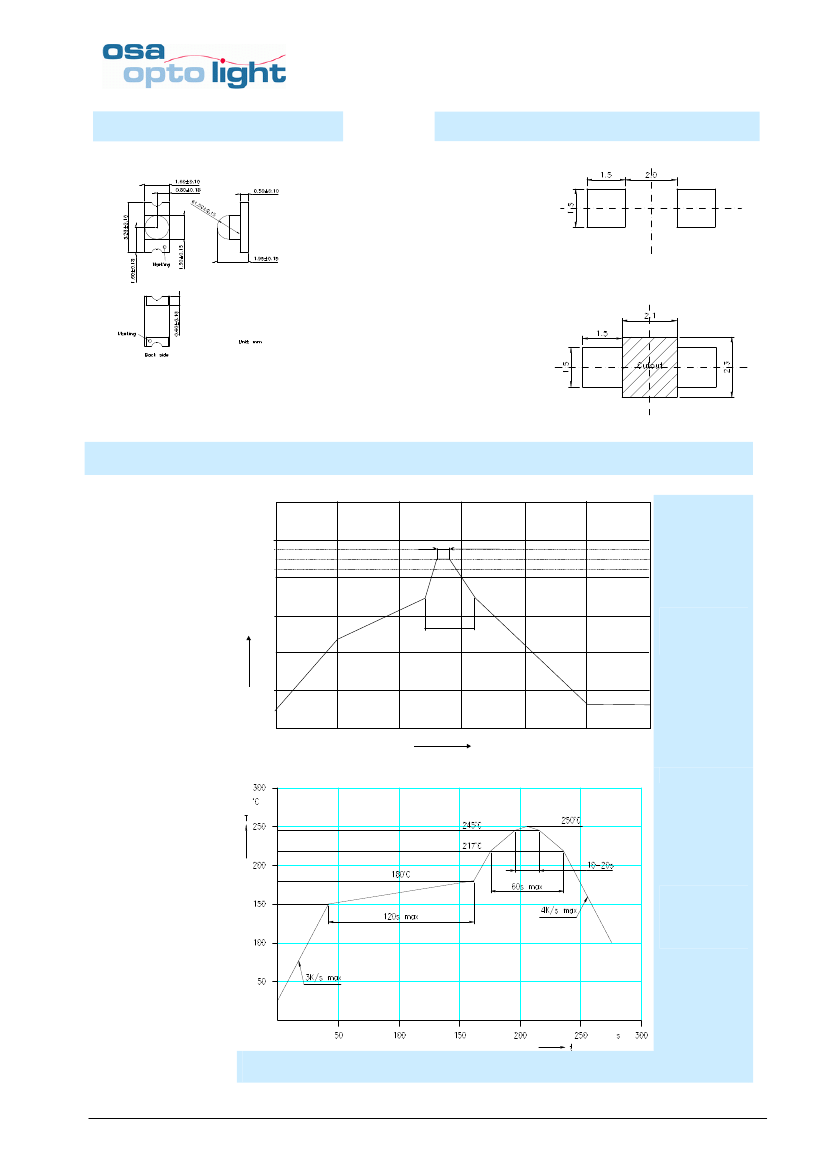

lead free solderable, soldering pads: gold plated

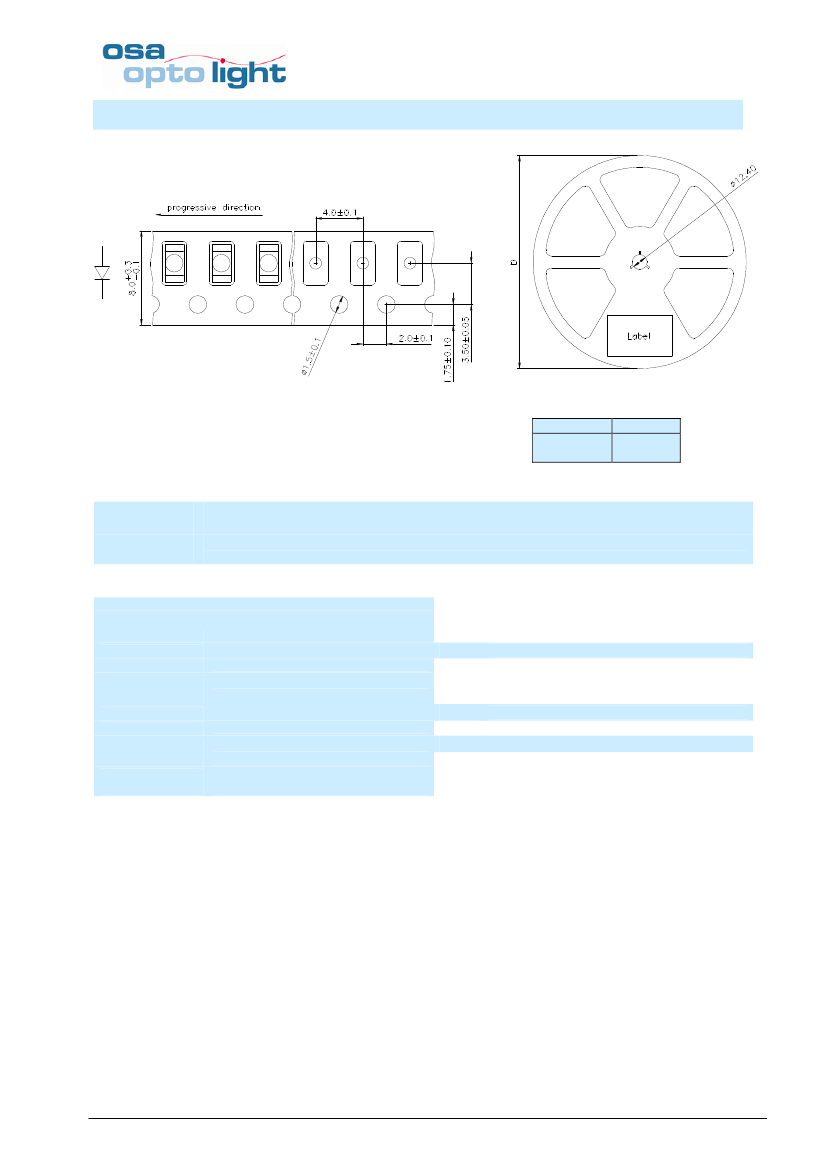

taped in 8 mm blister tape, cathode to transporting

perforation

- all devices sorted into luminous intensity classes

- taping: face-up (TU) or face-down (TD) possible

Absolute Maximum Ratings

F, max

[mA]

F,P

[mA] tp

≤

100

µs τ=1:

[V]

R, max

[µA]

100

Thermal resistance

thJA

[K / W]

450

[°C]

-40...85

°[C]

-55...85

Maximal

forward

current (DC)

characteristic

IF [mA]

-40

-20

[°

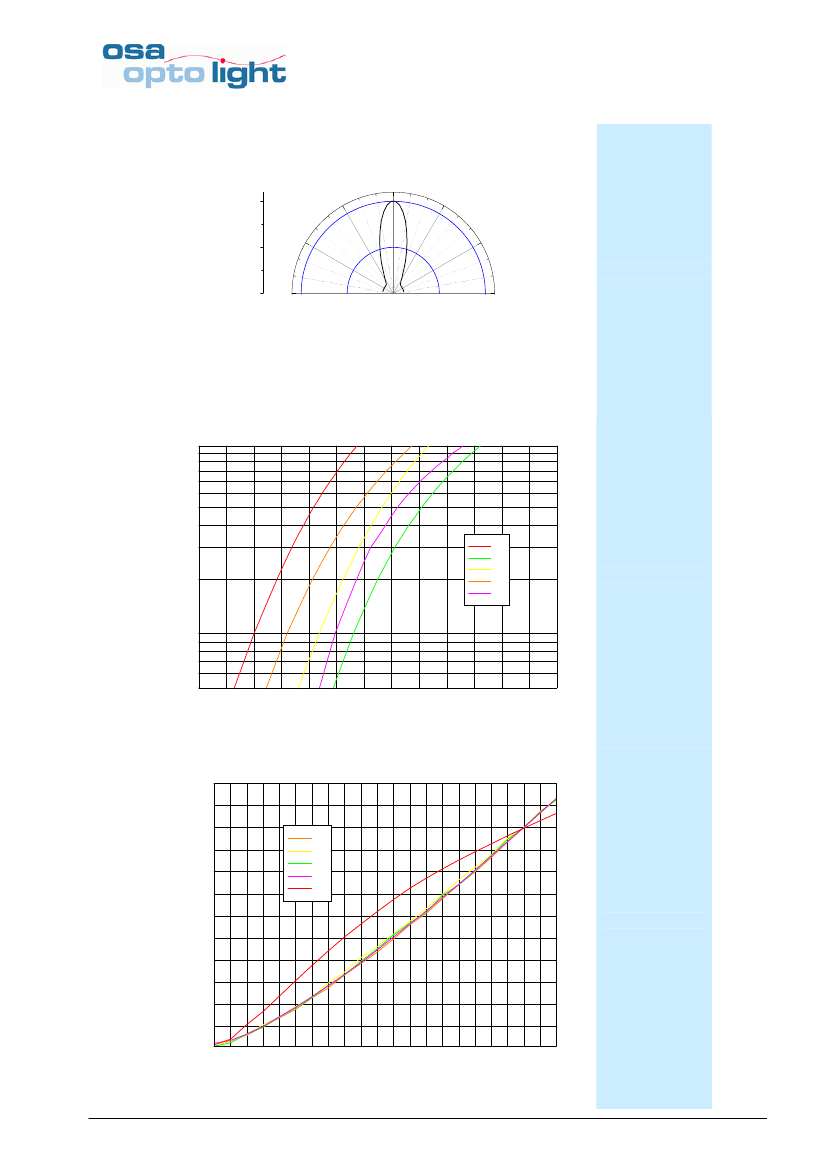

Electro-Optical Characteristics

Type

OLS-336 R

OLS-336 G

OLS-336 Y

OLS-336 D

OLS-336 SD

Emitting

color

red

green

yellow

orange

red

Marking

cathode

Measurement

[mA]

[V]

typ

max

1,85

2,2

1,9

2,2

1,8

2,2

1,8

2,2

1,8

2,2

[nm]

700 *

572

590

605

625

[mcd]

min

typ

0.7

1.4

4.2

1.1

2.1

1.4

2.1

1.4

2.1
