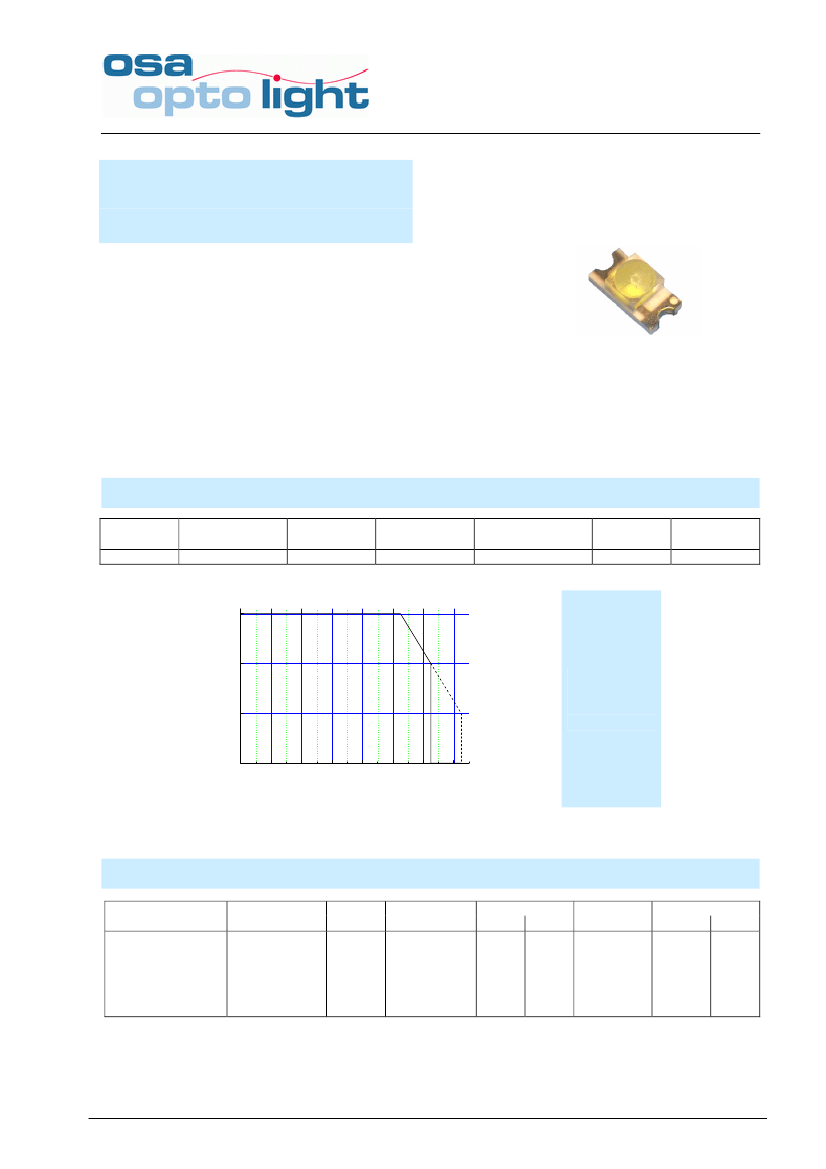

Series 345 - 1206 Sqint-LED 45°
High luminous intensity
Features
-
-
-
-
-
-
-
-
-
-
-
with lens, sqint angle 45°
view angle 40°
size 1206: 3,2(L) x 1,6(W) x 1,9(H) mm
circuit substrate: glass laminated epoxy
devices are ROHS conform
lead free solderable, soldering pads: gold plated
taped in 8 mm blister tape, anode to transporting
perforation
orientation of radiation to anode
all devices sorted into luminous intensity classes
high luminous intensity types
on request sorted in color classes
Absolute Maximum Ratings
I
F, max
[mA]
30
I
F,P
[mA] tp
≤
100
µs τ=1:
10
100
V
R
[V]
5
I
R, max
[µA]
100
Thermal resistance
R
thJA
[K / W]
450
T
Op
[°C]
-40...105
T
St
°[C]
-55...105
30
20
Decoloration of epoxy and PCB
possible in area of 85...105 °
C
10
Maximal
forward
current (DC)
characteristic
IF [mA]
0
-40
-20
0
20
40
60
80
100
T
op
[°
C]
Electro-Optical Characteristics
Type
OLS-345 SUY
OLS-345 HY
OLS-345 SUD
OLS-345 HD
OLS-345 HSD
OLS-345 HR
Emitting
color
super yellow
hyper yellow
super orange
hyper orange
hyper TSN red
hyper red
Marking
at
anode
anode
anode
anode
anode
anode
Measurement
I
F
[mA]
20
20
20
20
20
20
typ
2,0
2,0
2,0
2,0
2,1
2,0
V
F
[V]
max
2,6
2,6
2,6
2,6
2,6
2,6
λ
d
/
λ
p
*
[nm]
590
590
605
615
625
632
I
V
[mcd]
min
typ
140
280
210
550
210
450
210
550
210
400
140
300
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 10/05
90
1,0
120
60
150
0,5
30
view angle
0,0
180
0
0,5
1,0
10
SUD
SUY
HR
HY
HSD
IF (mA)
U
F
– I
F

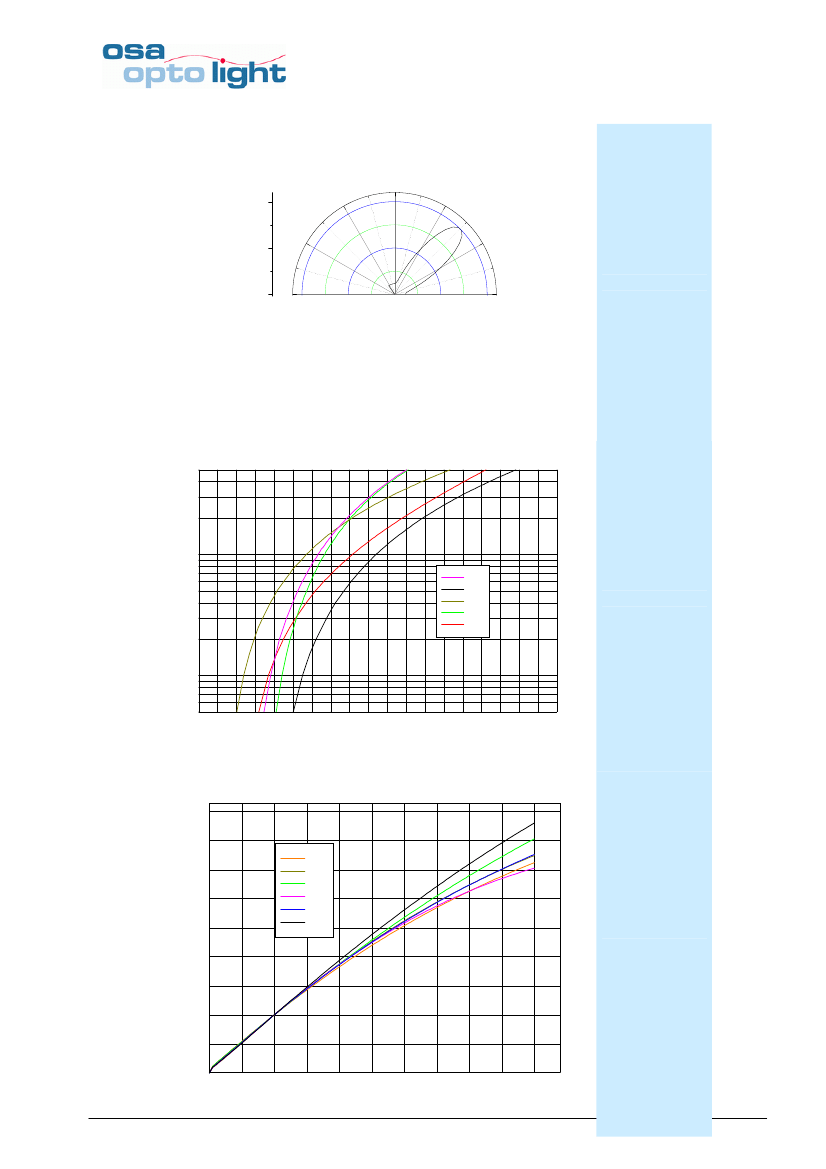

characteristic
1
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,4
2,5
UF (V)
4
HSD
HY
HR
SUY
SUD
HD
Iv rel (at 10 mA )
3
2
I
F
– I
v, rel
characteristic
1
0
10
20
30
40
50
© 2005
IF (mA)
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 10/05

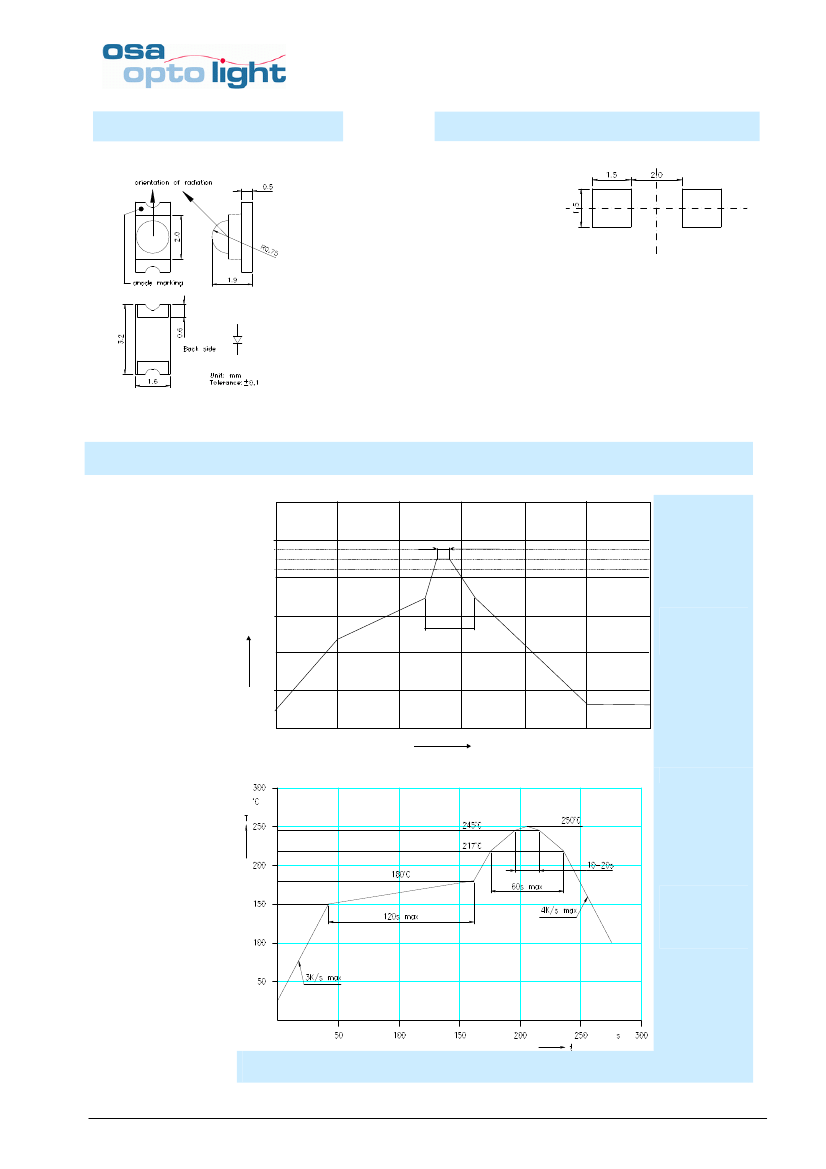

Outline Drawing
Recommended Soldering Patterns
Soldering Conditions
300
250
10-20 s
T
emperature (°
C)
230°
C
200
150
Max. 40 s
100
IR reflow
soldering
profile
50
0
50
100
150
200
250
300
T
ime (sec)
IR reflow
soldering
profile for lead
free soldering
Manual soldering:
max power of iron 25W/ 3s/ 300°
C
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 10/05
Ordering Code For Parts
Series
Color
Encapsulation
Packaging
OLS-345
-
???????
-
X
-
T
T - taped
X - uncolored clear
Type definition, e.g. OLS-345 SUY-X -T
LED Luminous Intensity Groups And Subgroups [ mcd ]
(general information – not this device specific)
C:
D:
E:
F:
G:
H:
J:
K:
L:
M:
N:
P:
Q:
R:
S:
T:
U:
V:
W:
X:
Y:
Z:
0.28
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18
28
45
71
112
180
280
450
710
1120
1800
2800
4500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.45
0.71
1.12
1.80
2.80
4.50
7.10
11.20
18.00
28
45
71
112
180
280
450
710
1120
1800
2800
4500
7100
C1:
C2:
D1:
D2:
E1:
E2:
F1:
F2:
G1:
G2:
H1:
H2:
J1:
J2:
K1:
K2:
L1:
L2:
M1:
M2:
N1:
N2:
P1:
P2:
0.28
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.36
0.45
0.56
0.71
0.90
1.12
1.40
1.80
2.24
2.80
3.55
4.50
5.60
7.10
9.00
11.20
14.00
18.00
22.40
28.00
35.50
45.00
56.00
71.00
Q1:
Q2:
R1:
R2:
S1:
S2:
T1:
T2:
U1:
U2:
V1:
V2:
W1:
W2:
X1:
X2:
Y1:
Y2:
Z1:
Z2:
71
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
90
112
140
180
224
280
355
450
560
710
900
1120
1420
1800
2250
2800
3550
4500
5750
7100
Measured according to CIE 127. All SMD-LEDs are 100% measured and selected on full automated
equipment with an accuracy of ± 11 %.
Special service: Brightness selection in sub selections possible.
Color selection in 3 sub selections possible (each subgroup per reel).
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
preliminary edition 10/05

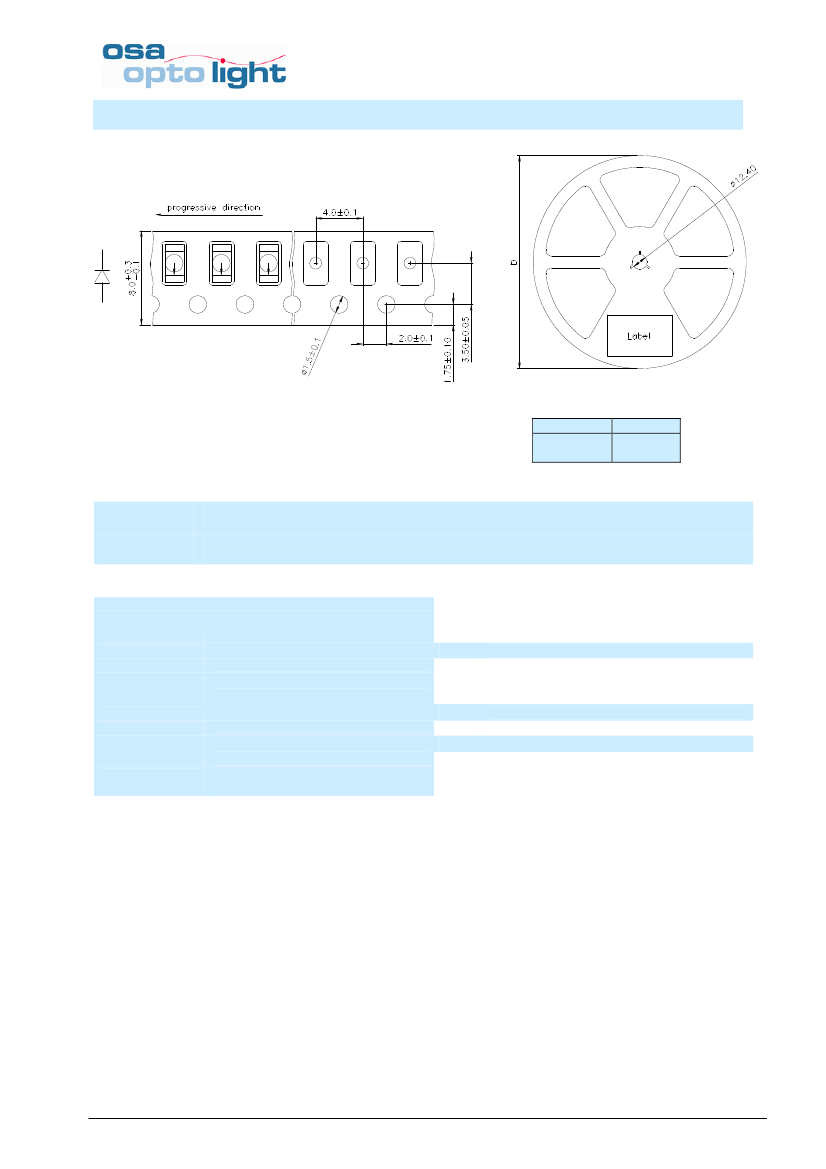

Tape And Reel Packing
D
180 mm
330 mm
Parts/reel
2000
8000
Packing
:
The reel is sealed in special plastic bag with integrate ESD protection
( MIL - STD 81705 ) including a silica dry-pack
Label
Order No.
Type
Intensity group
Charge No.
Quantity
XXXXXXXXX
OLS-345 ?????-??-T
ZZ
Color class
: CC
Customer order No.
Color class - optional
11 Week – 22 year – A internal identification
1122-AAAAAA
9999
Attention please:
The information describes the type of component and shall not considered as assured characteristics. Terms of
delivery and rights to change reserved.
Due to technical requirements components may contain dangerous substances.
The data sheet may changed without prior information; the valid issue will be on our webpage in internet.
Packaging:
Please use the recycling operators known to you.
Components used in life support devices or systems and safety systems must be expressly authorized for such
purpose!
© 2005
OSA Opto Light GmbH Tel. +49-(0)30-65 76 26 83 Fax +49-(0)30-65 76 26 81 contact@osa-opto.com
