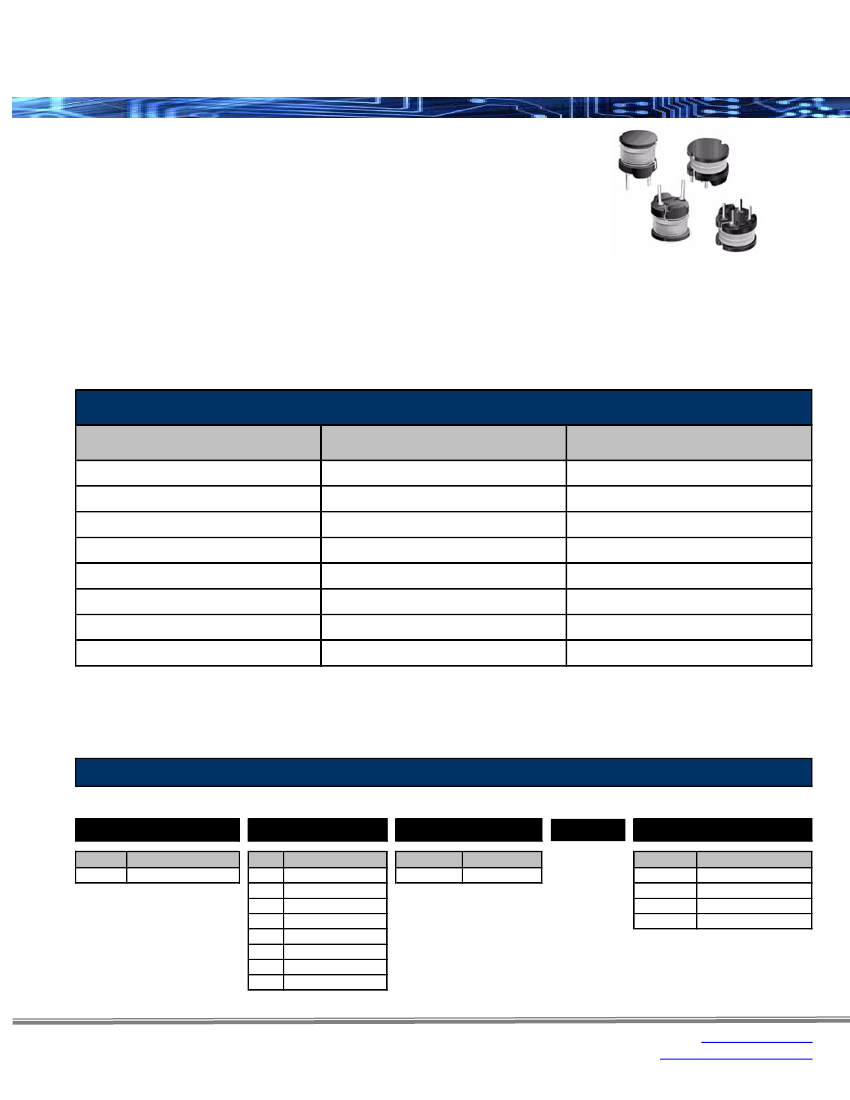

DRGH Series
Unshielded DIP Power Inductor
Features:
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Designed for high density, small size, and low cost
Provides low DCR with high DIP stability
For inductance values outside those listed in the
datasheet contact factory
Find environmental information and packaging
specifications in related supplemental documents
Applications:
•
•
•
•
Personal computers
DC power supplies
Battery powered equipment
Power choke
Inductance and Current Ranges
Type / Code
DRGH 654
DRGH 664
DRGH 855
DRGH 875
DRGH 895
DRGH 106
DRGH 108
DRGH 110
Inductance (μH)
22 - 1,000
22 - 1,000
10 - 10,000
10 - 10,000
10 - 47,000
10 - 1,000
10 - 1,000
10 - 1,000
Current Ranges (A)
0.90 - 0.13
1.27 - 0.19
2.50 - 0.08
2.90 - 0.08
2.60 - 0.04
3.60 - 0.36
4.50 - 0.45
5.30 - 0.53
How to Order
SEI Type
Dimensions
Tolerance
Packaging
Inductance
DRGH
Type
DRGH
Description
DIP Power Inductor
654
Code Dimensions (mm)
654
6.0 x 5.0
664
6.0 x 6.5
855
7.8 x 5.5
875
7.8 x 7.5
895
7.8 x 9.5
106
10.0 x 6.0
108
10.0 x 8.0
110
10.0 x 10.0
Code
M
K
Tolerance
±20%
T
Code
100
101
102
103
100
Inductance (μH)
10
100
1,000
10,000
Rev Date: 11/23/2009
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
DRGH Series
Unshielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

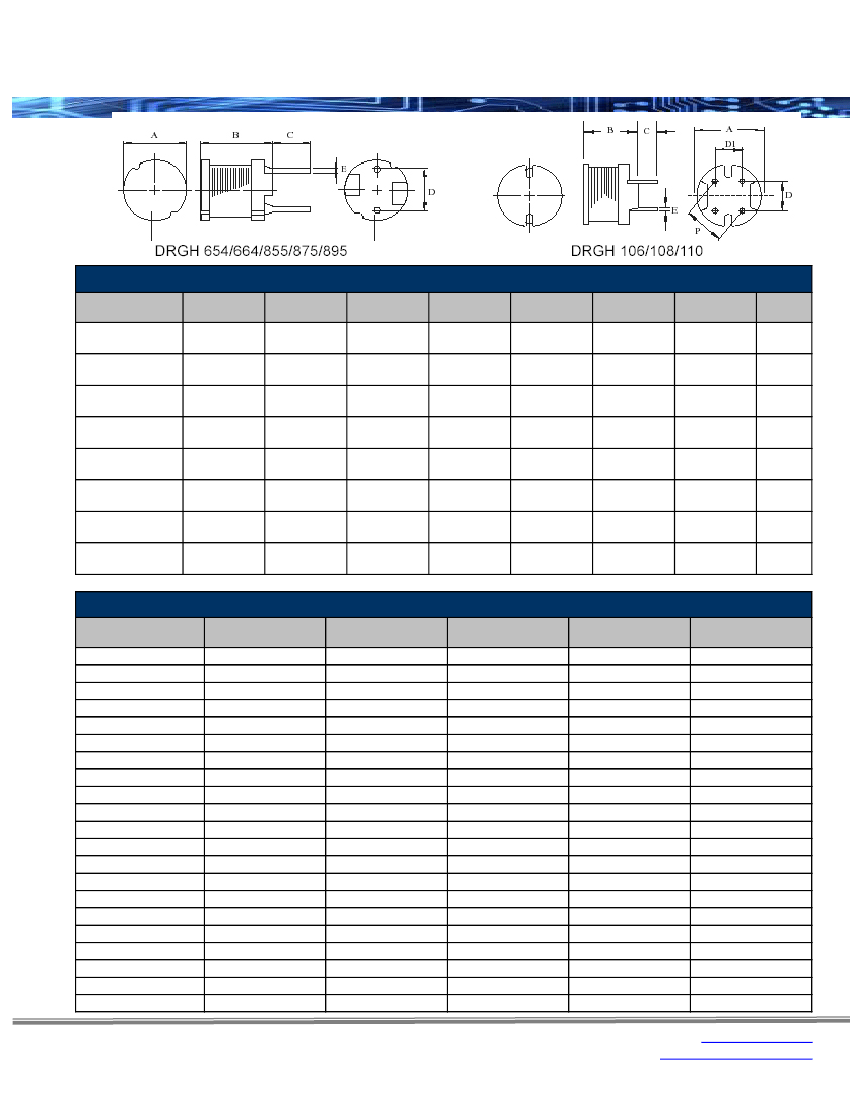

Mechanical Specifications
Type / Code
DRGH 654
DRGH 664
DRGH 855
DRGH 875
DRGH 895
DRGH 106
DRGH 108
DRGH 110
A
0.236 ± 0.02
6 ± 0.5
0.236 ± 0.02
6 ± 0.5
0.307 ± 0.02
7.8 ± 0.5
0.307 ± 0.02
7.8 ± 0.5
0.307 ± 0.02
7.8 ± 0.5
0.394 ± 0.02
10 ± 0.5
0.394 ± 0.02
10 ± 0.5
0.394 ± 0.02
10 ± 0.5
B
0.197 ± 0.02
5 ± 0.5
0.256 ± 0.02
6.5 ± 0.5
0.217 ± 0.02
5.5 ± 0.5
0.295 ± 0.02
7.5 ± 0.5
0.374 ± 0.5
9.5 ± 0.5
0.236 ± 0.02
6 ± 0.5
0.315 ± 0.02
8 ± 0.5
0.394 ± 0.02
10 ± 0.5
C
0.15 ± 0.04
4±1
0.15 ± 0.04
4±1
0.197 ± 0.04
5±1
0.197 ± 0.04
5±1
0.197 ± 0.04
5±1
0.138 ± 0.04
3.5 ± 1
0.138 ± 0.04
3.5 ± 1
0.138 ± 0.04
3.5 ± 1
D
0.15 ± 0.012
4 ± 0.3
0.15 ± 0.012
4 ± 0.3
0.197 ± 0.012
5 ± 0.3
0.197 ± 0.012
5 ± 0.3
0.197 ± 0.012
5 ± 0.3
0.197 ± 0.012
5 ± 0.3
0.197 ± 0.012
5 ± 0.3
0.197 ± 0.012
5 ± 0.3
D1
-
-
-
-
-
0.15 ± 0.012
4 ± 0.3
0.15 ± 0.012
4 ± 0.3
0.15 ± 0.012
4 ± 0.3
E
0.02 ± 0.004
0.5 ± 0.1
0.02 ± 0.004
0.5 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
P
-
-
-
-
-
0.252 ± 0.02
6.4 ± 0.5
0.252 ± 0.02
6.4 ± 0.5
0.252 ± 0.02
6.4 ± 0.5
Units
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Electrical Characteristics DRGH654
Part Number
DRGH654MT220
DRGH654MT270
DRGH654MT330
DRGH654MT390
DRGH654MT470
DRGH654MT560
DRGH654MT680
DRGH654MT820
DRGH654MT101
DRGH654MT121
DRGH654MT151
DRGH654MT181
DRGH654MT221
DRGH654MT271
DRGH654MT331
DRGH654MT391
DRGH654MT471
DRGH654MT561
DRGH654MT681
DRGH654MT821
DRGH654MT102
L
(μH)
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Freq
(KHz)
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance
(%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DCR
(Ω) Max
0.18
0.21
0.27
0.29
0.34
0.42
0.48
0.55
0.68
0.77
0.95
1.15
1.30
1.55
2.18
2.47
2.92
3.97
4.57
5.28
7.06
I DC
(A) Max
0.90
0.81
0.74
0.68
0.62
0.57
0.51
0.47
0.42
0.39
0.35
0.32
0.29
0.26
0.23
0.21
0.20
0.18
0.16
0.15
0.13
Rev Date: 11/23/2009
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
DRGH Series
Unshielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics DRGH664
Part Number
DRGH664MT220
DRGH664MT270
DRGH664MT330
DRGH664MT390
DRGH664MT470
DRGH664MT560
DRGH664MT680
DRGH664MT820
DRGH664MT101
DRGH664MT121
DRGH664MT151
DRGH664MT181
DRGH664MT221
DRGH664MT271
DRGH664MT331
DRGH664MT391
DRGH664MT471
DRGH664MT561
DRGH664MT681
DRGH664MT821
DRGH664MT102
L
(μH)
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Freq
(KHz)
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance
(%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DCR
(Ω) Max
0.11
0.14
0.17
0.19
0.23
0.26
0.28
0.39
0.43
0.54
0.64
0.74
0.96
1.12
1.48
1.66
1.91
2.31
2.67
3.10
4.45
I DC
(A) Max
1.27
1.14
1.03
0.95
0.87
0.8
0.72
0.66
0.59
0.54
0.48
0.44
0.4
0.36
0.33
0.3
0.27
0.25
0.23
0.21
0.19
Rev Date: 11/23/2009
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
DRGH Series
Unshielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics DRGH855
Part Number
DRGH855MT100
DRGH855MT120
DRGH855MT150
DRGH855MT180
DRGH855MT220
DRGH855MT270
DRGH855MT330
DRGH855MT390
DRGH855MT470
DRGH855MT560
DRGH855MT680
DRGH855MT820
DRGH855MT101
DRGH855MT121
DRGH855MT151
DRGH855MT181
DRGH855MT221
DRGH855MT271
DRGH855MT331
DRGH855MT391
DRGH855MT471
DRGH855MT561
DRGH855MT681
DRGH855MT821
DRGH855MT102
DRGH855MT122
DRGH855MT152
DRGH855MT182
DRGH855MT222
DRGH855MT272
DRGH855MT332
DRGH855MT392
DRGH855MT472
DRGH855MT562
DRGH855MT682
DRGH855MT822
DRGH855MT103
L
(μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
Test Freq
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance
(%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DCR
(Ω) Max
0.07
0.08
0.09
0.10
0.12
0.14
0.17
0.21
0.24
0.31
0.34
0.40
0.52
0.59
0.71
0.89
1.04
1.28
1.47
1.67
1.95
2.83
3.25
3.82
5.28
6.03
7.15
8.26
11.10
13.10
15.90
18.00
23.90
26.80
31.70
46.50
55.70
I DC
(A) Max
2.500
2.400
2.100
2.000
1.700
1.600
1.400
1.300
1.200
1.100
1.000
0.930
0.810
0.760
0.670
0.620
0.540
0.490
0.440
0.410
0.380
0.350
0.320
0.310
0.250
0.230
0.210
0.200
0.180
0.160
0.140
0.130
0.120
0.110
0.098
0.088
0.081
Rev Date: 11/23/2009
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
DRGH Series
Unshielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics DRGH875
Part Number
DRGH875MT100
DRGH875MT120
DRGH875MT150
DRGH875MT180
DRGH875MT220
DRGH875MT270
DRGH875MT330
DRGH875MT390
DRGH875MT470
DRGH875MT560
DRGH875MT680
DRGH875MT820
DRGH875MT101
DRGH875MT121
DRGH875MT151
DRGH875MT181
DRGH875MT221
DRGH875MT271
DRGH875MT331
DRGH875MT391
DRGH875MT471
DRGH875MT561
DRGH875MT681
DRGH875MT821
DRGH875MT102
DRGH875MT122
DRGH875MT152
DRGH875MT182
DRGH875MT222
DRGH875MT272
DRGH875MT332
DRGH875MT392
DRGH875MT472
DRGH875MT562
DRGH875MT682
DRGH875MT822
DRGH875MT103
L
(μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
Test Freq
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance
(%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
DCR
(Ω) Max
0.05
0.06
0.07
0.08
0.09
0.11
0.13
0.14
0.15
0.18
0.20
0.24
0.28
0.36
0.42
0.57
0.63
0.88
1.05
1.17
1.34
1.72
1.96
2.56
2.94
4.04
4.70
5.05
6.25
8.72
10.60
14.20
16.70
18.70
21.80
28.70
33.00
I DC
(A) Max
2.900
2.500
2.200
1.900
1.800
1.700
1.500
1.300
1.300
1.200
1.100
1.000
0.890
0.810
0.720
0.660
0.570
0.510
0.460
0.440
0.410
0.360
0.330
0.300
0.270
0.240
0.220
0.200
0.180
0.160
0.150
0.140
0.120
0.110
0.100
0.093
0.084
Rev Date: 11/23/2009
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
