DMC87VCNP-3R3M

Description
General Purpose Inductor, 3.3uH, 20%, 1 Element, ROHS COMPLIANT
CategoryPassive components    inductor
File Size97KB,2 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

DMC87VCNP-3R3M Overview

General Purpose Inductor, 3.3uH, 20%, 1 Element, ROHS COMPLIANT

DMC87VCNP-3R3M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.011 Ω
Nominal inductance(L)3.3 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberDMC
Number of functions1
Number of terminals2
Minimum quality factor (at nominal inductance)12
Maximum rated current9.2 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 1000 KHZ
surface mountNO
Terminal locationRADIAL
Terminal shapeWIRE
Test frequency0.2 MHz
Tolerance20%
Base Number Matches1

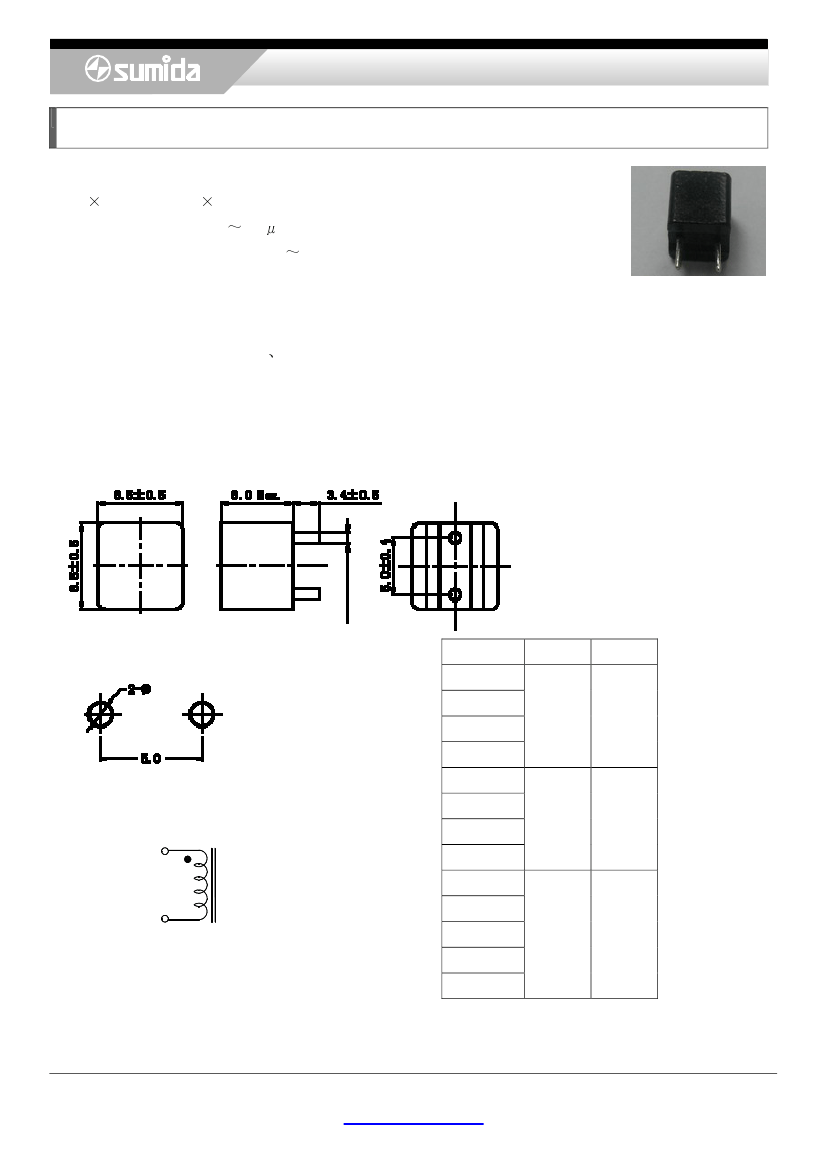

Power Inductors < Pin Type: DMC Series >
Type: DMC87VC/DS
Product Description
9.0 9.0mm Max.(L W ), 8.0 mm Max. Height.
Inductance Range: 0.33 4.7 H
Feature
High current rating and very low D.C.R.
power systems or VRM applications.
RoHS Compliance.
Dimensions (mm)
Land Pattern (mm)
B
A
Schematics (Bottom)
1
2
Please refer to the sales offices on our website for a representative near you
Ideally used for Motherboard
graphic car and notebook computers, DC/DC converter in distributed
½
Saturation Current Range: 12.0
μ ½
×
×
38.0A
Part
R33M
R36M
R47M
R56M
R68M
R80M
1R0M
1R2M
1R5M
2R2M
2R8M
3R3M
4R7M
A
B
0.9±0.2
1.3
0.8±0.2
1.2
0.7±0.2
1.1
www.sumida.com
1/2
