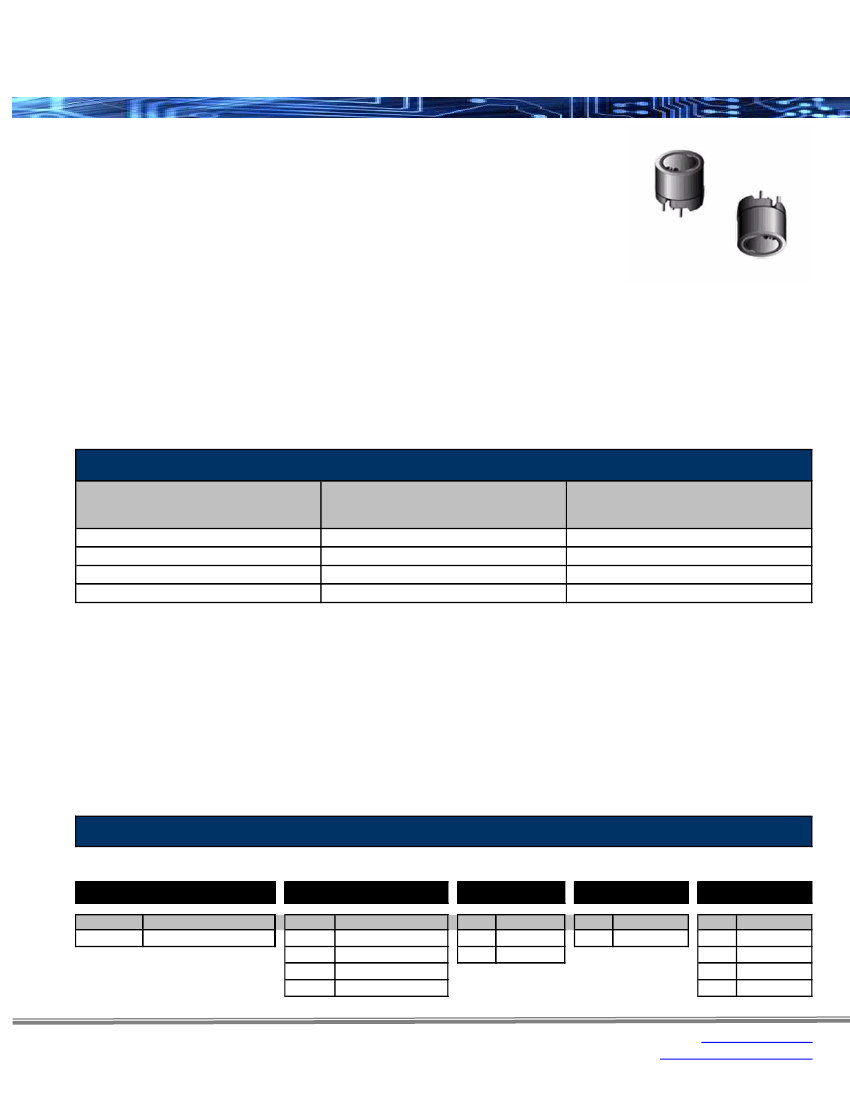

DRGR Series
Shielded DIP Power Inductor
Features:
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Available in 2 and 4 pin configurations
Provides magnetic shielding against radiation
DIP package for better reliability
For inductance values outside those listed in the
datasheet contact factory
Find environmental information and packaging
specifications in related supplemental documents
Applications:
•
•
•
•
Personal computers
DC power supplies
Battery powered equipment
Power chokes
Inductance and Current Ranges
Product Type
DRGR664
DRGR875
DRGR108
DRGR110
Inductance (μH)
22 - 1,000
22 - 10,000
10 - 1,000
10 - 1,000
Ranges (A)
0.96 - 0.14
1.60 - 0.074
2.80 - 0.28
3.90 - 0.39
How to Order
SEI Type
Dimensions
Tolerance
Packaging
Inductance
DRGR
Type
DRGR
Description
DIP Power Inductor
Code
664
875
108
110
664
Dimensions (mm)
6.0 x 6.5
7.8 x 7.5
10.5 x 8.0
10.5 x 10.5
K
Code Tolerance
K
±10%
M
±20%
Code
B
B
Type
Bulk
100
Code Impedance
100
10μH
101
100μH
1000μH
102
10000μH
103
Rev Date: 12/02/09
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
DRGR Series
Shielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions

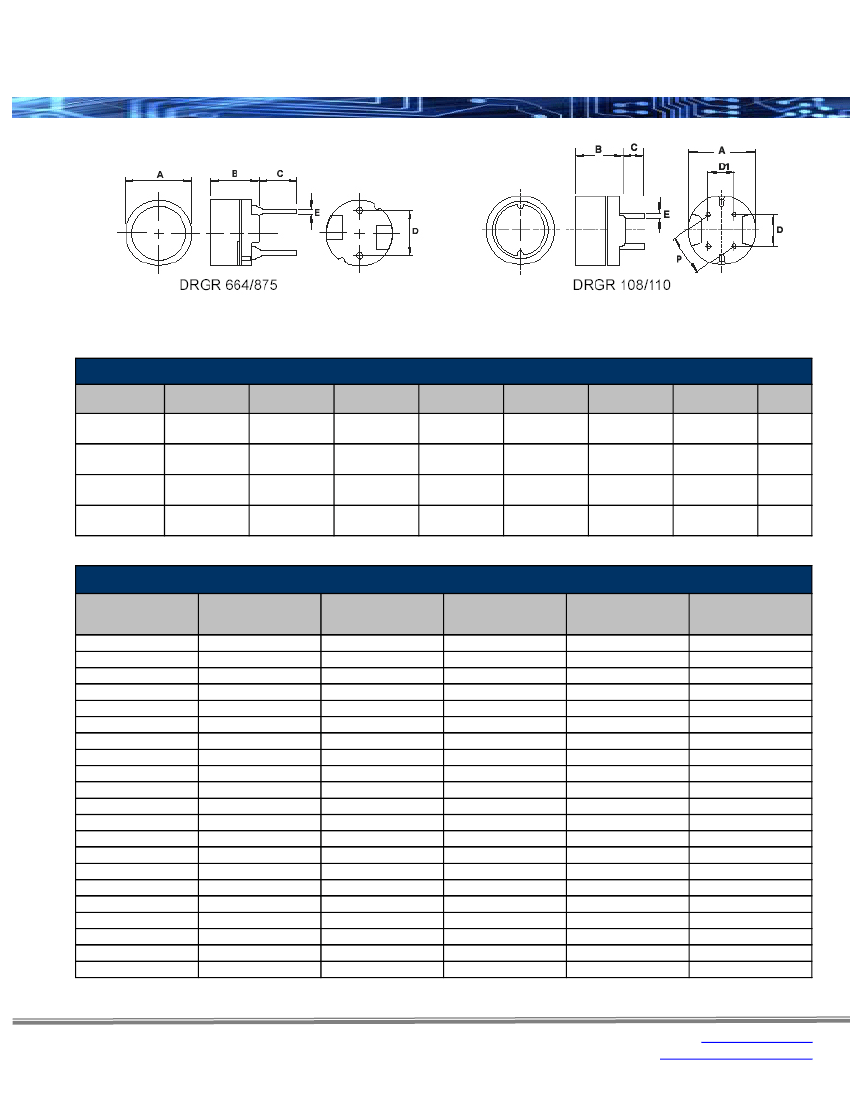

Mechanical Specifications
Type / Code
DRGR664
DRGR875
DRGR108
DRGR110
A
0.236 ± 0.020
6.0 ± 0.5
0.307 ± 0.020
7.8 ± 0.5
0.413 ± 0.020
10.5 ± 0.5
0.413 ± 0.020
10.5 ± 0.5
B
0.256
6.5
0.295
7.5
0.315
8.0
0.413 ± 0.020
10.5 ± 0.5
C
0.157 ± 0.039
4.0 ± 1.0
0.197 ± 0.039
5.0 ± 1.0
0.138 ± 0.039
3.5 ± 1.0
0.138 ± 0.039
3.5 ± 1.0
D
0.157 ± 0.012
4.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
0.197 ± 0.012
5.0 ± 0.3
D1
-
-
0.157 ± 0.012
4.0 ± 0.3
0.157 ± 0.012
4.0 ± 0.3
E
0.020 ± 0.004
0.5 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
0.028 ± 0.004
0.7 ± 0.1
P
-
-
0.252 ± 0.020
6.4 ± 0.5
0.252 ± 0.020
6.4 ± 0.5
Units
inches
mm
inches
mm
inches
mm
inches
mm
Electrical Characteristics – DRGR664
Part Number
DRGR664MT220
DRGR664MT270
DRGR664MT330
DRGR664MT390
DRGR664MT470
DRGR664MT560
DRGR664MT680
DRGR664MT820
DRGR664KT101
DRGR664KT121
DRGR664KT151
DRGR664KT181
DRGR664KT221
DRGR664KT271
DRGR664KT331
DRGR664KT391
DRGR664KT471
DRGR664KT561
DRGR664KT681
DRGR664KT821
DRGR664KT102
L (μH)
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Frequency (KHz)
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance (%)
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR (Ω) Max
0.13
0.18
0.21
0.26
0.29
0.33
0.36
0.39
0.54
0.62
0.72
0.88
0.99
1.52
1.69
1.85
2.85
3.21
3.60
4.87
5.56
I DC (A) Max
0.96
0.87
0.78
0.72
0.66
0.60
0.55
0.50
0.45
0.41
0.37
0.34
0.30
0.27
0.25
0.23
0.21
0.19
0.17
0.16
0.14
Rev Date: 12/02/09
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
DRGR Series
Shielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – DRGR875
Part Number
DRGR875MT220
DRGR875MT270
DRGR875MT330
DRGR875MT390
DRGR875MT470
DRGR875MT560
DRGR875MT680
DRGR875MT820
DRGR875KT101
DRGR875KT121
DRGR875KT151
DRGR875KT181
DRGR875KT221
DRGR875KT271
DRGR875KT331
DRGR875KT391
DRGR875KT471
DRGR875KT561
DRGR875KT681
DRGR875KT821
DRGR875KT102
DRGR875KT122
DRGR875KT152
DRGR875KT182
DRGR875KT222
DRGR875KT272
DRGR875KT332
DRGR875KT392
DRGR875KT472
DRGR875KT562
DRGR875KT682
DRGR875KT822
DRGR875KT103
L (μH)
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
Test Frequency (KHz)
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance (%)
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR (Ω) Max
0.08
0.10
0.14
0.15
0.17
0.19
0.21
0.27
0.32
0.36
0.51
0.57
0.76
0.86
0.97
1.28
1.44
1.61
2.07
2.33
2.72
3.98
4.50
6.81
7.56
8.54
9.74
12.90
14.70
20.40
23.00
30.60
35.00
I DC (A) Max
1.600
1.400
1.300
1.200
1.100
0.990
0.890
0.810
0.740
0.670
0.600
0.550
0.500
0.450
0.410
0.370
0.340
0.310
0.280
0.260
0.230
0.210
0.190
0.170
0.160
0.140
0.130
0.120
0.110
0.099
0.089
0.081
0.074
Rev Date: 12/02/09
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
DRGR Series
Shielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – DRGR108
Part Number
DRGR108MT100
DRGR108MT120
DRGR108MT150
DRGR108MT180
DRGR108MT220
DRGR108MT270
DRGR108MT330
DRGR108MT390
DRGR108MT470
DRGR108MT560
DRGR108MT680
DRGR108MT820
DRGR108KT101
DRGR108KT121
DRGR108KT151
DRGR108KT181
DRGR108KT221
DRGR108KT271
DRGR108KT331
DRGR108KT391
DRGR108KT471
DRGR108KT561
DRGR108KT681
DRGR108KT821
DRGR108KT102
L (μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Frequency (KHz)
100
100
100
100
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance (%)
20
20
20
20
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR (Ω) Max
0.05
0.06
0.07
0.08
0.09
0.10
0.11
0.12
0.14
0.15
0.16
0.18
0.20
0.24
0.35
0.40
0.54
0.76
0.86
0.93
1.23
1.34
1.53
2.10
2.30
I DC (A) Max
2.80
2.50
2.30
2.10
2.00
1.76
1.60
1.38
1.28
1.20
1.00
0.96
0.92
0.80
0.73
0.64
0.61
0.56
0.50
0.44
0.41
0.38
0.34
0.32
0.28
Rev Date: 12/02/09
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
DRGR Series
Shielded DIP Power Inductor
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Characteristics – DRGR110
Part Number
DRGR110MT100
DRGR110MT120
DRGR110MT150
DRGR110MT180
DRGR110MT220
DRGR110MT270
DRGR110MT330
DRGR110MT390
DRGR110MT470
DRGR110MT560
DRGR110MT680
DRGR110MT820
DRGR110KT101
DRGR110KT121
DRGR110KT151
DRGR110KT181
DRGR110KT221
DRGR110KT271
DRGR110KT331
DRGR110KT391
DRGR110KT471
DRGR110KT561
DRGR110KT681
DRGR110KT821
DRGR110KT102
L (μH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Test Frequency (KHz)
100
100
100
100
100
100
100
100
100
100
100
100
1
1
1
1
1
1
1
1
1
1
1
1
1
Tolerance (%)
20
20
20
20
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR (Ω) Max
0.023
0.024
0.036
0.039
0.042
0.045
0.057
0.076
0.100
0.110
0.150
0.160
0.190
0.210
0.230
0.260
0.290
0.360
0.510
0.690
0.980
1.100
1.200
1.300
1.500
I DC (A) Max
3.90
3.60
3.20
2.90
2.60
2.40
2.10
2.00
1.80
1.60
1.50
1.40
1.20
1.10
1.00
0.92
0.83
0.75
0.68
0.62
0.57
0.52
0.47
0.43
0.39
Rev Date: 12/02/09
This specification may be changed at any time without prior notice
.
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
