Datasheet> All Categories > Discrete semiconductor> diode> D5XB100

Preview

D5XB100: DescriptionBridge Rectifier Diode, 1 Phase, 2.8A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size453KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

D5XB100 Overview

Bridge Rectifier Diode, 1 Phase, 2.8A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-4

D5XB100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	compliant
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
JESD-609 code	e3
Maximum non-repetitive peak forward current	180 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	2.8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

D5XB40 ........ D5XB100

5.0 Amp. Glass Passivated Bridge Rectifier

Plastic

Case

.189(4.8)

.173(4.4)

1.193(30.3)

1.169(29.7)

.150(3.8)

.134(3.4)

R

Voltage

400 to 1000 V

Current

5.0 A

C.118(3.0)

x45°

.799(20.3)

.776(19.7)

.106(2.7)

.091(2.3)

.094(2.4)

.079(2.0)

.043(1.1)

.035(0.9)

.303

(7.7)

.287

(7.3)

.402(10.2)

.386(9.8)

.303

(7.7)

.287

(7.3)

.189(4.8)

.441(11.2)

.425(10.8)

.134(3.4)

.122(3.1)

.114(2.9)

.098(2.5)

.165(4.2)

.150(3.8)

.709(18.0)

.669(17.0)

• Glass Passivated Junction Chips.

•

Lead and polarity identifications.

Case: Molded Plastic.

Ideal for printed circuit board (P

.C.B.).

High surge current capability.

The plastic material carries U/L recognition 94 V-O.

.031(0.7)

.024(0.6)

• Mounting Instructions

•

High temperature soldering guaranteed: 260 ºC – 10 sc.

•

Recommended mounting torque: 8 Kg.cm.

Maximum Ratings, according to IEC publication No. 134

V

RRM

V

RMS

I

F(AV)

I

FSM

V

DIS

I

2

t

T

j

T

stg

Peak recurrent reverse voltage (V)

Maximum RMS Voltage (V)

Max. Average forward current with heatsink

without heatsink

10ms. peak forward surge current (

Jedec Method

)

Dielectric strength (terminals to case, AC 1 min.)

I

2

t value for fusing (t = 10 ms)

Operating temperature range

Storage temperature range

D5XB

40

400

280

D5XB

60

600

420

D5XB

80

800

560

D5XB

100

1000

700

5.0 A at Tc: 100 °C

2.8 A at 25 °C

180 A

2500 V

120 A

2

sec

-40 to +150 °C

Electrical Characteristics at Tamb = 25 °C

V

F

I

R

th (j-c)

R

th (j-a)

Max. forward voltage drop per diode at I

F

= 3.0 A

Max. instantaneous reverse current at V

RRM

MAXIMUM THERMAL RESISTANCE

Junction-case. With Heatsink.

Junction-Ambient. Without Heatsink.

1.00 V

5 µA

3.4 °C/W

30 °C/W

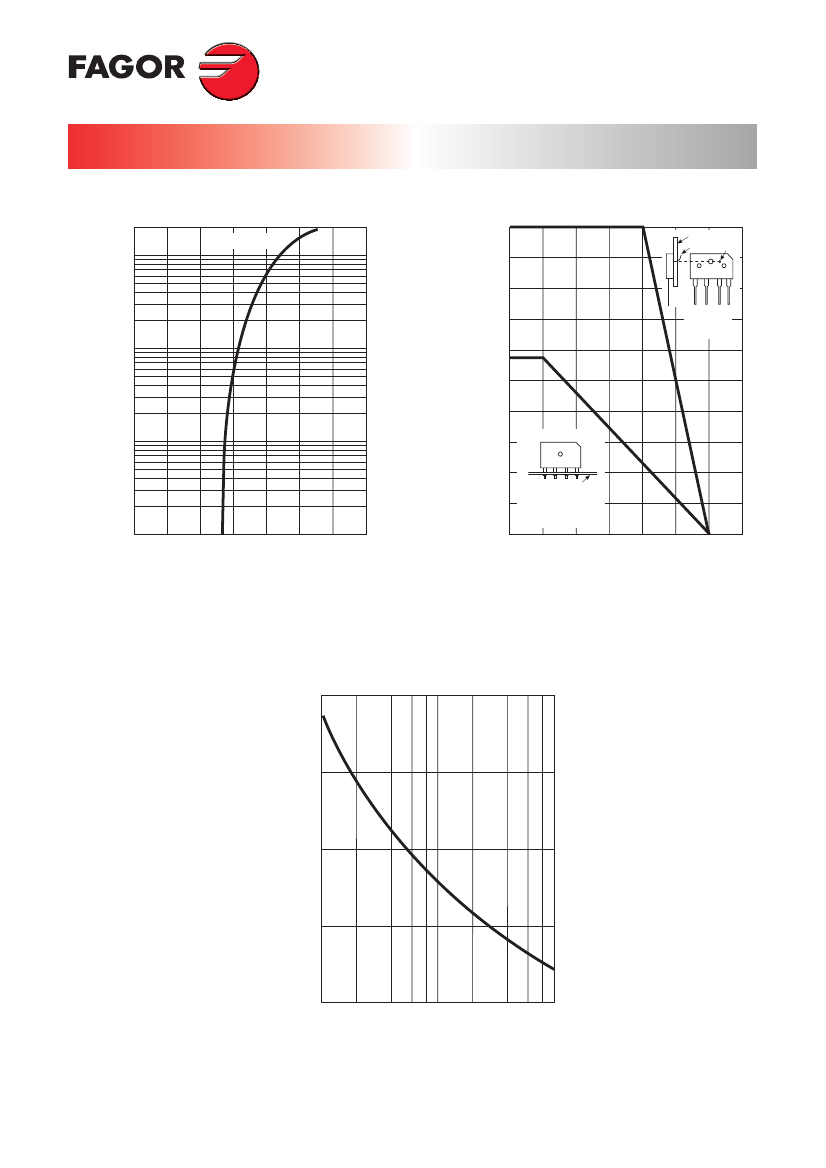

Sep - 09

D5XB100 Related Products

	D5XB100	D5XB80	D5XB60	D5XB40
Description	Bridge Rectifier Diode, 1 Phase, 2.8A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 2.8A, 800V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 2.8A, 600V V(RRM), Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 2.8A, 400V V(RRM), Silicon, PLASTIC PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	PLASTIC PACKAGE-4
Contacts	4	4	4	4
Reach Compliance Code	compliant	compliant	compliant	compliant
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
JESD-609 code	e3	e3	e3	e3
Maximum non-repetitive peak forward current	180 A	180 A	180 A	180 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	2.8 A	2.8 A	2.8 A	2.8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	800 V	600 V	400 V
surface mount	NO	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	-
