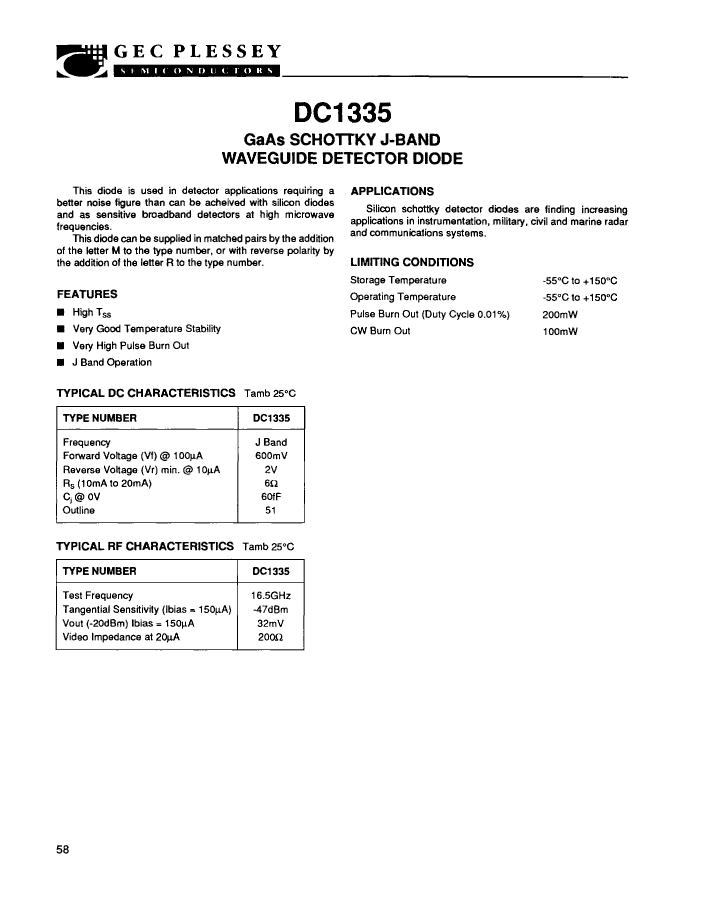

DC1335R: DescriptionMixer Diode, X Band to K Band, 200ohm Z(V) Max, Gallium Arsenide; CategoryDiscrete semiconductor diode; File Size22KB，1 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

DC1335R Overview

Mixer Diode, X Band to K Band, 200ohm Z(V) Max, Gallium Arsenide

DC1335R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	O-CEMW-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Maximum diode capacitance	0.06 pF
Diode component materials	GALLIUM ARSENIDE
Diode type	MIXER DIODE
frequency band	X BAND TO K BAND
maximum impedance	200 Ω
JESD-30 code	O-CEMW-N2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Pulse input maximum power	0.1 W
Minimum pulse input power	0.2 W
Certification status	Not Qualified
surface mount	YES
Minimum tangent signal sensitivity	47 dBm
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

DC1335R Related Products

	DC1335R	DC1335M	DC1335
Description	Mixer Diode, X Band to K Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band to K Band, 200ohm Z(V) Max, Gallium Arsenide	Mixer Diode, X Band to K Band, 200ohm Z(V) Max, Gallium Arsenide
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	O-CEMW-N2	O-CEMW-N2	O-CEMW-N2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE
Maximum diode capacitance	0.06 pF	0.06 pF	0.06 pF
Diode component materials	GALLIUM ARSENIDE	GALLIUM ARSENIDE	GALLIUM ARSENIDE
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE
frequency band	X BAND TO K BAND	X BAND TO K BAND	X BAND TO K BAND
maximum impedance	200 Ω	200 Ω	200 Ω
JESD-30 code	O-CEMW-N2	O-CEMW-N2	O-CEMW-N2
JESD-609 code	e0	e0	e0
Number of components	1	2	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND
Package form	MICROWAVE	MICROWAVE	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Pulse input maximum power	0.1 W	0.1 W	0.1 W
Minimum pulse input power	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Minimum tangent signal sensitivity	47 dBm	47 dBm	47 dBm
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1
