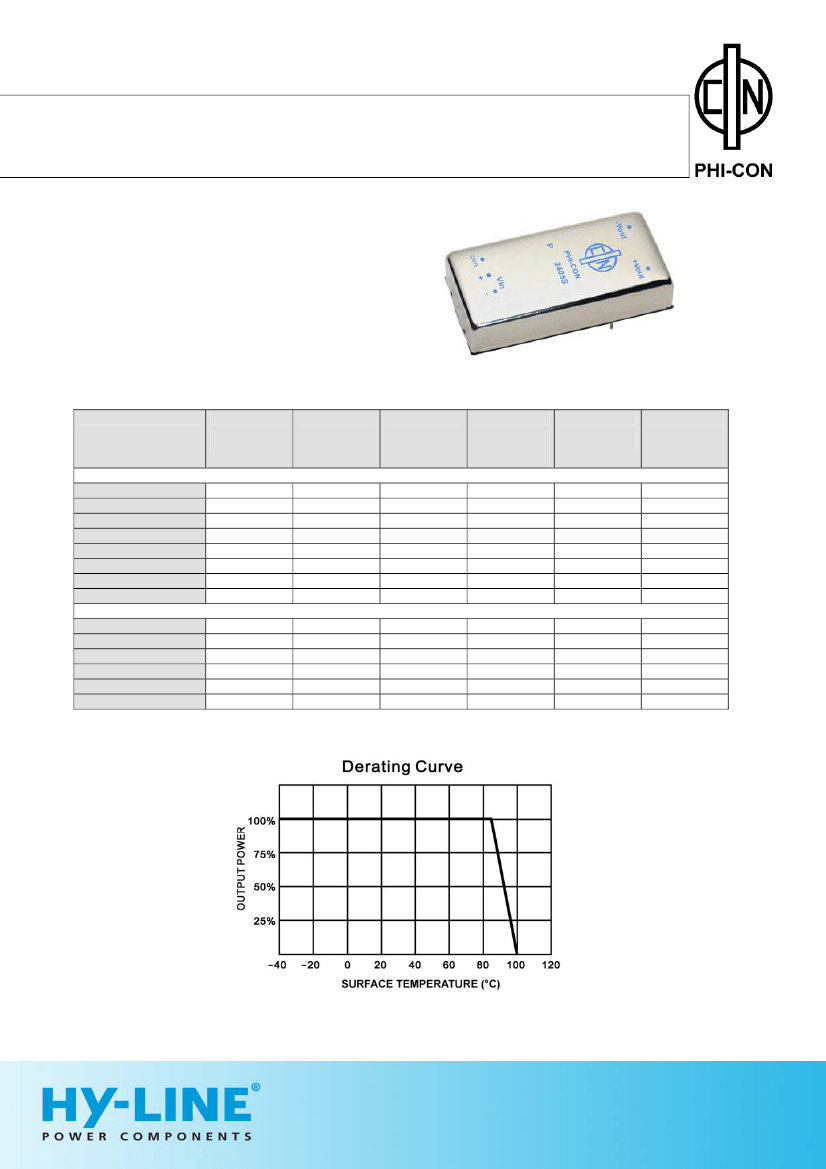

10W DC-DC Converter P10D-Series
●
●
●
●
●
●
●
Wide 4:1 input range
Efficiency up to 85 %
1500 V
DC
isolation
Continuous short circuit protection
Standard package 2” x 1” x 0.4”
MTBF 1.12 M hours
Wide Operating Temperature Range -40..+85°C
Model selection guide
Typ
Input nominal Input
voltage
quiescent
[V
DC
]
current
[mA]
9...36
9...36
9...36
9...36
18...72
18...72
18...72
18...72
9...36
9...36
9...36
18...72
18...72
18...72
25
25
25
25
20
20
20
20
25
25
25
20
20
20
Output
voltage
[V
DC
]
3.3
5.0
12.0
15.0
3.3
5.0
12.0
15.0
±5.0
±12.0
±15.0
±5.0
±12.0
±15.0
Output
current
[mA]
2000
2000
833
666
2000
2000
833
666
±1000
±416
±333
±1000
±416
±333
Efficiency typ. capacitive
load
[%]
[µF]
79
82
85
85
78
83
85
85
82
85
85
82
85
85
3300
3300
680
470
3300
3300
680
470
2 x 2200
2 x 470
2 x 330
2 x 2200
2 x 470
2 x 330
Single output
P10D243R3S
P10D2405S
P10D2412S
P10D2415S
P10D483R3S
P10D4805S
P10D4812S
P10D4815S
Dual output
P10D2405D
P10D2412D
P10D2415D
P10D4805D
P10D4812D
P10D4815D
Page 1 of 2
Deutschland:
Inselkammerstraße 10
D-82008 Unterhaching
Tel.: 089 614 503-10
E-Mail: power@hy-line.de
Schweiz:
Gründenstrasse 82
CH-8247 Flurlingen
Tel.: 052 647 42 00
E-Mail: power@hy-line.ch
10W DC-DC Converter P10D-Series
Specifications
Input
Voltage range
Filter
Isolation Voltage:
Input to Output
Input/Output to Case
Resistance
Capacitance
Output
Voltage accuracy
Load voltage regulation
Line voltage regulation
Over current protection
Short circuit protection
Short circuit restart
Ripple and noise
(at 20 MHz BW)
Temperature coefficient
24 V
DC
, 9…36 V
DC
48 V
DC
, 18…72 V
DC
Capacitors
1,5 kV
DC
for 1 min., test 1s
1000 V
DC
for 1 min.
10
9
Ω
1200 pF, typ.
± 1%
± 0.5%, at 10..100% load
± 0.5%, max.
140% of max. Iout
Continuous
Automatic
75 mVp-p, max.
± 0.02% / °C
General
Switching frequency
Safety standard in
accordance with
Environmental
Operating temperatur
(ambient)
Case temperature
Storage temperature
Derating
Humidity
Cooling
Physical
Dimensions
Weight
Case material
Potting material
Pin material
Soldering temperature
1.5mm distance from case
200 kHz, typ.
IEC60950-1 : 2001
-40 °C...+85 °C
100 °C, max.
-40 °C...+125 °C
None required
Up to 95%,
non-condensing
Free-air convection
50.80 x 25.40 x 10.16 mm
30.0 g
Nickel-coated copper
Epoxy (UL94V-0 rated)
Brass solder coated
260°C for 10s

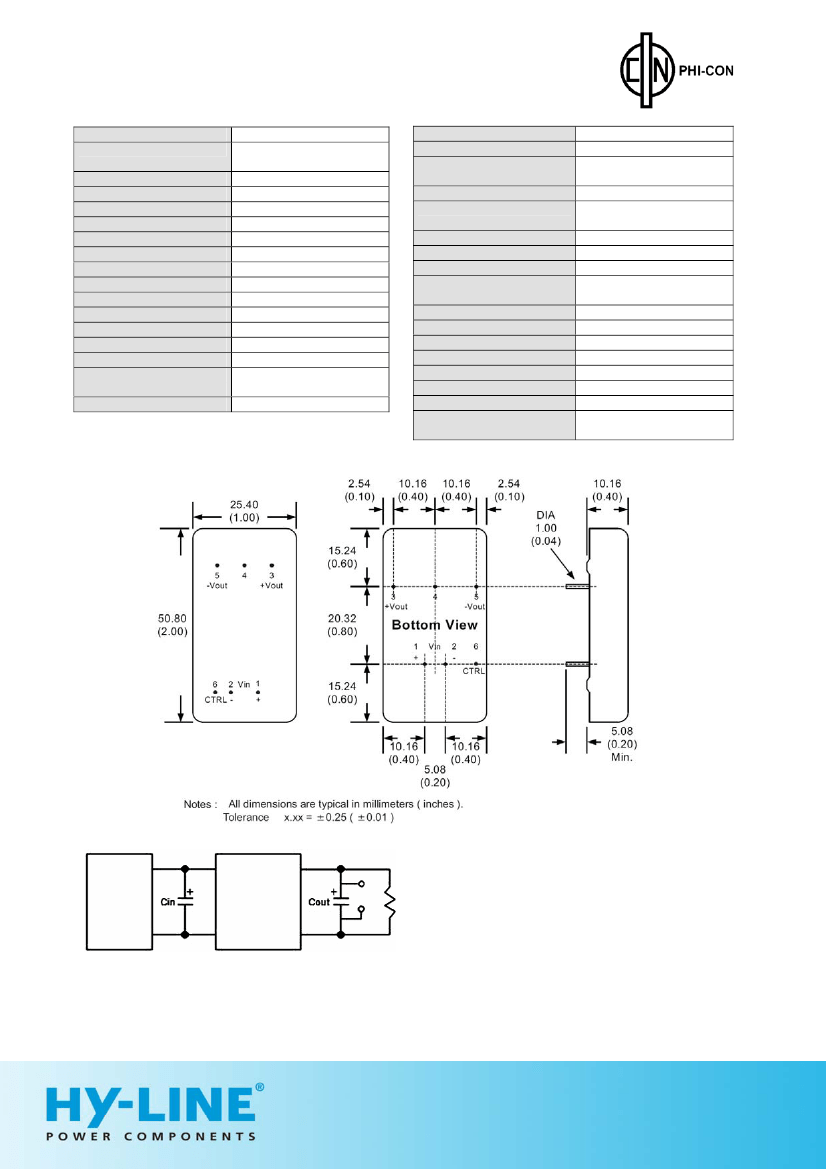

Dimensions
COM /
no Pin
COM /
no Pin
Output ripple and noise reduction
+
DC Power
Source
-
+input
+output
Scope
Load
To reduce ripple and noise, it is recommended to use
4.7µF capacitors to the output
DC/DC -
Converter
-input
-output
