DC1596 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DC1596

DC1596: DescriptionMixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon; CategoryDiscrete semiconductor diode; File Size25KB，1 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

DC1596 Overview

Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon

DC1596 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-CDMW-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN NIP DIODE
Configuration	SINGLE
Maximum diode capacitance	0.15 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	0.2 V
frequency band	X BAND
maximum impedance	400 Ω
JESD-30 code	R-CDMW-N2
JESD-609 code	e0
maximum noise index	9 dB
Number of components	1
Number of terminals	2
Maximum operating frequency	12 GHz
Minimum operating frequency	8.2 GHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Pulse input maximum power	0.3 W
Minimum pulse input power	0.3 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

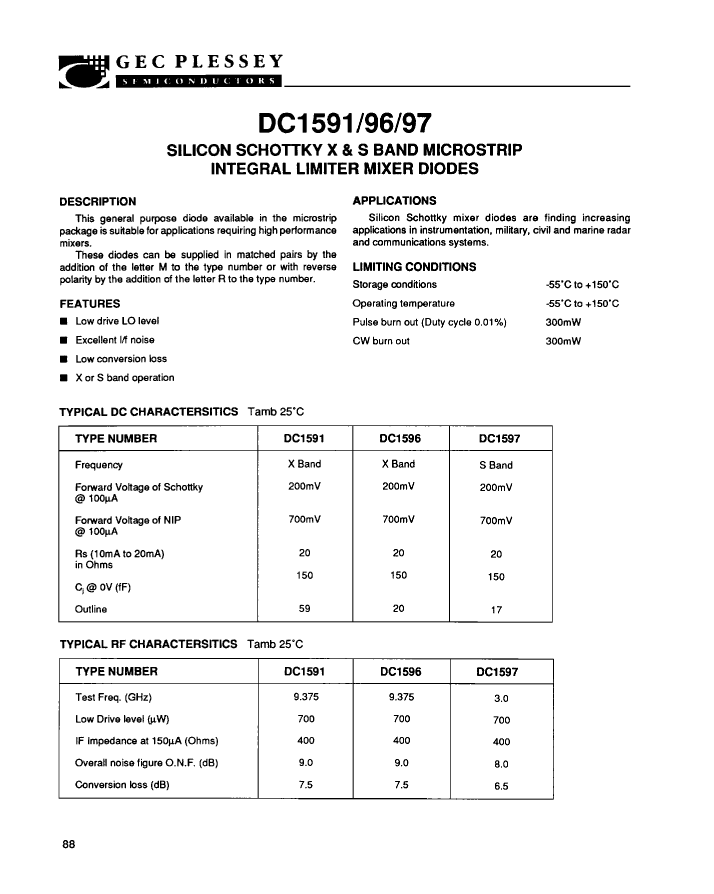

Preview

Download Datasheet

View All

DC1596 Related Products

	DC1596	DC1596M	DC1591	DC1591M	DC1596R	DC1597M	DC1597R	DC1591R
Description	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon	Mixer Diode, S Band, 400ohm Z(V) Max, 8dB Noise Figure, Silicon	Mixer Diode, S Band, 400ohm Z(V) Max, 8dB Noise Figure, Silicon	Mixer Diode, X Band, 400ohm Z(V) Max, 9dB Noise Figure, Silicon
package instruction	R-CDMW-N2	R-CDMW-N2	R-CDMW-F2	R-CDMW-F2	R-CDMW-N2	O-CXMW-X2	O-CXMW-X2	R-CDMW-F2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN NIP DIODE	MATCHED PAIR, BUILT-IN NIP DIODE	BUILT-IN NIP DIODE	MATCHED PAIR, BUILT-IN NIP DIODE	BUILT-IN NIP DIODE	MATCHED PAIR, BUILT-IN NIP DIODE	BUILT-IN NIP DIODE	BUILT-IN NIP DIODE
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE
Maximum diode capacitance	0.15 pF	0.15 pF	0.15 pF	0.15 pF	0.15 pF	0.15 pF	0.15 pF	0.15 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
Maximum forward voltage (VF)	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V
frequency band	X BAND	X BAND	X BAND	X BAND	X BAND	S BAND	S BAND	X BAND
maximum impedance	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω	400 Ω
JESD-30 code	R-CDMW-N2	R-CDMW-N2	R-CDMW-F2	R-CDMW-F2	R-CDMW-N2	O-CXMW-X2	O-CXMW-X2	R-CDMW-F2
maximum noise index	9 dB	9 dB	9 dB	9 dB	9 dB	8 dB	8 dB	9 dB
Number of components	1	2	1	2	1	2	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating frequency	12 GHz	12 GHz	12 GHz	12 GHz	12 GHz	4 GHz	4 GHz	12 GHz
Minimum operating frequency	8.2 GHz	8.2 GHz	8.2 GHz	8.2 GHz	8.2 GHz	2 GHz	2 GHz	8.2 GHz
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE	MICROWAVE
Pulse input maximum power	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Minimum pulse input power	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	NO	NO	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	NO LEAD	FLAT	FLAT	NO LEAD	UNSPECIFIED	UNSPECIFIED	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	UNSPECIFIED	UNSPECIFIED	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
JESD-609 code	e0	e0	e0	e0	e0	-	-	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1	-
