DL85C Series
Features
Low noise
Very high stability
Low reverse current
Very sharp reverse characteristic
Maximum Ratings
Operating Temperature: -65 to +175
Storage Temperature: -65 to +175
DC Power Dissipation: 1.3 Watt @ L=4mm T
L
25
Forward Voltage @ 200mA: 1.0 Volts
Thermal Resistance: 110K/W Junction to Ambient

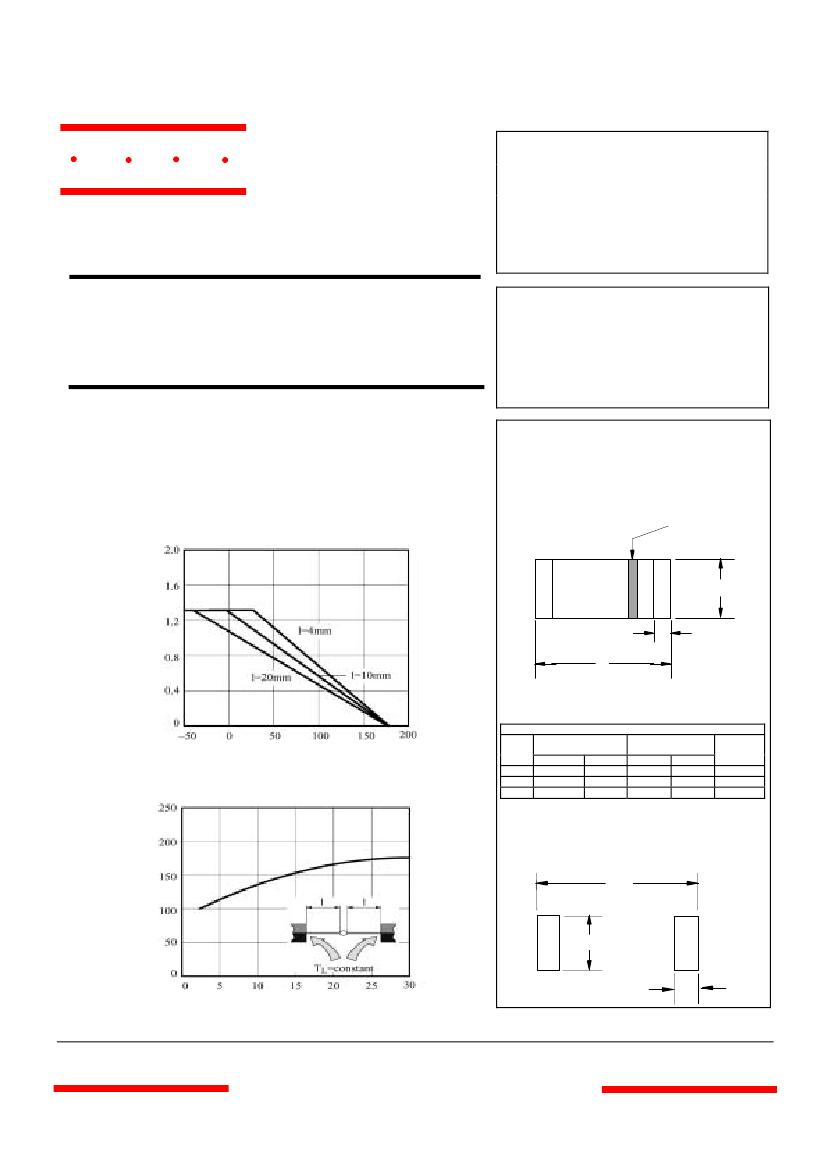

Figure1. Power Dissipation vs. Ambient Temperature
Ptot –Total Power Dissipation (W)
1.3 Watt
Zener Diode
2.7 to
75
Volts
MELF
Cathode Mark
C
B
A
Tamb – Ambient Temperature( )
Figure2. Thermal Resistance vs. Lead Length
DIM
A
B
C
INCHES
MIN
.190
---
.095
MAX
.205
.022
.105
MM
MIN
4.80
---
2.40
MAX
5.20
.55
2.67
NOTE
Nominal
∅
R
thJA
– Therm. Resist. Junction/
Ambient (K/W)
.220”
.115”
.035”
L– Lead Length (mm)
www.mccsemi.com
Revision: 1
1 of 3
2007/09/12
MCC
Micro Commercial Components
TM
