DS110-14F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DS110-14F

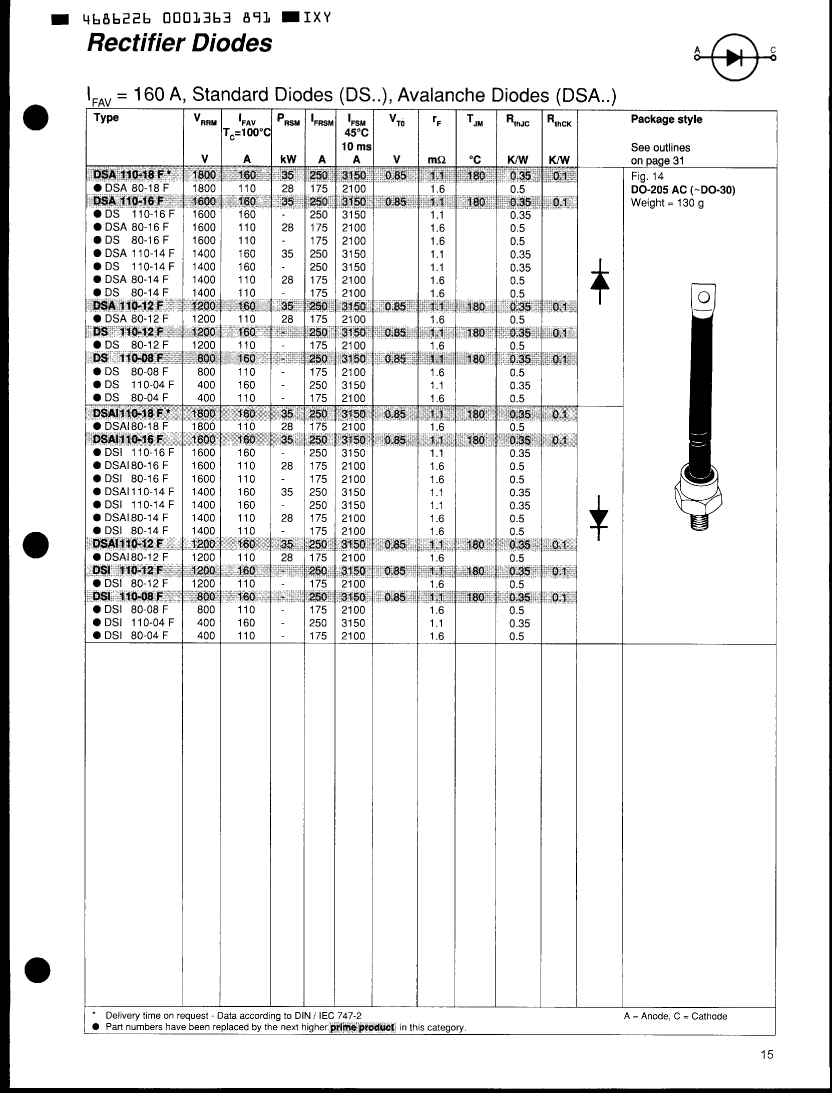

DS110-14F: DescriptionRectifier Diode, 1 Phase, 1 Element, 160A, 1400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size122KB，1 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

DS110-14F Overview

Rectifier Diode, 1 Phase, 1 Element, 160A, 1400V V(RRM), Silicon,

DS110-14F Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-H1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	3150 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	180 °C
Maximum output current	160 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1400 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

DS110-14F Related Products

	DS110-14F	DSI110-16F	DS110-04F	DSI110-14F	DS110-16F	DSA110-14F	DSI110-04F
Description	Rectifier Diode, 1 Phase, 1 Element, 160A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 160A, 1600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 160A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 160A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 160A, 1600V V(RRM), Silicon,	Rectifier Diode, Avalanche, 1 Phase, 1 Element, 160A, 1400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 160A, 400V V(RRM), Silicon,
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	CATHODE	ANODE	CATHODE	ANODE	ANODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	3150 A	3150 A	3150 A	3150 A	3150 A	3150 A	3150 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Maximum operating temperature	180 °C	180 °C	180 °C	180 °C	180 °C	180 °C	180 °C
Maximum output current	160 A	160 A	160 A	160 A	160 A	160 A	160 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1400 V	1600 V	400 V	1400 V	1600 V	1400 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	-	-	IXYS	IXYS	IXYS	IXYS
