Internationally Approved Toggles
Series P

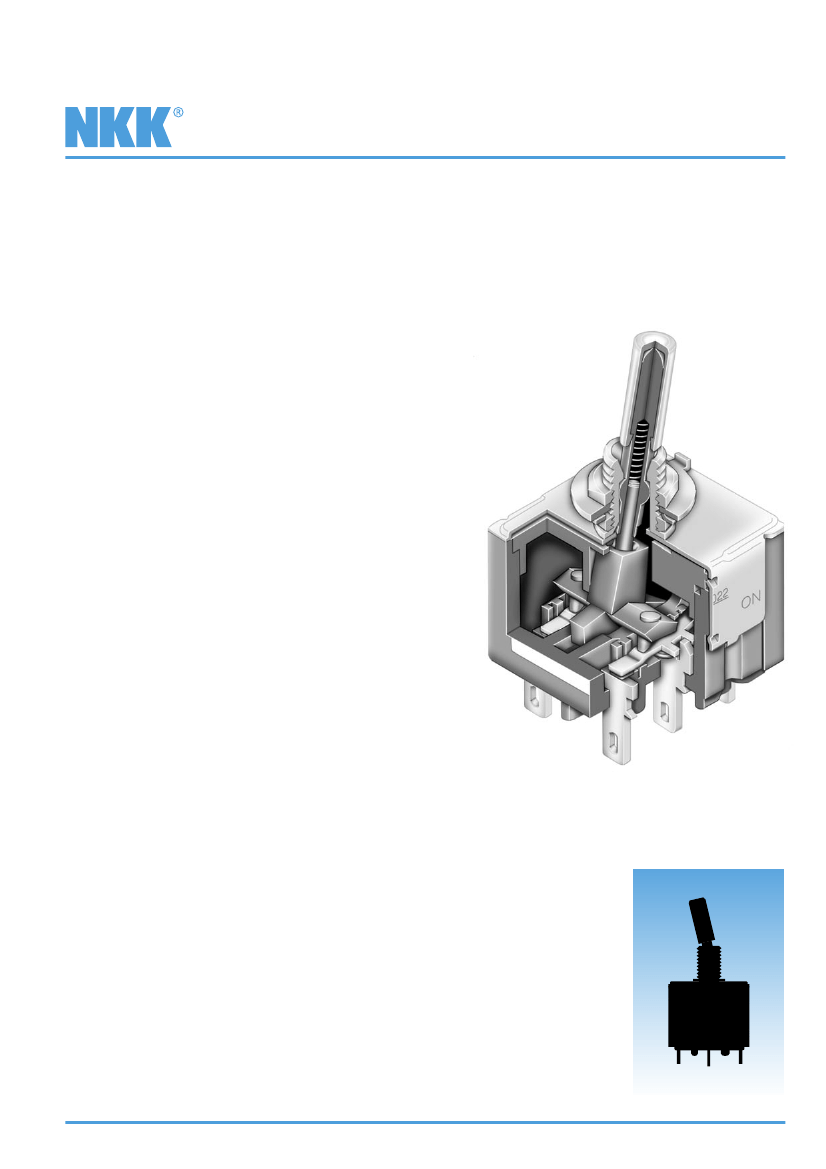

Distinctive Characteristics
International certifications from UL, CSA, VDE, SEMKO, and SEV.
High torque bushing construction prevents rotation or separation
from frame during installation.
Stainless steel frame resists corrosion and increases
environmental safety.
Case/base of heat resistant resin meets UL94V-0
flammability standard.
Contacts of special silver alloy resist arcing
and guarantee stable electrical contact and
long life.
High insulating barriers increase isolation of
circuits in double pole devices and provide
added protection to contact points.
Prominent external insulating barriers
increase insulation resistance and dielectric
strength.
Epoxy sealed terminals prevent entry of flux, solvents,
and other contaminants.
Clinching of the frame to the case well above the base and
terminals provides 4,000V dielectric strength.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Internationally Approved Toggles
Series P
General Specifications
Electrical Capacity
Resistive Load:
Motor Load:
Lamp Load:
10A @ 125V AC or 6A @ 250V AC
400W @ 125V AC
2A @ 125V AC for On-Off-On circuit & 3A @ 125V AC for other circuits
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Angle of Throw:
10 milliohms maximum
1,000 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum
25,000 operations minimum
25°
Materials & Finishes
Toggle Cap:
Lever:
Bushing:
Frame:
Case/Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Brass with nickel plating
Brass with chrome plating
Brass with nickel plating
Stainless steel
Diallyl phthalate resin (UL94V-0)
Silver alloy with silver plating
Pure silver with silver plating
Copper with silver plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
–10°C through +85°C (+14°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Soldering Time & Temp:
Wave Soldering Recommended (Straight PC): See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
Flammability Standards:
UL Recognized:
C-UL Recognized:
R
CSA Certified:
V
D E
VDE Approved:
SEMKO Approved:
SEV Approved:
UL94V-0 rated case/base
All models recognized at 10A @ 125V AC & 6A @ 250V AC; UL File No. WOYR2.E44145.
Add “/U” to end of part number to order UL mark on switch.
All models recognized at 10A @ 125V AC & 6A @ 250V AC; C-UL File No. WOYR8.E44145.
Add “/C-UL” to end of part number to order C-UL mark on switch.
All models certified at 10A @ 125V AC & 6A @ 250V AC; CSA File No. 023535-0-000.
Add “/C” to end of part number to order CSA mark on switch.
All models approved at 10A @ 125V AC & 6A @ 250V AC; License No. 119174.
Marking on switch is standard.
P2011, P2012, P2013, P2021, P2022 models approved at 10A @ 125V AC &
6A @ 125/250V AC; Reference No. 9915205/01-02. Marking on switch is standard.
All models with Quick Connect Terminals approved at 10A @ 125V AC & 6A @ 125/250V AC;
(P2013 for micro-switch only); Authorization No. 02.0466. Marking on switch is standard.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07

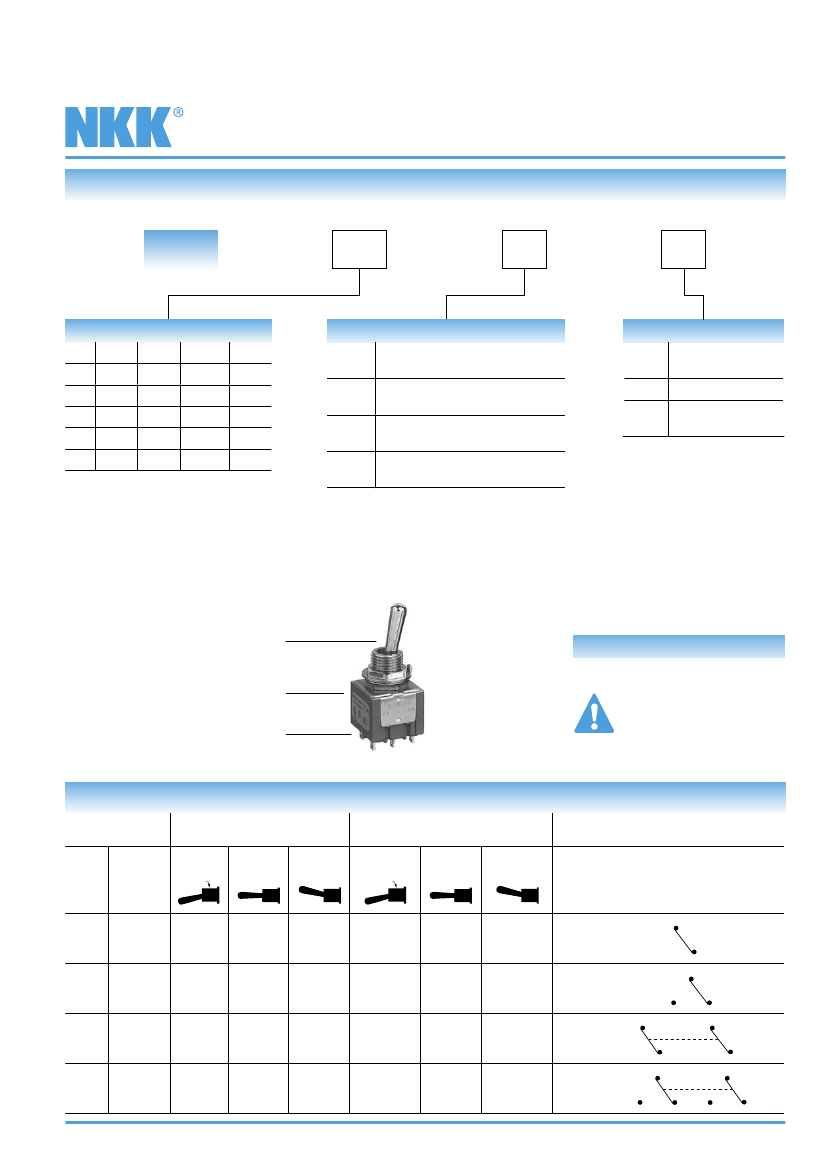

Internationally Approved Toggles
TYPICAL SWITCH ORDERING EXAMPLE
Series P
P20
POLES & CIRCUITS
11
12
13
21
22
23
SPST
SPDT
SPDT
DPST
DPDT
DPDT
ON
ON
ON
ON
ON
ON
NONE
NONE
OFF
NONE
NONE
OFF
OFF
ON
ON
OFF
ON
ON
22
No
Code
E
B
D
B
TERMINALS
No
Code
P
Z
Solder Lug
Straight PC
.187” (4.75mm)
Quick Connect
.512” (13.0mm) White Cap
with 6mm Bushing
.450” (11.4mm) Flatted
with 6mm Bushing
.689” (17.5mm) Large Bat
with 12mm Bushing
.748” (19.0mm) White Capped
Column with 12mm Bushing
TOGGLES & BUSHINGS
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
P2022B
.689” (17.5mm) Large Bat
with 12mm Bushing
DPDT
ON-NONE-ON Circuit
Solder Lug Terminals
IMPORTANT:
VDE, SEMKO & SEV are marked
on approved models. Switches
are supplied without UL, C-UL &
CSA marking unless specified.
Specific models & ratings noted
on General Specifications page.
POLES & CIRCUITS
Toggle Position
Down
Pole
Model
Keyway
Connected Terminals
Up
Down
Keyway
Throw & Schematics
Up
Note: Terminal numbers are on
the switch.
1 (COM)
Center
Center
SP
P2011
P2012
P2013
P2021
P2022
P2023
ON
ON
ON
ON
ON
ON
NONE
NONE
OFF
NONE
NONE
OFF
OFF
ON
ON
OFF
ON
ON
1-1b
OPEN
OPEN
SPST
1b
1 (COM)
1a
1
(COM)
1b
1
1a
(COM)
1b
2a
2
2b
2
2b
1b
SP
1-1b
OPEN
1-1a
SPDT
DP
1-1b 2-2b
OPEN
OPEN
DPST
DP
1-1b 2-2b
OPEN
1-1a 2-2a
DPDT
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07

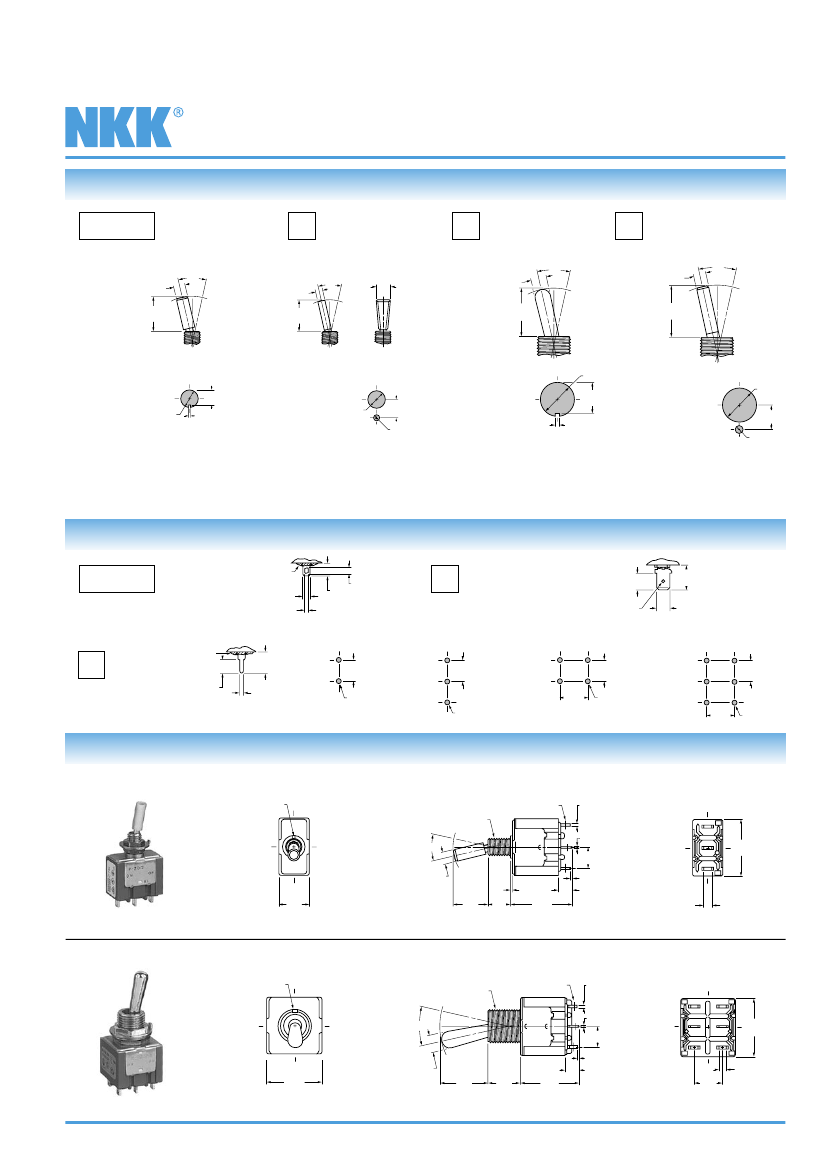

Internationally Approved Toggles
TOGGLES & BUSHINGS
No Code
.512” (13.0mm)
White Cap with
6mm Bushing
25°
(2.54)
.100
(11.4)
.450
Series P
.748” (19.0mm)
White Capped Column
with 12mm Bushing
(4.4) Dia
.173
25°
E
.450” (11.4mm)
Flatted with
6mm Bushing
25°
(5.08)
.200
B
.689” (17.5mm)
Large Bat with
12mm Bushing
25°
(6.0) Dia
.236
(17.5)
.689
D
(4.2) Dia
.165
(13.0)
.512
(19.0)
.748
Panel Cutouts
Panel Thickness
with Keyway
.134” (3.4mm)
maximum
(5.6)
.220
(6.35) Dia
.250
(0.6)
.024
Panel Thickness
with Locking Ring
.102” (2.6mm)
maximum
(6.35) Dia
.250
(6.5)
.256
(2.2) Dia
.087
Panel Thickness
with Keyway
.256” (6.5mm)
maximum
(12.5) Dia
.492
(11.5)
.453
(1.5)
.060
Panel Thickness
with Locking Ring
.217” (5.5mm)
maximum
(12.5) Dia
.492
(9.0)
.354
(3.0) Dia
.118
Standard Hardware
For 6mm Bushing:
1 Locking Ring AT507M, 1 Internal Tooth Lockwasher AT509, 2 Hex Nuts AT513M
For 12mm Bushing:
1 Hex Face Nut AT503M, 1 Locking Ring AT506M, 1 Internal Tooth Lockwasher AT508, 1 Hex Mounting Nut AT527M
TERMINALS
No Code
Epoxy Seal
Solder Lug
(2.0)
(4.5) .079
(2.6)
.177
.102
(1.25)
.049
Thk = (1.0)
.039
1b
Z
.187” (4.75mm)
Quick Connect
(6.35)
.250
(1.3) Dia
.051
(9.0)
.354
(4.75)
.187
Thk = (0.8)
.031
2b
1b
P
Epoxy Seal
Straight PC
(7.6)
.299
(1.17)
.046
Thk = (1.0)
.039
1b
2b
1b
(4.8)
.189
SPST
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
SPDT
1
(7.62) Typ
.300
DPST
2
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
DPDT
2
1
(7.62) Typ
.300
1a
(1.8) Dia Typ
.071
(10.16)
.400
2a
1a
(10.16)
.400
(1.8) Dia Typ
.071
TYPICAL SWITCH DIMENSIONS
6mm Bushing
Keyway
M6 P0.75
P2011, P2012, P2013
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
1b
25°
(0.8)
.031
(7.62)
.300
(0.5)
.020
1
(20.5)
.807
(4.2) Dia
.165
(11.0)
.433
(13.0)
.512
1a
(0.9)
.035
(8.0)
.315
(22.0)
.866
(5.0)
.197
(2.6)
.102
P2012
P2011 models do not have terminal 1a.
12mm Bushing
Keyway
P2021B, P2022B, P2023B
M12 P1
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
2b
1b
25°
(0.8)
.031
(7.62)
.300
(0.5)
.020
2
1
(20.5)
.807
2a
1a
(20.0)
.787
(6.0) Dia
.236
(17.5)
.689
(12.0)
.472
(21.1)
.831
(5.0)
.197
(10.16)
.400
(2.6) Typ
.102
P2022B
P2021 models do not have terminals 1a & 2a.
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
