D09P13A

Description
D Subminiature Connector
CategoryThe connector    The connector
File Size138KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

D09P13A Overview

D Subminiature Connector

D09P13A Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
DIN complianceYES
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberD
Housing size1/E
Base Number Matches1
DELTA D
Angled
UL Recognized File E 118235 (R)

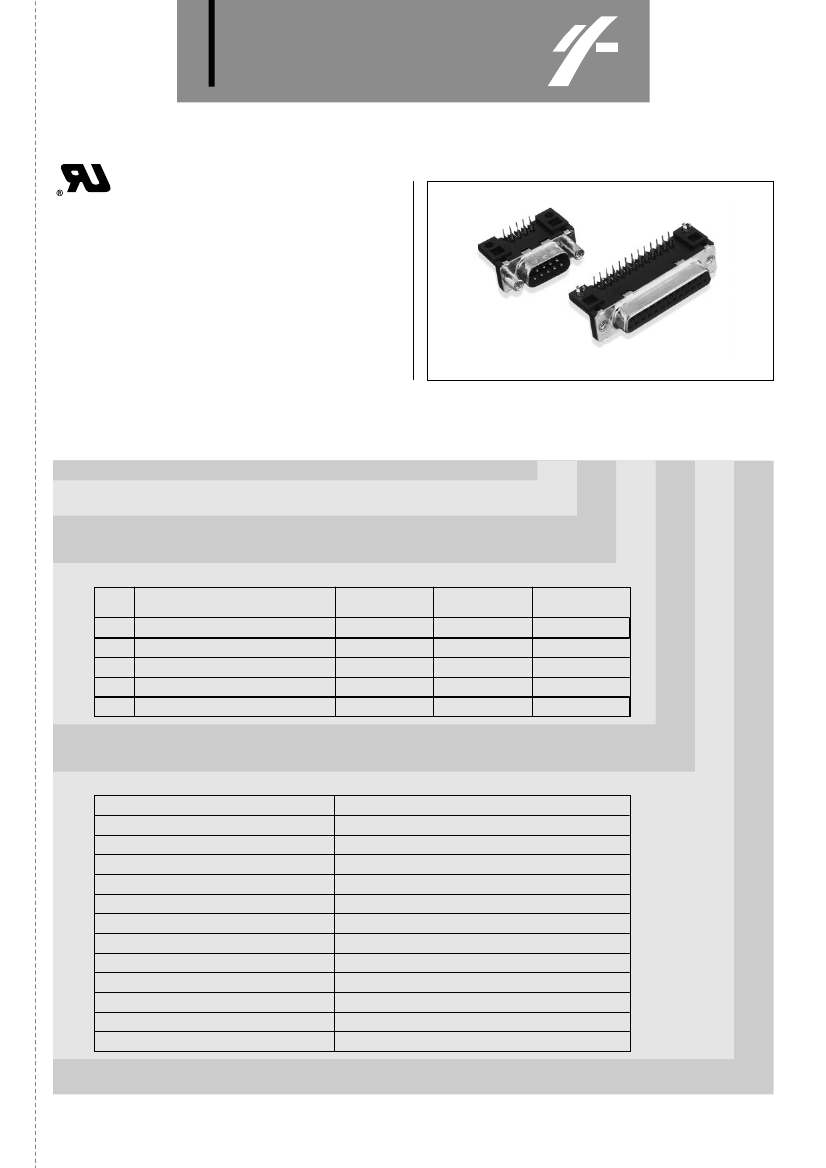

The DELTA D series has been developed to meet the current
requirements of industry (industrial electronics, computers,
medical equipment, private exchanges…).
Its development integrates today’s demand for ever-increasing
rationalization (automation, robots for automatic placement…).
It has been designed and industrialized with the help of the most
recent technologies: CAD, 100 % automatic assembly, in-process
quality control, etc…
The DELTA D series has angled and straight terminations of different
lengths, stamped contacts and is available in the most popular
arrangements (9, 15, 25, 37 and 50* male/female contacts).
It meets european standards (HE 5 and DIN 41652).
Various options can be selected: threaded inserts, female jack
screws, harpoons, grounding device…
*straight version only
Ordering information

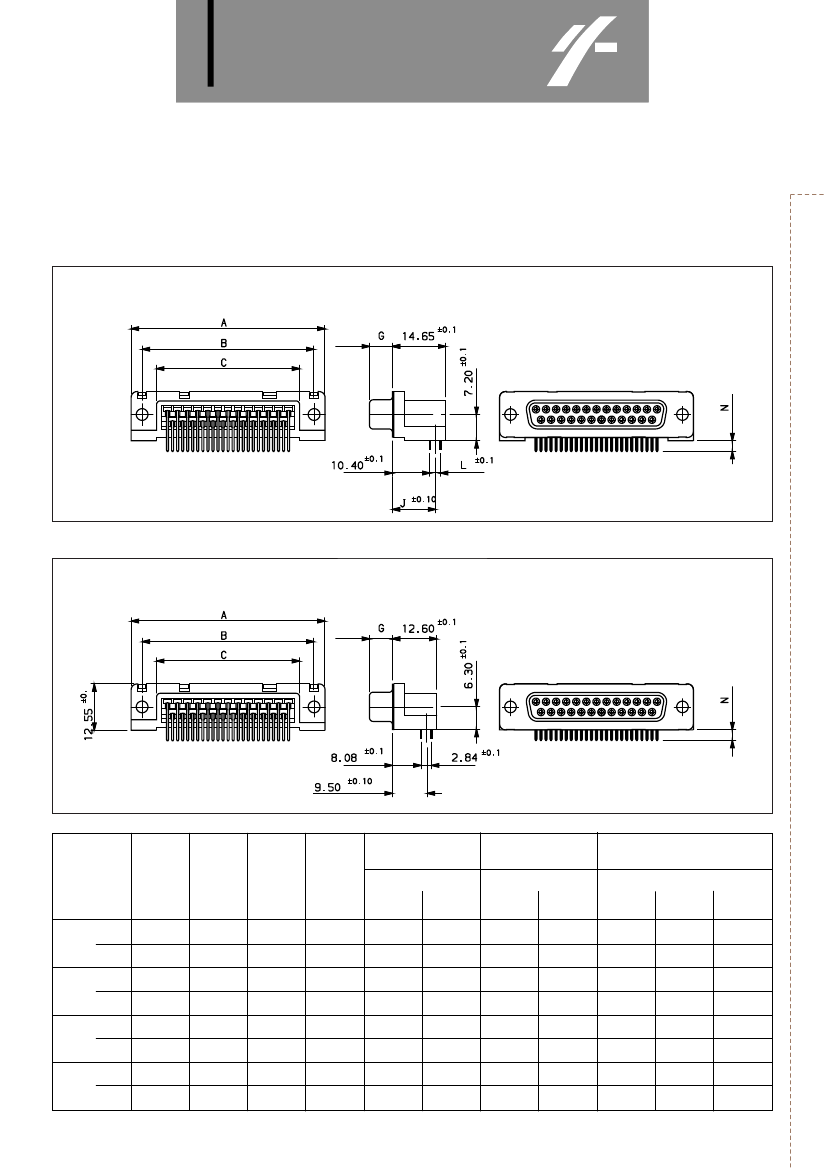

Right angled solder version
Series
Number of contacts
09, 15, 25, 37
Contacts
P
S
Termination
Code
13 A
13 B
23 A
23 B
33 E
Plating
4
6
Type
Right angled – Europe standard
Right angled – Europe standard
Right angled – Europe standard
Right angled – Europe standard
Right angled – US standard
Foot print/Pitch
10.4 / 2.54 mm
10.4 / 2.54 mm
10.4 / 2.84 mm
10.4 / 2.84 mm
8.08 / 2.84 mm
Length of
termination
2.90
3.70
2.90
3.70
3.18
PCB
thickness
1.6
2.4 and 1.6
1.6
2.4 and 1.6
1.6
:
Pin
:
Socket
D
25
P
13 A
4
GV
00
:
Standard class (≥ 200 mating / unmating)
:
High performance class (
500 mating / unmating) - LNZ 4404 -
Mounting options
(see cover page 71 bis)
Options
PA
PL
PX
PV
GI
GL
GX
GV
UA
UL
UX
UV
Options
00
Standard hole
Threaded insert M3
Threaded insert UNC 4-40
Female screw UNC 4-40
Harpoons + Female screw M3 + elec. continuity
Harpoons + insert M3 + elec. continuity
Harpoons + insert UNC 4-40 + elec. continuity
Harpoons + female screw UNC 4-40
Elec. continuity
Insert M3 + elec. continuity
Insert UNC 4-40 + elec. continuity
Female screw UNC 4-40 + elec. continuity
:
Standard series
Technical characteristics – page 6
