MDS-25SC-Z8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MDS-25SC-Z8

MDS-25SC-Z8: DescriptionD Type Connector, 25 Contact(s), Female, Crimp Terminal, #2-56, Plug; CategoryThe connector The connector; File Size219KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

MDS-25SC-Z8 Overview

D Type Connector, 25 Contact(s), Female, Crimp Terminal, #2-56, Plug

MDS-25SC-Z8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.209 inch
subject depth	0.274 inch
body length	1.175 inch
Body/casing type	PLUG
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	MDS
Installation option 1	#2-56
Installation option 2	THUMBSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	CRIMP
Total number of contacts	25
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

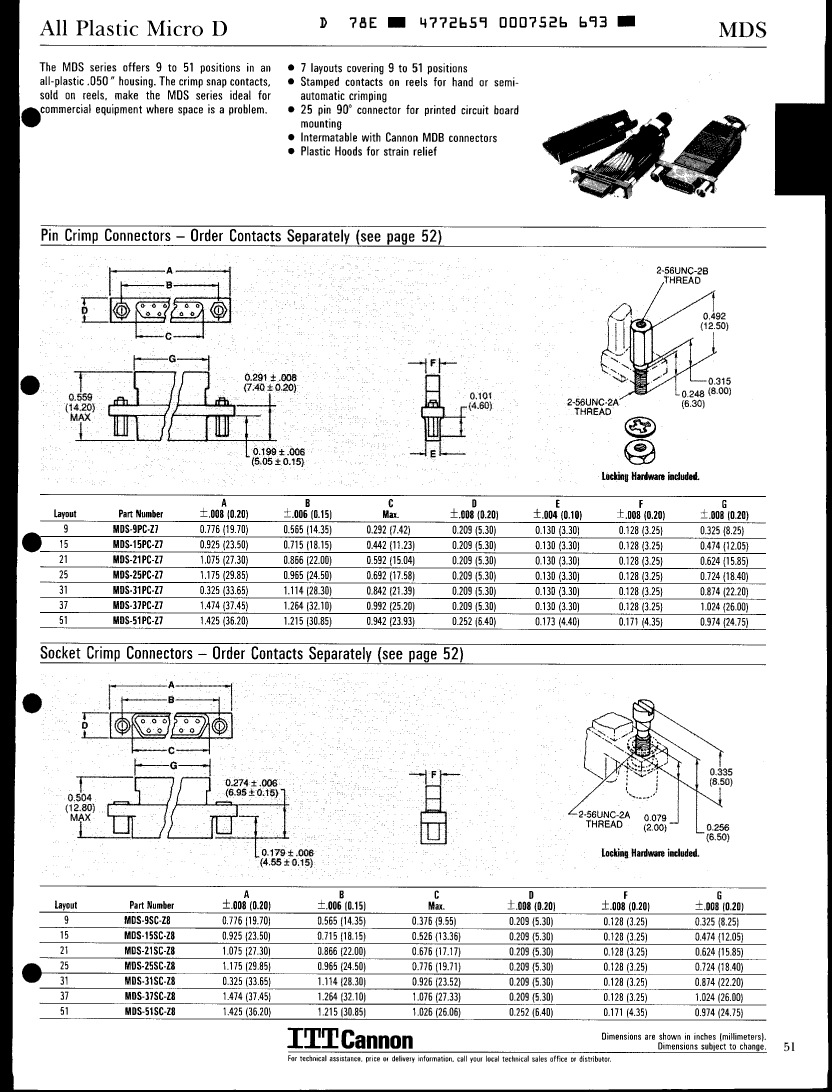

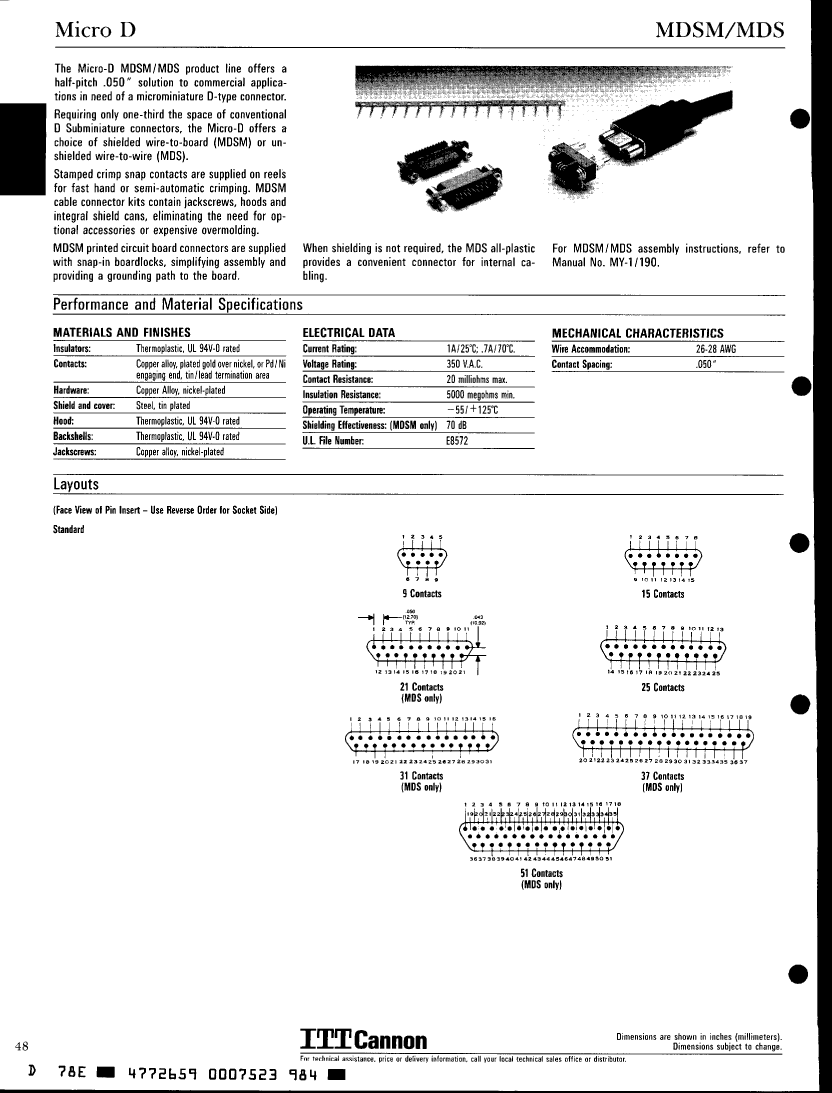

Preview

Download Datasheet

View All

MDS-25SC-Z8 Related Products

	MDS-25SC-Z8	MDS-15PC-Z7	MDS-15SC-Z8	MDS-9SC-Z8	MDS-37PC-Z7	MDS-25PC-Z7
Description	D Type Connector, 25 Contact(s), Female, Crimp Terminal, #2-56, Plug	D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, #2-56, Receptacle	D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, #2-56, Plug	D Type Connector, 9 Contact(s), Female, 0.108 inch Pitch, #2-56, Plug	D Type Connector, 37 Contact(s), Male, Crimp Terminal, #2-56, Receptacle	D Type Connector, 25 Contact(s), Male, Crimp Terminal, #2-56, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch
subject depth	0.274 inch	0.559 inch	0.504 inch	0.504 inch	0.291 inch	0.291 inch
body length	1.175 inch	0.925 inch	0.925 inch	0.776 inch	1.474 inch	1.175 inch
Body/casing type	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	MDS	MDS	MDS	MDS	MDS	MDS
Installation option 1	#2-56	#2-56	#2-56	#2-56	#2-56	#2-56
Installation option 2	THUMBSCREW	THUMBSCREW	THUMBSCREW	THUMBSCREW	THUMBSCREW	THUMBSCREW
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	25	15	15	9	37	25
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Base Number Matches	1	1	1	1	1	1
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	-
