FDA15F5R7NTX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FDA15F5R7NTX

FDA15F5R7NTX: DescriptionD Type Connector, 15 Contact(s), Female, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size373KB，4 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric Compare View All

FDA15F5R7NTX Overview

D Type Connector, 15 Contact(s), Female, Solder Terminal, #4-40, Plug

FDA15F5R7NTX Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.409 inch
body length	1.532 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	250VDC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE
Manufacturer's serial number	FD
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

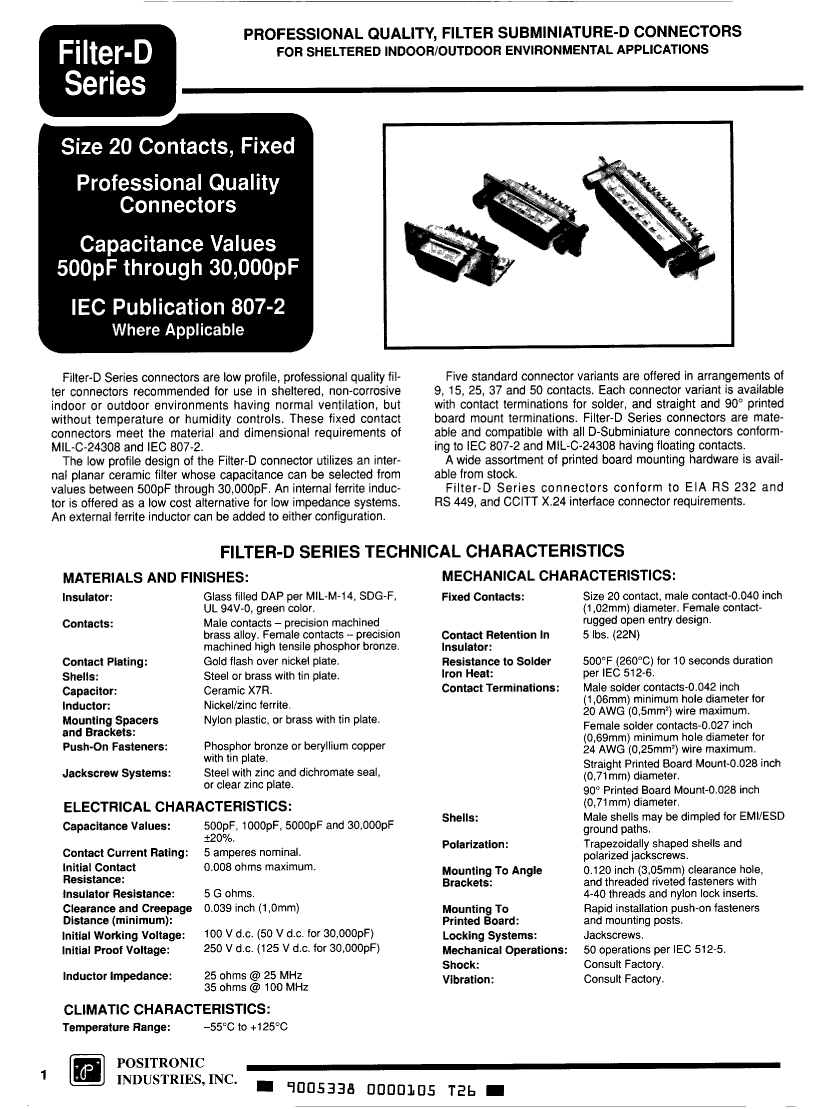

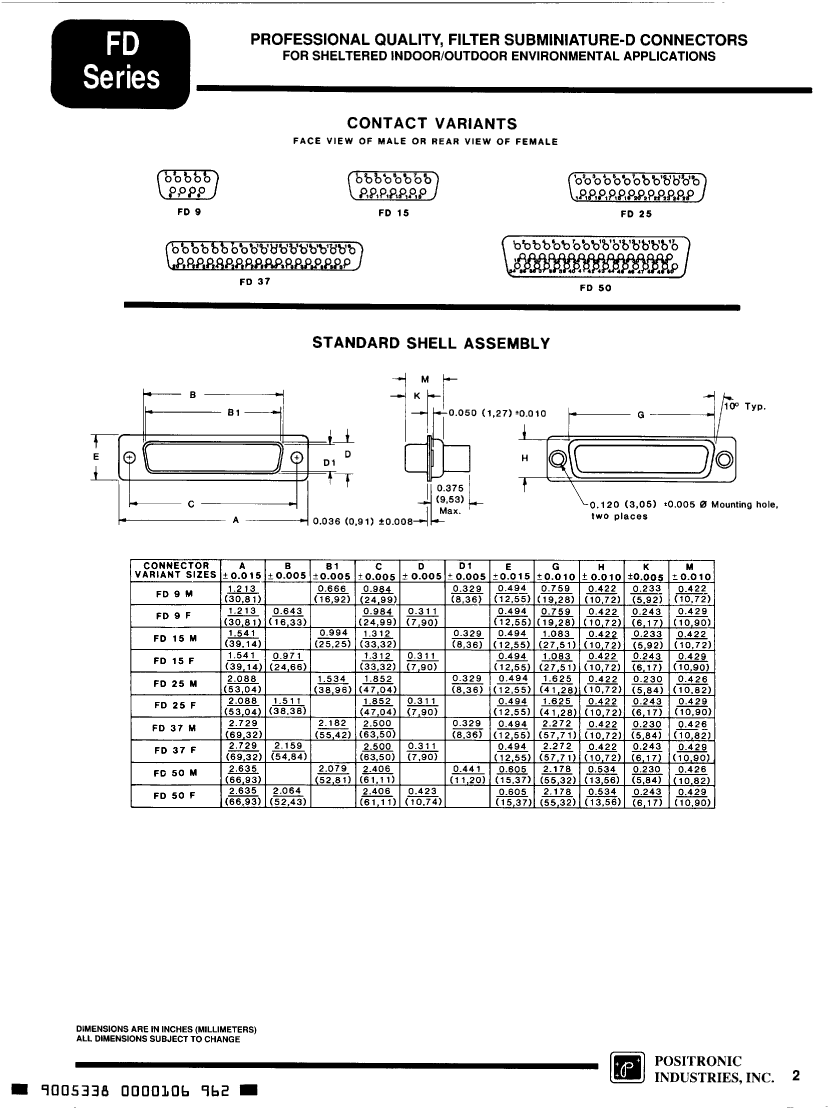

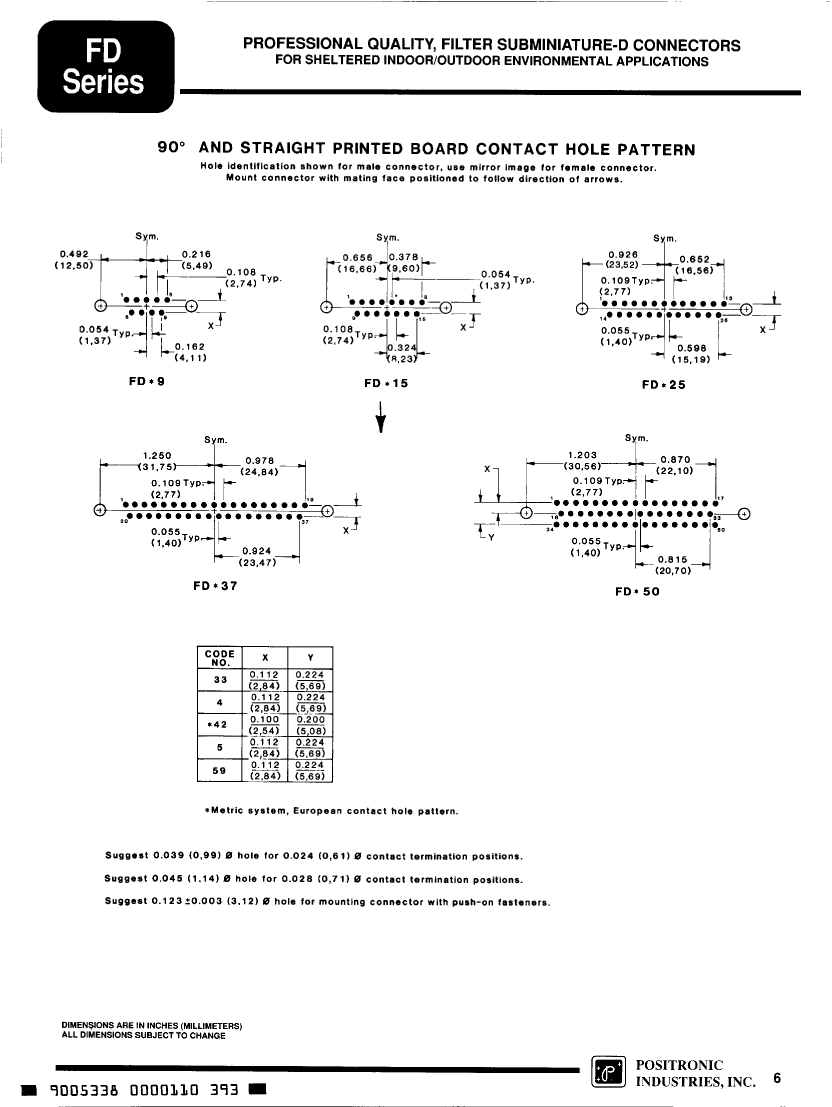

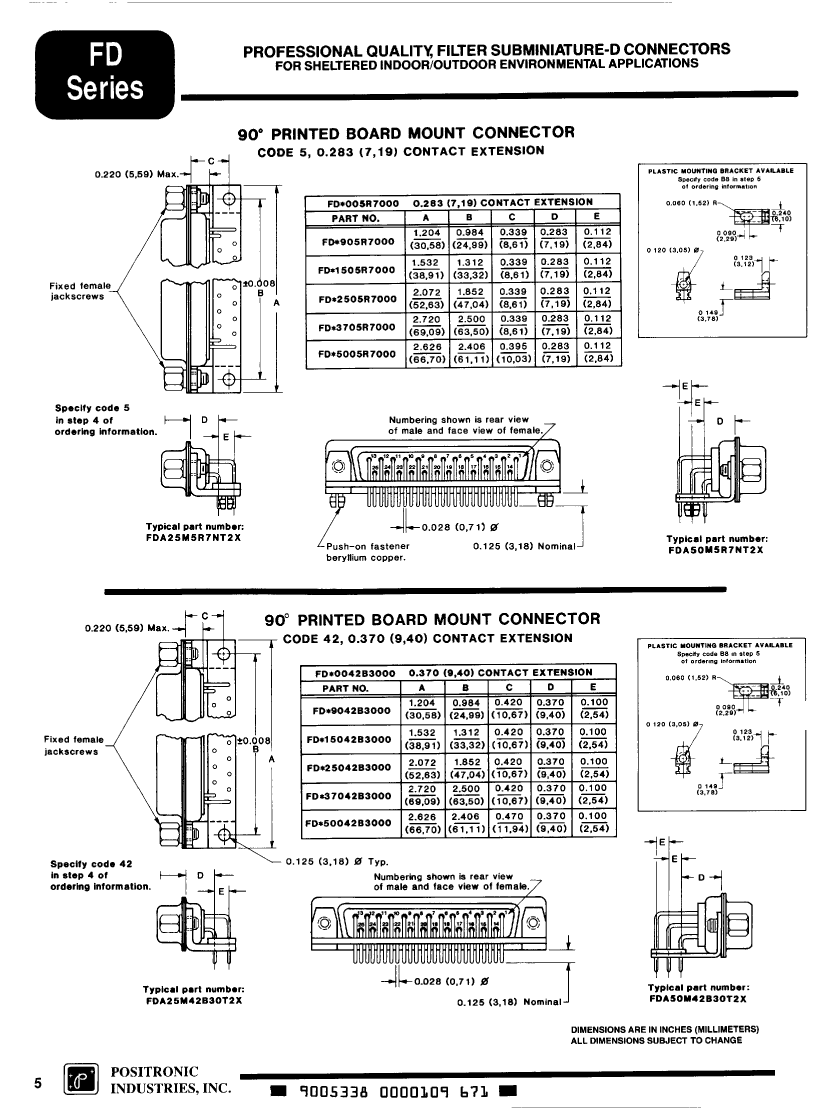

Preview

Download Datasheet

View All

FDA15F5R7NTX Related Products

	FDA15F5R7NTX	FDA15M42B30TZ	FDA15M42B30TX	FDA15M5R7NTZ	FDA25M42B30TX
Description	D Type Connector, 15 Contact(s), Female, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 15 Contact(s), Male, Solder Terminal, Receptacle	D Type Connector, 15 Contact(s), Male, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Male, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.409 inch	0.484 inch	0.484 inch	0.409 inch	0.484 inch
body length	1.532 inch	1.532 inch	1.532 inch	1.532 inch	2.072 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	8 mΩ	8 mΩ	8 mΩ	8 mΩ	8 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	250VDC V	250VDC V	250VDC V	250VDC V	250VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE
Manufacturer's serial number	FD	FD	FD	FD	FD
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.54 mm	2.54 mm	2.8448 mm	2.54 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	25
Base Number Matches	1	1	1	1	-
Maker	-	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries
Is Samacsys	-	N	N	N	-
