DAJK15S3-1AFN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAJK15S3-1AFN

DAJK15S3-1AFN: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAJK15S3-1AFN Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,

DAJK15S3-1AFN Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

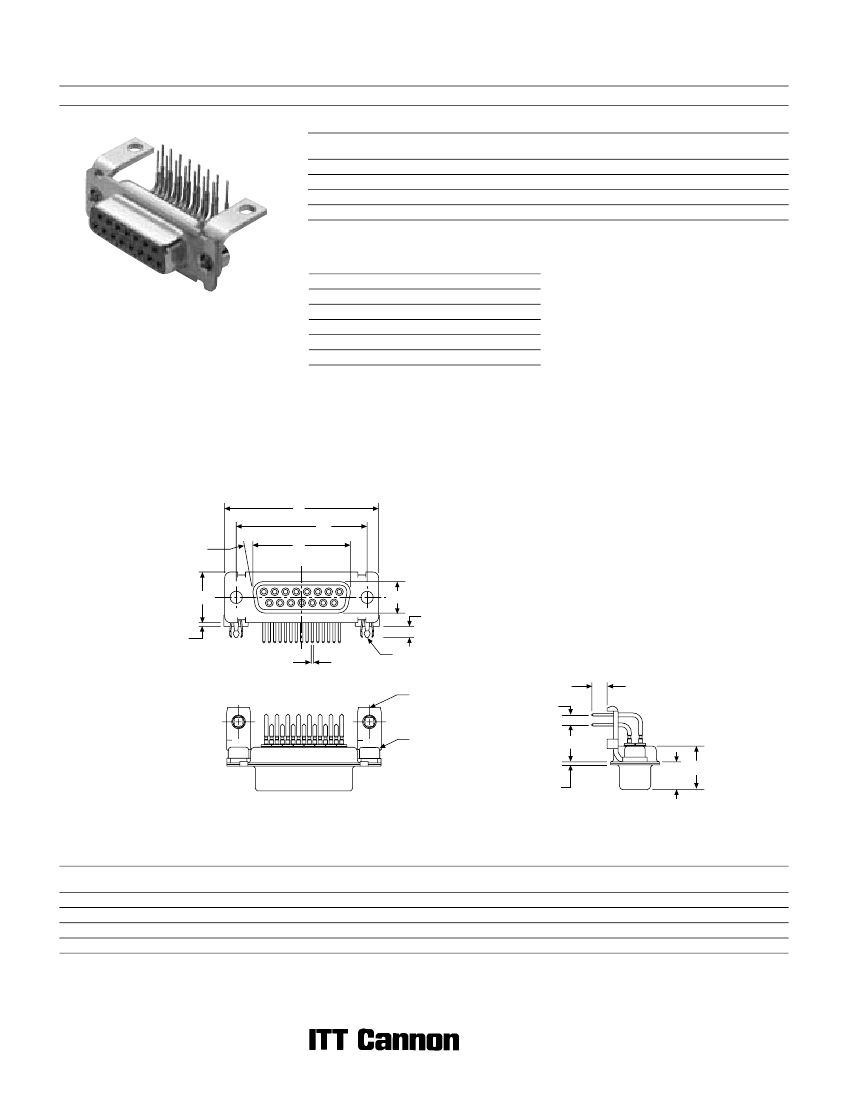

D Subminiature

D*JK — 90° PC Tails and Metal Brackets — European Footprint 10,2 or 9,4 mm

Receptacle

Part Numbers

Bushing with

Through Hole

DEJK9S*-1AFN

DAJK15S*-1AFN

DBJK25S*-1AFN

DCJK37S*-1AFN

Captive Nut

#4-40 UNC

DEJK9S*-1A7N

DAJK15S*-1A7N

DBJK25S*-1A7N

DCJK37S*-1A7N

Captive Nut

DEJK9S*-1A9N

DAJK15S*-1A9N

DBJK25S*-1A9N

DCJK37S*-1A9N

Post

#4-40 UNC

DEJK9S*-1A8N

DAJK15S*-1A8N

DBJK25S*-1A8N

DCJK37S*-1A8N

Filter D

Post

DEJK9S*-1AHN

DAJK15S*-1AHN

DBJK25S*-1AHN

DCJK37S*-1AHN

* Insert filter designator. Example: DEJK9S4-1A7N (For 1000 pF capacitance)

Notes: For performance class 1 add -A190. Example: DEJK9S1-1AFN-A190

For pushfit/boardlocks add -146. Example: DEJK9S1-1AFN-A190-146

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 273.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

For pushfit/boardlock configuration,

see page 225.

Filter Designator*

For electrical data, see page 106.

Filter Capacitance

330 pF

470 pF

680 pF

1000 pF

1500 pF

Engaging Face

10°

2,89 (.114)

1,00 (.039)

Ø 0,60 (.024)

BOARDLOCK

3,70 (.146)

2,54 (.100)

BRACKET,

METAL

BUSHING

9,40 (.370)

Boardlock removed for clarity

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,318

(.0125)

1,206 (.0475)

±0,25

(.010)

0,76 (.030)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)

Dimensions subject to change

115
