PC3Q14 datasheet, PDF - EEWORLD Datasheet

PC3Q14: DescriptionOPAQUE MINI-FLAT PACKAGE, AC INPUT TYPE PHOTOCOUPLER; CategoryLED optoelectronic/LED photoelectric; File Size156KB，4 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

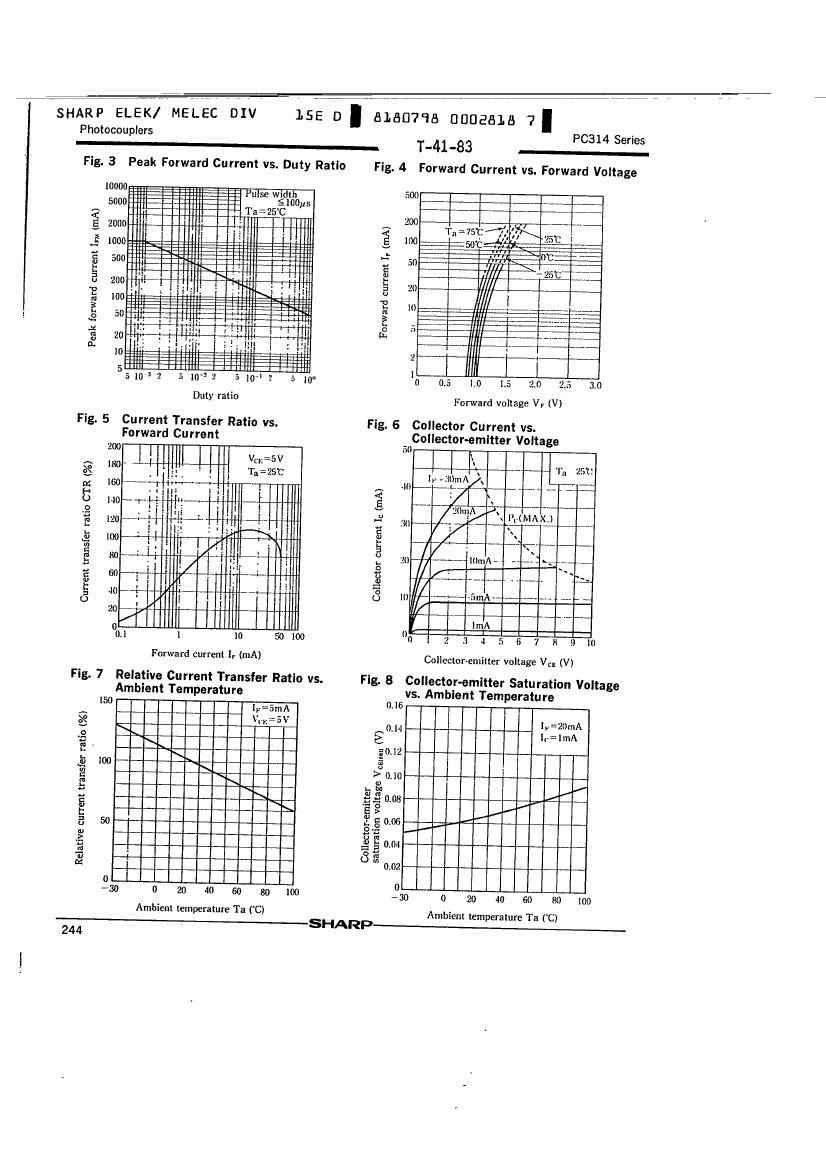

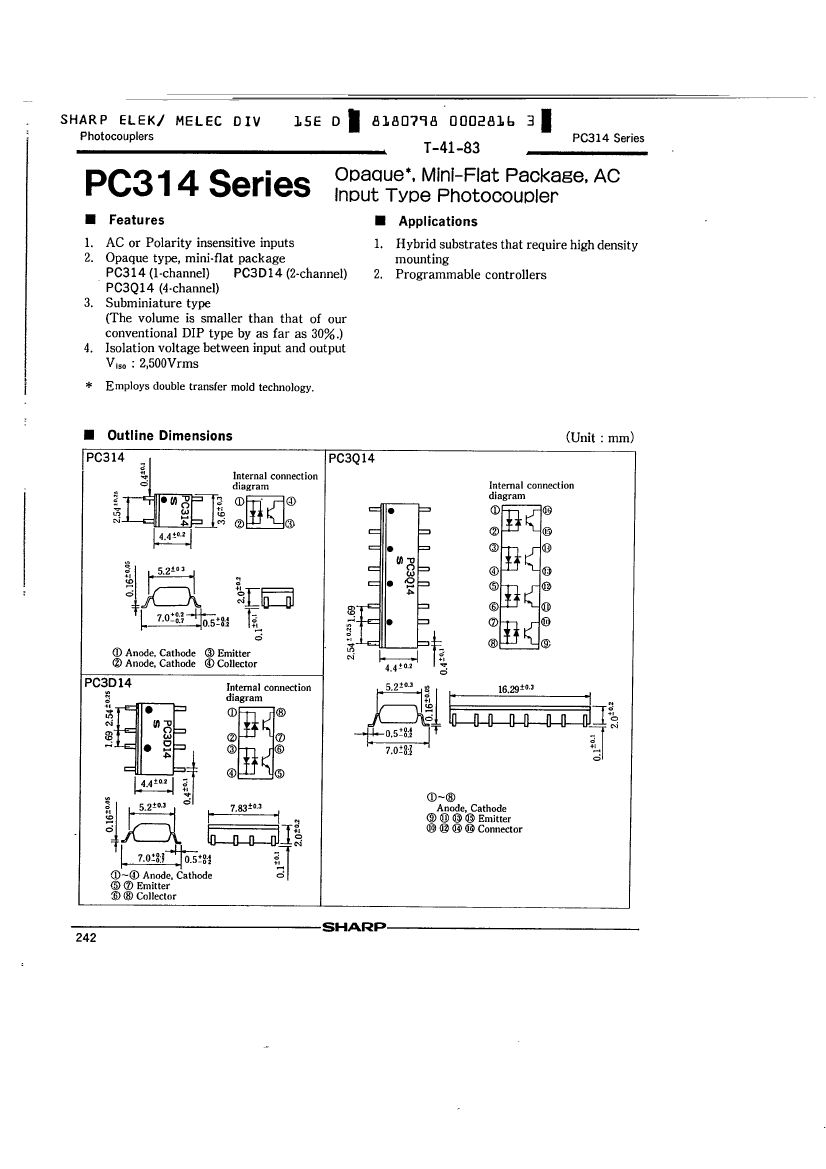

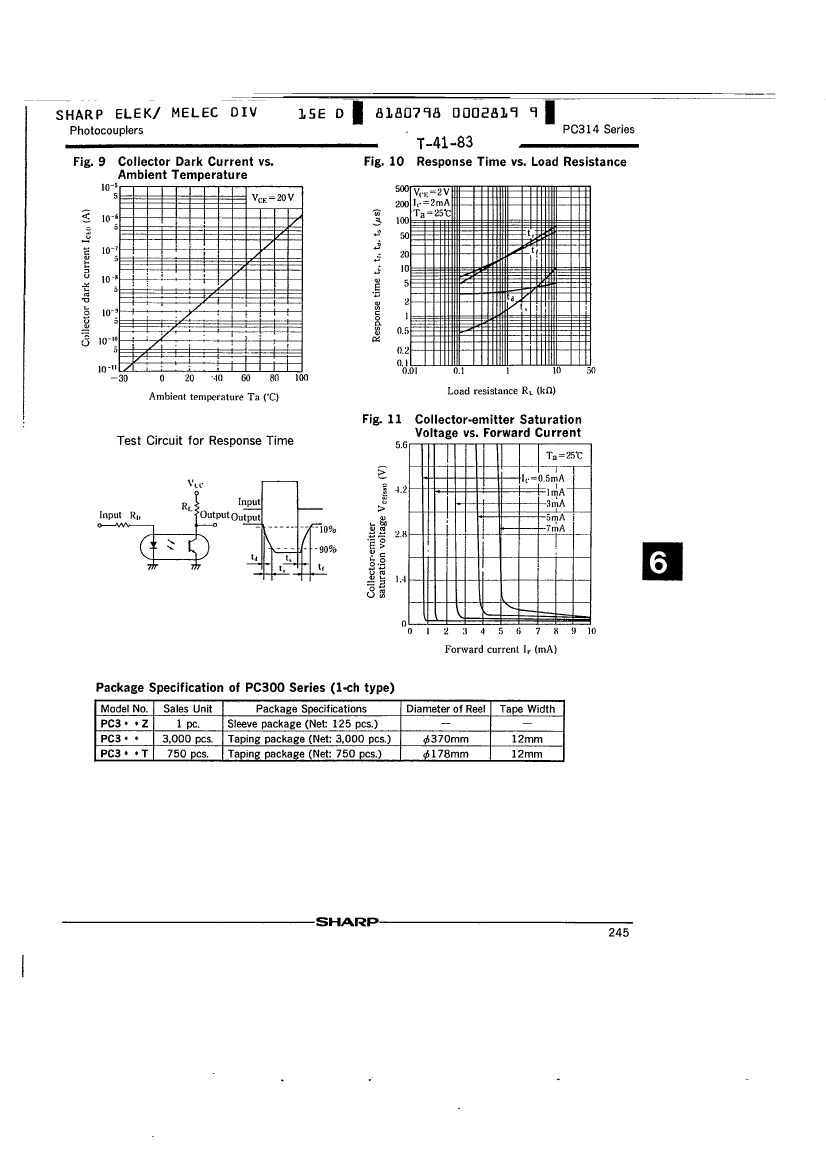

PC3Q14 Overview

OPAQUE MINI-FLAT PACKAGE, AC INPUT TYPE PHOTOCOUPLER

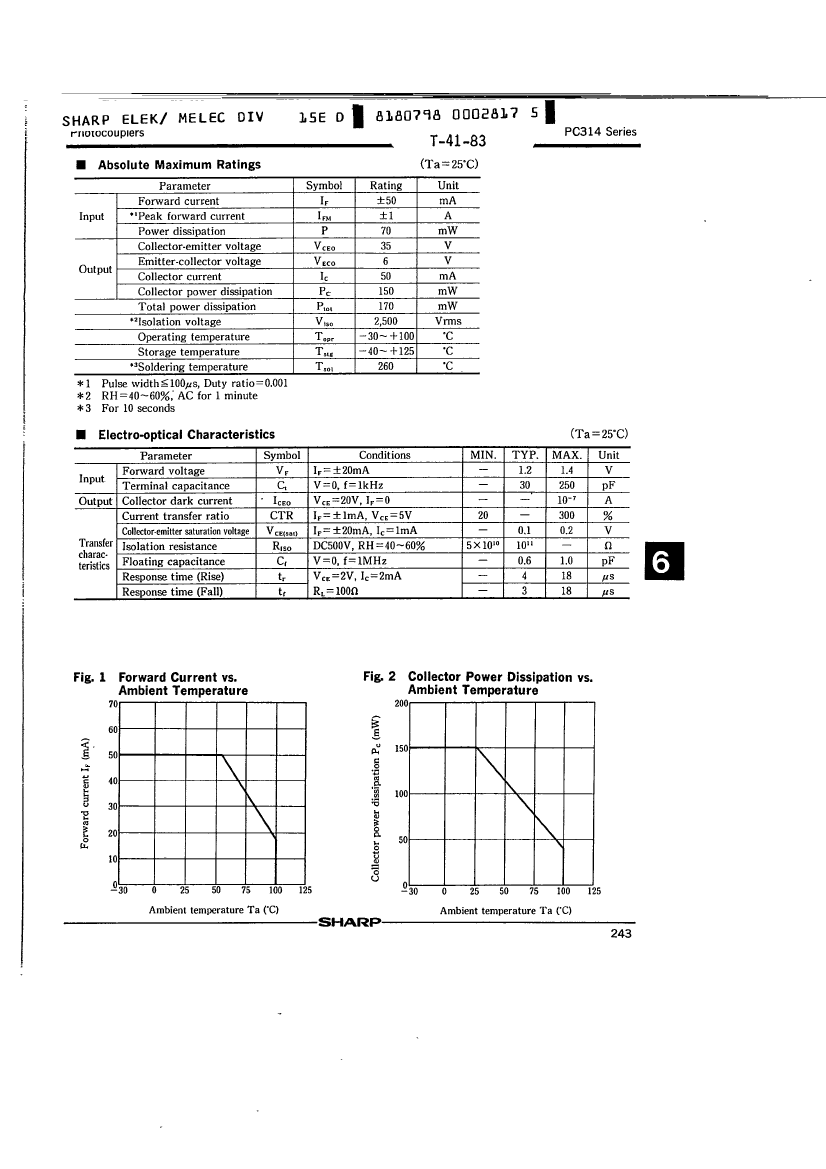

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
Reach Compliance Code	unknow
Current transmission ratio - minimum value	20%
Maximum forward current	0.05 A
Maximum insulation voltage	2500 V
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of components	4
Maximum response time	0.000004 s
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

	PC3Q14	PC314	PC3D14
Description	OPAQUE MINI-FLAT PACKAGE, AC INPUT TYPE PHOTOCOUPLER	OPAQUE MINI-FLAT PACKAGE, AC INPUT TYPE PHOTOCOUPLER	OPAQUE MINI-FLAT PACKAGE, AC INPUT TYPE PHOTOCOUPLER
Is it Rohs certified?	incompatible	-	incompatible
Maker	SHARP	-	SHARP
Reach Compliance Code	unknow	-	unknow
Current transmission ratio - minimum value	20%	-	20%
Maximum forward current	0.05 A	-	0.05 A
Maximum insulation voltage	2500 V	-	2500 V
JESD-609 code	e0	-	e0
Installation features	SURFACE MOUNT	-	SURFACE MOUNT
Number of components	4	-	2
Maximum response time	0.000004 s	-	0.000004 s
surface mount	YES	-	YES
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
