PRODUCT DATA SHEET
LOW DISTORTION
LINE MATCHING TRANSFORMER
Features
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
Low Distortion
11mm (0.43”) Seated Height
Industry Standard Pinout
IEC 60950 and UL 60950 Certified
UL Recognized Component
Extended Frequency Response
Flat TX and RX Responses
High Thermal Stability
Directly replaces 82097
P5097
Applications
∗
V.90 and V.92 Modems
∗
V.34 Modems
DESCRIPTION
P5097 is intended for low cost V.90 and V.92
(56kbps)
modems
and
other
high-speed
applications where low distortion at moderate
power levels and very low voiceband frequencies is
required.
P5097 is offered as a direct replacement for 82097
in existing circuits without changes to matching
components.
P5097 exhibits stable core characteristics over its
operating temperature range to maximize data
throughput under varying environmental conditions
without the need for modem retraining.
P5097 uses patented design and construction
methods to achieve excellent signal performance
and safety isolation to international standards.
The part is completely lead-free, compliant with
RoHS Directive 2002/95/EC, and suitable for
lead-free and conventional processing.
P5097 is certified to IEC 60950 and UL 60950.
P5097 is a UL Recognized Component and is
supported by an IEC CB certificate.
FOR NEW DESIGNS
P5056 IS RECOMMENDED
Patented
ETALDOC 778/5
Page 1 of 4
June 2005
P5097
SPECIFICATIONS
Electrical

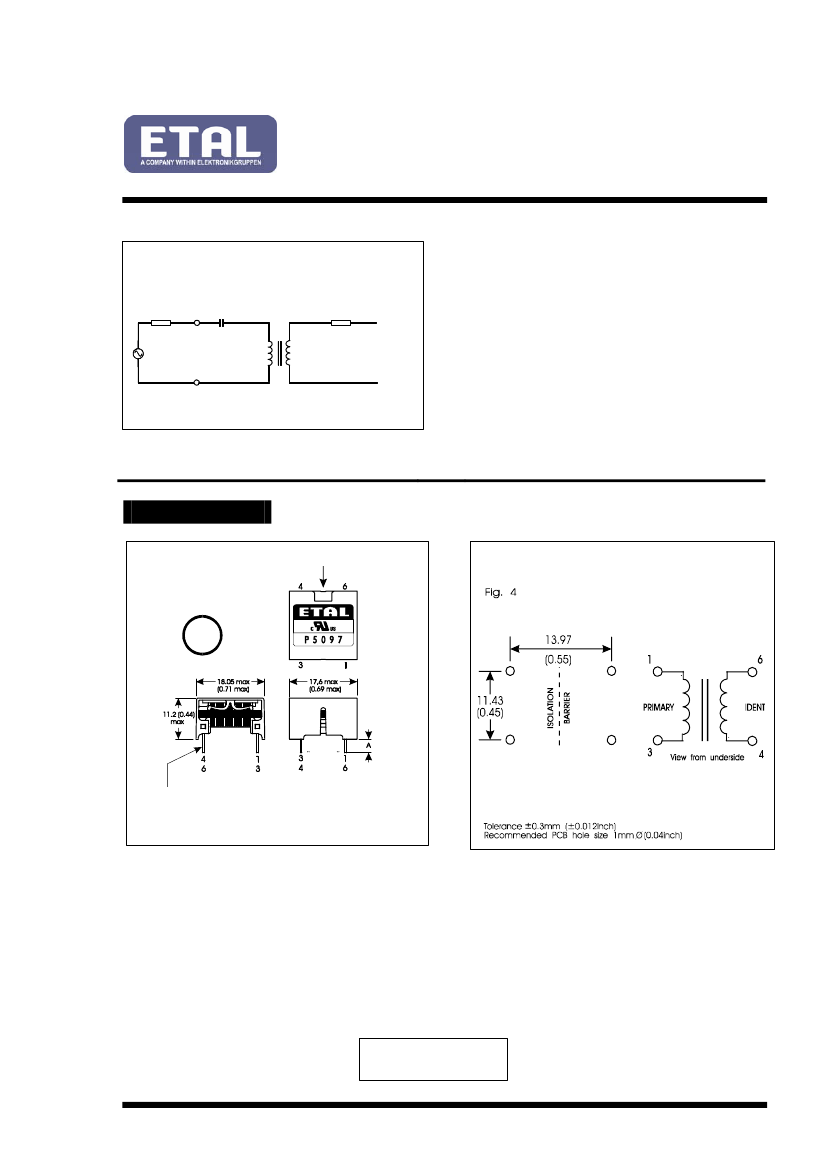

At T = 25ºC and as circuit Fig. 2 unless otherwise stated.
Parameter
Conditions
Insertion Loss
Frequency Response
f = 2kHz, R
L
= 600Ω
LF -3dB cutoff
HF -3dB cutoff
100Hz – 4kHz
200Hz – 4kHz
200Hz – 4kHz
150Hz -3dBm in line
Min
-
-
-
-
20
-
-
Typ
-
10
30
-
-
-
-
Max
2.0
-
-
±0.1
-
-
-76
Units
dB
Hz
kHz
dB
dB
dB
dBm
Return Loss
(5)
Transhybrid Loss
(5)
Third Harmonic
Distortion
(1)
Balance
Voltage Isolation
(2)
DC – 5kHz
Method TG 25
50Hz
DC
80
-
-
dB
2.12
3.0
-
-
-
-
kVrms
kV
Operating Range:
Functional
Storage
Lumped equivalent circuit parameters as Fig. 1
DC resistance
(3)
R
DC
Leakage inductance,
ΔL
Shunt inductance, Lp
(4)
Shunt loss, Rp
200Hz 10mV
200Hz 10mV
Primary resistance R
DCp
Secondary resistance R
DCs
0
-40
-
-
+70
+85
ºC
ºC
120
117
3.5
8
15
-
-
4.5
-
-
149
143
5.5
-
-
Ω
Ω
mH
H
kΩ
Notes:
1. Third harmonic typically exceeds other
harmonics by 10dB.
2. Components are 100% tested at 3.25kVDC.
3. Caution: do not pass DC through windings.
Telephone line current must be diverted using
semiconductor line hold circuit or choke.
4. At signal levels greater than 100mV, Lp will
increase and Rp will decrease slightly but the
effect is usually favourable to the return loss
characteristic.
5. Return loss and transhybrid loss can be
improved to 30dB in improved matching circuit.
The values shown relate to the simplest
configuration, Fig. 2.
Equivalent Circuit
Fig. 1
½ L
½ L
IDEAL
1:1
ETALDOC 778/5
Page 2 of 4
June 2005
P5097
SAFETY
Constructed in accordance with IEC 60950-1,
EN 60950-1 and UL 60950-1, supplementary
insulation for a primary circuit, 250Vrms maximum
working voltage, flammability class V-1.
CERTIFICATION
Certified under the IEC CB scheme (Certificate
GB597W) to IEC 60950 Third Edition 1999 sub-
clauses 1.5, 1.5.1, 1.5.2, 2.9, 2.9.1, 2.9.2, 2.9.3,
2.9.4, 2.9.5, 2.10, 2.10.1, 2.10.2, 2.10.3,
2.10.3.1, 2.10.3.2, 2.10.4, 2.10.5, 2.10.5.1,
2.10.5.2, 2.10.5.4, 4.7, 4.7.3, 4.7.3.1, 4.7.3.4,
(Flammability Class V-1) ,5.2, 5.2.1, and 5.2.2 for
a maximum working voltage of 250Vrms, nominal
mains supply voltage not exceeding 300Vrms
and a maximum operating temperature of +85ºC
in
Pollution
Degree
2
environment,
supplementary insulation for a primary circuit.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-03/UL60950-1, First Edition, based on
IEC 60950-1, First Edition, maximum working
voltage
250Vrms,
Pollution
Degree
2,
supplementary insulation.
UL File number E203175.
Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
2.12kVrms, 3kV DC minimum. All shipments are
supported by a certificate of conformity to current
applicable safety standards.
ABSOLUTE MAXIMUM RATINGS
(Ratings of components independent of circuit).
Short term isolation voltage (1s)
DC current
Storage temperature
Lead temperature, 10s
2.12kVrms,
3.0 kVDC
100μA
-40ºC to
+85ºC
260ºC
INTELLECTUAL PROPERTY RIGHTS
ETAL and P5097 are Trade Marks of Profec
Technologies Ltd.
The Trade Mark ETAL is registered at the UK
Trade Marks Registry.
Profec Technologies Ltd. is the owner of the
design right under the Copyright Designs and
Patents Act 1988 and no rights or licences are
hereby granted or implied to any third party.
P5097 design and construction are protected by
patents.
British Patent No. 2333646.
US Patent Nos. 6,344,787; 6,690,254.
European Patent No. 1082734
China Patent No. ZL 99806739.3
Other patents pending.
© 1998 - 2005 Profec Technologies Ltd.
Reproduction prohibited.
E203175
ISO 9001
FM 25326
ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela
Telephone: +358 (0)20 7500 330
Fax: +358 (0)20 7500 333
Website: www.etalgroup.com
Email: etalgroup@egruppen.com
ETALDOC 778/5
Page 4 of 4
June 2005
