PRODUCT DATA SHEET
ADSL Transformer
Features
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
Low Distortion
IEC 60950 and UL 60950 certified
Supplementary Insulation
Industry Standard Footprint
P5341
Applications
∗
TI chip set TNETD7300
DESCRIPTION
P5341 is a low distortion transformer for TI chip set
TNETD7300.
P5341 is certified to IEC 60950 and UL 60950 for
supplementary insulation for a primary circuit, 250V
working voltage. P5341 is a UL Recognized
Component and is supported by an IEC CB Test
Certificate. The part is completely lead-free,
compliant with RoHS Directive 2002/95/EC, and
suitable for lead-free and conventional processing.
The safety system yields very low transformer
parasitics, ensuring that P5341 exhibits excellent
frequency response and balance; in combination
with its good harmonic distortion performance,
P5341 is ideally suited to low cost yet demanding
ADSL applications.
ETALDOC 843/4
Page 1 of 4
June 2005
P5341
SPECIFICATIONS
Electrical
Typical values at T = 25ºC, unless otherwise stated.
Parameter
Inductance
Leakage inductance
Interwinding
capacitance
Third Harmonic
Distortion
DC resistance
Turns ratio
Voltage isolation
(2)
(1)
Conditions
10kHz 100mV
1-4 (link 2-3)
100kHz, 100mV, 1-4
(link 2-3; link 7, 8, 9, 10)
100kHz 100mV
1-10 (link 2, 3; link 8, 9)
30kHz, 5.3Vrms
(link 2-3; link 8-9)
1-4 (link 2-3)
10-7 (link 8-9)
1-4: 10-7
(link 3, 2; link 8,9)
50Hz
DC
(1, 2, 3, 4 : 7, 8, 9, 10)
Ambient temperature
Min
1.42
-
-
-
-
-
1.96
2.12
3.0
Typ
1.5
-
-
-
-
-
2.00
-
-
Max
1.58
14
33
-84
2.55
0.65
2.04
-
-
Units
mH
µH
pF
dB
Ω
Ω
-
kVrms
kV
Operating range:
Functional
Storage
Notes
-40
-40
-
-
+85
+85
ºC
ºC
1. 33Ω source, 130Ω load.
2. Components are 100% tested at 3.25kV DC.

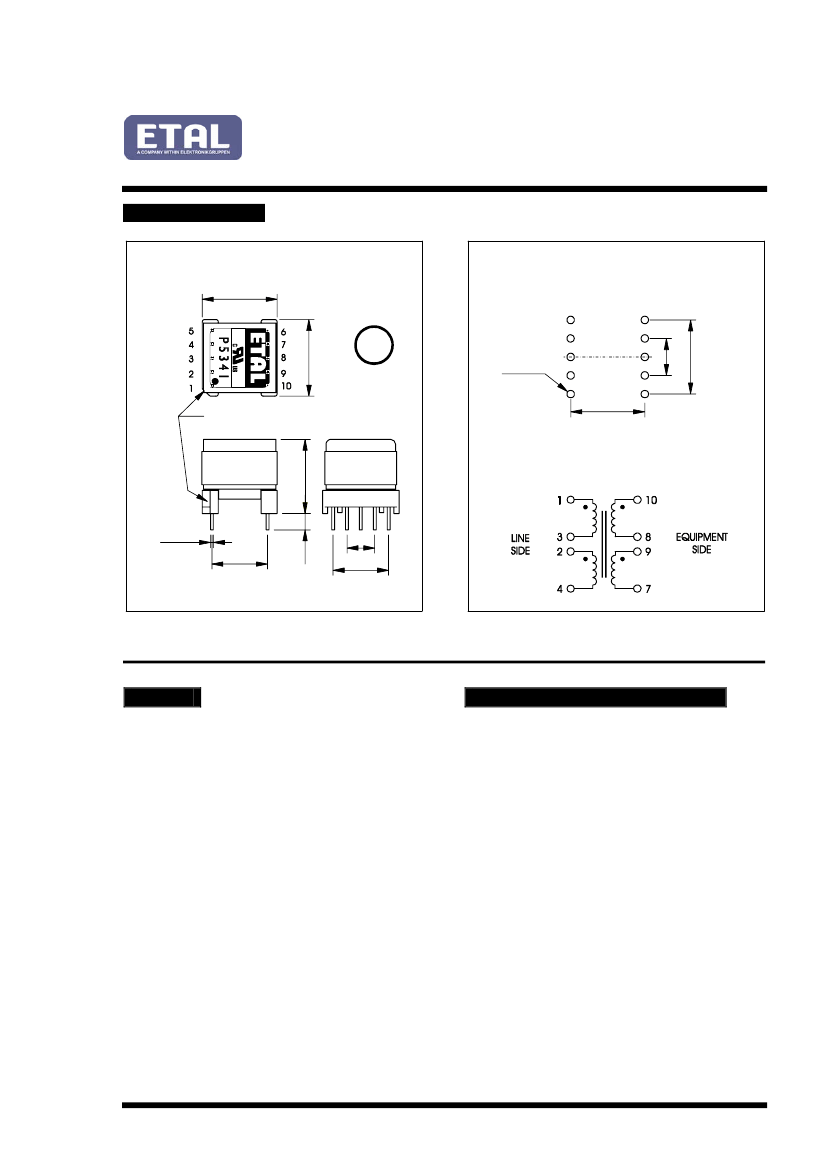

ETALDOC 843/4
Page 2 of 4
June 2005
P5341
CERTIFICATION
Certified under the IEC CB scheme to
IEC 60950:1999 (IEC CB Test Certificate
No. GB637W) sub-sections 1.5, 2.9, 2.10.3.1,
2.10.3.2, 2.10.4, 2.10.5, 2.10.5.2, 2.10.5.4, 4.5,
4.7.3, 4.7.3.1, 4.7.3.4, (class V-0) and 5.2, for a
maximum working voltage of 250Vrms, nominal
mains supply voltage not exceeding 300Vrms and
a maximum operating temperature of +85ºC in
Pollution Degree 2 environments, supplementary
insulation for a primary circuit.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-3/UL60950-1, First Edition, maximum
working voltage 250Vrms, Pollution Degree 2,
supplementary insulation for a primary circuit.
UL File number E203175
Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
2.12kVrms, 3kV DC minimum. All shipments are
supported by a Certificate of Conformity to current
applicable safety standards
COPYRIGHT
ETAL and P5341 are Trade Marks of Profec
Technologies Ltd.
The Trade Mark ETAL is registered at the UK
Trade Marks Registry.
Profec Technologies Ltd. is the owner of the
design right under the Copyright Designs and
Patents Act 1988 and no rights or licences are
hereby granted or implied to any third party.
© 2000-2005 Profec Technologies Ltd.
Reproduction prohibited.
E203175
ISO 9001
FM 25326
ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela
Telephone: +358 (0)20 7500 330
Fax: +358 (0)20 7500 333
Website: www.etalgroup.com
Email: etalgroup@egruppen.com
ETALDOC 843/4
Page 4 of 4
June 2005
