PRODUCT DATA SHEET
Digital Isolation Transformer
Features
∗
∗
∗
∗
∗
∗
Surface Mount
Lead-free (Pb-free)
RoHS compliant
2.5mm height
IEC 60950 and UL 60950 certified
UL Recognized Component
P520X
Applications
∗
∗
∗
∗
Conexant Smart DAA™ Chipsets
Digital Isolation Barrier
Set Top Boxes
Modems
DESCRIPTION
The P520X family comprises a range of
transformers, designed for Conexant Smart DAA™
chipsets. They are intended, as part of the Digital
Isolation Barrier, for coupling clock signals and
power between chips on either side of the safety
barrier.
The P520X family provides Supplementary
Insulation for a primary circuit at a working
voltage of 250Vrms and is compliant with
IEC 60950, and UL 60950. The family members
are UL Recognized Components and are
supported by an IEC CB certificate.
The P520X family is compliant with RoHS
Directive 2002/95/EC, and suitable for lead-free
and conventional placement and reflow.
E203175
ETALDOC 799/4
Page 1 of 4
July 2005
P520X
SPECIFICATIONS
Electrical
Typical values at T = 25ºC, unless otherwise stated.
Parameter
Conditions
P5200
30
160
3
0.225
0.325
2000
1.67
P5201
30
200
3
0.225
0.325
2000
1.5
P5202
30
200
3
0.225
0.325
2000
2.4
P5203
40
200
3
0.225
0.325
2000
2.6
P5204
40
200
3
0.225
0.325
2000
2.0
P5205
30
200
3
0.225
0.325
2000
1.0
Units
µH
nH
pF
Ω
Ω
Vrms
-
Shunt Inductance Lp (min) 10kHz, 100mV
Leakage inductance (max) 100kHz, 100mV
Interwinding capacitance
(typ)
DC resistance (1-2) (max)
DC resistance (4-3) (max)
Dielectric Rating (min)
Turns ratio, N
100kHz, 100mV
-
-
-
4-3 : 1-2

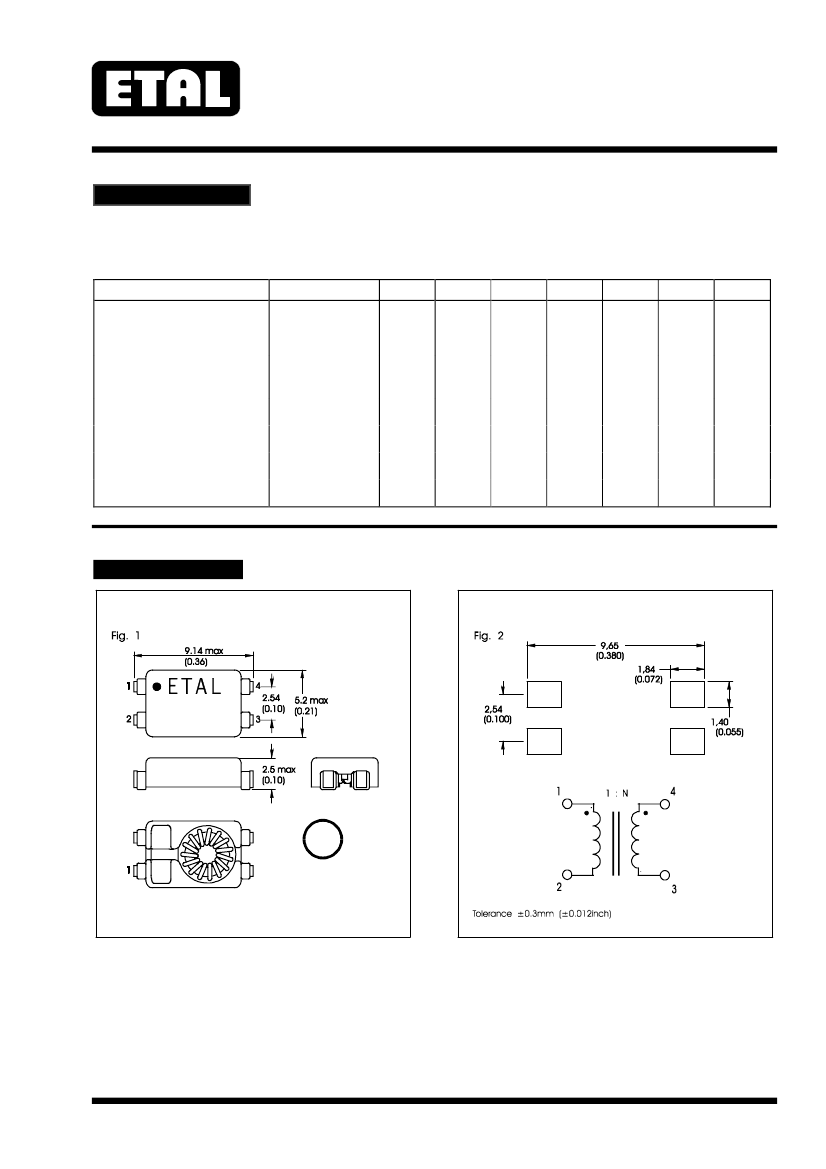

CONSTRUCTION
Dimensions
Connections
P520X
YYWW
e
2
Dimensions shown are in millimetres (inches).
Terminal plating JESD97 category = e2.
Recommended reflow solder profile: 2 minutes @ 150-200ºC, 10 seconds @ 260ºC; time above 217ºC
60 seconds maximum.
ETALDOC 799/4
Page 2 of 4
July 2005
P520X
SAFETY
Manufactured from materials conforming to
flammability requirements of UL94V-0.
Construction
complies
with
IEC 60950-1,
EN 60950-1 and UL 60950-1, supplementary
insulation for a primary circuit, 250Vrms maximum
working voltage.
CERTIFICATION
Certified by UL International Demko to
IEC 60950-1:2001 (IEC CB Test Certificate
No. DK-7305) for a maximum working voltage of
250Vrms, nominal mains supply voltage not
exceeding 250Vrms and a maximum operating
temperature of +85ºC in Pollution Degree 2
environment, supplementary insulation for a
primary circuit.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-03/UL60950-1, First Edition, based on
IEC 60950-1, First Edition, maximum working
voltage
250Vrms,
Pollution
Degree 2,
supplementary insulation.
UL File number E203175.
Profec Technologies certifies all transformers as
providing voltage isolation of 2.12kVrms, 3kV DC
minimum.
All shipments are supported by a
Certificate of Conformity to current applicable
safety standards.
ABSOLUTE MAXIMUM RATINGS
(Ratings of components independent of circuit).
Short term isolation voltage (1s)
Storage temperature
Operating temperature
Soldering temperature
Profile peak -
2.0kVrms,
2.8kVDC
-40ºC to
+100ºC
-25ºC to
+85ºC
260ºC
10s
COPYRIGHT
ETAL and P520x (x = 1 to 5) are Trade Marks of
Profec Technologies Ltd.
The Trade Mark ETAL is registered at the UK
Trade Marks Registry.
Smart DAA is a trademark of Conexant Systems,
Inc.
Profec Technologies Ltd. is the owner of the
design right under the Copyright Designs and
Patents Act 1988 and no rights or licences are
hereby granted or implied to any third party.
© 2003, 2004 Profec Technologies Ltd.
Reproduction prohibited.
Handle in accordance with IPC/JEDEC J-STD-033
procedure
for
components
classified
as
IPC/JEDEC J-STD-020 Moisture Sensitivity
Level 2.
ETALDOC 799/4
Page 3 of 4
