Exceeds environmental standards of MIL-S-19500/228.

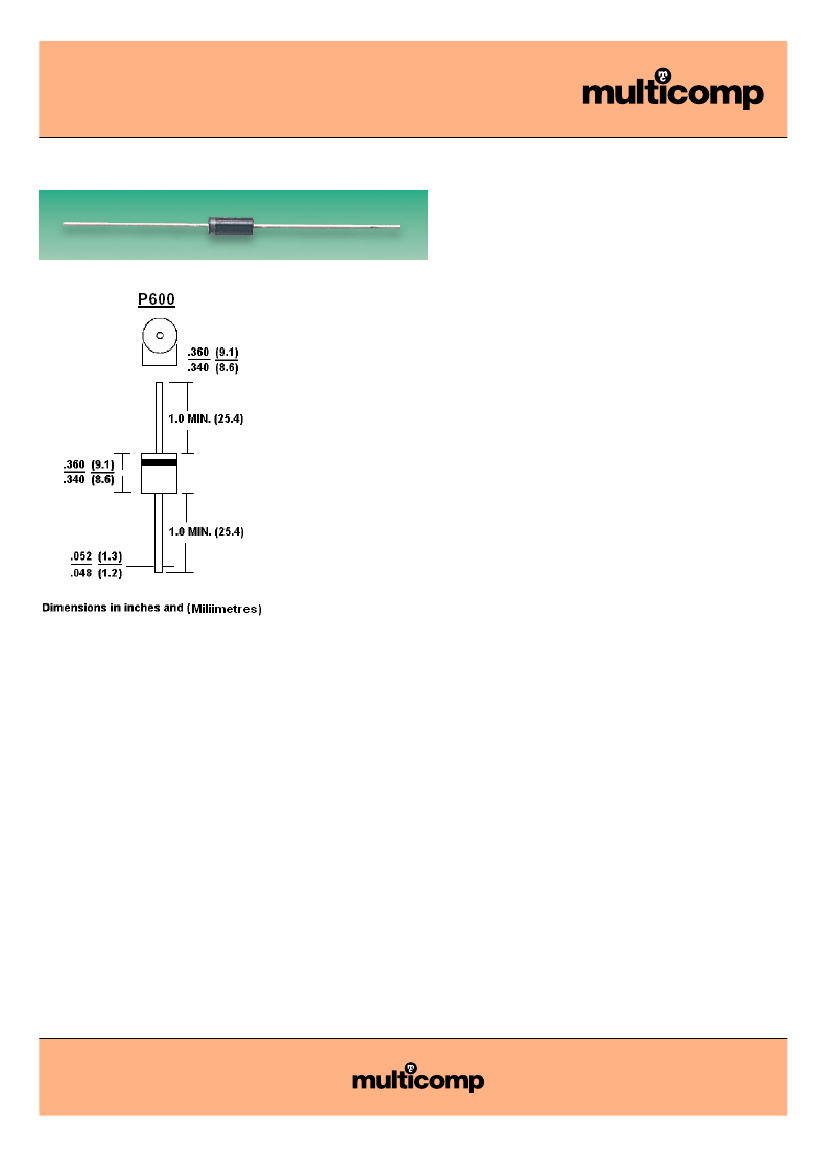

Mechanical Data:
Case
Terminals
Polarity
Weight
: Moulded plastic, P600.
: Axial leads, solderable per MIL-STD-202, Method 208.
: Colour band denotes cathode.
: 2.1 grams.
Mounting position : Any.
Page 1
31/05/05 V1.0
P600 Series
6A Power Diodes
Maximum Ratings and Electrical Characteristics:
At TA = 25°C unless otherwise specified. Single phase, half-wave, 60Hz, resistive or inductive load.
All values except maximum RMS voltage are registered JEDEC parameters.
P600A
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current T
A
= 55°C
Maximum overload surge current at 1 cycle (Note 1)
Maximum forward voltage at 6.0A dc
Maximum DC reverse current at T
A
= 25°C
Rated DC blocking voltage at T
A
= 100°C
Typical junction capacitance (Note 3) CJ
Typical thermal resistance (Note 2) RθJA
Typical thermal resistance (Note 2) RθJL
Operating temperature range
50
35
50
P600D
200
140
200
P600G P600K P600M
400
280
400
6.0
800
560
800
1000
700
1000
Units
V
A
400
1.0
10
1.0
150
20.0
4.0
V
µA
mA dc
pF
°C/W
-55 to +150
Storage temperature range
°C
NOTES:
1. Peak forward surge current, per 8.3ms single half-sine-wave superimposed on rated load (JEDEC method).
2. Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length PCB mounted with 1.1 × 1.1”
(30 × 30mm) copper pads.
3. Measured at 1MHz and applied reverse voltage of 4.0 volts.
Page 2
31/05/05 V1.0
P600 Series
6A Power Diodes

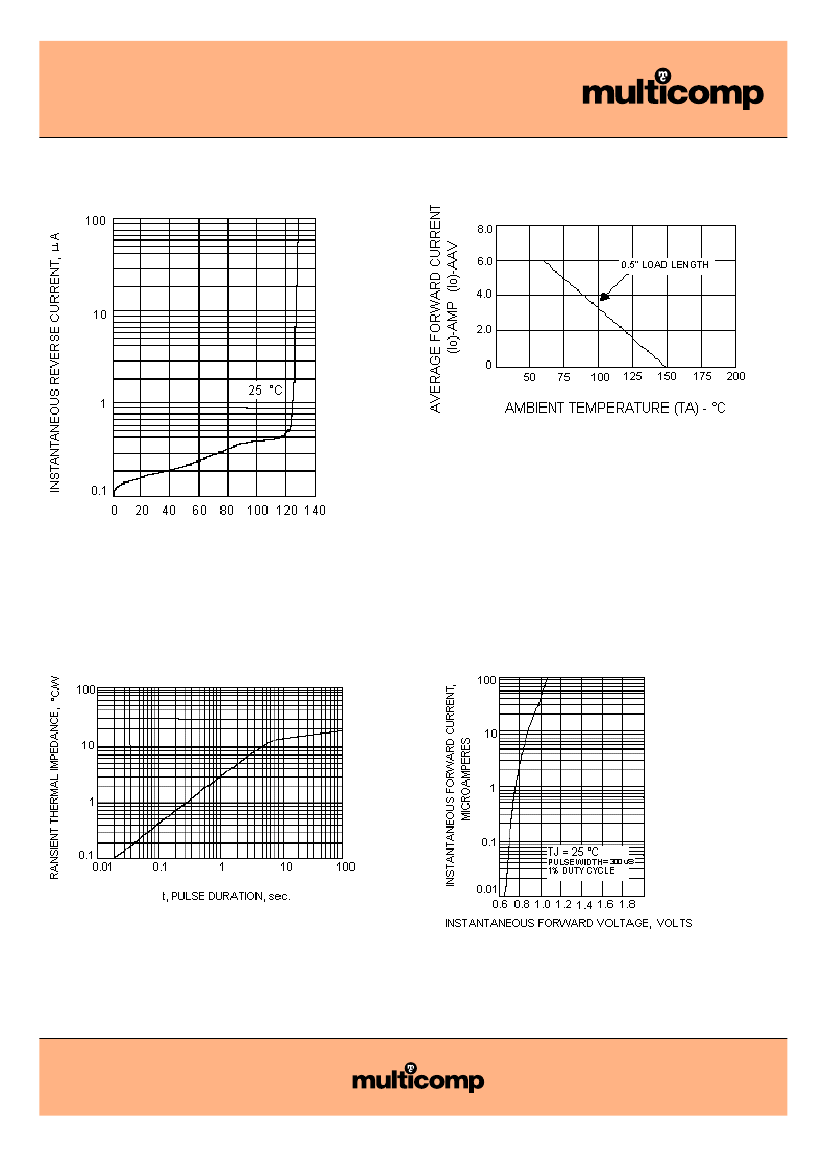

Rating and Characteristic Curves
Figure 1 - TYPICAL REVERSE CHARACTERISTICS
Figure 2 - FORWARD DERATING CURVE
Figure 3 - TYPICAL TRANSIENT THERMAL IMPEDANCE
Figure 4 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
Page 3
31/05/05 V1.0
P600 Series
6A Power Diodes
Figure 5 - MAXIMUM OVERLOAD SURGE CURRENT
Specifications
V
RRM
Maximum
(V)
1000
400
800
50
200
6
400
P600
I
f
Average
(A)
I
fsm
(A)
Plastic
Package
Part Number
P600M
P600G
P600K
P600A
P600D
Page 4
31/05/05 V1.0
P600 Series
6A Power Diodes
Notes:
