DAMX-3WK3P-PO-K87-183 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DAMX-3WK3P-PO-K87-183

DAMX-3WK3P-PO-K87-183: DescriptionD Subminiature Connector, 3 Contact(s), Male, Press Fit Terminal,; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAMX-3WK3P-PO-K87-183 Overview

D Subminiature Connector, 3 Contact(s), Male, Press Fit Terminal,

DAMX-3WK3P-PO-K87-183 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	DAMX
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

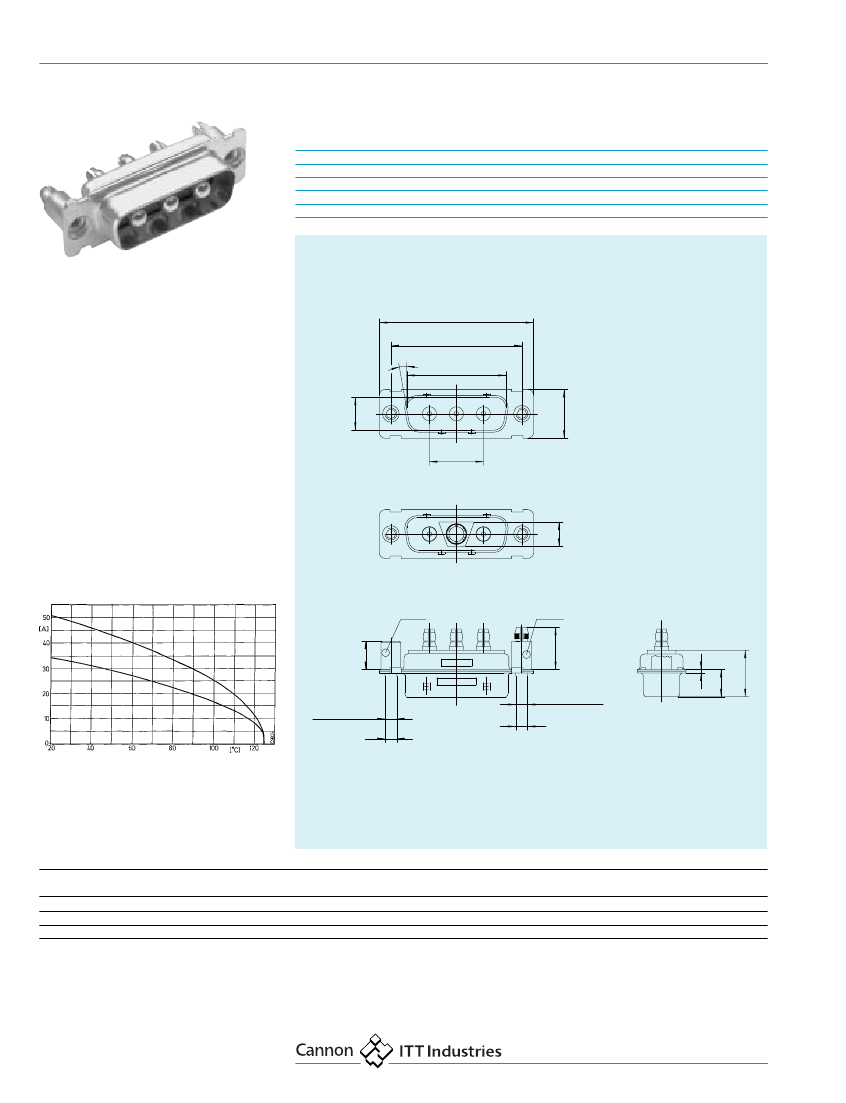

D Subminiature

40 A High Power, Pressfit Termination

Part Numbers

Boardlock M3

DAMX-3W3P-PO-K87-161

DAMX-3WK3P-PO-K87-161

DBMX-5W5P-PO-K87-161

DCMX-8W8P-PO-K87-161

Combo D

/European Version

Boardlock 4-40 UNC

DAME3W3P-PO-K87-161

DAME3WK3P-PO-K87-161

DBME5W5P-PO-K87-161

DCME8W8P-PO-K87-161

Stand-off M3

DAMX-3W3P-PO-K87-183

DAMX-3WK3P-PO-K87-183

DBMX-5W5P-PO-K87-183

DCMX-8W8P-PO-K87-183

Stand-off 4-40

DAME-3W3P-PO-K87-183

DAME-3WK3P-PO-K87-183

DBME-5W5P-PO-K87-183

DCME-8W8P-PO-K87-183

For contact cavity arrangements, see page 52.

For pcb hole pattern, see page 84.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

For press in tooling see page 90.

10°

ITT

Electrical Data

Insulation resistance

≈

1 x 10

W / 100 V

Contact resistance

1 mW

Dielectric Withstanding Voltage

1000 VAC (sea level)

Current Load

3W3

Cannon

3W3P

13,72

6,15

3WK3

-183

-161

10,75

7,2

4-40UNC-3B

A – Multilayer 6 x 35

µm

x 4,5 mm

B – Double layer 2 x 35

µm

x 4,5 mm

Dimensions

Shell

size

0,38

0,13

0,38

0,25

+ 0,2

0,4

39,15

53,05

69,3

25,25

38,95

55,4

33,3

47,05

63,5

8,35

12,55

10,7

0,8

0,9

6,7

6,8

Dimensions are mm

Subject to change
