DCS10Y6-4PNRD: DescriptionCONNECTOR, 4 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size102KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

DCS10Y6-4PNRD Overview

CONNECTOR, 4 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

DCS10Y6-4PNRD Parametric

Parameter Name	Attribute value
Objectid	2065171404
Reach Compliance Code	unknown
YTEOL	7.37
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	HERMETIC
Shell surface	NICKEL
Shell material	STAINLESS STEEL
Housing size	6
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

Branche Connecteurs Aéromilitaires

Famille DCS

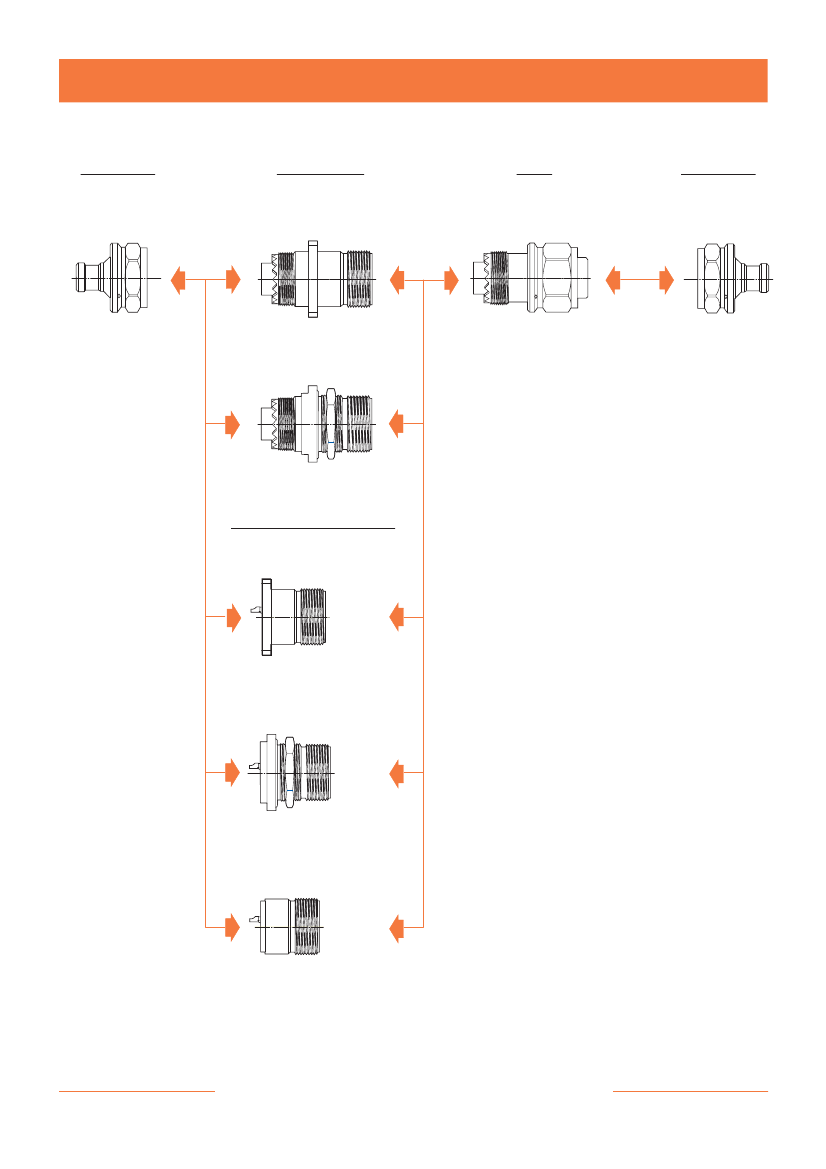

DCS Series

■

Avantages

Marchés & Programmes

Caractéristiques techniques

■

Shell

Advantages

Markets & Programs

Technical characteristics

Standard

Hermetic

Connecteur subminiature haute densité.

High density sub-miniature connector

Spatial et militaire.

Spatial and military.

Boîtier

Standard

: Alliage d’aluminium, nickelé

Hermétique : Acier inoxydable, passivé ou nic-

kelé

Isolant

Standard

: Résine thermodurcissable et sili-

cone

Hermétique : Verre fritté et silicone

Contacts Etanche

: Alliage cuivreux, doré

Hermétique : Ferro-nickel, doré

Endurance

: 200 cycles complets de ver-

rouillage, déverrouillage

Rétention contacts

: Dans l’isolant taille 22 - 4,5 daN

Vibrations Sinusoïdales : 5 - 3000 Hz - 20 g - 20 min/axe

Aléatoires : 10 à 2000 Hz - 20 g eff. - 5 min/axe

Chocs

: 150 g - durée 11 ms. dans les 3

axes

: Aluminium alloy, nickel plated

Stainless steel, passivated or nickel

plated

Insert

Standard

: Thermosetting resin and silicone

Hermetic

: Sinleved glass and silicone

Contacts

Standard

: Copper alloy, gold plated

Hermetic

: Iron nickel, gold plated

Endurance

: 200 mating and unmating opera-

tions

Insert contact retention : Size 22 - 4,5 daN

: 5 - 3000 Hz - 20 g - 20 min/axe

Vibrations Sinusoidal

Randomized : 10 to 2000 Hz - 20 g eff. - 5 min/axe

Shocks

: 150 g - time 11 ms. in the 3 axes

■

Caractéristiques climatiques

■

Climatical characteristics

: -55° C to + 200° C

: Less than 2,8 mm

/hour under a

1.10

-6

torr

Température d’utilisation: - 55° C à + 200° C

Etanchéité

: Fuite

≤

à 2,8 mm

/h sous 1.10-

torr

Temperature range

Sealing

Caractéristiques électriques

Electrical characteristics

1000 V eff.

≥

5000 MΩ

: Size 22 - 0,15 to 3,18 mm

Standard RC

≤

0,6 mΩ

Hermétic RC

≤

2 mΩ

: Zt > 95 db for 1 KHz <F>100 MHz

Tension de tenue

: 1000 V eff.

Résistance d’isolement :

≥

5000 MΩ

Section câble admissible: Taille 22 - 0,15 à 3,18 mm

Résistance métallisation : Standard RC

≤

0,6 mΩ

Hermétique RC

≤

2 mΩ

Impédance transfert

: Zt > 95 db pour 1 KHz >F>100 MHz

Withstanding voltage

Insulation resistance

Allowed wire cross section

Metallization résistance :

Transfer impedance
