DEME-5W1ST

Description
D Type Connector, 5 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size546KB,8 Pages
ManufacturerBel Fuse
Download Datasheet Parametric View All

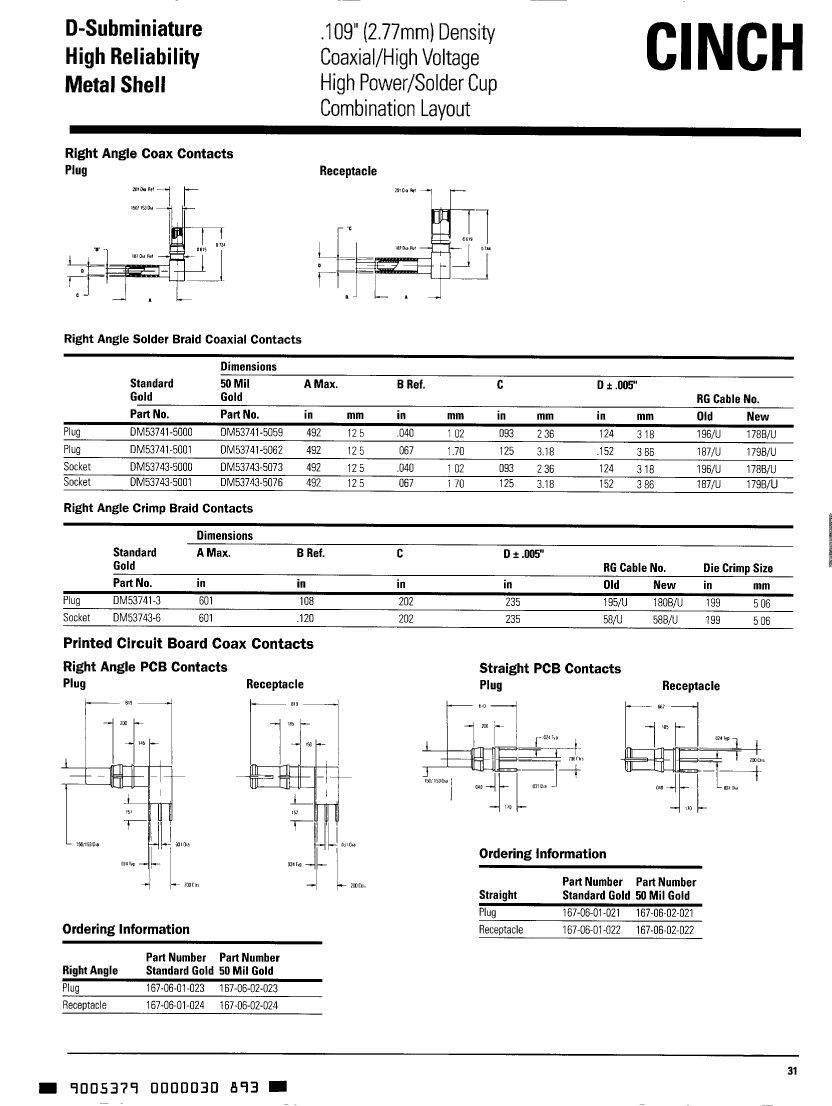

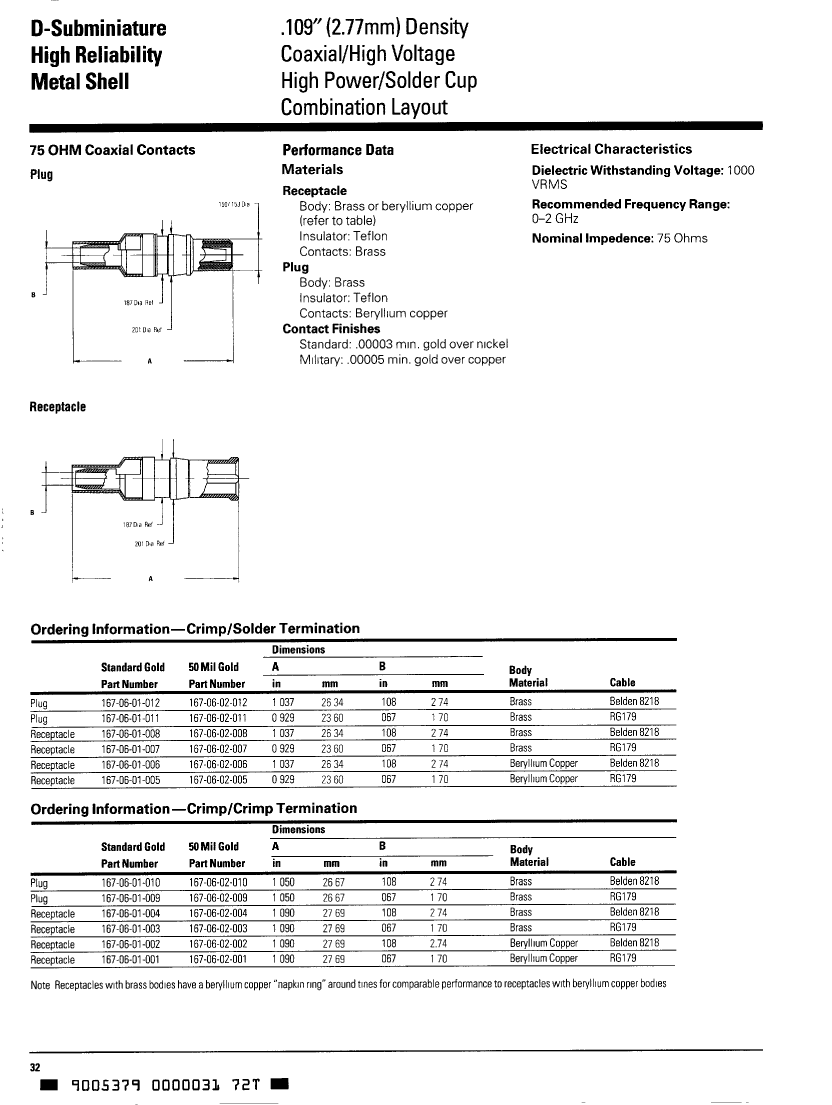

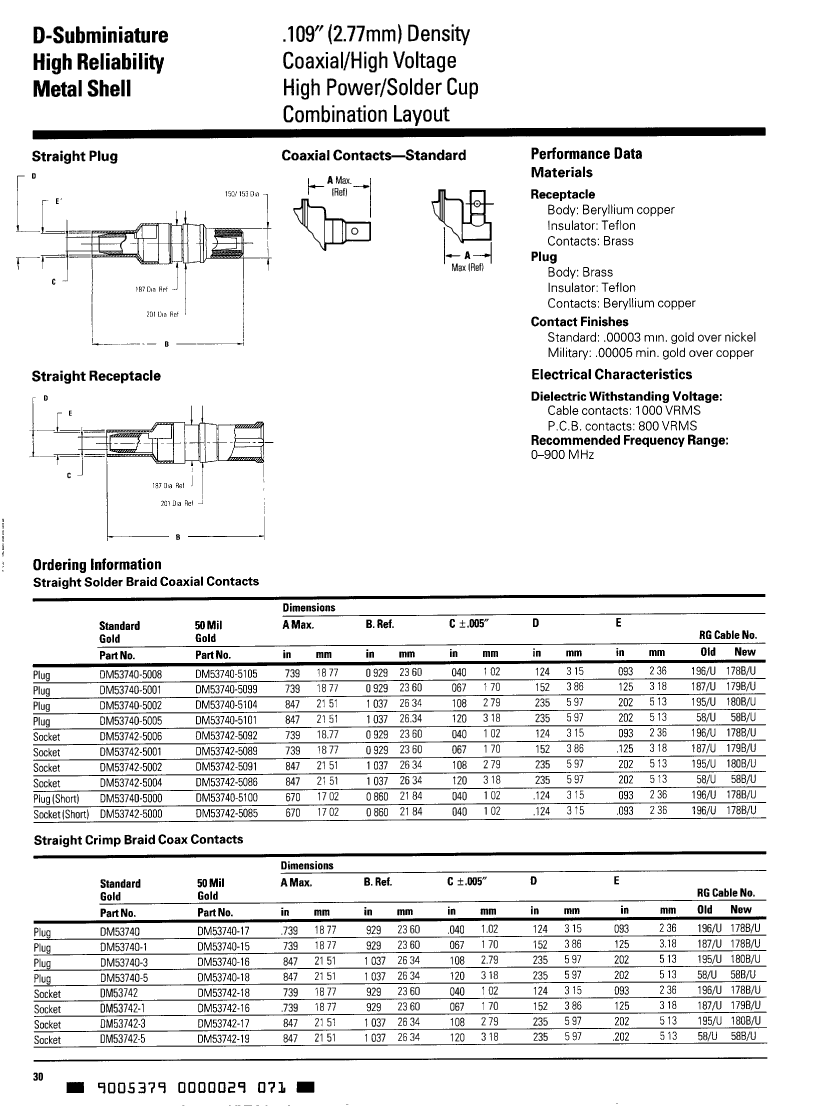

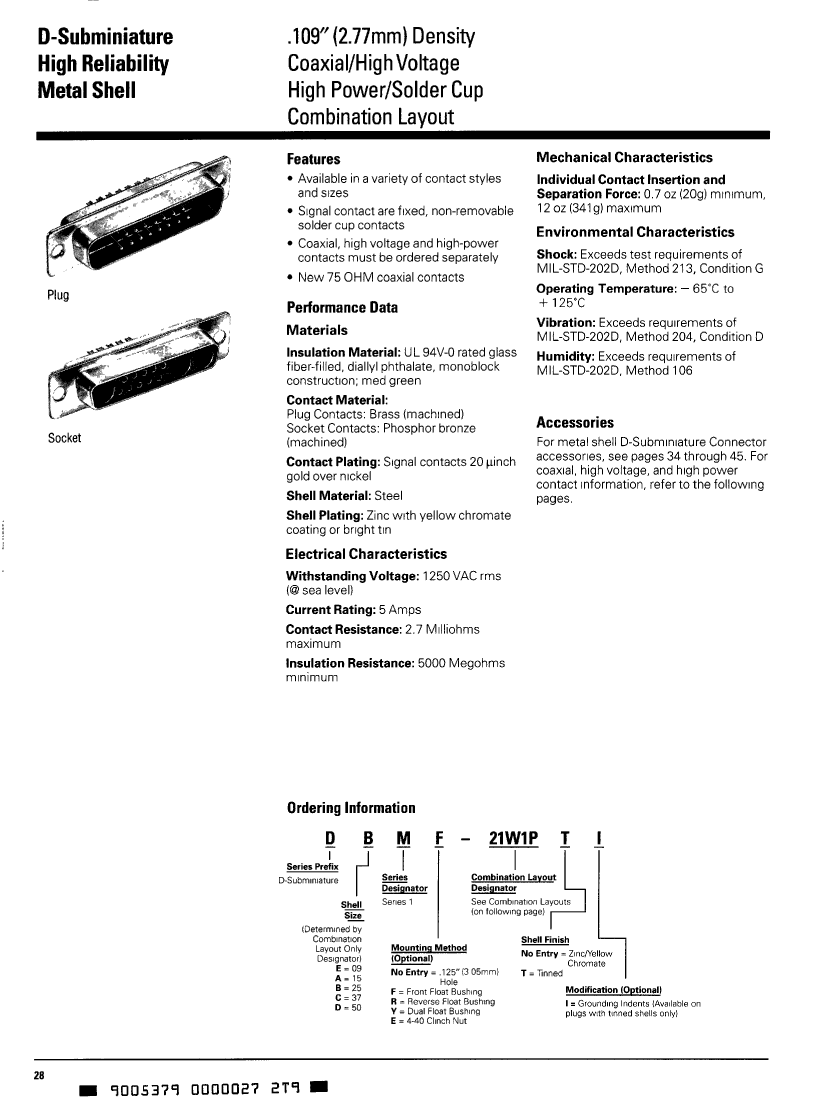

DEME-5W1ST Overview

D Type Connector, 5 Contact(s), Male, Solder Lug Terminal, #4-40, Receptacle

DEME-5W1ST Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.494 inch
body length1.213 inch
Body/casing typeRECEPTACLE

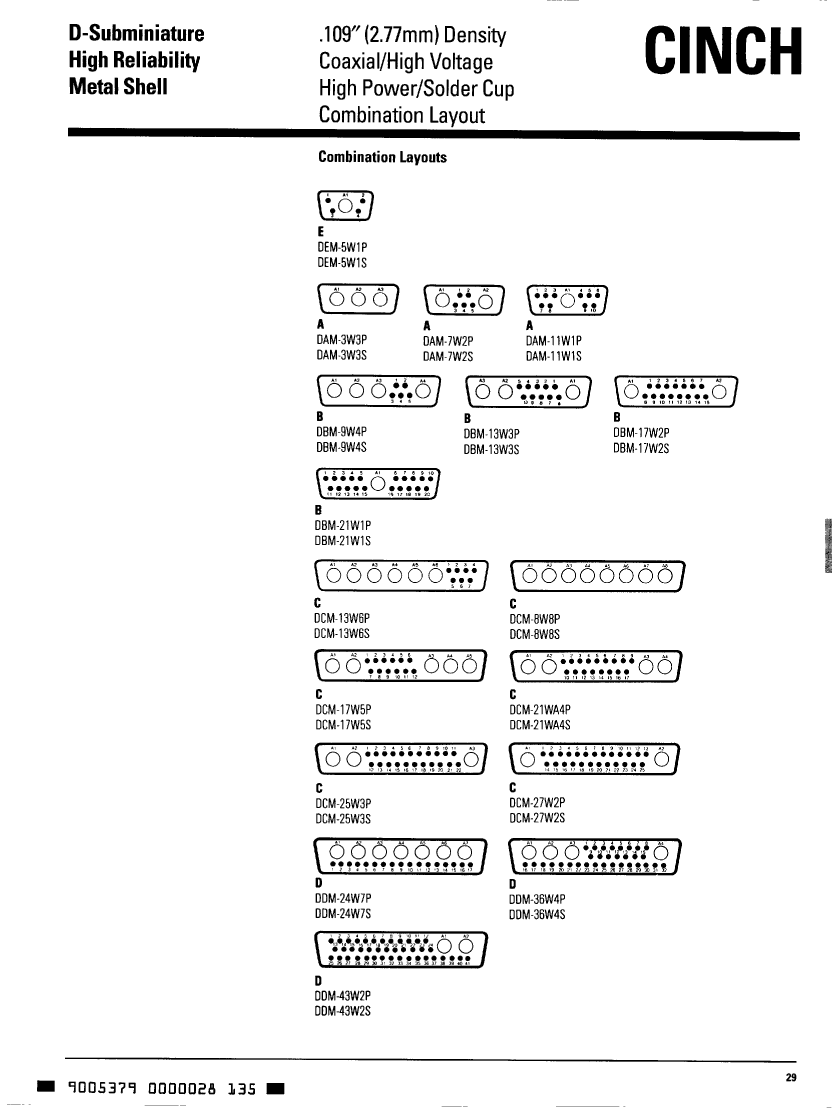

Contact arrangementS4C1
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
Contact resistance2.7 mΩ
Contact styleHYBRID
Dielectric withstand voltage1250VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorGREEN
insulator materialDIALLYL PHTHALATE
Manufacturer's serial number1
Mixed contactsYES
Installation option 1#4-40
Installation option 2CLINCH NUT
Installation methodSTRAIGHT
Installation typePANEL
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Plating thickness20u inch
Rated current (signal)5 A
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Termination typeSOLDER LUG
Total number of contacts5
Evacuation force-minimum value.1946 N
Base Number Matches1
