Current Rating: 1.5A at +20°C T-rise above Ambient
Contact Resistance:
≤20
mΩ
Insulation Resistance:
≥1,000
MΩ,100V
DC
Withstanding Voltage: 1,000 V
AC
for 1 minute
Environmental
Temperature Rating:
-55°C to 105°C
Process Temperature Rating:
Maximum Insulator Temperature 191°C (solder wave process only)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

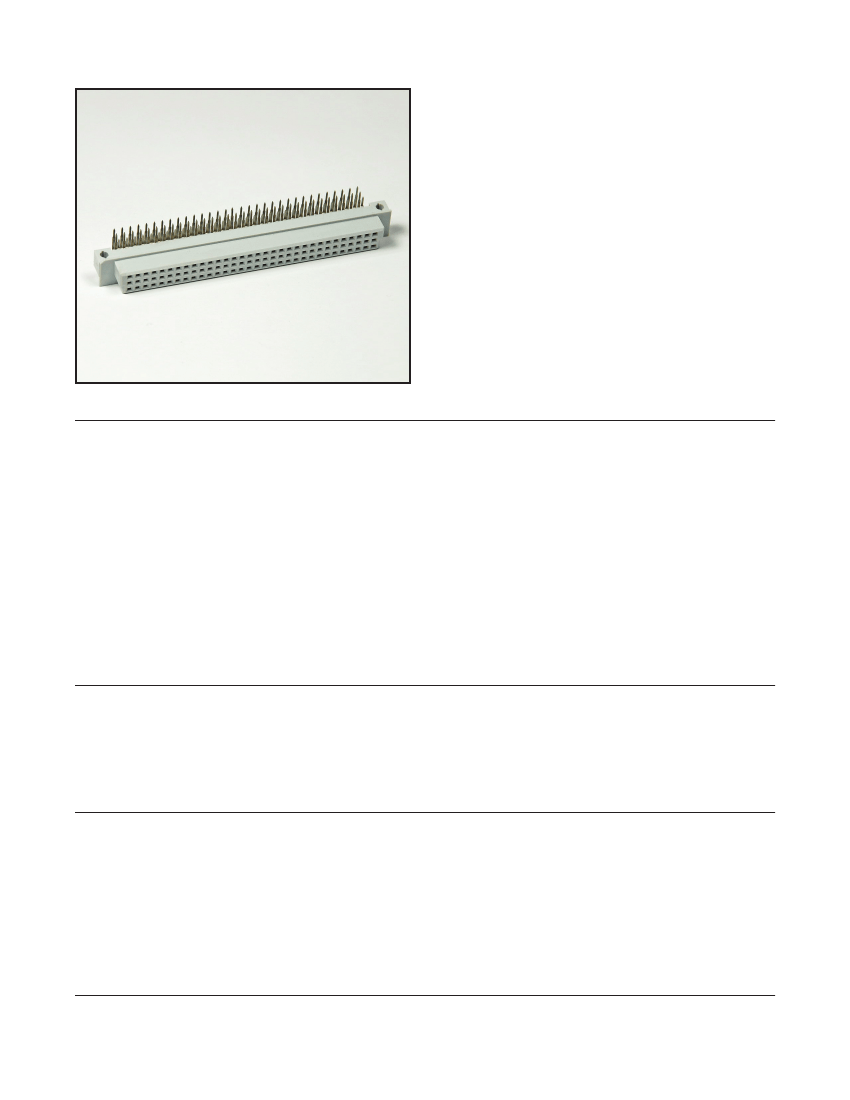

DIN R-Form Socket
Right Angle, Solder Tail Termination
Table 1
Contact
Quantity
16
32
48
32
16
32
64
96
64
32
40
80
120
80
40
DIN 41612 Series
Part Number
DIN-016RSA-XXX-XXXX
DIN-032RSB-XXX-XXXX
DIN-048RSC-XXX-XXXX
DIN-032RSD-XXX-XXXX
DIN-016RSE-XXX-XXXX
DIN-032RSA-XXX-XXXX
DIN-064RSB-XXX-XXXX
DIN-096RSC-XXX-XXXX
DIN-064RSD-XXX-XXXX
DIN-032RSE-XXX-XXXX
DIN-040RSA-XXX-XXXX
DIN-080RSB-XXX-XXXX
DIN-120RSC-XXX-XXXX
DIN-080RSD-XXX-XXXX
DIN-040RSE-XXX-XXXX
A
53.40[2.102]
53.40[2.102]
53.40[2.102]
53.40[2.102]
53.40[2.102]
94.00[3.701]
94.00[3.701]
94.00[3.701]
94.00[3.701]
94.00[3.701]
114.32[4.501]
114.32[4.501]
114.32[4.501]
114.32[4.501]
114.32[4.501]
B
44.40[1.748]
44.40[1.748]
44.40[1.748]
44.40[1.748]
44.40[1.748]
85.00[3.346]
85.00[3.346]
85.00[3.346]
85.00[3.346]
85.00[3.346]
105.32[4.146]
105.32[4.146]
105.32[4.146]
105.32[4.146]
105.32[4.146]
C
48.26[1.900]
48.26[1.900]
48.26[1.900]
48.26[1.900]
48.26[1.900]
88.90[3.500]
88.90[3.500]
88.90[3.500]
88.90[3.500]
88.90[3.500]
109.22[4.300]
109.22[4.300]
109.22[4.300]
109.22[4.300]
109.22[4.300]
D
38.10[1.500]
38.10[1.500]
38.10[1.500]
38.10[1.500]
38.10[1.500]
78.74[3.100]
78.74[3.100]
78.74[3.100]
78.74[3.100]
78.74[3.100]
99.06[3.900]
99.06[3.900]
99.06[3.900]
99.06[3.900]
99.06[3.900]
E
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.60[Ø.102]
Ø2.80[Ø.110]
Ø2.80[Ø.110]
Ø2.80[Ø.110]
Ø2.80[Ø.110]
Ø2.80[Ø.110]
F
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.25[.010]
0.60[.024]
0.60[.024]
0.60[.024]
0.60[.024]
0.60[.024]
10.60
[.417]
8.50
[.335]
10.20
[.402]
2.54
[.100]
5.08
[.200]
E
C
2.54
[.100]
F
3.00 ± .250
[.118]
6.00
[.236]
A
B
mm
[inch]
Tolerance Unless Noted
X.
mm
± 0.50
.X
± 0.25
.XX
± 0.15
5.08
[.200]
1.00
[.039]
D
[ ] Dimension for Reference Only
2.95
[.116]
3.80
(.150)
WITHOUT RETENTION CLIP
SR1
WITH “B” RETENTION CLIPS
for .062 PCB thickness
RR1L
for .062 and .093 PCB thickness
WITH “A” RETENTION CLIP
RR1
TS-2308-D
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
DIN R-Form Socket
Right Angle, Solder Tail Termination
DIN 41612 Series
2.54
[.100]
Ø0.94-1.09
[.037-.043]
2.54
[.100]
5.08
[.200]
5.30
[.209]
D
C
Ø2.8-2.9
[.110-.114]
Ordering Information
DIN - XXXRS X - XXX - XX
Contact Quantity
SEE TABLE 1
Plating Options:
SH = 1 - 3 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
FJ = 10 - 20 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
KR = 30 - 40 μ” Gold on Contact
120 - 200 μ” Matte Tin on Terminal
HM = 3 μ” Gold on Contact, 7 μ” Min. PdNi
120 - 200 μ” Matte Tin on Terminal
A = A Row only
B = Rows A & C Filled
C = Rows A,B & C Filled
D = Rows A & B Filled
E = B Row only
Termination Options:
SR1 = 3.00 [.118]
RR1L = 3.00 [.118] with ‘B’ retention clips
RR1 = 3.00 [.113] with “A” retention clip
• This diagram serves only for Part Number descriptive definitions.
PLEASE CONTACT YOUR LOCAL SALES REPRESENTATIVE FOR CUSTOMER SPECIFIC PRODUCT CONFIGURATIONS.
TS-2308-D
Sheet 3 of 3
