DW-17-17-S-D-400 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DW-17-17-S-D-400

DW-17-17-S-D-400: DescriptionBoard Stacking Connector, 34 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size988KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

DW-17-17-S-D-400 Overview

Board Stacking Connector, 34 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

DW-17-17-S-D-400 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

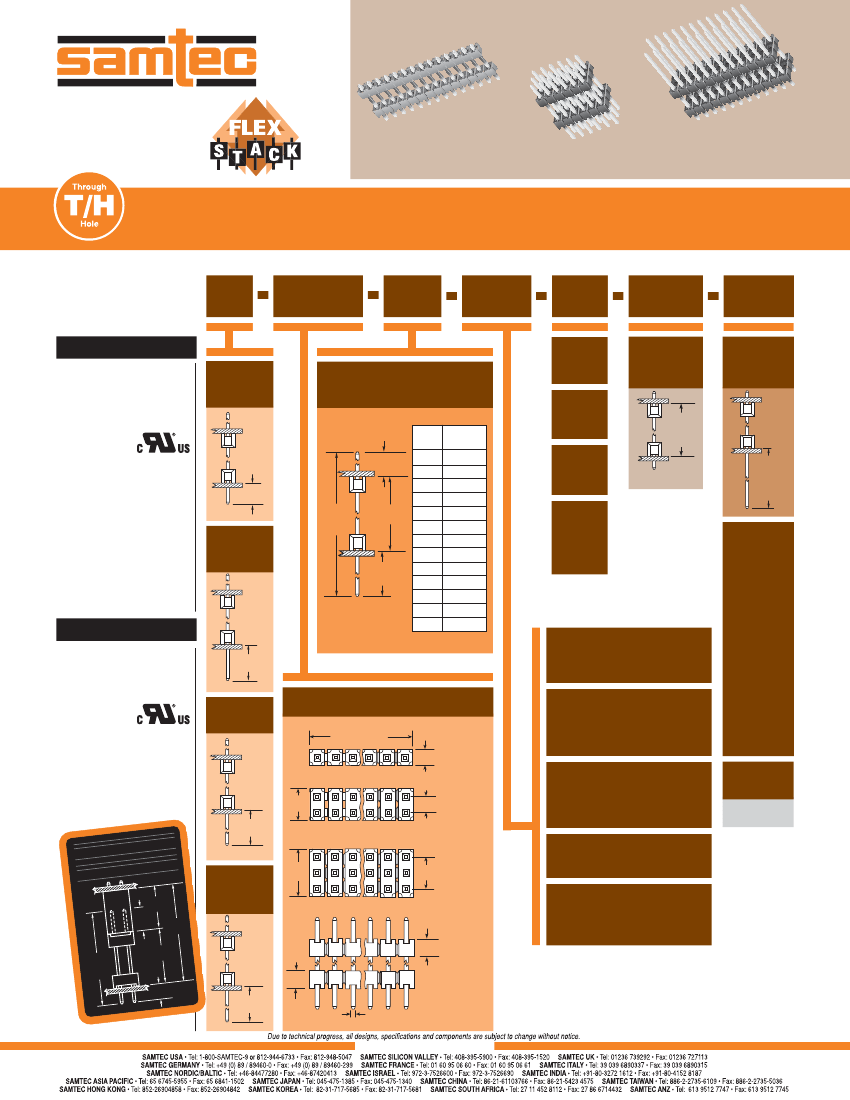

F-209

ZW–06–10–G–T–450–230

HW–14–08–S–S–400–100

DW–12–12–L–Q–400

BOARD STACKER

Mates with:

SSW, SSQ, ESW, ESQ,

CES, SLW, BSW, BCS,

SSM, IDSS, IDSD, HLE

DW, EW, ZW

& HW SERIES

ROW

OPTION

STACKER

HEIGHT

OTHER

OPTIONS

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?DW,

www.samtec.com?EW or

www.samtec.com?ZW

–S

= (2,79mm)

.110" Tail

Specify LEAD STYLE

from chart

LEAD

STYLE

POST

(0,00).000

MIN

= Single

Row

–“XXX”

= Stacker

Height

–“XXX”

= ZW or HW

Tail Length

DW, EW, ZW

Insulator Material:

Black Glass

Filled Polyester

FILE NO. E111594

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

RoHS Compliant:

Yes

OAL

(10,92).430

(13,46).530

(18,54) .730

(21,08) .830

(23,62) .930

(26,16) 1.030

(31,24) 1.230

(36,32) 1.430

(16,00) .630

(11,30) .445

(12,19) .480

(33,78) 1.330

(28,70) 1.130

–D

= Double

Row

STACKER

HEIGHT

(5,08)

.200

MIN

(2,79)

.110

OVERALL

LENGTH

STACKER

HEIGHT

= (8,38mm)

.330" Tail

(OAL)

Processing:

Lead–Free Solderable:

Wave Only

TAIL

(1,40) .055

MIN

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?HW

(8,38)

.330

– 07

– 08

– 09

–10

–11

–12

–13

–14

–15

–16

–17

–19

– 20

–T

= Triple

Row

ZW or

HW TAIL

LENGTH

(1,40)

.055

MIN

–Q

= Double

Row .200"

(5,08mm)

row space

–LL

= Locking

Lead

(Shortest

dimension

between the

tail and the

post is the

end that will

be crimped.

Available

on tails from

(2,29) .090" to

(7,87) .310"

only.)

Single row, 01

& 02 positions

& –Q row not

available

–F

= Gold ﬂash on contact,

Matte Tin on tail

Same as ZW except:

Insulator Material:

Natural Liquid

Crystal Polymer

FILE NO. E111594

RoHS Compliant:

Yes

= Custom Tail

01 thru 50

(2.54) .100 x

No. of Positions

(2.54)

.100

(5,08)

.200

100

(2.54)

.100

(7,52)

.296

148

150

(5,08)

.200

–L

= 10µ" (0,25µm) Gold on contact

area of longer tail,

Matte Tin on tail

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

–S

–G

–D

= 10µ" (0,25µm) Gold on contact

area of longer tail,

Gold ﬂash on balance

‘‘XXX’’

= Polarized

Specify omitted

pin position

B o a rd

S t a ck i n g

SO C KE T

PR O FI LE

PO ST

BO A RD

SP A C E

TAIL

LENGTH

= High Temp

Custom Tail

–T

or –Q*

= Same as

-T except

middle

row

of pins

missing.

–T

Matte Tin

–Q*

–S

= 30µ" (0,76µm) Gold on contact

area of longer tail,

Matte Tin on tail

O V ER A LL

TH RU H O

PI N

(O A L)

ST A C KE R

H EI G H T

(2.54)

.100

(2.54)

.100

TA IL

TAIL

LENGTH

(0,64) .025 SQ TYP

WWW.SAMTEC.COM
