D Series
Circular Plastic Connectors
•
•
•
•
•
•
•
•
3, 4, 5, 7, 9, 12 and 25 position models
1 to 8 Amps per contact
Mixed signal and power or coax available
Each connector half accepts pins or sockets
High temp ULTEM plastic body
Quick disconnect push button release
Alignment and polarization provided by housing
Crimp, solder cup, and pc contacts

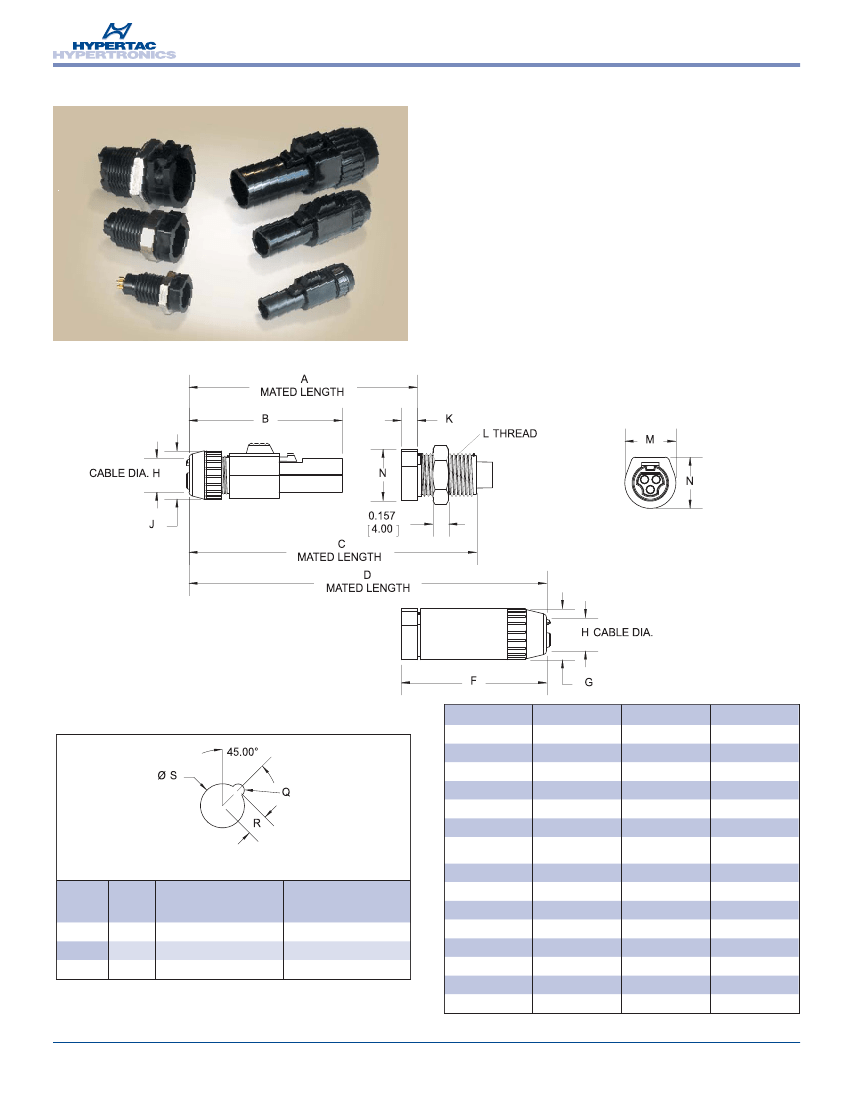

Connector Dimensions
P
Plug
EE
1
Panel Mount
Receptacle
EE/EP
Receptacle
Mating Face
EP
Cable Mount
Receptacle
Mounting Dimensions
Dimension
A
B
C
D
F
G Dia.
H Cable Dia.
D00 Housing
0.788 [20.00]
1.096 [27.83]
1.181 [30.00]
N/A
N/A
N/A
0.089 [2.50] Min.
0.158 [4.00] Max.
0.352 [8.94]
0.114 [2.88]
M8 X 1.00
0.323 [8.20]
0.320 [8.12]
0.092 [2.34]
0.161 [4.10]
0.323 [8.20]
D01 Housing
1.142 [29.00]
1.614 [41.00]
1.732 [44.00]
2.400 [61.00]
1.500 [38.00]
0.512 [13.00]
0.118 [3.00] Min.
0.216 [5.50] Max.
0.472 [12.00]
0.161 [4.10]
M11 X 1.00 Thd.
0.512 [13.00]
0.512 [13.00]
0.126 [3.20]
0.220 [5.60]
0.441 [11.20]
D02 Housing
1.358 [34.50]
1.950 [49.50]
2.087 [53.00]
2.953 [75.00]
1.772 [45.00]
0.709 [18.00]
0.197 [5.00] Min.
0.315 [8.00] Max.
0.709 [18.00]
0.278 [7.00]
M15 X 1.00 Thd.
0.669 [17.00]
0.689 [17.50]
0.100 [2.54]
0.295 [7.50]
0.598 [15.20]
Hole Punches
Part
Number
TBD
T1903
T1904
Series
D00
D01
D02
Maximum
Recommended
Panel Thickness in Steel
0.048 [1.25]
0.048 [1.25]
0.062 [1.60]
Maximum
Recommended
Panel Thickness in Alum.
0.075 [1.90]
0.075 [1.90]
0.094 [2.40]
J Dia.
K
L
M
N
Q Dia.
R
S Dia.
NOTE:
1) Recommended tightening torque for panel mount receptacle (0.452–0.678 N•M)
for both D01 and D02.
Dimensions are in inches [mm]
www.hypertronics.com
2/1
D Series
D00 General Specifications
5 Pin
Contact Diameter
Current Rating
(Amps)
Contact Resistance
(milliohms)
Extraction Force Per Contact
(oz.)
Contact Life Cycles
Breakdown Voltage Between Contacts
Dielectric Withstanding Voltage
Contact
Socket Material
Pin Material
Plating Material
Insulation Resistance
Temperature Rating*
Polyetherimide
-40° C to 125° C
Beryllium copper wires and brass body (socket)
Brass; gold over nickel (pin)
Gold over nickel
> 10
3
megohms at 500 VDC
0.012 [0.30]
1
< 6.7
0.35 to 1.6
up to 100,000
> 1000V
>750V
D00
5 Pin
5
4
3
1
2
Housing Options
Receptacle Panel Mount
Plug
Contact Options
Crimp Socket – 26-28 AWG
Crimp Pin – 26-28 AWG
Tools
Example Part Numbers
D00EEB503FRUTAH
D00PB503MRUTH
See part number configurator on page 2/3
for complete ordering information.
Receptacle seen from mating side
Crimp Tool
Crimp Positioner
Insertion Tool
AFM8 or M22520/2-01
T1914
T1916
Dimensions are in inches [mm]
2/2
www.hypertronics.com
D Series
Ordering Information
D01
Connector
Housing
Insulator
D00, D01, D02
P
B
306
F
R
U
TAH
Plating
See Plating Reference
P = Plug
EE = Receptacle panel mount
EP = Receptacle cable mount
(EP Not available for 215/705 or 503 style)
Material
U = Ultem 1010R
Terminal
R = Crimp (shipped unassembled) D00 available
with "R" termination only (for crimp or solder)
Styles
RR = Crimp for 18-20 AWG (D01/306 and
D01/406 only. (shipped unassembled)
S = Solder cup (shipped unassembled)
Main Body
Color
B = Black
D00 5 Pin = 503
Contact
Arrangement
D01 3 Pin = 306
D01 4 Pin = 406
D01 9 Pin = 904
D02 3 Pin = 315
D02 7 Pin = 706
D02 9 Pin = 906
D02 12 Pin = 125
D02 25 Pin = 2504
D02 Power/Signal
= 215/705
Contact
M = Male
Gender
F = Female
D00 panel mount receptacle with 6" pigtail leads preterminated= D00EEB-0001
** Mounting options are available, see http://www.hypertronics.com/en/Products/circular-connectors/D-Series.aspx or call
+1 (978) 568-0451 for more information.
Dimensions are in inches [mm]
www.hypertronics.com
2/3
