* If the inductive load is driven near steady state conditions, allowing the output
voltage to drop more than 8V below the supply rail with I
LIM
= 5A, or 17V below the
supply rail with I
LIM
= 2A while the amplifier is current limiting, the inductor should
be capacitively coupled or the current limit must be lowered to meet SOA criteria.
2. The amplifier can handle any EMF generating or reactive load and short circuits
to the supply rails or shorts to common if the current limits are set as follows at
T
C
= 85°C.
SHORT TO ±V
S
SHORT TO
C, L OR EMF LOAD
COMMON
±V
S
18V
.5A
1.7A
15V
.7A
2.8A
10V
1.6A
4.2A
These simplified limits may be exceeded with further analysis using the operating
conditions for a specific application.
0
.5
1.0
TIME, t (µS)
1.5
0

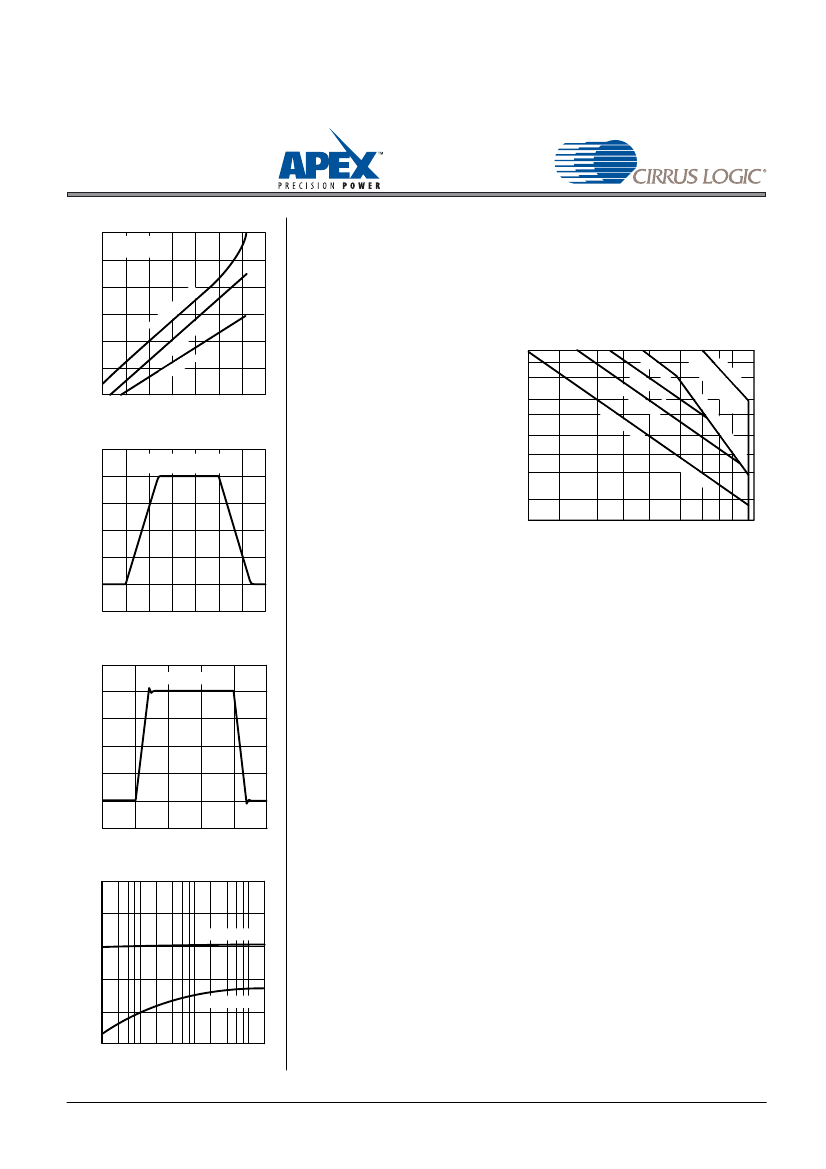

LOADING EFFECTS
DELTA GAIN WITH LOAD, ∆A (dB)
current limit
Proper operation requires the use of two current limit resistors, connected as shown
in the external connection diagram. The minimum value for R
CL
is 0.12 ohm, however for
optimum reliability it should be set as high as possible. Refer to the “General Operating
Considerations” section of the handbook for current limit adjust details.
–.3
–.6
–.9
–1.2
–1.5
I
O
= 400mA
I
O
= 150mA
deVice mounting
The case (mounting flange) is electrically isolated and should be mounted directly
to a heatsink with thermal compound. Screws with Belville spring washers are recom-
mended to maintain positive clamping pressure on heatsink mounting surfaces. Long
periods of thermal cycling can loosen mounting screws and increase thermal resistance.
Since the case is electrically isolated (floating) with respect to the internal circuits
it is recommended to connect it to common or other convenient AC ground potential.
100
10K
1K
FREQUENCY, F (Hz)
.1M
4
PA02U
P r o d u c t I n n o v a t i o nF r o m
PA02 • PA02A
