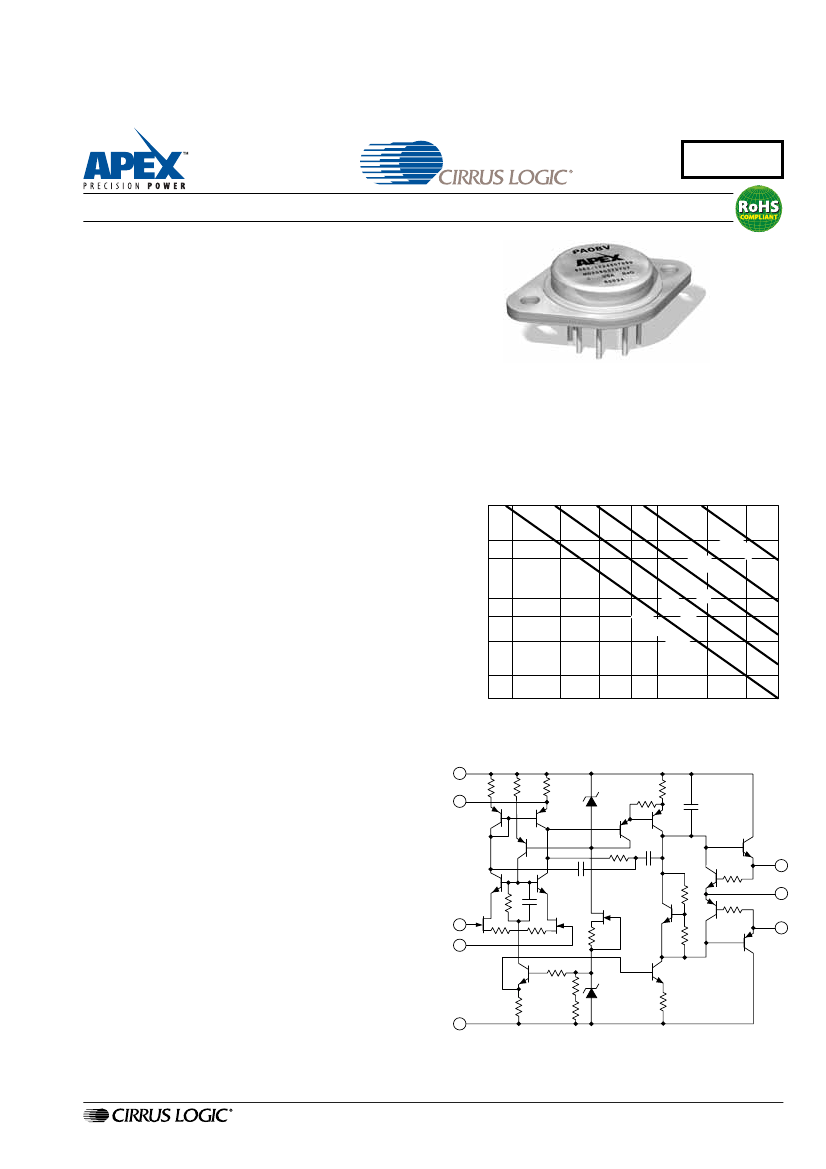

rom
P r o d u c t
I
I
n n o v
v
a
t
i o n F
F r o m
nno a
PA08V
PA08V
PA08V
Power Operational Amplifiers
FEATURES
• EXTENDED SUPPLY RANGE
UP TO ±175V or
350V TOTAL
• PROVIDES PA08 PERFORMANCE
UP TO ±150mA
PROGRAMMABLE CURRENT LIMIT
LOW DRIFT FET INPUT
8-PIN TO-3
PACKAGE STYLE CE
Please consult the PA08 data sheet for basic information
on this amplifier, plus the application notes in this Apex Preci-
sion Power DATA BOOK, for recommendations on stability,
current limiting, heatsinks, bypassing, and suggestions for
circuit functions.
OUTPUT CURRENT FROM +V
S
OR –V
S
(mA)
APPLICATIONS
• PROGRAMMABLE POWER SUPPLIES UP TO 340V
• ELECTROSTATIC TRANSDUCERS & DEFLECTION
• PIEZO ELECTRIC TRANSDUCERS
• HIGH VOLTAGE INSTRUMENTATION
SAFE OPERATING AREA CURVE (SOA)
t=
DESCRIPTION
The PA08V is an extended supply range operational amplifier
capable of output voltage swings of ±170V with dual supplies or
340V total supply voltage on single or non-symmetric supplies.
High accuracy is achieved with a cascode input circuit con-
figuration. All internal biasing is referenced to a zener diode
fed by a FET constant current source. As a result, the PA08
features an unprecedented supply range and excellent sup-
ply rejection. The output stage is biased class A-B for linear
operation. Internal phase compensation assures stability at all
gain settings. The safe operating area (SOA) can be observed
with all types of loads by choosing the appropriate current limit-
ing resistors. For operation into inductive loads, two external
flyback pulse protection diodes are recommended. A heatsink
may be necessary to maintain the proper case temperature
under normal operating conditions.
This hybrid integrated circuit utilizes a beryllia (BeO) sub-
strate, thick film resistors, ceramic capacitors, and semicon-
ductor chips to maximize reliability, minimize size and give top
performance. Ultrasonically bonded aluminum wires provide
reliable interconnections at all operating temperatures. The
8-pin to TO-3 package is hermetically sealed and electrically
isolated. The use of compressible thermal isolation washers
and/or improper mounting torque will void the product warranty.
Please see “General Operating Considerations”
.
150
100
80
t=
t=
20
0µ
0.5
s
50
40
30
20
15
90 100
ste
t=
ad
ys
5m
s
e
1m
s
ms
tat
125
150
175 200
250
300 350
SUPPLY TO OUTPUT DIFFERENTIAL VOLTAGE (V)
EQUIVALENT SCHEMATIC
3
7
Q1
Q5
Q8
Q9
C4
5
4
Q12A
Q15
D2
6
Q12B
Q16
C2
Q10
Q11
Q2
Q4
C3
Q7
1
Q19
8
Q17
D1
Q3
Q6
2
C1
SPECIFICATIONS
Specifications of the standard PA08 apply with the benefit
of supply ratings being extended to ±175V. Design changes
enabling the total supply rating of 350V have no effect on the
shape of the typical performance graphs.
GENERAL CONSIDERATIONS
SAFE OPERATING AREA
The extended safe operating area is as follows:
When operating on ±175V, maximum safe values of capaci-
tive and inductive loading are .2µF and 200mH. Maximum safe
current limit for a short to common is 50mA, and for a short to
supply rails, the maximum is 15mA.
PA08VU
http://www.cirrus.com
Copyright © Cirrus Logic, Inc. 2009
(All Rights Reserved)
MAY 2009
1
APEX − PA08VUREVH
