D25P24A6RX12: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size513KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25P24A6RX12 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal

D25P24A6RX12 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D25P24A6RX12
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

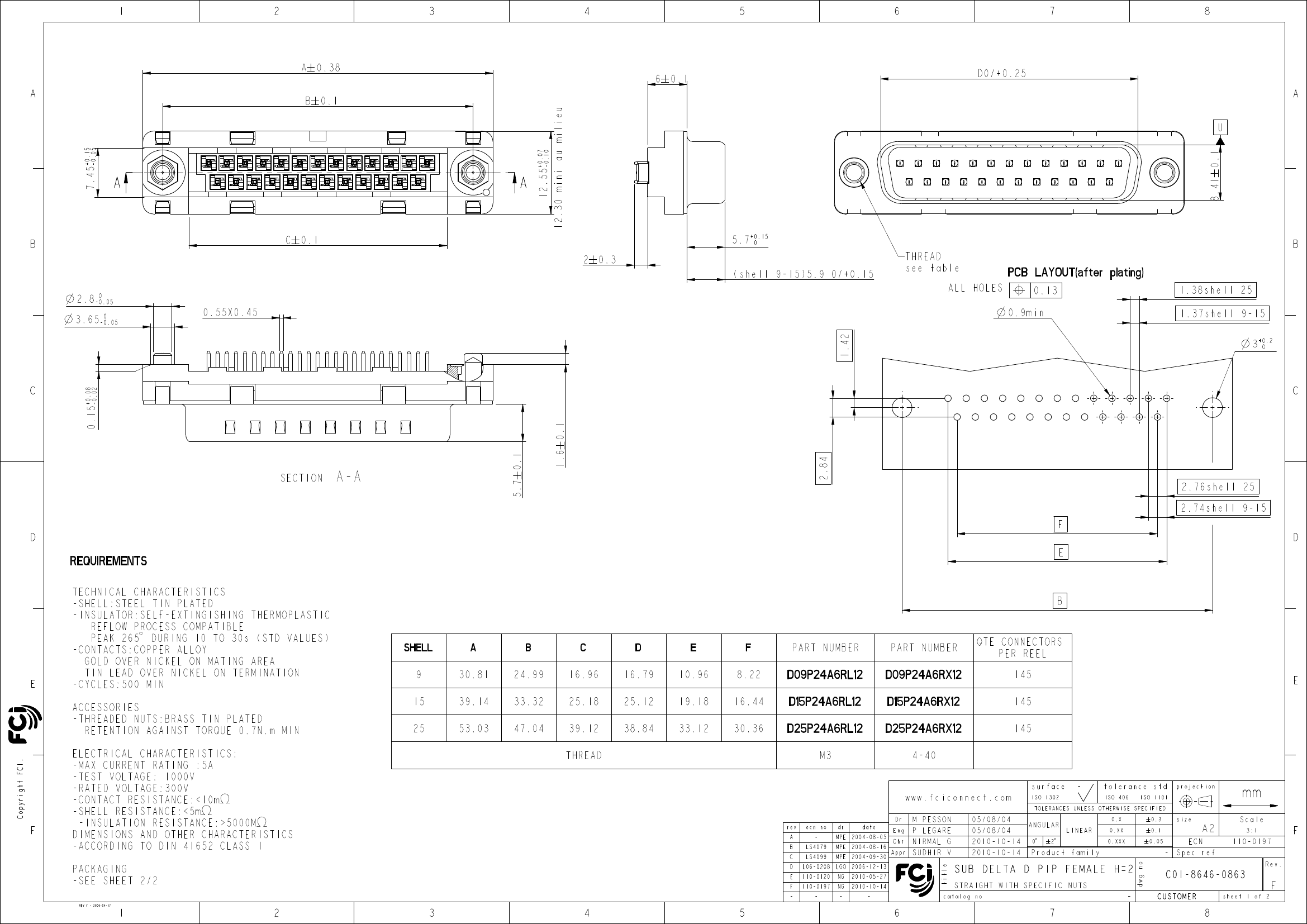

A 0.38

6 0.1

A

B 0.1

12.30 mini au milieu

D0/+0.25

A

U

8.41 0.1

5.7

+0.15

0

7.45

+0.15

-0.05

A

B

C 0.1

2 0.3

12.55

+0.07

-0.10

B

THREAD

see table

ALL HOLES

(shell 9-15) 5.9 0/+0.15

2.8

0

-0.05

PCB LAYOUT(after plating)

0.13

0.9min

1.38 shell 25

1.37shell 9-15

3

+0.2

0

3.65

-0.05

0.55 X0.45

1.42

0.15

+0.08

-0.02

C

5.7 0.1

1.6 0.1

SECTION

A-A

2.84

2.76 shell 25

2.74shell 9-15

F

D

REQUIREMENTS

TECHNICAL CHARACTERISTICS

-SHELL:STEEL TIN PLATED

-INSULATOR:SELF-EXTINGISHING THERMOPLASTIC

REFLOW PROCESS COMPATIBLE

PEAK 265 DURING 10 TO 30s (STD VALUES)

-CONTACTS:COPPER ALLOY

GOLD OVER NICKEL ON MATING AREA

TIN LEAD OVER NICKEL ON TERMINATION

-CYCLES:500 MIN

ACCESSORIES

-THREADED NUTS:BRASS TIN PLATED

RETENTION AGAINST TORQUE 0.7N.m MIN

ELECTRICAL CHARACTERISTICS:

-MAX CURRENT RATING :5A

-TEST VOLTAGE: 1000V

-RATED VOLTAGE:300V

-CONTACT RESISTANCE:<10m

-SHELL RESISTANCE:<5m

-INSULATION RESISTANCE:>5000M

DIMENSIONS AND OTHER CHARACTERISTICS

-ACCORDING TO DIN 41652 CLASS 1

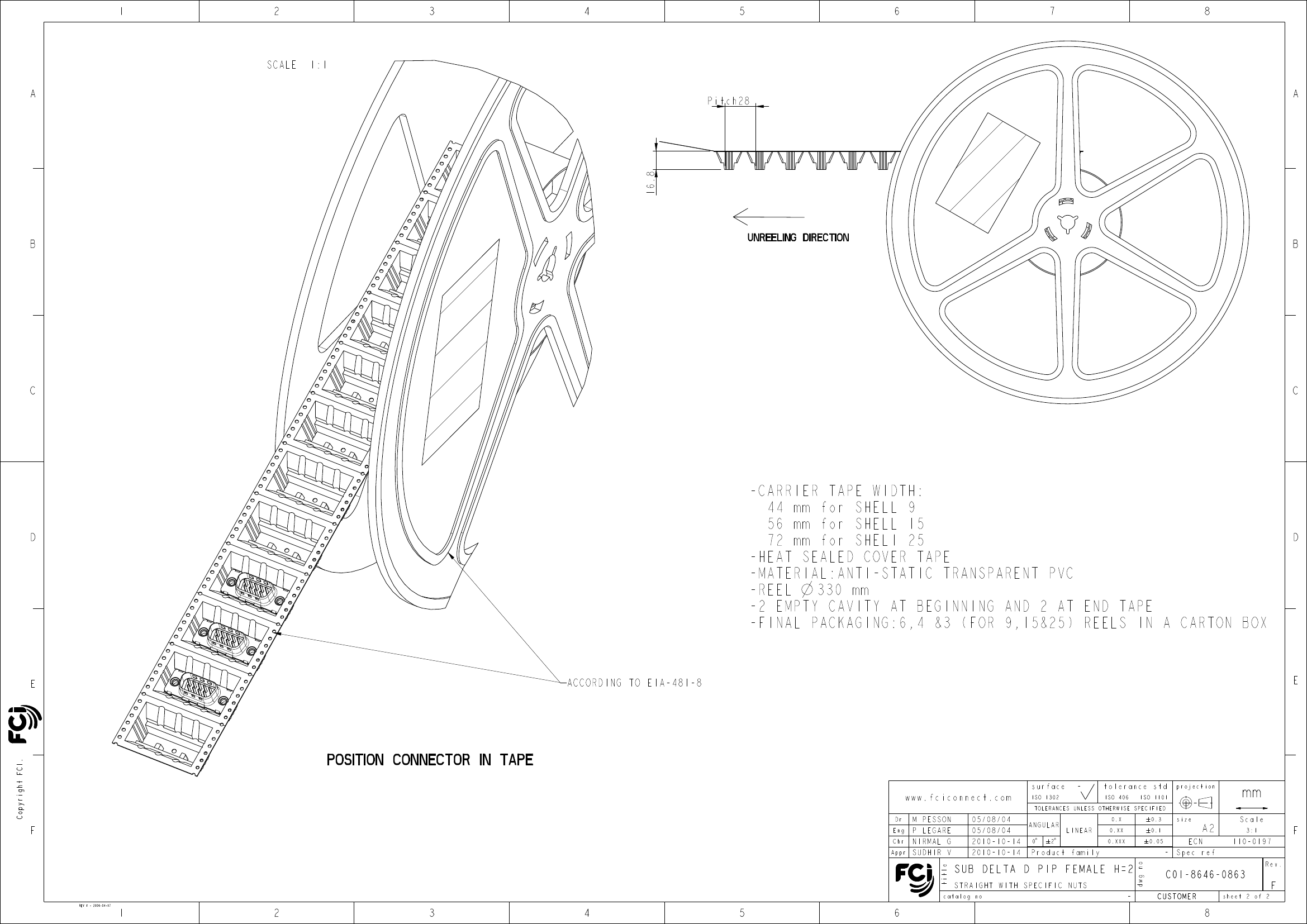

PACKAGING

-SEE SHEET 2/2

REV F - 2006-04-17

E

B

SHELL

9

15

25

A

30.81

39.14

53.03

B

24.99

33.32

47.04

C

16.96

25.18

39.12

THREAD

D

16.79

25.12

38.84

E

10.96

19.18

33.12

F

8.22

16.44

30.36

PART NUMBER

QTE CONNECTORS

PER REEL

145

E

D09P24A6RL12

D15P24A6RL12

D25P24A6RL12

M3

D09P24A6RX12

D15P24A6RX12

D25P24A6RX12

4-40

Copyright FCI.

surface

-

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

Dr

rev

A

B

C

D

E

F

-

ecn no

-

LS4079

LS4099

L06-0208

I10-0120

I10-0197

-

dr

date

Eng

Chr

Appr

MPE 2004-08-05

MPE 2004-08-16

MPE 2004-09-30

LGO 2006-12-13

NG

-

2010-05-27

2010-10-14

-

ISO 1302

mm

Scale

3:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

M PESSON

P LEGARE

NIRMAL G

SUDHIR V

title

05/08/04

2010-10-14

F

ANGULAR

0

2

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

A2

ECN

- Spec ref

F

Rev.

I10-0197

Product family

dwg no

SUB DELTA D PIP FEMALE H=2

STRAIGHT WITH SPECIFIC NUTS

-

C01-8646-0863

CUSTOMER

sheet

1 of 2

F

catalog no

1

2

3

4

5

6

7

PDM: Rev:F

STATUS:

Released

8

Printed: Jan 18, 2011

.
