S1A thru S1M
Taiwan Semiconductor
CREAT BY ART

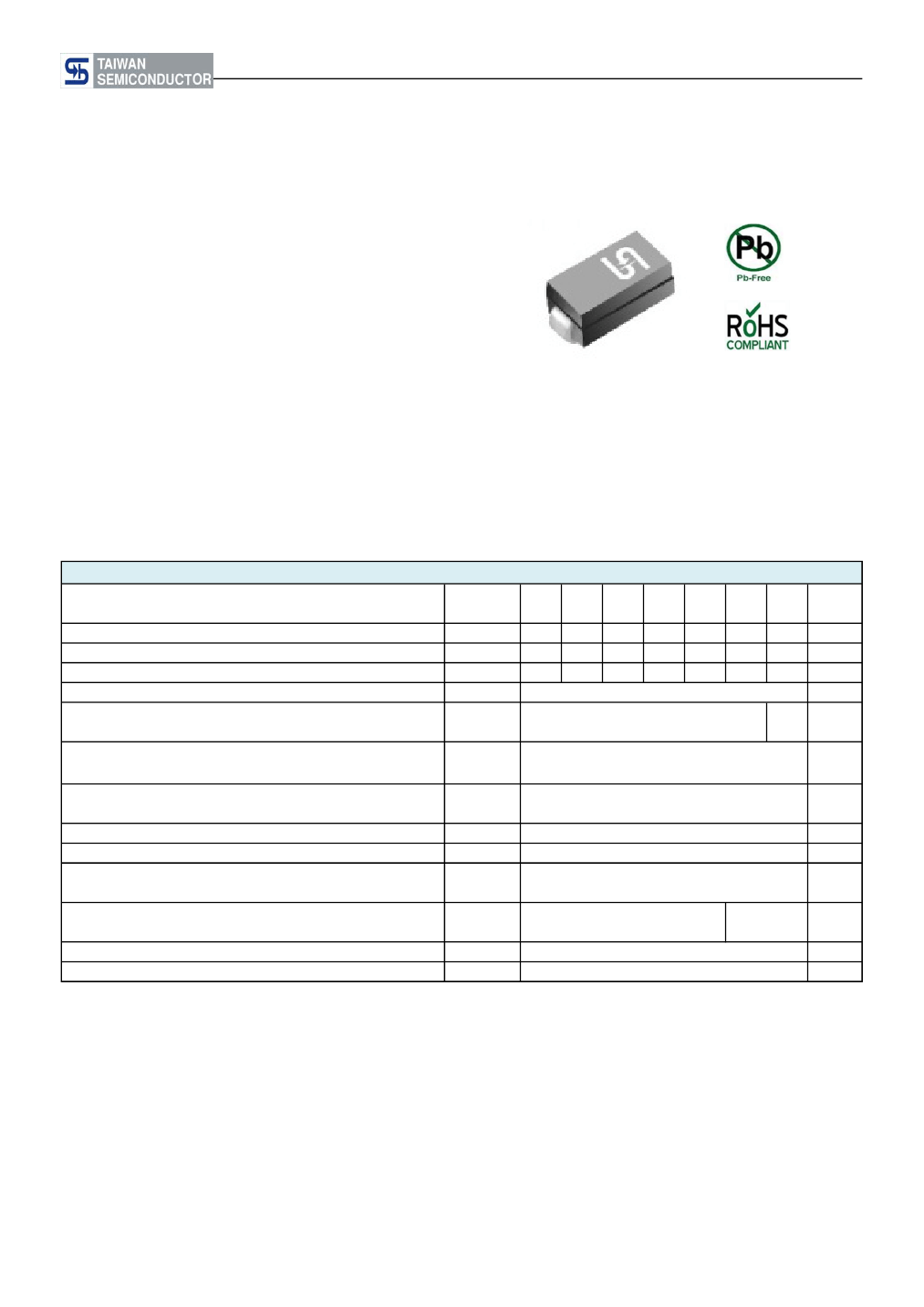

FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Low forward voltage drop
- High surge current capability
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Rectifiers
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - Green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated VR
Typical reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Non-repetitive peak reverse avalanche
energy at 25℃, I
AS
=1A, L=10mH
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
E
RSM
R
θJL
R
θJA
T
J
T
STG
27
75
- 55 to +175
- 55 to +175
40
1.1
1
50
1.5
12
5
30
85
O
S1A
50
35
50
S1B
100
70
100
S1D
200
140
200
S1G
400
280
400
1
S1J
600
420
600
S1K S1M
800
560
800
1000
700
1000
UNIT
V
V
V
A
30
A
V
μA
μs
pF
mJ
C/W
O
O
C
C
Document Number: DS_D1405026
Version: M14
S1A thru S1M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
R3
R2
S1x
(Note 1)
Prefix "H"
M2
F3
F2
F4
N/A
E3
E2
Suffix "G"
PACKING CODE GREEN COMPOUND
CODE
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (S1A) to 1000V (S1M)
EXAMPLE
PREFERRED P/N PART NO.
S1M R3
S1M R3G
S1MHR3
S1M
S1M
S1M
H
AEC-Q101
QUALIFIED
PACKING CODE
R3
R3
R3
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

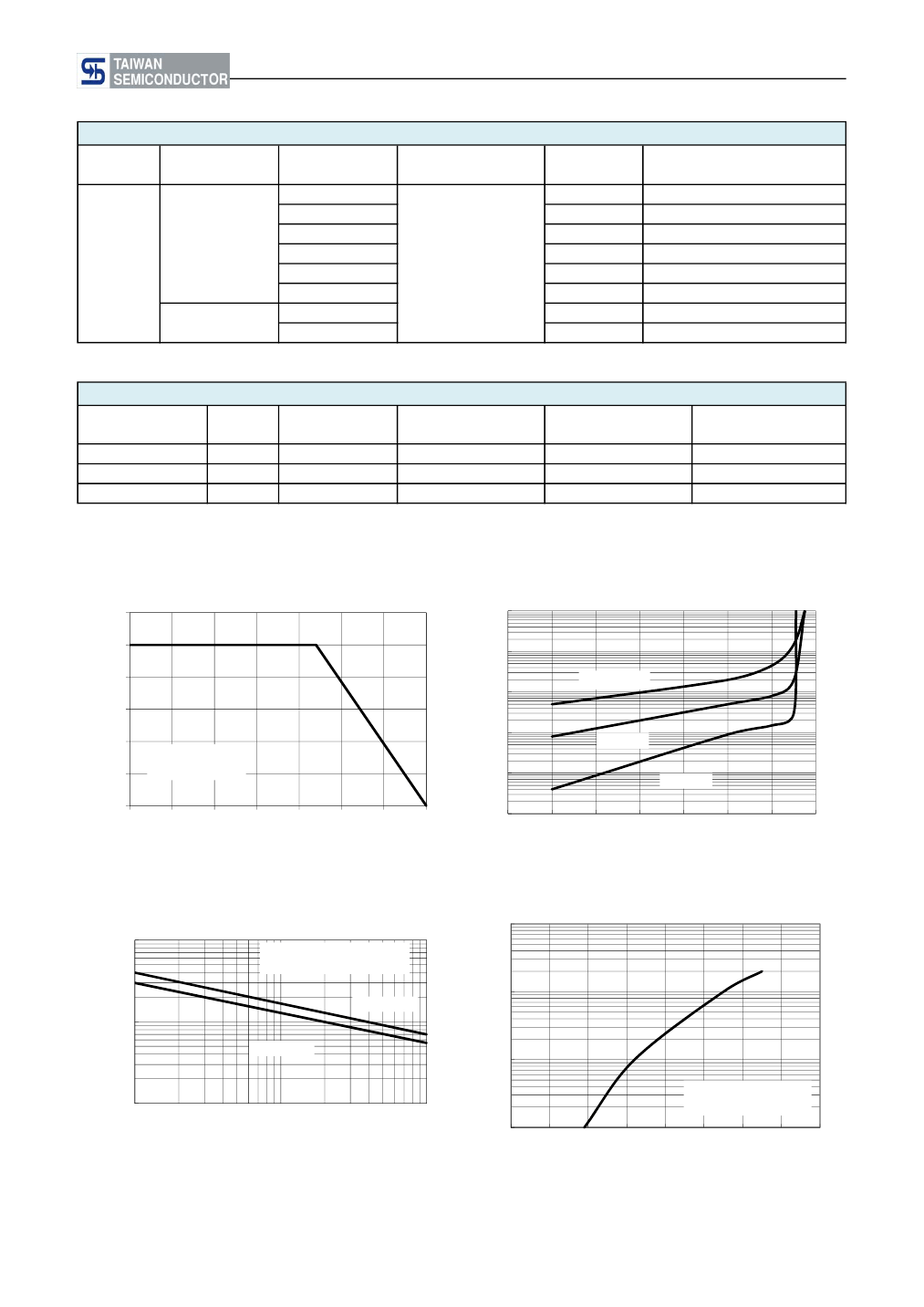

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
1.2
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
175
INSTANTANEOUS REVERSE CURRENT
(μA)
AVERAGE FORWARD CURRENT (A)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
10
TJ=125℃
1
0.1
TJ=75℃
RESISTIVE OR
INDUCTIVE LOAD
0.01
TJ=25℃
0.001
0
20
40
60
80
100
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
140
LEAD TEMPERATURE (
o
C)
PEAK FORWARD SURGE URRENT
(A)
100
8.3ms Single Half Sine Wave
JEDEC Method
INSTANTANEOUS FORWARD CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
10
S1A-S1K
10
S1M
1
Pulse Width=300μs
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
2
1
1
10
NUMBER OF CYCLES AT 60 Hz
100
Document Number: DS_D1405026
Version: M14
S1A thru S1M
Taiwan Semiconductor
100
FIG. 5 TYPICAL JUNCTION CAPACITANCE
CAPACITANCE (pF)
10
f=1.0MHz
Vsig=50mVp-p
1
0.01
0.1
1
REVERSE VOLTAGE (V)
10
100

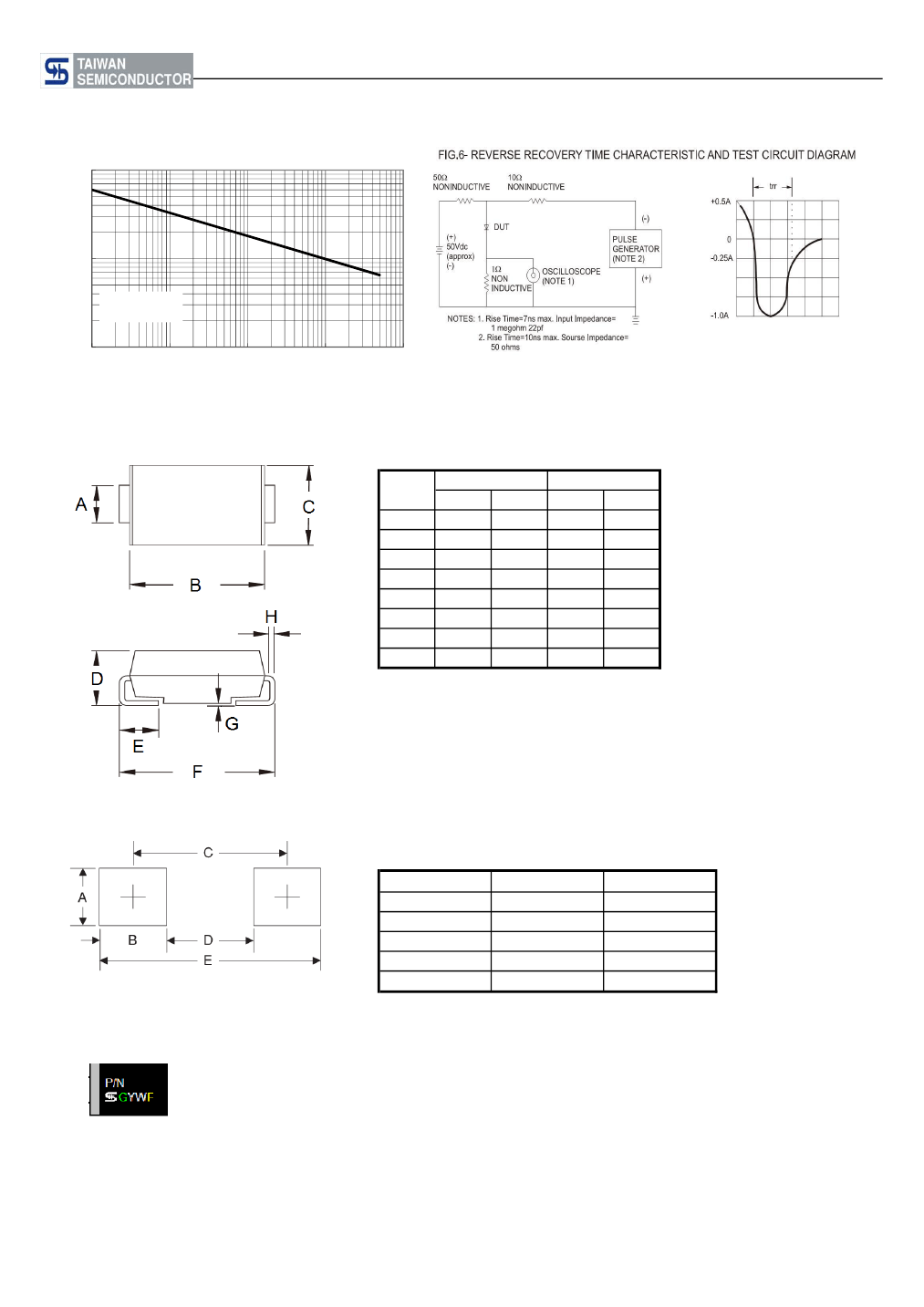

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
DIM.
A
B
C
D
E
F
G
H
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1405026
Version: M14
S1A thru S1M
Taiwan Semiconductor
CREAT BY ART
