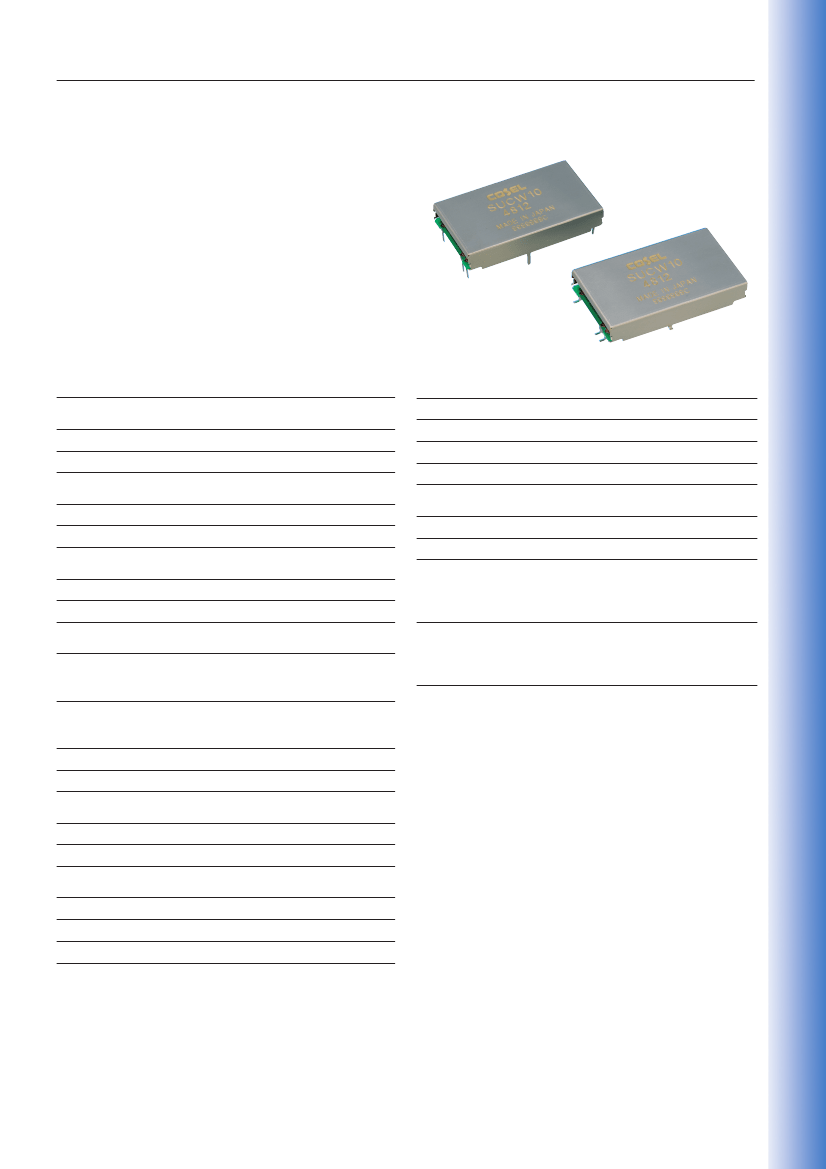

PBB4A-C Series

1.5-10

WATTS

SINGLE

DUAL

OUTPUT

DC/DC

I N D U S T R I A L

MODULES

Features

•

High power density

Low profile

PCB mounting

2:1 input ratio

Regulated output

Overcurrent protection

On/off remote control

Specifications

INPUT

Nominal voltage

Voltage range

Isolation

(input – output)

OUTPUT

Output voltage

Voltage adjustment

Output current

See table

Fixed (TRM pin open) ±5% adjustable by external

VR.

See table

5Vdc, 12Vdc, 24Vdc, 48Vdc

4.5–9V, 9–18V, 18–36V, 36–76V

500Vac 1 minute, cutoff current = 10mA, 500Vdc

50MΩ min (20±15°C).

ENVIRONMENTAL

Operating temperature -40°C to 85°C (Required derating).

Operating humidity

Operating altitude

Vibration

Shock/Impact

MECHANICAL

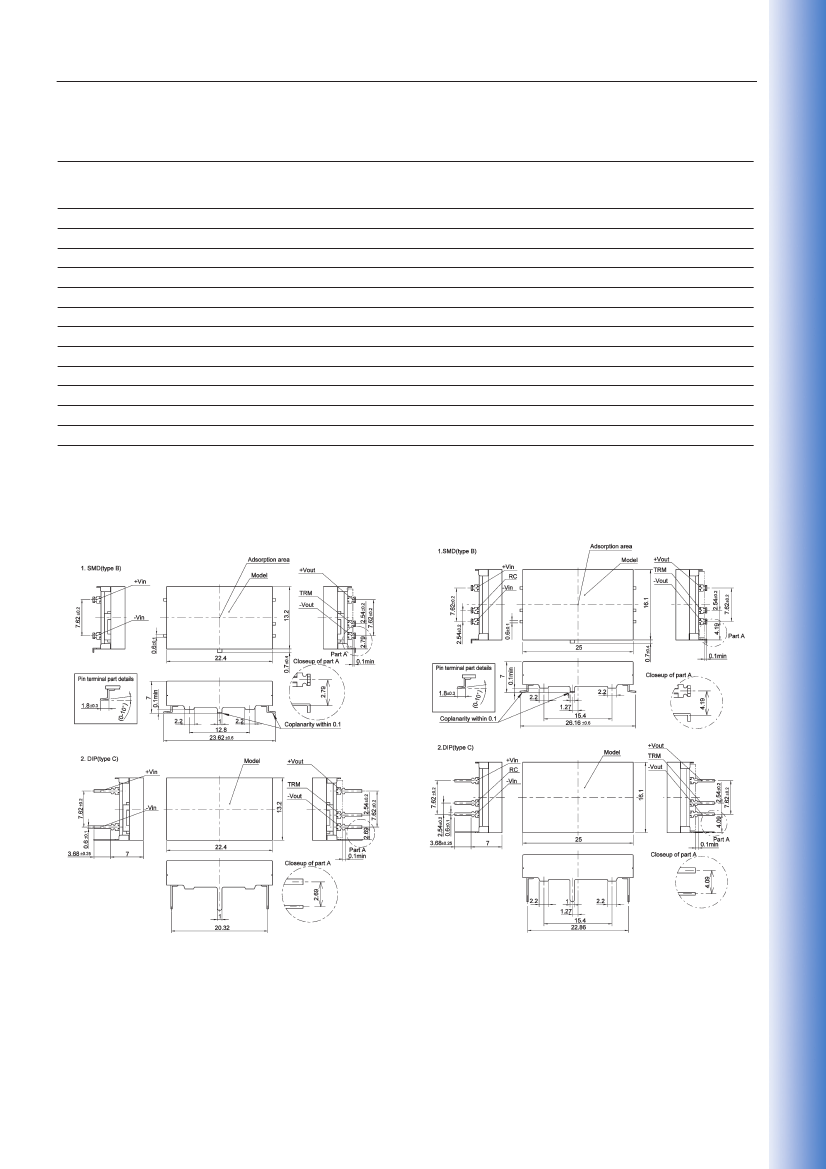

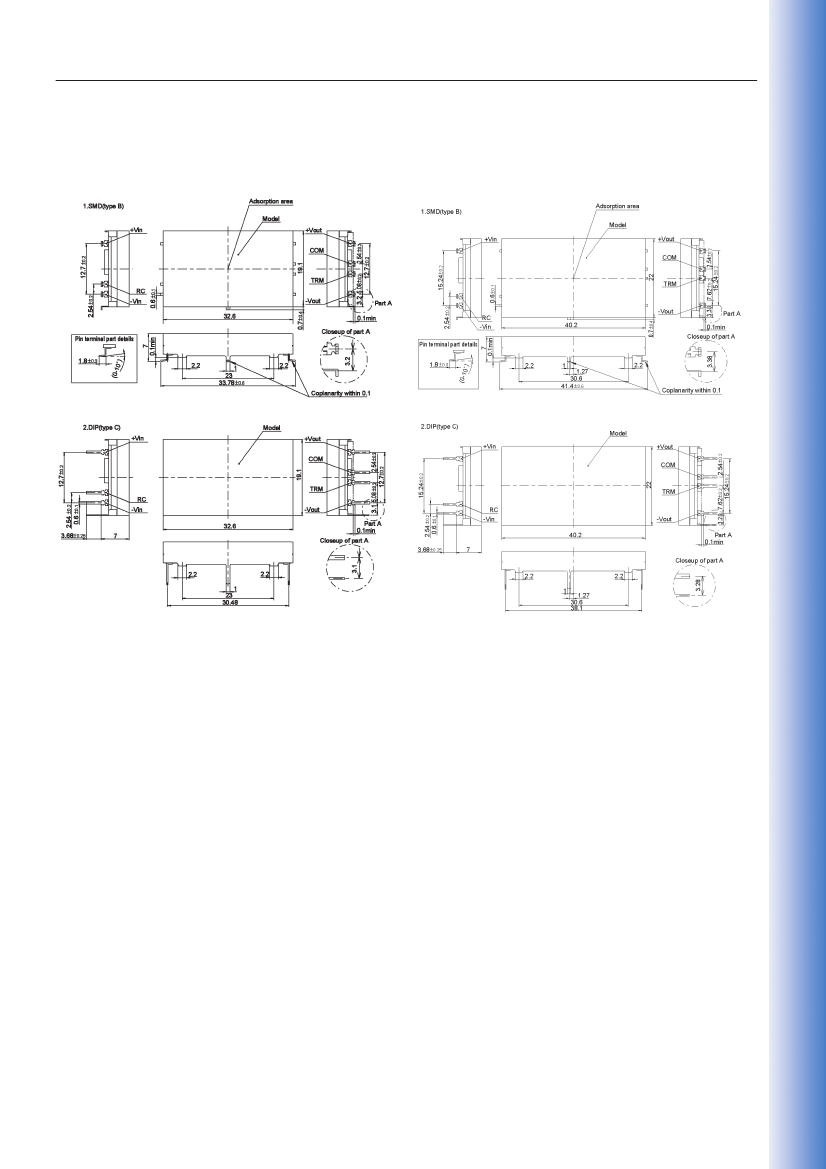

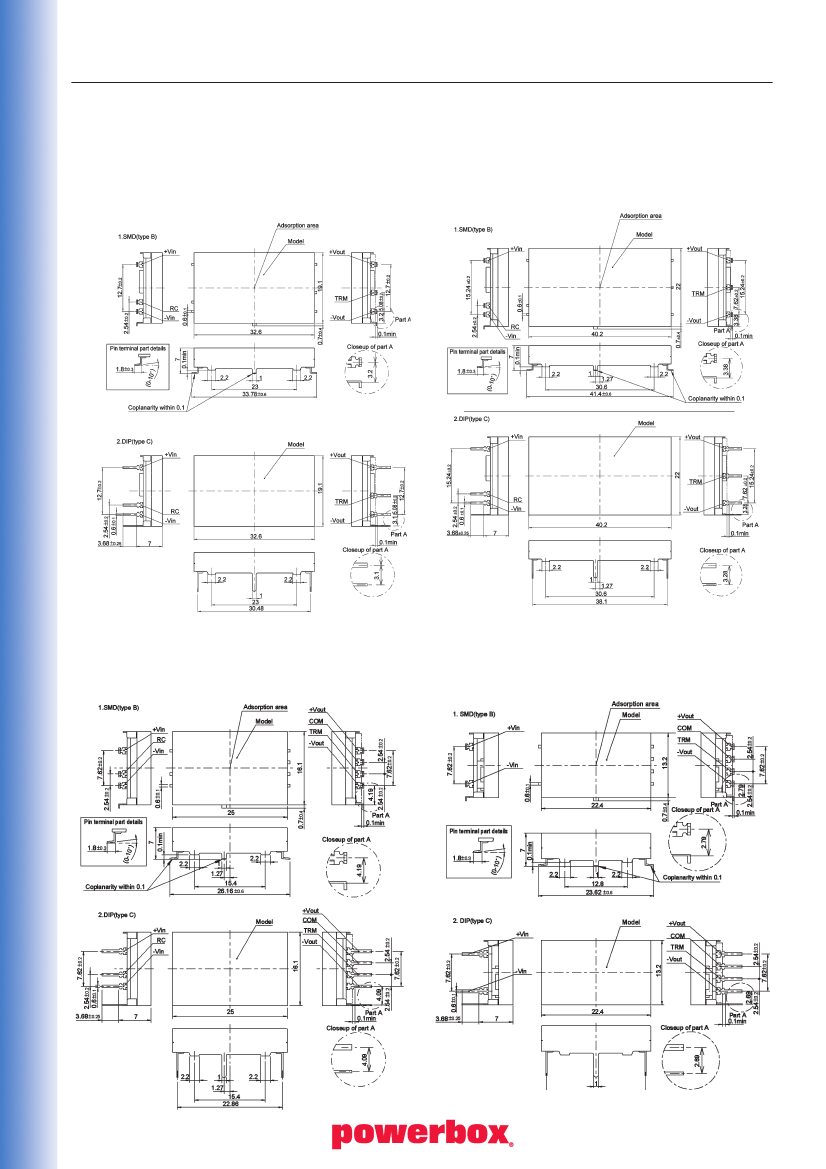

Dimensions

PBB4A-C-A: 22.4x7.0x13.2mm

PBB4A-C-B: 25x7.0x16.1mm

PBB4A-C-C: 32.6x7.0x19.1mm

PBB4A-C-D: 40.2x7.0x22mm

PBB4A-C-A: 3g max.

PBB4A-C-B: 5g max.

PBB4A-C-C: 7g max.

PBB4A-C-D: 10g max.

20%–95% RH, non condensing

3000m (10,000feet) max.

10Hz–55Hz 10G 3 min period for 60 minutes each

along x, y, and z axis

50G 11mS once each along x, y and z axis

Output voltage setting Within ±3% of nominal

Ripple & noise

Line regulation

All output 120-150mV pk-pk max (-20 – +55°C)

All output 200mV pk-pk max (-40 – -20°C)

Single Out: 5V rail – 20mV, 12V rail – 48mV,

15V rail – 60mV.

Dual Out: ±12V rail – 60mV, ±15V rail – 75mV

Single Out: 5V rail – 40mV, 12V rail – 100mV,

15V rail – 120mV.

Dual Out: ±12V rail – 600mV, ±15V rail – 750mV

0.4%

20ms (Minimum input, I

= 100%)

Weight

Load regulation

Drift

Start-up time

Overcurrent protection Set at approx. 105% of rating and recovers

automatically

OPERATING

Efficiency

Remote on/off

Typically 72-86%

Provided on all model, except 1.5W module

(Negative logic L : ON : OFF).

STANDARDS AND APPROVALS

Safety

C-Tick

UL60950-1, C-UL, EN60950-1

AS/NZS CISPR11 Group 1 Class A
