251S48W105MV6U: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP; CategoryPassive components capacitor; File Size112KB，3 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric Compare View All

251S48W105MV6U Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP

251S48W105MV6U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 2225
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Other Size/Voltage/Capacitance Available
dielectric materials	CERAMIC
high	2.8 mm
JESD-609 code	e3
length	5.72 mm
Manufacturer's serial number	S48
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PLASTIC, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
series	S48(250V, X7R)
size code	2225
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	6.35 mm
Base Number Matches	1

Preview

Download Datasheet

View All

T

IP

& R

ING

C

HIP

C

APACITORS

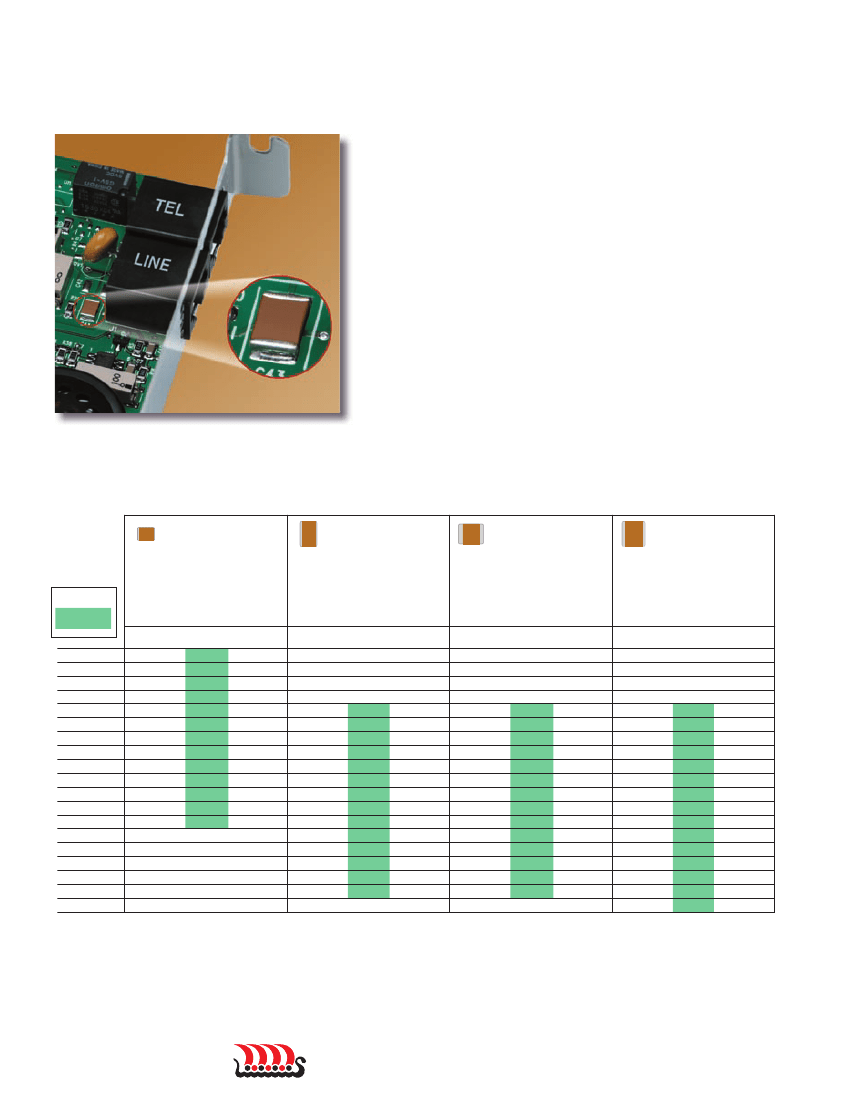

The Tip & Ring MLCC series are designed specifically for

telecom ringer circuit applications where it is necessary to

provide a block of the line voltage (typically -48 VDC) while

passing the AC ringing voltage. These compact ceramic SMD

chips replace bulky leaded film caps saving board space and

stream-lining the assembly process.

K

EY

F

EATURES

•

Blocks Off-hook DC Voltage

Passes AC Ring Signal

250 VDC Ratings For Telecom Interface

Choice of SMD Chip Sizes

Low ESR versus Frequency

Stable Temperature Performance (X7R)

C

APACITANCE

S

ELECTION

-1812-2225 S

IZE

S43 / 1812

L

W

T

E/B

INCHES

.175 ±.010

.125 ±.010

.085 Max.

.025 ±.015

(mm)

(4.45 ±.25)

(3.17 ±.25)

(2.16)

(0.64±.38)

L

W

T

E/B

S49 / 1825

INCHES

.180 ±.010

.250 ±.010

.110 Max.

.025 ±.015

(mm)

(4.57 ±.25)

(6.35 ±.25)

(2.80)

(0.64±.38)

L

W

T

E/B

S47 / 2220

INCHES

.225 ±.010

.200 ±.010

.110 Max.

.025 ±.015

(mm)

(5.72 ±.25)

(5.08 ±.25)

(2.80)

(0.64±.38)

L

W

T

E/B

S48 / 2225

INCHES

.225 ±.010

.250 ±.010

.110 Max.

.025 ±.015

(mm)

(5.72 ±.25)

(6.35 ±.25)

(2.80)

(0.64±.38)

DIELECTRIC

X7R

.047 µF

.056 µF

.068 µF

.082 µF

0.10 µF

0.12 µF

0.15 µF

0.18 µF

0.22 µF

0.27 µF

0.33 µF

0.39 µF

0.47 µF

0.56 µF

0.68 µF

0.82 µF

1.00 µF

1.20 µF

1.50 µF

250 VDC

Please contact the factory for capacitance, voltage, case size combinations not shown.

1

www.johanson dielectrics.com

251S48W105MV6U Related Products

	251S48W105MV6U	251S48W105MV4U	251S48W105KV4U	251S48W105KV6E	251S48W105KV6U
Description	Ceramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 250V, 20% +Tol, 20% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2225, CHIP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	, 2225	, 2225	, 2225	, 2225	, 2225
Reach Compliance Code	compliant	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	1 µF	1 µF	1 µF	1 µF	1 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	S48	S48	S48	S48	S48
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes
negative tolerance	20%	20%	10%	10%	10%
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH	TR, PLASTIC, 13 INCH	TR, PLASTIC, 7 INCH	TR, PLASTIC, 13 INCH
positive tolerance	20%	20%	10%	10%	10%
Rated (DC) voltage (URdc)	250 V	250 V	250 V	250 V	250 V
size code	2225	2225	2225	2225	2225
surface mount	YES	YES	YES	YES	YES
Temperature characteristic code	X7R	X7R	X7R	X7R	X7R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Custom functions	Other Size/Voltage/Capacitance Available	Other Size/Voltage/Capacitance Available	Other Size/Voltage/Capacitance Available	-	Other Size/Voltage/Capacitance Available
high	2.8 mm	2.8 mm	2.8 mm	-	2.8 mm
length	5.72 mm	5.72 mm	5.72 mm	-	5.72 mm
Package form	SMT	SMT	SMT	-	SMT
series	S48(250V, X7R)	S48(250V, X7R)	S48(250V, X7R)	-	S48(250V, X7R)
width	6.35 mm	6.35 mm	6.35 mm	-	6.35 mm
Maker	-	-	Johanson Dielectrics	Johanson Dielectrics	Johanson Dielectrics
