08053F334JAU2A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 5% +Tol, 5% -Tol, X8R, 15% TC, 0.33uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size178KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

08053F334JAU2A Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 5% +Tol, 5% -Tol, X8R, 15% TC, 0.33uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

08053F334JAU2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.33 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.4 mm
JESD-609 code	e3
length	2 mm
Manufacturer's serial number	X8R
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	25 V
series	0805(X8R,25V)
size code	0805
surface mount	YES
Temperature characteristic code	X8R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

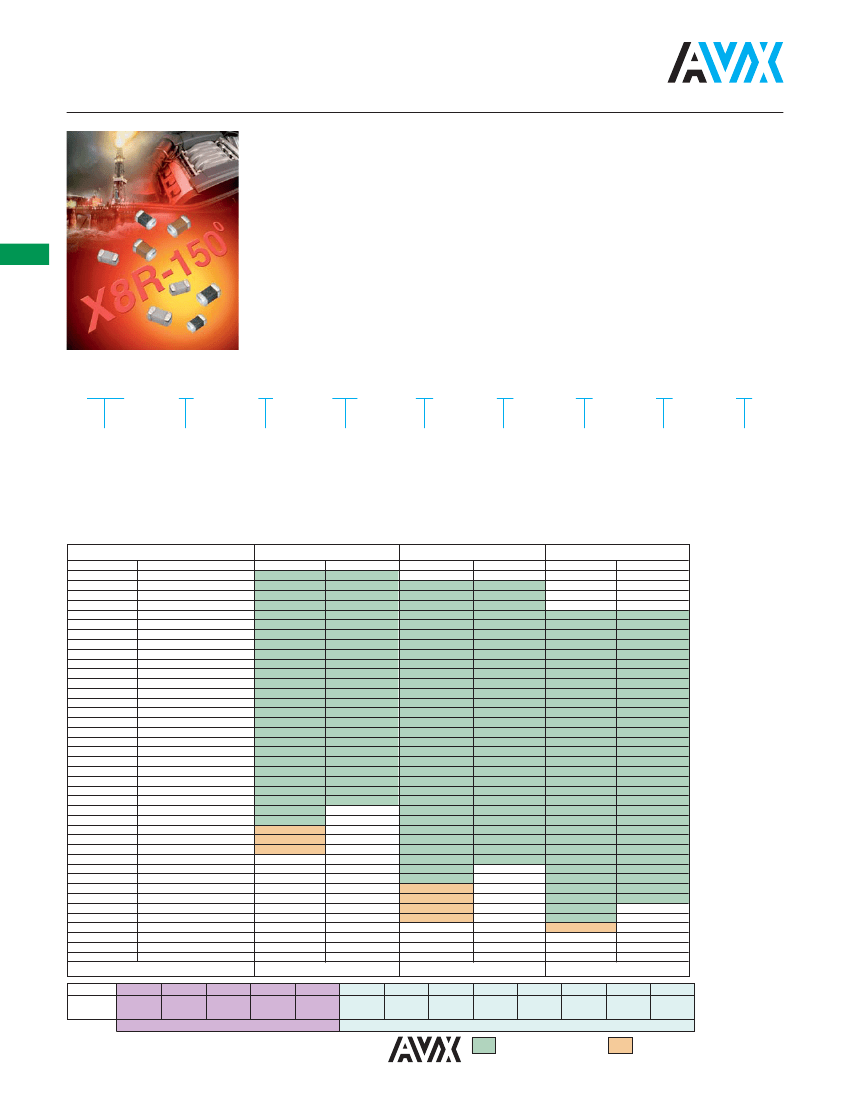

X8R Dielectric

General Specifications

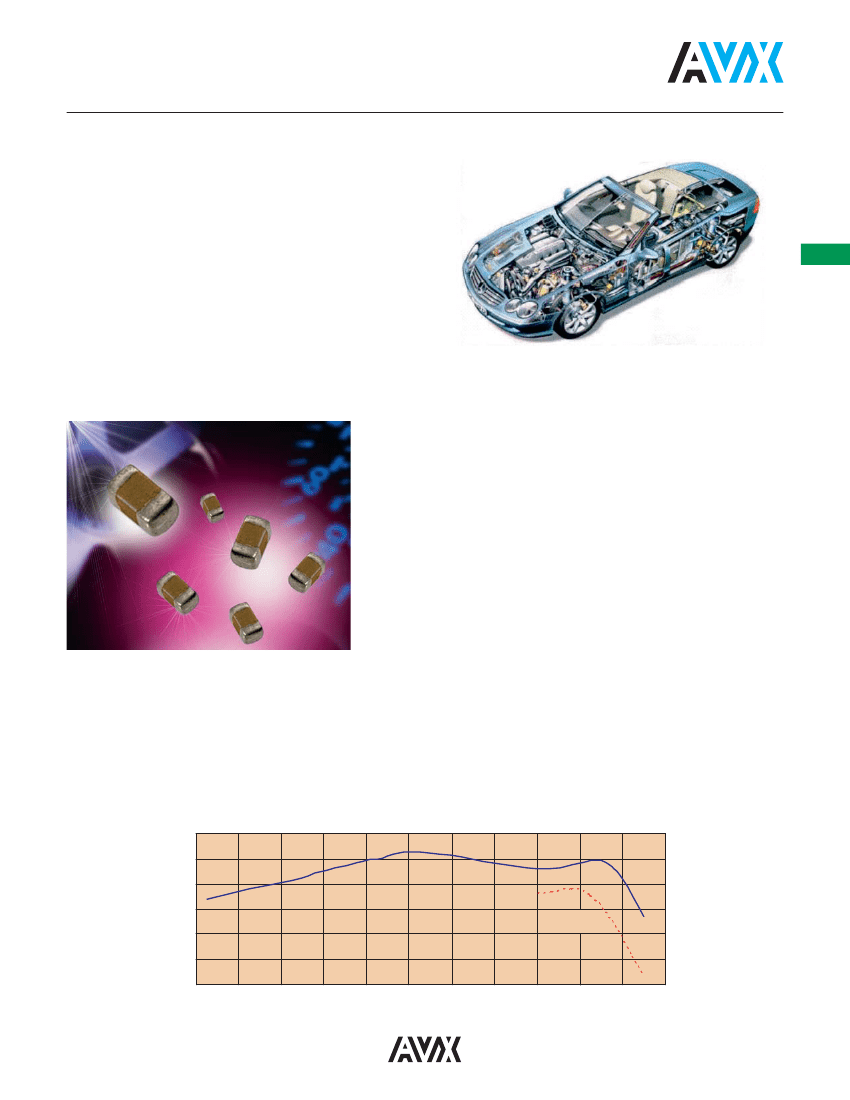

AVX have developed a range of multilayer ceramic capacitors designed for use in applications up to

150ºC. These capacitors are manufactured with an X8R dielectric material which has a capacitance

variation of ±15% between -55ºC and +150ºC.

The need for X8R performance has been driven by customer requirements for parts that operate at

elevated temperatures. They provide a highly reliable capacitor with low loss and stable capacitance

over temperature.

They are ideal for automotive under the hood sensors, measure while drilling and log while drilling.

Typical applications include wire line logging tools such as gamma ray receivers, acoustic trans-

ceivers and micro-resistivity tools. They can also be used as bulk capacitors for high temperature

camera modules.

X8R capacitors are available as standard and Automotive AEC-Q200 qualified parts. Optional termi-

nation systems, tin, FLEXITERM

TM

and conductive epoxy for hybrid applications are available.

Providing this series with our FLEXITERM

TM

termination system provides further advantage to cus-

tomers by way of enhanced resistance to both, temperature cycling and mechanical damage.

PART NUMBER (see page 2 for complete part number explanation)

0805

Size

0603

0805

1206

5

Voltage

25V = 3

50V = 5

F

Dielectric

X8R = F

104

K

4

T

2

A

Special

Code

A = Std.

Product

Capacitance Capacitance

Failure

Terminations

Packaging

Tolerance

Code (In pF)

Rate

2 = 7" Reel

T = Plated Ni

J = ± 5%

4 = Automotive

4 = 13" Reel

2 Sig. Digits +

and Sn

K = ±10%

A = Not

TM

Number of

Z = FLEXITERM

M = ± 20%

Applicable U = Conductive

Zeros

e.g. 10µF = 106

Epoxy for

Hybrid apps

NOTE: Contact factory for availability of Termination and Tolerance Options for Specific Part Numbers.

SIZE

271

331

471

681

102

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

683

823

104

124

154

184

224

274

334

394

474

684

824

105

Cap

(pF)

WVDC

270

330

470

680

1000

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

0.01

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.68

0.82

1

WVDC

0603

25V

G

50V

G

25V

J

N

0805

50V

J

N

25V

1206

50V

Cap

(µF)

J

M

J

M

25V

50V

25V

50V

25V

50V

SIZE

Letter

Max.

Thickness

A

0.33

(0.013)

C

0.56

(0.022)

E

0.71

(0.028)

PAPER

G

0.86

(0.034)

0603

J

0.94

(0.037)

K

1.02

(0.040)

M

1.27

(0.050)

0805

N

1.40

(0.055)

P

Q

1.52

1.78

(0.060)

(0.070)

EMBOSSED

X

2.29

(0.090)

1206

Y

2.54

(0.100)

Z

2.79

(0.110)

12

= AEC-Q200 Qualified

= Under development (Contact

factory for advanced samples)
