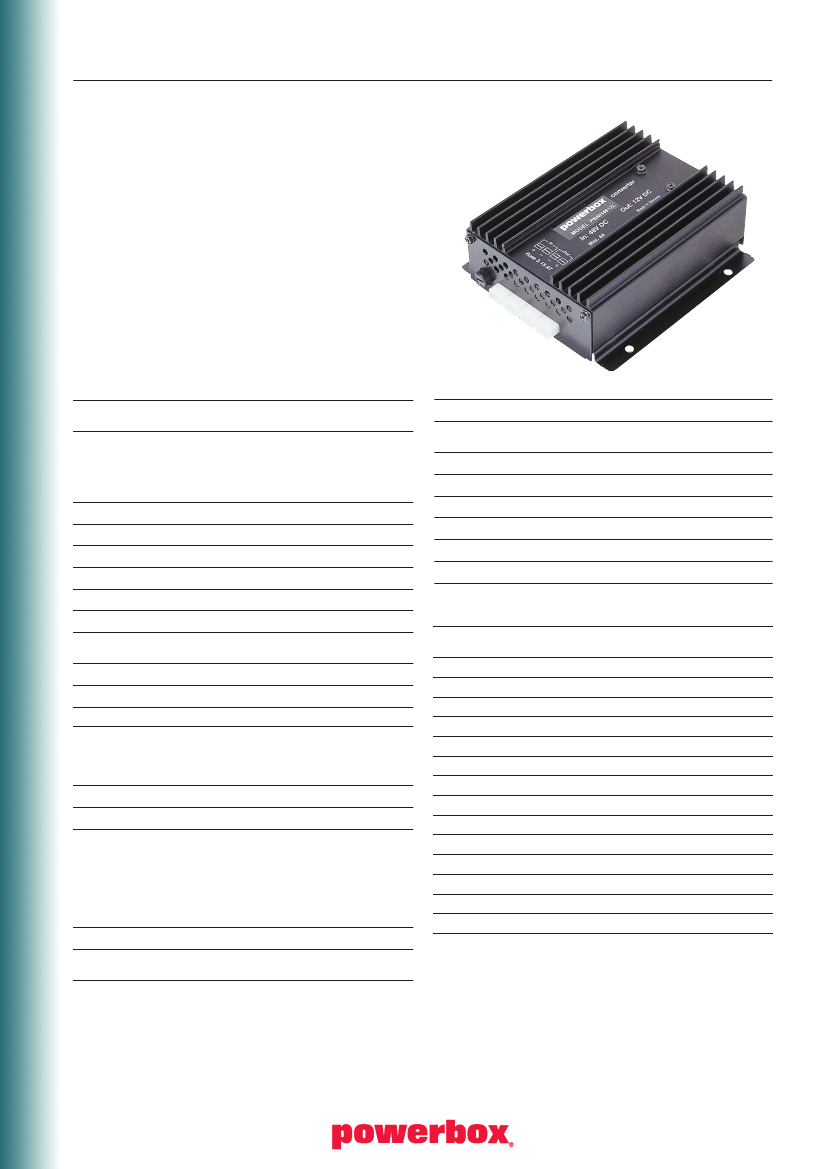

PBNH-1212L: Description80W MOBILE CONVERTERS; File Size856KB，1 Pages; ManufacturerPowerbox; Websitehttps://www.powerbox.com

Download Datasheet View All

PBNH-1212L Overview

80W MOBILE CONVERTERS

Preview

Download Datasheet

View All

OPEN FRAME & ENCLOSED

PBNH Series

80W MOBILE CONVERTERS

Features

•

Easy to mount and terminate

Input/output fully isolated

Short circuit protected

Thermal protected

Low noise

High surge currents

Specifications

INPUT

Input Voltage

12VDC (10–16)

24VDC (18–32)

36VDC (30–48)

48VDC (40–64)

110VDC (72–140)

MECHANICAL

Terminals

Dimensions

Weight

Input and output have 6.3mm push on spade

terminals

135x119x46mm

0.6kg

OUTPUT

Output Voltage

Output Current

Output Voltage Adjustment

Output Power

Noise

Ripple & Noise

Load Regulation

Line Regulation

See selection table

10% internal pot

Typically 80W continuous, 110 intermittent

Below CISPR limit

Typically 10mV rms at nominal load and input

voltage

5% at nominal input voltage

5% over input range

STANDARDS AND APPROVALS

C-Tick

EMC standards

EMI standards

AS/NZS CISPR11 Group 1, Class A

EN50082-1

EN50081-1

Selection Table

MODEL

NUMBER

PBNH-1212L

PBNH-1224L

PBNH-1248L

PBNH-2412L

INPUT

12V

24V

36V

48V

110V

OUTPUT

13.2V

24V

48V

13.2V

24V

36V

48V

13.2V

24V

13.2V

24V

48V

13.2V

24V

3.0A

1.7A

0.7A

6.0A

3.0A

2.5A

1.5A

6.0A

3.0A

6.0A

3.0A

1.5A

6.0A

3.0A

OUT I

(PK)

4.0A

2.2A

0.8A

10.0A

4.0A

3.0A

2.0A

8.0A

4.0A

8.0A

4.0A

2.0A

8.0A

4.0A

OPERATING

Isolation

Input and output are electrically isolated from

chassis and input is isolated from output

Isolation voltage – 1000VDC

Approx. 50kHz

Typically 80%-85%

Reverse input polarity

Transorb diode at input

Overvoltage protection

Short circuit protection

Thermal protection

Unit will switch off automatically at input

over- or undervoltage protection

-20°C to 40°C at full load derate linearly to

60°C

PBNH-2424L

PBNH-2436L

PBNH-2448L

Switching Frequency

Efficiency

Protection

PBNH-3612L

PBNH-3624L

PBNH-4812L

PBNH-4824L

PBNH-4848L

PBNH-8012L

PBNH-8024L

ENVIRONMENTAL

Operating Temperature

110
