MULTILAYER CHIP VARISTOR
For Surge Protection
Size 0603
VZ0603 Green Material Series
*Contents in this sheet are subject to change without prior notice.
Page 1 of 7
ASC_VZ0603 Green Series- V10
Jul. 2010
Approval sheet
DESCRIPTION
Walsin Multilayer Chip Varistor is a family of Transient Voltage Surge Suppression products.Today , electronic
circuits are becoming smaller and more sentive to external interference. Walsin Multilayer Chip Varistor is
designed to protect components from destruction of transients and ESD(Electronic Static Discharge). The wide
operating voltage and energy rage make Walsin Multilayer Chip Varistor suitable for numerous applications on
I/O protection , Vcc protectiion , Keyboard protection , LCD protection , Sensor protection…etc. The Walsin Chip
Varistor is manufactured by Multilayer fabrication technology providing excellent voltage clamping ability and is
supplied in leadless , surface mount form , compatible with modern reflow and wave soldering procedures.
FEATURES
1.
2.
3.
4.
5.
Multilayer fabrication technology
-55℃to 125℃ operating temperature Range
Operating voltage range V
M(DC)
at 5.5V ~ 38V
Able to withstand ESD test of IEC-61000-4-2
Bi-directional clamping characteristic
APPLICATIONS
1.
2.
3.
Protection of cellular phones, PDA, High Speed Data Line…etc.
ESD Protection for components sensitive to IEC 61000-4-2, Provides Circuit Board Transient Voltage
Protection for Transistors.
Protection of Video & Audio Ports.

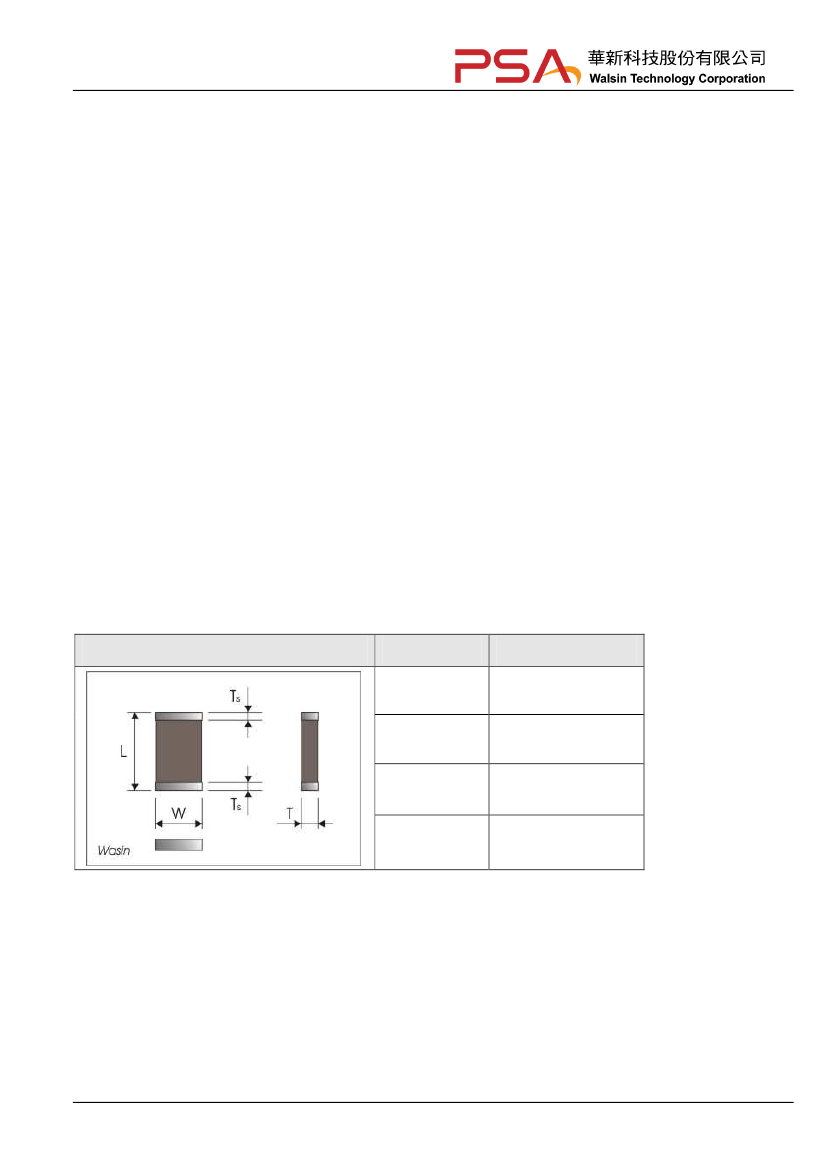

DIMENSIONS
Figure
Symbol
L
VZ0603 Series
1.60 ± 0.15 mm
W
0.80 ± 0.15 mm
T
0.90 mm (max.)
T
s
0.35 ± 0.15 mm
*Terminal electrode：Ni / Sn electrode
Page 2 of 7
ASC_VZ0603 Green Series- V10
Jul. 2010
Approval sheet
DEVICE RATING AND SPECIFICATIONS
MAXIMUM RATINGS
Maximum Non-
Max. Continuous Repetitive Surge
Current
Working Voltage
(8/20μs)
Maximum Non-
Repetitive Surge
Energy
(10/1000μs)
Max.
Claming
Voltage at
Specified
Current
(8/20μs)
Vc
(V)
20 at 1A
23 at 1A
30 at 1A
39 at 1A
54 at 1A
65 at 1A
77 at 1A
SPECIFICATIONS
Typical
Capacitance
@1KHz
V
N(DC)
Min
.
(V)
8
10.2
15.3
21.6
29.7
35.1
42.3
V
N(DC)
Max.
(V)
11
13.8
20.7
26.4
36.3
42.9
51.7
C
(pF)
800
680
350
270
200
120
100
Part Number
Nominal Voltage
At 1mA (DC) Current
V
M(DC)
(V)
V
M(AC)
(V)
4
6
11
14
20
25
30
I
TM
(A)
30
30
30
30
30
30
30
W
TM
(J)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
VZ0603M050AGT
VZ0603M090AGT
VZ0603M140AGT
VZ0603M180AGT
VZ0603M260AGT
VZ0603M300AGT
VZ0603M380AGT
5.5
9
14
18
26
30
38
STANDARD TESTING CONDITION
Unless otherwise specified
Temperature：15 ~ 35°C
Humidity：25%RH ~ 85%RH
Atmospheric pressure：86kPa ~ 106kPa
Page 3 of 7
ASC_VZ0603 Green Series- V10
Jul. 2010
Approval sheet

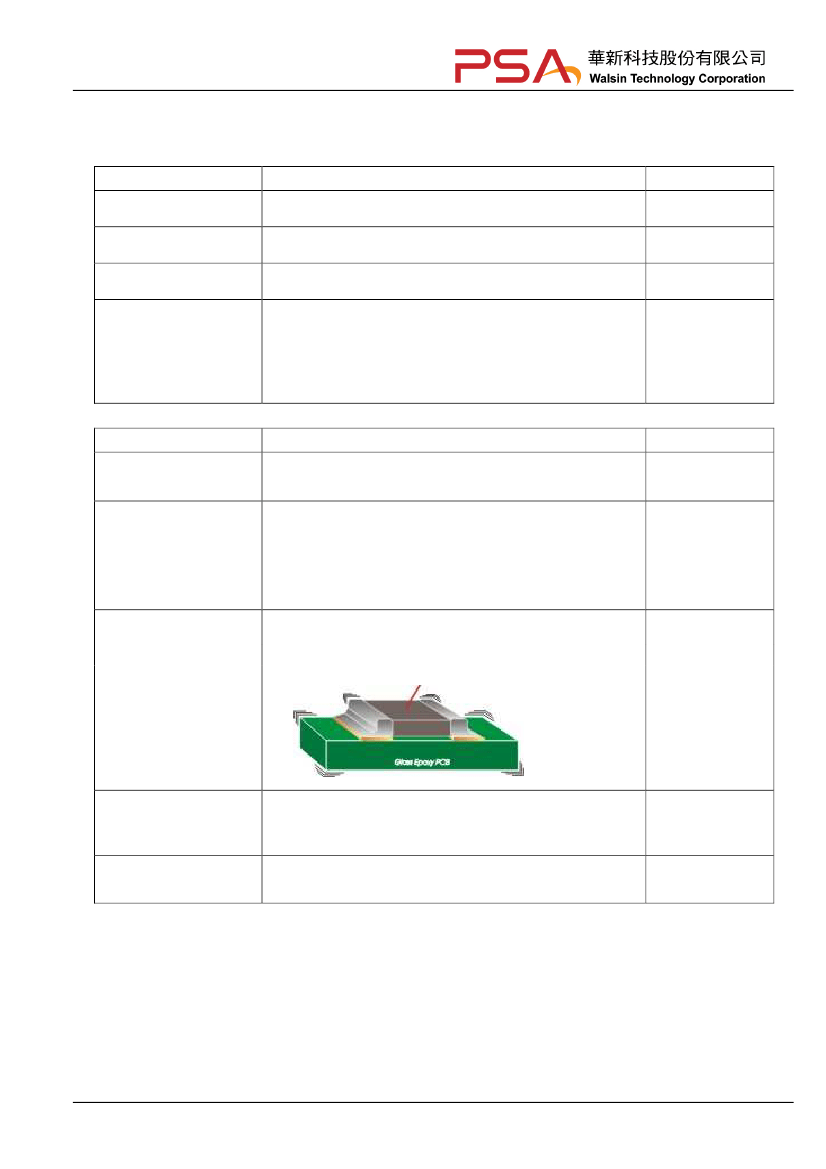

SPECIFICATION
1.
Electrical Reliability
Test item
High temperature storage
Low temperature storage
Humidity storage
Temperature cycles
Test condition / Test method
+125±3℃ for 1000 hours
Measurement to be made after keeping at room temp. for 24 ±2hr
-40±3℃ for 1000 hours
Measurement to be made after keeping at room temp. for 24 ±2h
40±2℃ , 90 ~95%RH for 500 hours
Measurement to be made after keeping at room temp. for 24 ±2h
Times：5 cycles
Step
Temp.(℃)
Time(min.)
1
-55±3
30±3
2
room temp.
2~3
3
+125±3℃
30±2
4
room temp.
2~3
Measurement to be made after keeping axt room temp. for 24 ±2h
Specification
△V
at 1mA
＜
10%
△V
at 1mA
＜
10%
△V
at 1mA
＜
10%
△V
at 1mA
＜
10%
2.
Mechanical Reliability
Test item
Solderability
Test condition / Test method
Solder temp.：230±5°C
Immersion time：2±0.5 sec
Immersion and emersion rates：25mm/s
Pre-heating：120~ 150℃ , 60 sec
Solder temp.：260±5°C
Immersion time：10±1 sec
Measurement to be made after keeping at room temp. for 24 ±2h
Specification
Min 90% electrode shall
be covered with solder.
△V
at 1mA
＜
10%
Disappearance of
electrode due to
immersion into solder
shall not exceed 25% of
edges of each
electrode.
No visible damage
Resistance to Soldering Heat
Adhesive Strength of
Termination
Solder chip on PCB and applied
0805/1206 Series: 10N(1Kgf) for 10 sec
0402/0603 Series: 5N(0.5Kgf) for 10 sec
Chip varistor
Vibration
Solder chip on PCB.
Frequency：10 Hz½55 Hz½10 Hz (1min)
Oscillation amplitude：1.5 mm
Times：2 hrs in each of three perpendicular direction
No visible damage
Bending Test
The middle part of substrate shall be pressurized by means of the No visible damage
pressurizing rod at a rate of 1mm per second until the deflection becomes 1
△V
at 1mA
＜
10%
mm and then the pressure shall be maintained for 5 sec..
Page 4 of 7
ASC_VZ0603 Green Series- V10
Jul. 2010
Approval sheet
SOLDERING CONDITION

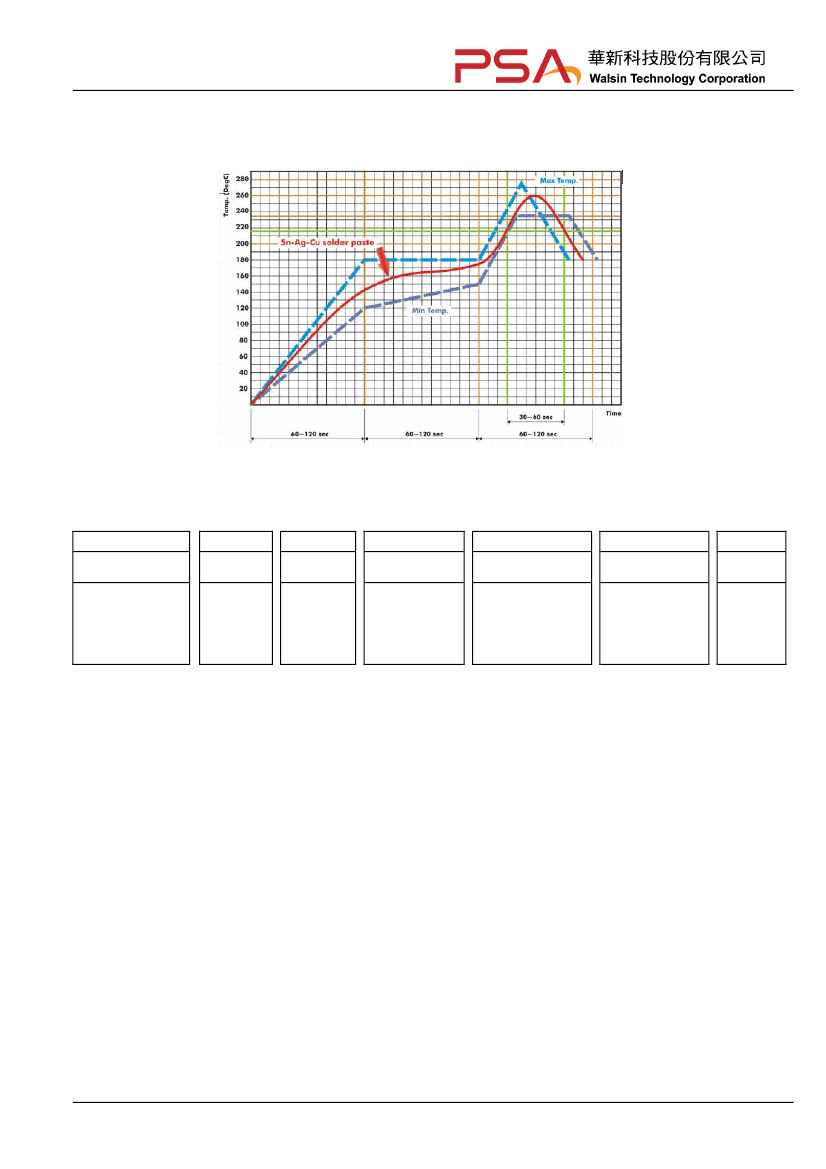

Typical examples of soldering processes that provide reliable joints without any damage are given in figure below:
Infrared soldering profile
ORDERING CODE
VZ
Type Code
VZ: Walsin Varistor
0603
Chip Size
0402
0603
M
Style
M: Multilayer
A: Array
050
Rated Voltage
050 = 5.5V
070 = 7V
090 = 9V
140 = 14V
180 = 18V
A
Capacitance
Tolerance
A: Standard
G
Termination
G: Green Material
T
Packing
T: Reeled
B: Bulk
Page 5 of 7
ASC_VZ0603 Green Series- V10
Jul. 2010
