0603X7R123KT1AT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size59KB，2 Pages; ManufacturerATC [American Technical Ceramics]; Environmental Compliance

Download Datasheet Parametric View All

0603X7R123KT1AT Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.012uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

0603X7R123KT1AT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.89 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

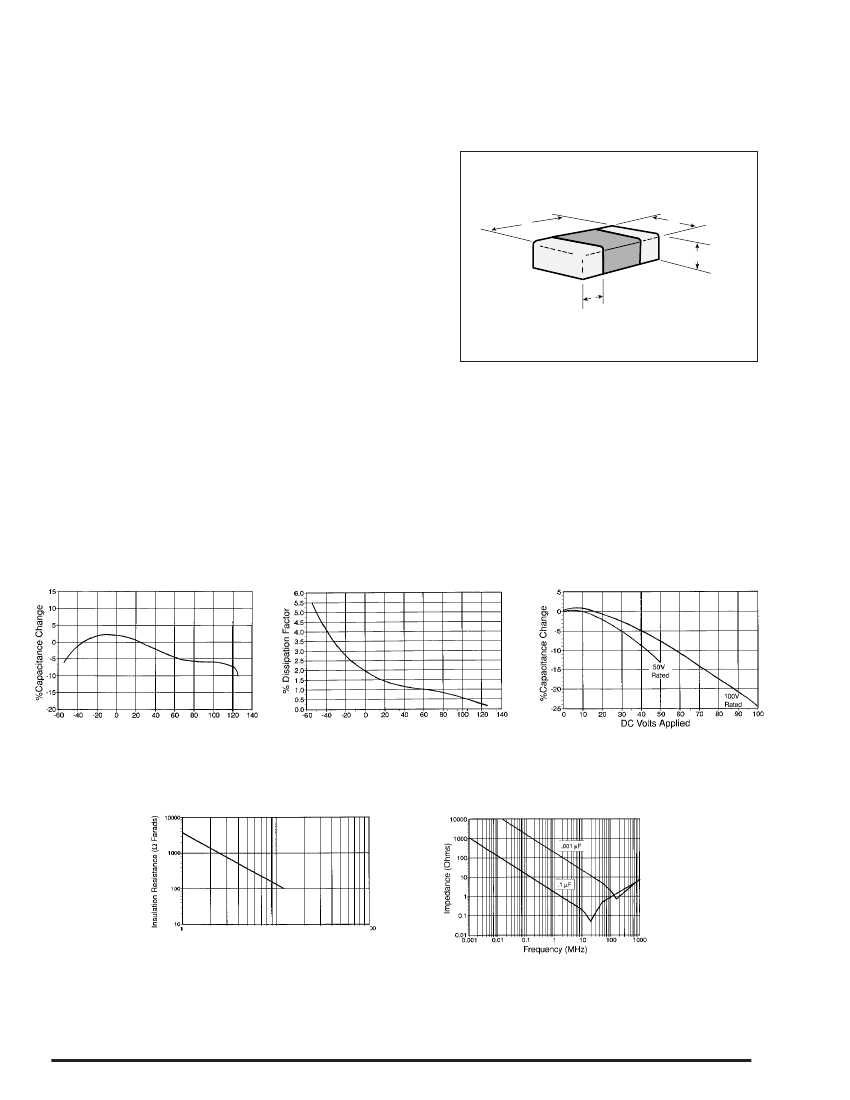

ATC GENERAL PURPOSE CAPACITORS: X7R DIELECTRIC

ELECTRICAL CHARACTERISTICS

CAPACITANCE RANGE:

220 pF to 2.2 µF.

TEMPERATURE CHARACTERISTIC:

± 15% with 0 Vdc applied.

OPERATING TEMPERATURE RANGE:

-55°C to +125°C.

DISSIPATION FACTOR:

2.5% (max.) @ 25°C,

@1 MHz

≤

1000 pF; @1 KHz >1000 pF

INSULATION RESISTANCE

@ + 25°C and rated Vdc:

100,000 megohms (min.) or 1000 ohm-farads (min.), whichever is less.

DIELECTRIC WITHSTANDING VOLTAGE:

250% of rated voltage

for 5 ± 1 seconds, 50 milliamps (max.).

AGING RATE:

1% (maximum) per decade.

Unless otherwise specified all test data is at + 25°C.

MB

L

W

T (MAX.)

Temperature Coefficient of Capacitance

Dissipation Factor vs. Temperature

Voltage Coefficient of Capacitance

Temperature (Celsius)

Minimum IR vs. Temperature

Impedance vs. Frequency

Temperature (Celsius)

A M E R I C A N

ATC North America

631-622-4700

•

sales@atceramics.com

T E C H N I C A L

ATC Europe

+46 8 6800410

•

sales@atceramics-europe.com

C E R A M I C S

ATC Asia

86-755-8366-4318

•

sales@atceramics-asia.com
