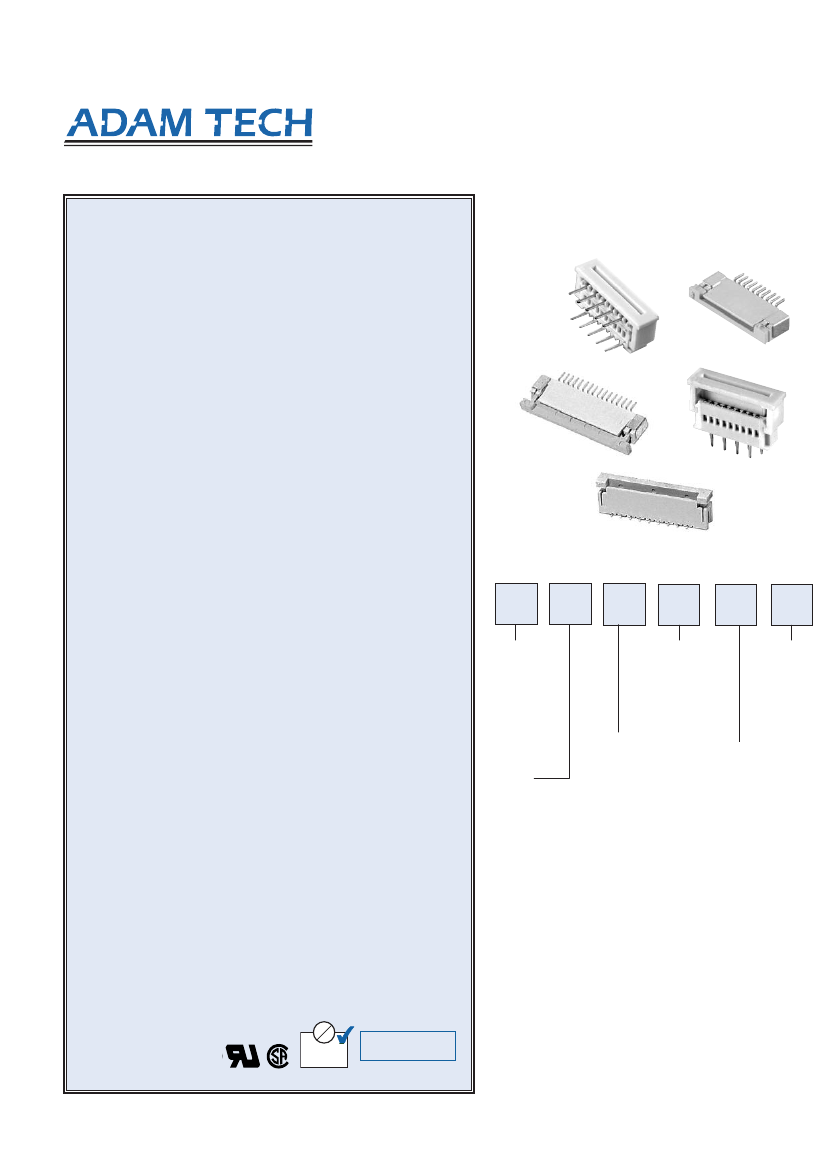

ZIF FLEX CIRCUIT CONNECTOR
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech PCA Series Flexible Printed Circuit (FPC) and Flexible
Flat Cable (FFC) connectors are ZIF (zero insertion force)
connectors designed to provide a fast, easy, reliable method to make
a connection of flexible printed circuits to a PCB. Adam Tech’s
special contact design completely preserves conductor integrity by
eliminating all wiping action while making connection. Flex circuitry
enters the connector and the connector cap is pressed down to
capture the flex circuit producing a stable, high pressure connection.
Raising the cap releases the pressure for exchange or replacement
of circuitry. This series includes single and dual row versions in
thru-hole or SMT mounting in vertical or horizontal orientations.
FEATURES:
Superior contact design protects conductors
High pressure contacts
Single or dual row versions
Choice of .020", .031", .039" and .049" centerlines
MATING FPC & FFC:
Mates with .020", .031", .039" and .049" centerline
flat flexible circuits with thickness range of 0.1mm to 0.3mm
SPECIFICATIONS:
Material:
Standard Hi-Temp Insulator: LCP, Glass reinforced, rated UL94V-0
Insulator color: Natural
Contacts: Phosphor Bronze
Contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 100V AC max.
Current rating:
.020" Spacing: 0.4 Amps max.
.031" & .039" Spacing: 0.5 Amps max
.049" Spacing: 1 Amp max
Contact resistance: 30 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion Force: 0 oz max
Withdrawal Force: 13 oz min
Temperature Rating:
Operating temperature: -40°C to +85°C
Soldering process temperature: 260°C
PACKAGING:
Anti-ESD plastic tubes or Tape and Reel
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
.020" [0.50] CENTERLINE
.031" [0.80] CENTERLINE
.039" [1.00] CENTERLINE
.049" [1.25] CENTERLINE
PCA SERIES
ORDERING INFORMATION
PCA
SERIES
INDICATOR
PCA
=
ZIF Flex
Circuit
Connector
1
10
V
3
20
PCB ROW
SPACING
20
= 2.0mm
Leave blank
for SMT
ENTRY ANGLE
V
= Top entry
HL
= Side entry,
lower contact
HU
= Side entry,
upper contact
POSITIONS
03 thru 30
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
TYPE
1
= .049” centerline thru-hole
2
= .039” centerline SMT
(body height 2.0mm)
2A
= .039” centerline SMT
(body height 1.5mm)
2B
= .039” centerline SMT
(body height 1.2mm)
3
= .039" centerline thru-hole
4
= .049" centerline SMT
5
= .031" centerline SMT
6
= .020" centerline SMT
(body height 2.0mm)
6A
= .020" centerline SMT
(body height 1.5mm)
6B
= .020" centerline SMT
(body height 1.2mm)
6C
= .020" centerline SMT
(body height 1.0mm)
7
= .012" centerline SMT
FLEX CIRCUIT THICKNESS
3
= 0.1mm thru 0.3mm
(standard for all types)
OPTIONS:
Add designator(s) to end of part number
TR
= Tape and reel packaging
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
197
