GP10685%R: DescriptionRESISTOR, WIRE WOUND, 10W, 5%, 30ppm, 68ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size88KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

GP10685%R Overview

RESISTOR, WIRE WOUND, 10W, 5%, 30ppm, 68ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

GP10685%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e3
Manufacturer's serial number	GP
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	10 W
Rated temperature	70 °C
resistance	68 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	30 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	800 V
Base Number Matches	1

Preview

Download Datasheet

View All

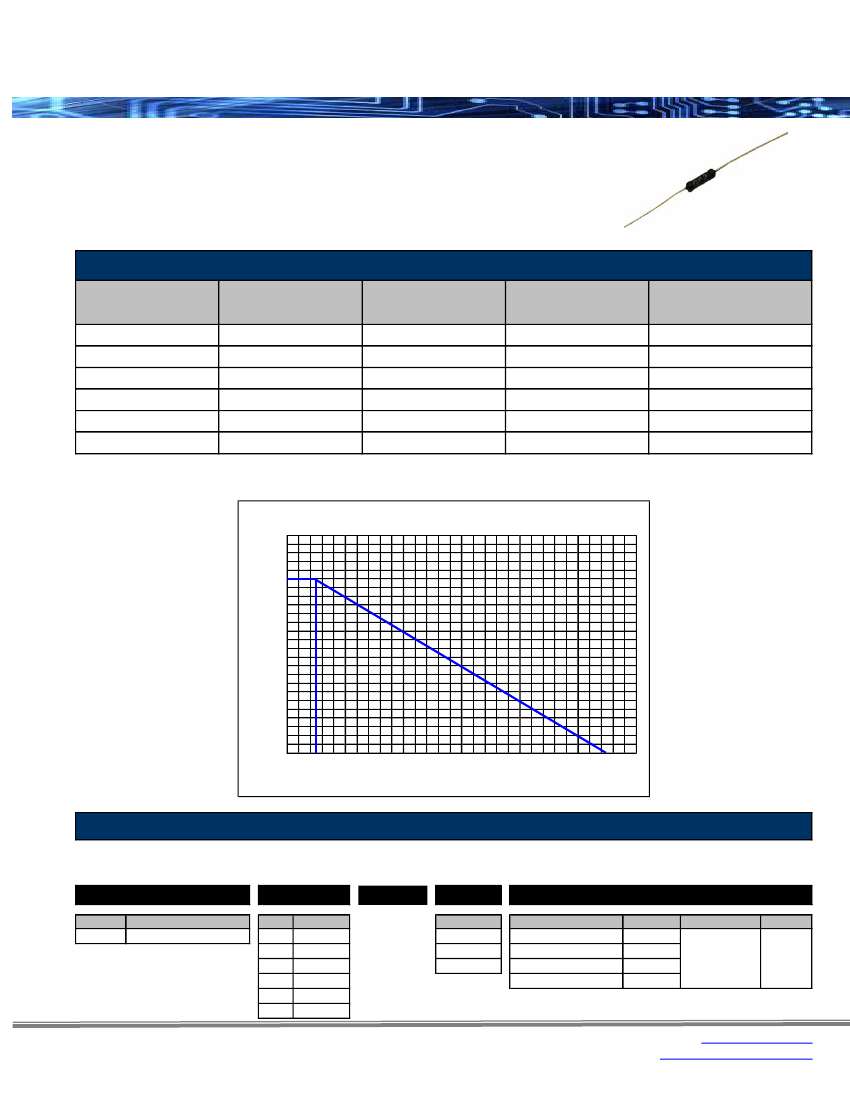

GP Series

Commercial Grade – Conformal Coated

Features:

•

Stackpole Electronics, Inc.

Resistive Product Solutions

Low cost power resistor

All welded construction

Non-flammable silicone coating

RoHS compliant / lead-free

Note: NOT available in non-inductive or fusible

Electrical Specifications

Type / Code

GP 1

GP 2

GP 3

GP 5

GP 7

Power Rating (Watts)

@ 70ºC

1.0 W

2.5 W

3.0 W

5.0 W

7.0 W

Maximum Working

Voltage (V)1

100V

200V

400V

600V

Dielectric Withstanding

Voltage (V)

500 VAC

1,000 VAC

Ohmic Range and Tolerance

2%, 5%, 10%

1Ω - 1KΩ

1Ω - 2KΩ

1Ω - 3KΩ

1Ω - 10KΩ

1Ω - 20KΩ

GP10

10.0 W

800V

1

Voltage rating is the lesser of Maximum Working Voltage or

√PR

Standard TCR as follows: 50ppm/º below 10Ω, 30ppm/ºC above 10Ω

Power Derating Curve

Percent Rated Power (%)

100

85

50

25

0

25

50

100

150

200

250

275

300

Ambient Temperature (ºC)

How to Order

SEI Type

Code

Nominal

Resistance

Tolerance

Packaging

GP

Type

GP

Description

Conformal Coated WW

1

Code Wattage

1

1.0W

2

2.5W

3

3.0W

5

5.0W

7

7.0W

10

10.0W

1K

2%

Tolerance

2%

5%

10%

Types

GP1

GP 2, GP 3

GP 5, GP 7

GP 10

R

Qty

2,500

2,000

500

250

Description

11" Flange

Code

R

Rev Date: 12/2/2009

This specification may be changed at any time without prior notice

.

Please confirm technical specifications before you order and/or use.

www.seielect.com

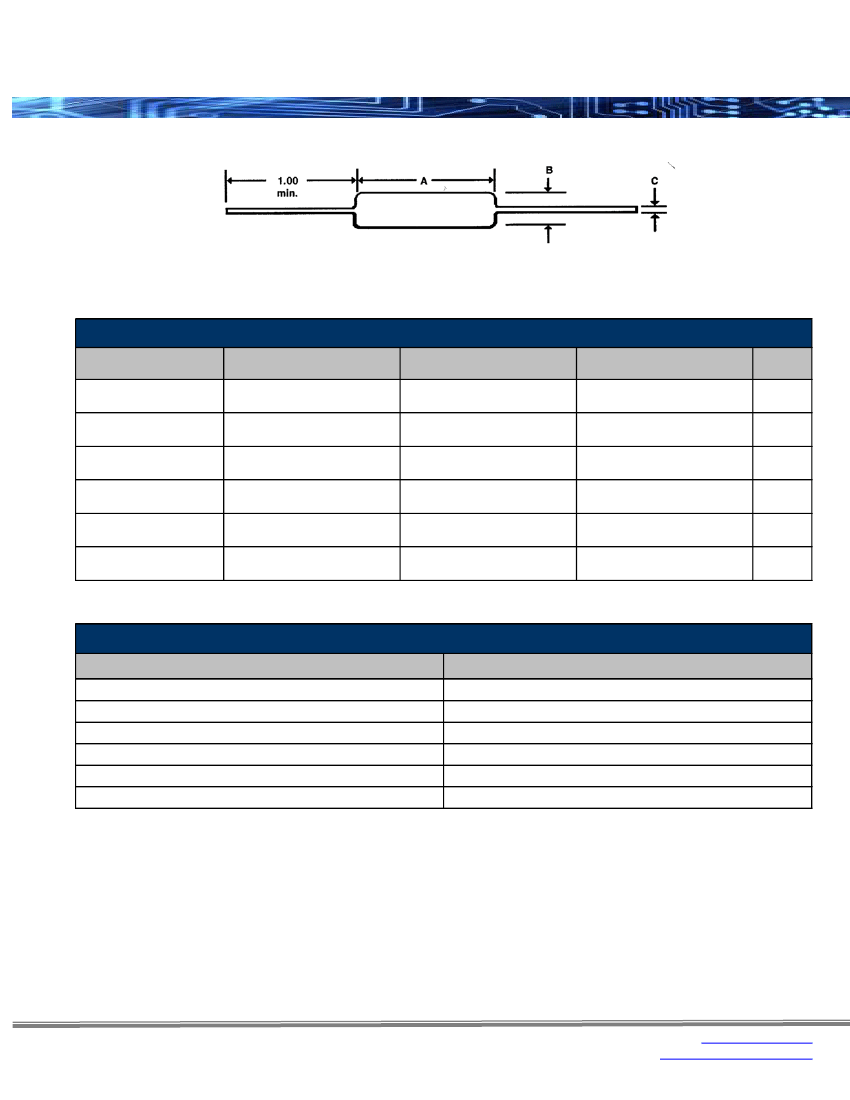

marketing@seielect.com
