53M15-05-1-12N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 53M15-05-1-12N

53M15-05-1-12N: DescriptionRotary Switch, 12 Positions, SP12T, Latched, 0.25A, 28VDC, Screw Terminal, Flat Shaft Type Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size375KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

53M15-05-1-12N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53M15-05-1-12N	-	-	View	Buy Now

53M15-05-1-12N Overview

Rotary Switch, 12 Positions, SP12T, Latched, 0.25A, 28VDC, Screw Terminal, Flat Shaft Type Actuator, Panel Mount,

53M15-05-1-12N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	16 weeks
Actuator type	FLAT SHAFT TYPE
body height	56.29 mm
Body length or diameter	32.54 mm
Contact (AC) maximum rated R load	.05A@115VAC
Maximum contact current (AC)	0.05 A
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	.25A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	10000 Cycle(s)
Graduation angle	15 deg
JESD-609 code	e4
Installation features	PANEL MOUNT
Number of positions	12
Number of switching segments	5
surface mount	NO
Switch action	LATCHED
switch function	SP12T
Switch type	ROTARY SWITCH
Terminal surface	Gold (Au)
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Multi-Deck Rotary Switches

SERIES 53, 57 and 59

1.125" Diameter, 1/4 Amp

FEATURES

• Smallest Diameter Rotary Switch

with this Number of Positions and

Current Capacity

• Military Qualified MIL-DTL-3786/36

• Gold-plated Contact System

Compatible with Logic Circuitry

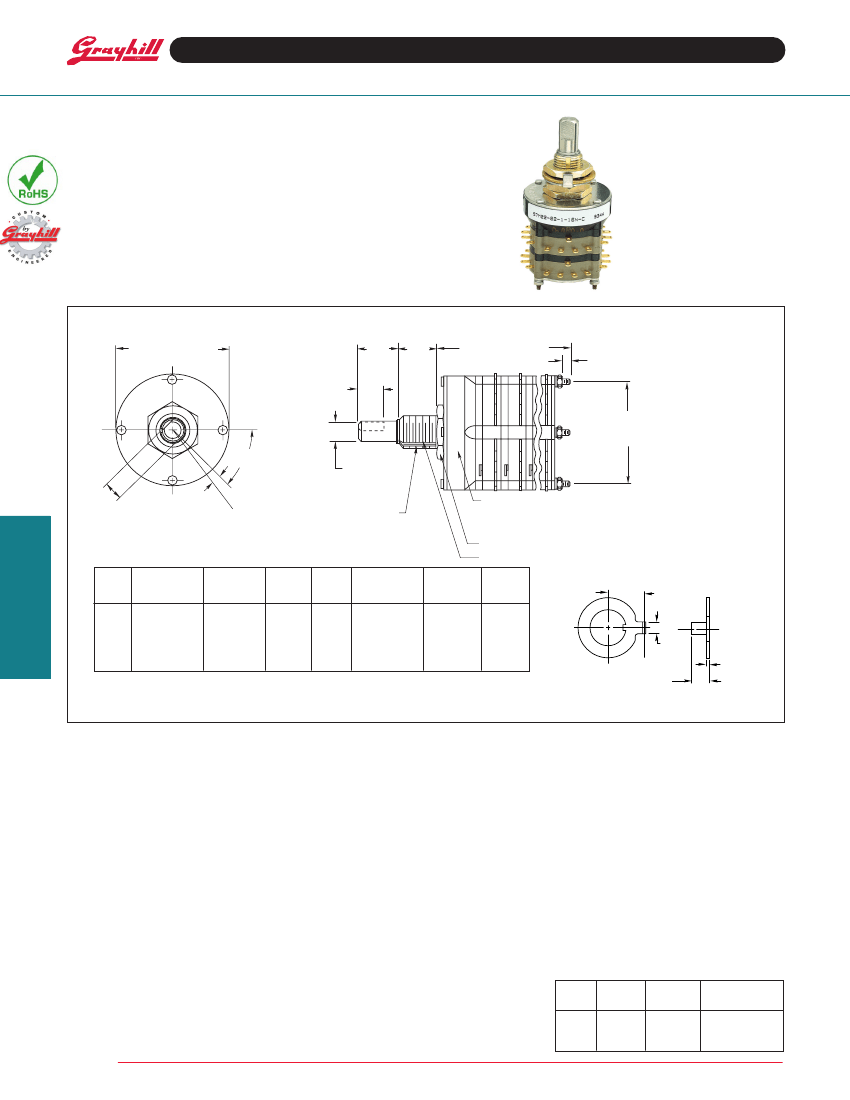

DIMENSIONS

In inches (and millimeters)

Military Style

Ser.

53—1.281 (32,54)

Ser.

57 & 59—

1.125 ± .010 (28,58 ± 0,25)

.250 ± .020

(6,35 ± 0,51)

1.000 (25.4)

SER.

57 & 59

1.156 (29.36)

SER.

± .010 (0,25)

.250 + .001

–.002 DIA.

(6,35 + 0,03

–0,05)

BUSHING KEYWAY

.066 ± .002 (1,68 ± 0,05) WIDE

BY .036 ± .003 (0,91 ± 0,08)

DEEP FROM A .375 (9,53) DIA.

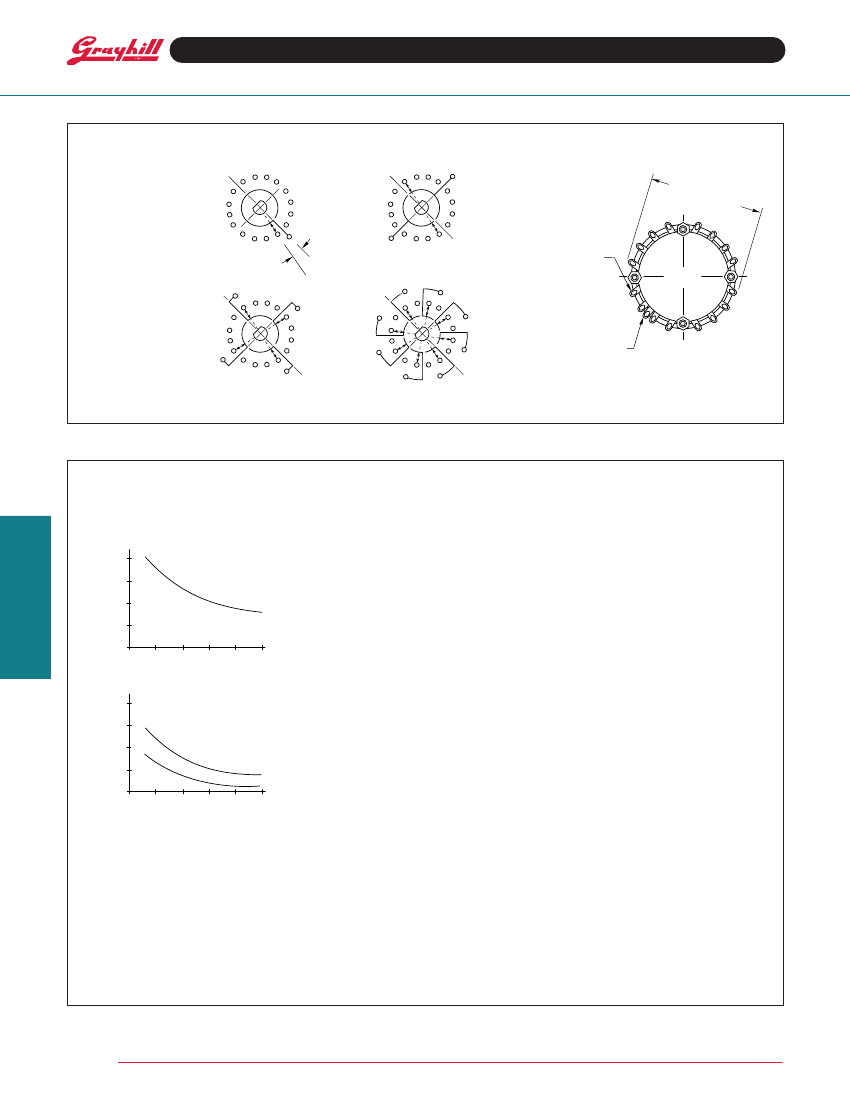

Rear views

shown with circuit

diagrams

.437

±.020

(11,10

±0,51)

.437

±.020

(11,10

±0,51)

DIM. A

+ .046 (1,17)

– .020 (0,51)

DIM. B REF.

STUD

PROJECTION

45°

.219 ± .004

(5.56 ± 0,10)

SEE

CIRCUIT

DIAGRAM

OF BUSHING

KEYWAY

OF POSITION

NO. 1

MILITARY NUMBERS MARKED HERE

INTEGRAL ASSEMBLY NUT. DO NOT REMOVE.

3/8-32

UNEF-2A THREAD

Rotary Switches

Rotary

No. of

Decks

Dimension

.916 (23,27)

1.249 (31,72)

1.582 (40,18)

1.915 (48,64)

2.248 (57,10)

2.831 (71,91)

Dimension

.032

.281

(0,81)

(7,14)

Approx.

Weight

Grams

100

No. of

Decks

Dimension

3.164

3.497

3.830

4.163

4.496

4.829

(80,37)

(88,82)

(97,28)

(105,74)

(114,20)

(122,66)

Dimension

.281

(7,14)

Approx.

Weight

Grams

110

120

130

140

150

160

Non-Turn Washer Detail D

.375 ± .005

(9,53 ± 0,13)

Mounting Hardware:

Two mounting nuts, .094" (2,39) thick by .562" (14,27) across flats, one internal tooth lockwasher

and one non-turn washer (see detail D for dimensions), are supplied with switch.

Grayhill part number and date code marked on detent cover label. Customer part number marked on request. Military

part number marked when required.

.125

± .003

(3,18

± 0,08)

STYLE M—.187 (4,75)

STYLE HS—.125 (3,18)

± .010 (0,25)

.032 ± .003

(0,81 ± 0,08)

STANDARD STYLE

MILITARY QUALIFIED

The Series 53, 57 and 59 rotary switches are all

military type switches. Grayhill manufactures

these switches in two styles: M and HS. Style M

is unsealed and is

not

qualified; Style HS is shaft

and panel sealed and

qualified. The non-

qualified Style M can be regarded as our

Standard Style for types of switches. Although

it is not qualified, Style M is constructed of the

same military grade materials and will provide

comparable performance in all areas. For

example, the Style ‘M’ switches, in addition to

the electrical ratings listed elsewhere in these

pages, will meet the following requirements of

MIL-DTL-3786:

Moisture Resistance: Medium and High Shock;

Vibration (10 to 500 cps); Thermal Shock (-65

°C to 125 °C); Salt Spray; Explosion; Terminal

Strength (pull, 2 lbs. minimum); and Stop

Strength (15 pound-inches minimum).

The line drawings shown above are applicable

to the Style M and Style HS. The only difference

between the two is the length of the tab of the

non-turn washer. The shorter tab for the HS is

explained in the following paragraph.

The Series 53, 57 and 59 Style HS rotary

switches are qualified to MIL-DTL-3786/36. The

Style HS is shaft and panel sealed. The panel is

sealed by an O-ring at the base of the bushing.

The shaft is sealed by an O-ring inside the

bushing. These seals do not alter the dimensions

shown in the line drawings when the switch is

mounted.

A non-turn washer, supplied with the mounting

hardware, may be used with the Style HS

switches. It is suggested that the non-turn washer

be mounted in the following manner to preserve

the seal: from the front of the panel into a hole

that does not go through the panel.

The qualification of the Series 53, 57 and 59

rotary switches does not extend to all possible

combinations listed in the Choices and

Limitations chart. The limitations on the

qualification are described in the chart shown

below.

Standard variations, such as shaft and/or

bushing length, etc., that do not affect switch

performance can also be marked as qualified

product. For complete details contact Grayhill.

Military qualified Series 53, 57 and 59 Style HS

rotary switches may be ordered by the ‘M’

number listed in MIL-DTL-3786/36 or by the

Grayhill part number. Military style switches

will be marked to the specification.

Style HS Switches are MIL-DTL-3786/36

Qualified for the Following Characteristics

Series

Max. No.

of Decks

Max. No.

Poles/Deck

Max. No.

Total Poles/Switch

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
