CWR06HB106KA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CWR06HB106KA

CWR06HB106KA: DescriptionTantalum Capacitor, Polarized, Tantalum, 15V, 10% +Tol, 10% -Tol, 10uF, 2214; CategoryPassive components capacitor; File Size152KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

CWR06HB106KA Overview

Tantalum Capacitor, Polarized, Tantalum, 15V, 10% +Tol, 10% -Tol, 10uF, 2214

CWR06HB106KA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 2214
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	1.78 mm
JESD-609 code	e4
length	5.59 mm
Manufacturer's serial number	CWR06(HVOLT)
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	15 V
Guideline	MIL-PRF-55365/4
series	CWR06(H VOLT)
size code	2214
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
width	3.43 mm
Base Number Matches	1

Preview

Download Datasheet

View All

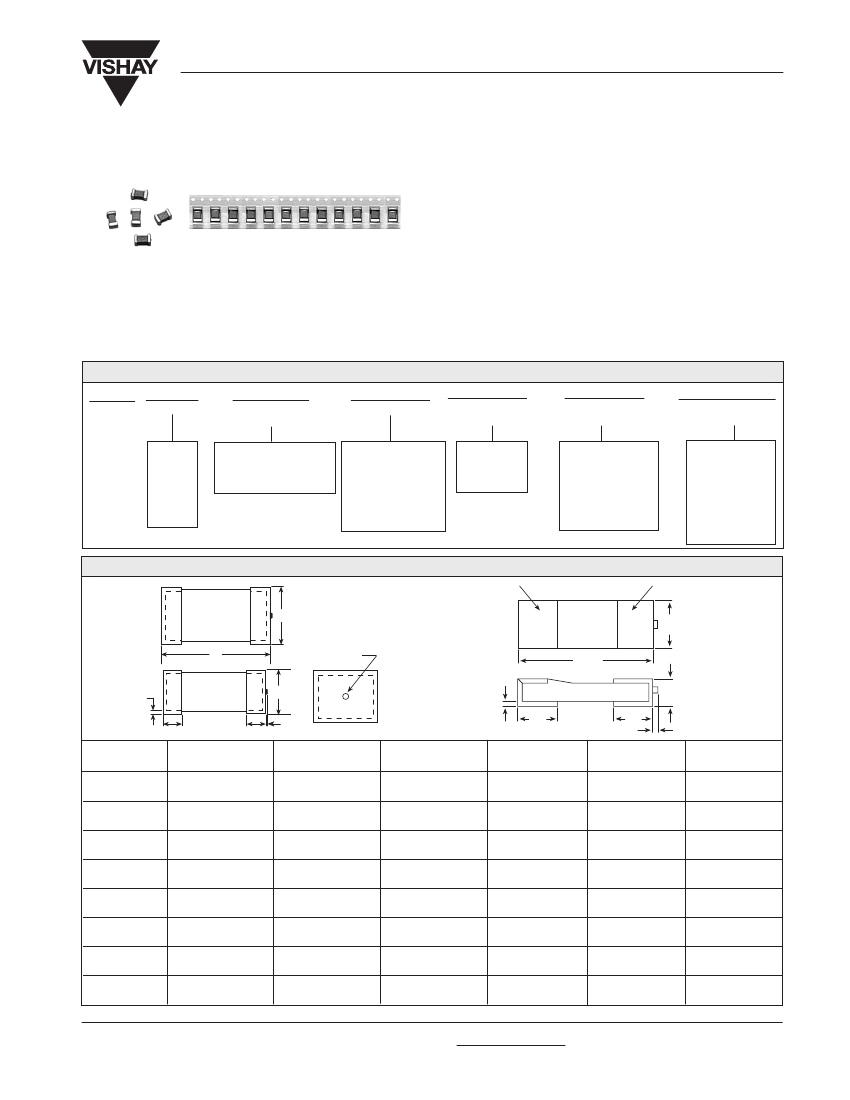

CWR06

Vishay Sprague

Solid Tantalum Chip Capacitors

IDGET

Military, MIL-PRF-55365/4 Qualified

FEATURES

•

Weibull Failure Rates B, C; Exponential M, P, R, S.

• Tape and Reel available per EIA 481-1 and-2.

• Termination finishes available; Gold Plate, 50µ inch

minimum (standard), Solder Plated Hot Solder Dipped.

PERFORMANCE CHARACTERISTICS

Operating Temperature:

- 55°C to + 85°C. (To + 125°C

with voltage derating.)

Capacitance Range:

0.10µF-100µF

Capacitance Tolerance:

10%,

20% standard.

available as special.

Voltage Rating:

4WVDC to 50WVDC.

ORDERING INFORMATION

CWR06

TYPE

VOLTAGE

TERMINATION

FINISH

B = Gold. Standard.

H = Solder Plate.

C = Solder Dipped

155

CAPACITANCE

TOLERANCE

K =

10%

M =

20%

J =

FAILURE RATE

%/1000 HOURS

A = Commercial

M = 1.0

P = 0.1

R = 0.01

S = 0.001

B = 0.1

C = 0.01

OPTIONAL

SURGE CURRENT

OPTIONS

A = 10 Cycles at

+ 25°C

B = 10 Cycles at

-55°C and

+ 85°C.

C = 10 Cycles at

-55°C and

+ 85°C

(Before Weibull

Grading).

C= 4 V

D= 6 V

F = 10V

H = 15 V

J = 20 V

K = 25 V

M= 35 V

N = 50 V

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

DIMENSIONS

in inches [millimeters]

Weld and

Dimple

Projection

Identifies

Anode (+)

Terminal

Max.

CASE

CODE

0.100

0.015

[2.54

0.38]

0.150

0.015

[3.81

0.38]

0.200

0.015

[5.08

0.38]

0.150

0.015

[3.81

0.38]

0.200

0.015

[5.08

0.38]

0.220

0.015

[5.59

0.38]

0.265

0.015

[6.73

0.38]

0.285

0.015

[7.24

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.100

0.015

[2.54

0.38]

0.100

0.015

[2.54

0.38]

0.135

0.015

[3.43

0.38]

0.110

0.015

[2.79

0.38]

0.150

0.015

[3.81

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.050

0.015

[1.27

0.38]

0.070

0.015

[1.78

0.38]

0.110

0.015

[2.79

0.38]

0.110

0.015

[2.79

0.38]

0.030

0.005

[0.76

0.13]

0.030

0.005

[0.76

0.13]

0.030

0.005

[0.76

0.13]

0.030

0.005

[0.76

0.13]

0.030

0.005

[0.76

0.13]

0.030

0.005

[0.76

0.13]

0.050

0.005

[1.27

0.13]

0.050

0.005

[1.27

0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

(Max.)

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

Note:

When solder coated terminations are required, add .015" [0.38mm] to termination dimension tolerances.

Document Number 40009

Revision 05-Jul-02

For technical questions, contact tantalum@vishay.com

www.vishay.com

133
