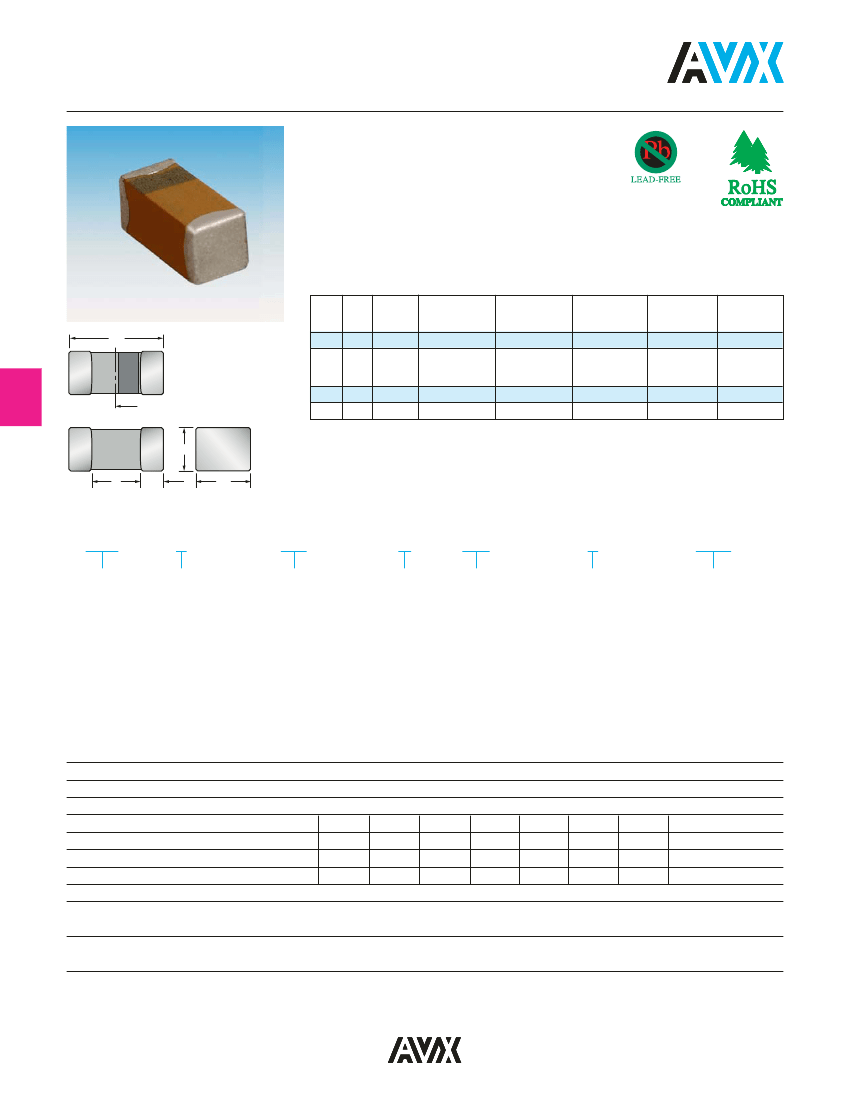

TPC Series
Low ESR TACmicrochip
®
•
•
•
•
•
Low ESR TACmicrochip® capacitor
Smallest and low profile tantalum
CV range: 1.0-100μF / 3-25V
4 case sizes available
Power supply applications
LEAD-FREE COMPATIBLE
COMPONENT
CASE DIMENSIONS:
millimeters (inches)
Code
EIA
EIA
Code Metric
0805
0402
0603
0805
2012-10
1005-07
1608-10
2012-15
Minimum
L+0.20 (0.008) W+0.15 (0.008) H+0.15 (0.008) Termination
Termination
-0.00 (0.000)
-0.00 (0.000) -0.00 (0.000) Spacing(S)
Length (Lt)
2.00 (0.079)
1.00 (0.039)
1.60 (0.063)
2.00 (0.079)
1.35 (0.053)
0.50
-0.00
+0.20
+0.008
L
H
%
K
L
%
R
1.00 (0.039) max 0.70 (0.028) min
0.50
-0.00
+0.20
+0.008
0.15 (0.006)
0.10 (0.004)
0.15 (0.006)
0.15 (0.006)
0.40 (0.016) min
0.55 (0.022) min
0.70 (0.028) min
(0.020
-0.000
)
0.85 (0.033)
1.35 (0.053)
POLARITY BAND NOT TO
EXCEED CENTER LINE
(0.020
-0.000
)
0.85 (0.033)
1.35 (0.053)
H
S
Lt
W
HOW TO ORDER
TPC
R
Type
TACmicrochip
®
Case Size
See table
above
106
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
K=±10%
M=±20%
010
Rated DC
Voltage
003=3Vdc
004=4Vdc
006=6.3Vdc
010=10Vdc
016=16Vdc
020=20Vdc
025=25Vdc
R
Packaging
R, P = 7" Standard Tin
Termination Plastic Tape
X, Q = 4
1
⁄
4
" Standard Tin
Termination Plastic Tape
A, M = 7" Gold Termination
Plastic Tape
F, N = 4
1
⁄
4
" Gold Termination
Plastic Tape
1800
ESR in mΩ
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Leakage Current DCL:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
Termination Finish:
All technical data relate to an ambient temperature of +25°C
1.0 μF to 100 μF
±10%; ±20%
0.01CV or 0.5μA whichever is the greater
3
4
6.3
10
16
20
25
2
2.7
4
7
10
13
17
3.9
5.2
8
13
20
26
32
2.6
3.2
5
8
12
16
20
-55°C to +125°C
1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance,
60% confidence level
Nickel and Tin Plating (standard),
Nickel and Gold Plating option available upon request
+85°C:
+125°C:
+85°C:
+125°C:
66
I
JUNE 2013
TPC Series
Low ESR TACmicrochip
®
LOW ESR RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
15
22
33
47
68
100
106
156
226
336
476
686
107
L(5000) /R(1800)
H(1500)
(M)
/R(1500)
(M)
3.0V
4.0V
Voltage Rating DC (V
R
) at 85°C
6.3V
10V
L(5000)
K(8000)/L(5000)
L(5000)
L(5000)
L(5000)
(M)
H(2500)
L(4000)
(M)
,R(1800)
R(1500)
R(1500)
R(1500)
(M)
16V
20V
25V
R(3000)
L(5000)
R(1500)
(M)
*
R(1800)
K(8000)
L(4000)
(M)
R(1800)
R(1500)
R(1800)
(M)
R(1000)
(M)
R(1800)
R(1500)
Codes shown are examples of ESR values offered on certain CV and case size.
Other codes and ESR values available upon request.
Released codes
(M tolerance only)
*Code under development – subject to change
Note: Voltage ratings are minimum values. AVX reserves the right to supply
higher ratings in the same case size, to the same reliability standards
JUNE 2013
I
67
TPC Series
Low ESR TACmicrochip
®
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
EIA
Case
Size
Cap
(μF)
Rated DCL
Voltage (μA)
(V)
Max.
DF
ESR
100kHz Ripple Current Ratings (A)
% Max. (mΩ) MSL
25°C
85°C
125°C
Max. @100kHz
100kHz Ripple Voltage Ratings (V)
25°C
85°C
125°C
TPCK475*003#8000 0402
TPCR336*003#1800 0805
TPCR476*003#1500 0805
TPCL226M004#5000
TPCR226*004#1800
TPCH336M004#1500
TPCR336*004#1500
TPCR107M004#1000
TPCK225*006#8000
TPCL225*006#5000
TPCL106M006#4000
TPCR156*006#1800
TPCR226*006#1500
TPCR476M006#1800
TPCL105*010#5000
TPCL225*010#5000
TPCL335*010#5000
TPCL475M010#5000
TPCH106*010#2500
TPCL106M010#4000
TPCR106*010#1800
TPCR156*010#1500
TPCR226*010#1500
TPCR336M010#1500
0603
0805
0805
0805
0805
0402
0603
0603
0805
0805
0805
0603
0603
0603
0603
0805
0603
0805
0805
0805
0805
K
R
R
L
R
H
R
R
K
L
L
R
R
R
L
L
L
L
H
L
R
R
R
R
L
R
R
R
4.7
33
47
22
22
33
33
100
2.2
2.2
10
15
22
47
1.0
2.2
3.3
4.7
10
10
10
15
22
33
2.2
10
4.7
1.0
3
3
3
4
4
4
4
4
6.3
6.3
6.3
6.3
6.3
6.3
10
10
10
10
10
10
10
10
10
10
16
16
20
25
TPCL225*016#5000 0603
TPCR106*016#1800 0805
TPCR475M020#1500 0805
TPCR105*025#3000 0805
3 Volt @ 85ºC (2 Volt @ 125ºC)
12
8000
1
0.043
10
1800
1
0.158
10
1500
1
0.173
4 Volt @ 85ºC (2.7 Volt @ 125ºC)
0.9
6
5000
1
0.071
0.9
8
1800
1
0.158
1.3
14
1500
1
0.163
1.3
10
1500
1
0.173
4.0
30
1000
1
0.212
6.3 Volt @ 85ºC (4 Volt @ 125ºC)
0.5
8
8000
1
0.043
0.5
6
5000
1
0.071
0.6
10
4000
1
0.079
0.9
8
1800
1
0.158
1.4
10
1500
1
0.173
3.0
20
1800
1
0.158
10 Volt @ 85ºC (7 Volt @ 125ºC)
0.5
6
5000
1
0.071
0.5
6
5000
1
0.071
0.5
8
5000
1
0.071
0.5
10
5000
1
0.071
1.0
8
2500
1
0.126
1.0
20
4000
1
0.079
1.0
8
1800
1
0.158
1.5
10
1500
1
0.173
2.2
14
1500
1
0.173
3.3
20
1500
1
0.173
16 Volt @ 85ºC (10 Volt @ 125ºC)
0.5
10
5000
1
0.071
1.6
10
1800
1
0.158
20 Volt @ 85ºC (13 Volt @ 125ºC)
0.9
8
1500
1
0.173
25 Volt @ 85ºC (17 Volt @ 125ºC)
0.5
8
3000
1
0.122
0.5
1.0
1.5
0.039
0.142
0.156
0.064
0.142
0.147
0.156
0.191
0.039
0.064
0.071
0.142
0.156
0.142
0.064
0.064
0.064
0.064
0.113
0.071
0.142
0.156
0.156
0.156
0.064
0.142
0.156
0.110
0.017
0.063
0.069
0.028
0.063
0.065
0.069
0.085
0.017
0.028
0.032
0.063
0.069
0.063
0.028
0.028
0.028
0.028
0.050
0.032
0.063
0.069
0.069
0.069
0.028
0.063
0.069
0.049
0.346
0.285
0.260
0.354
0.285
0.245
0.260
0.212
0.346
0.354
0.316
0.285
0.260
0.285
0.354
0.354
0.354
0.354
0.100
0.316
0.285
0.260
0.260
0.260
0.354
0.285
0.260
0.367
0.312
0.256
0.234
0.318
0.256
0.221
0.234
0.191
0.312
0.318
0.285
0.256
0.234
0.256
0.318
0.318
0.318
0.318
0.09
0.285
0.256
0.234
0.234
0.234
0.318
0.256
0.234
0.331
0.139
0.114
0.104
0.141
0.114
0.098
0.104
0.085
0.139
0.141
0.126
0.114
0.104
0.114
0.141
0.141
0.141
0.141
0.040
0.126
0.114
0.104
0.104
0.104
0.141
0.114
0.104
0.147
Moisture Sensitivity Level (MSL) is defined according to J-STD-020.
All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
The EIA & CECC standards for low ESR Solid Tantalum Capacitors allow an ESR movement to 1.25 times catalogue limit post mounting.
For typical weight and composition see page 144.
NOTE: AVX reserves the right to supply a higher voltage rating or tighter tolerance part in the same case size, to the same reliability standards.
68
I
JUNE 2013
