40 WATT DC TO DC CONVERTERS
DESCRIPTION
The PD40 series of DC/DC converters provide up to 40 watts
of continuous output power. Available in three standard input
ranges of 10-30 VDC, 20-60 VDC and 30-90 VDC, they are
ideal for a variety of applications including telecoms, process
control,
portable
equipment
and
vehicle
mounted
instrumentation. All units are available in compact “open PCB”
or “enclosed” mechanical formats.
PD40 SERIES
F E ATU R E S
‧
‧
‧
‧
‧
‧
Low cost
Small size, light weight
100
﹪
burn-in
Overvoltage protection
Overcurrent protection
Three wide input ranges:
10-30 VDC, 20-60 VDC and 30-90 VDC
I N P U T S P E C I F I C ATI O N S
Input voltage
：
10 to 30 VDC
（
PD40 “L” series
）
20 to 60 VDC
（
PD40 “M” series
）
30 to 90 VDC
（
PD40 “H” series
）
2.5A
（
rms
）
for 24 VDC
1.3A
（
rms
）
for 48 VDC
0.84A
（
rms
）
for 72 VDC
E N V I R O N M E N TA L S P E C I F I C ATI O N S
Operating temperature
：
St o r a g e t e m p e r a t u r e
：
Relative humidity
：
Derating
：
0
℃
to +70
℃
-40
℃
to +85
℃
5
﹪
to 95
﹪
non-condensing
Derate from 100
﹪
at +50
℃
linearly to 50
﹪
at +70
℃
Input current
：
OUTPUT SPECIFICATIONS
Output voltage/current：
Total output power：
Ripple and noise：
Overvoltage protection：
See rating chart
40 watts maximum
1﹪ peak to peak max.
set at 112 - 132﹪ of its nominal
output voltage
All outputs protected to short
circuit conditions
All outputs ±0.04﹪ /℃
maximum
Maximum excursion of 4
﹪
or
better on all models, recovering
to 1
﹪
of final value within
500us after a 25
﹪
step load
change
GENERAL SPECIFICATIONS
Switching frequency：
Efficiency：
Line regulation：
Withstand voltage：
36KHz ±5KHz
70﹪ minimum at full load
±0.5﹪ maximum at full load
1000VDC from input to output
600,000 hours minimum at full load
at 25℃ ambient, calculated per
MIL-HDBK-217F
Overcurrent protection：
MTBF：
Temperature coefficient：
Transient response：
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Bldg. 13, Santa Clara, California 95054, USA
Phone: 408-988-6616
●
sales@trumpower.com
●
www.TRUMPower.com
DC TO DC CONVERTERS
OUTPUT VOLTAGE/CURRENT RATING CHART
PD40 SERIES
Maximum
(1)(2)
Output #1
Output #2
Output #3
Output
Model
Vnom. Imin.
Imax.
Tol.
Vnom.
Imin.
Imax.
Tol.
Vnom. Imin. Imax.
Tol.
Power(3)
PD40-10
5V
0A
8.0A
2%
(N/A)
(N/A)
40W
PD40-12
12V
0A
3.5A
1%
(N/A)
(N/A)
40W
PD40-13
15V
0A
3.0A
1%
(N/A)
(N/A)
40W
PD40-14
24V
0A
2.0A
1%
(N/A)
(N/A)
40W
PD40-23
+5V
0.5A
3.0A
3%
+12V
0.2A
2A
5%
(N/A)
40W
PD40-24
+5V
0.5A
3.0A
3%
+15V
0.2A
2A
5%
(N/A)
40W
PD40-25
+5V
0.5A
3.0A
3%
+24V
0.1A
1A
5%
(N/A)
40W
PD40-30
+5V
0.5A
3.0A
3%
+12V
0.2A
2A
5%
-5V
0A
0.8A
5%
40W
PD40-31
+5V
0.5A
3.0A
3%
+12V
0.2A
2A
5%
-12V
0A
0.8A
5%
40W
PD40-32
+5V
0.5A
3.0A
3%
+15V
0.2A
2A
5%
-15V
0A
0.8A
5%
40W
PD40-33
+5V
0.5A
3.0A
3%
+15V
0.2A
2A
5%
-12V
0A
0.8A
5%
40W
PD40-39
+5V
0.5A
3.0A
3%
+24V
0.1A
1A
5%
-12V
0A
0.8A
5%
40W
Notes: (1) All multi-output units may be operated at no-load without damage. At no-load, output tolerance increases to 10%.
(2) Suffix codes for mechanical format and input range are as follows. PD40-XXYZ; “XX” is the model code from the
above table, “Y” is the input range (L=10-30 VDC, M=20-60 VDC, H=30-90 VDC) and “Z” is the mechanical format
(A=open PCB, B=L-bracket, C=enclosed), e.g. PD40-31MC (20-60 VDC input range, enclosed).
(3) “L” series is suitable only for 75% of the above stated maximum output power.
MECHANICAL SPECIFICATIONS
NOTES:
1. Dimensions shown in inch [mm]
2. Tolerance 0.02 [0.5] maximum
3. Input connector mates with Molex housing
09-50-3041 and Molex 2878 series crimp terminal.
4. Output connector mates with Molex housing
09-50-3061 and Molex 2878 series crimp terminal.
5. Weight: 220 grams approx. (PCB format)

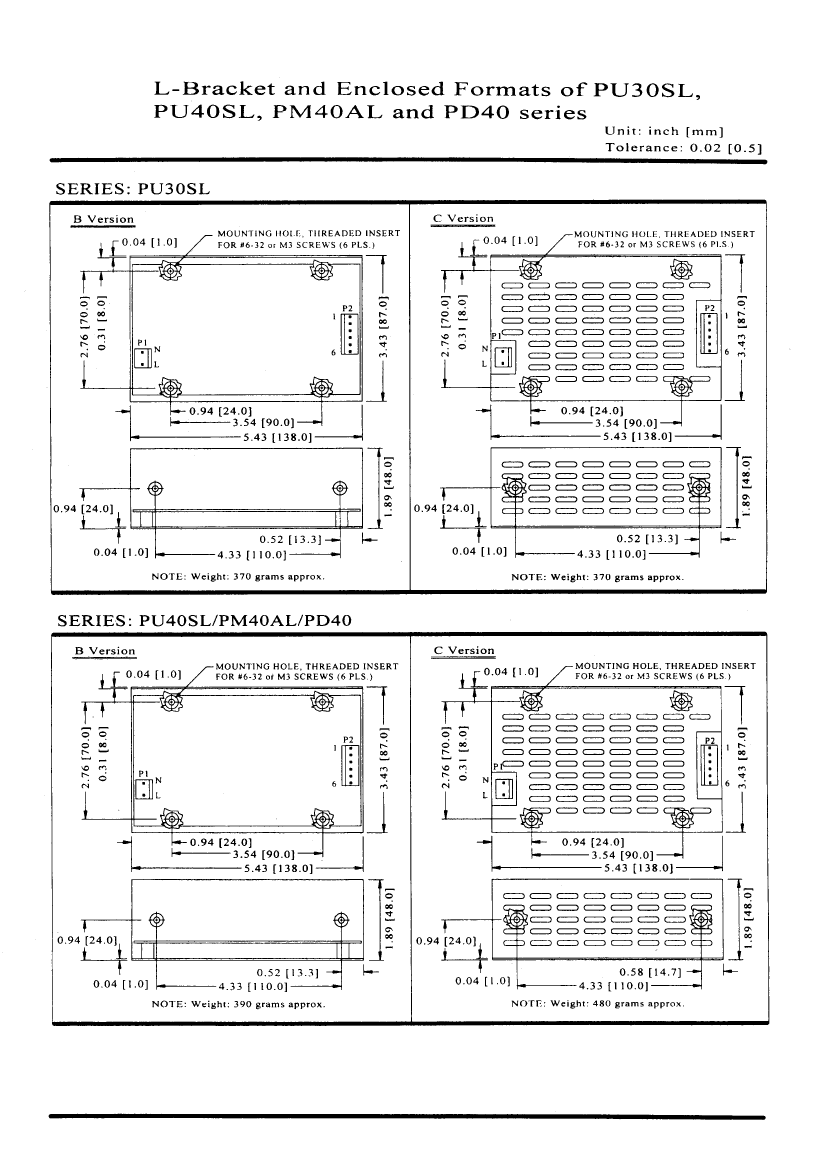

6. See the mechanical details of L-bracket and
enclosed formats in page 7-1.
PIN CHART
PIN
MODEL
PD40-10
PD40-13
PD40-23
PD40-25
PD40-30
PD40-32
PD40-39
PD40-12
PD40-14
PD40-24
PD40-31
PD40-33
1
2
3
4
5
6
OUTPUT
#1
OUTPUT
#2
OUTPUT
#2
OUTPUT
#1
OUTPUT
#1
OUTPUT
#1
OUTPUT
#1
OUTPUT
#1
OUTPUT
#1
RETURN
COMMON
RETURN
COMMON
RETURN
RETURN
COMMON
RETURN
COMMON
RETURN
RETURN
N.C.
OUTPUT
#3
